Product Description
Product Overview
- Manufacturer: Bently Nevada
- Model/Part Number: 3500/61 133819-02

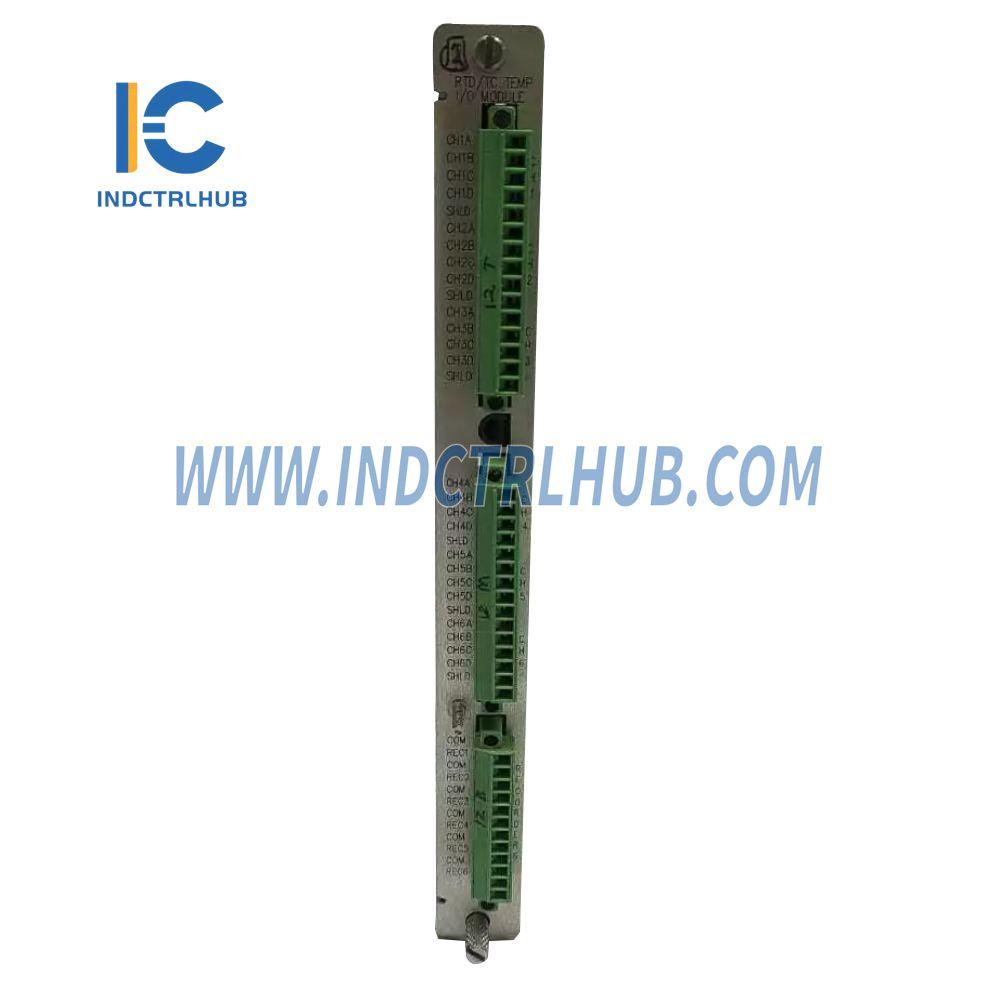

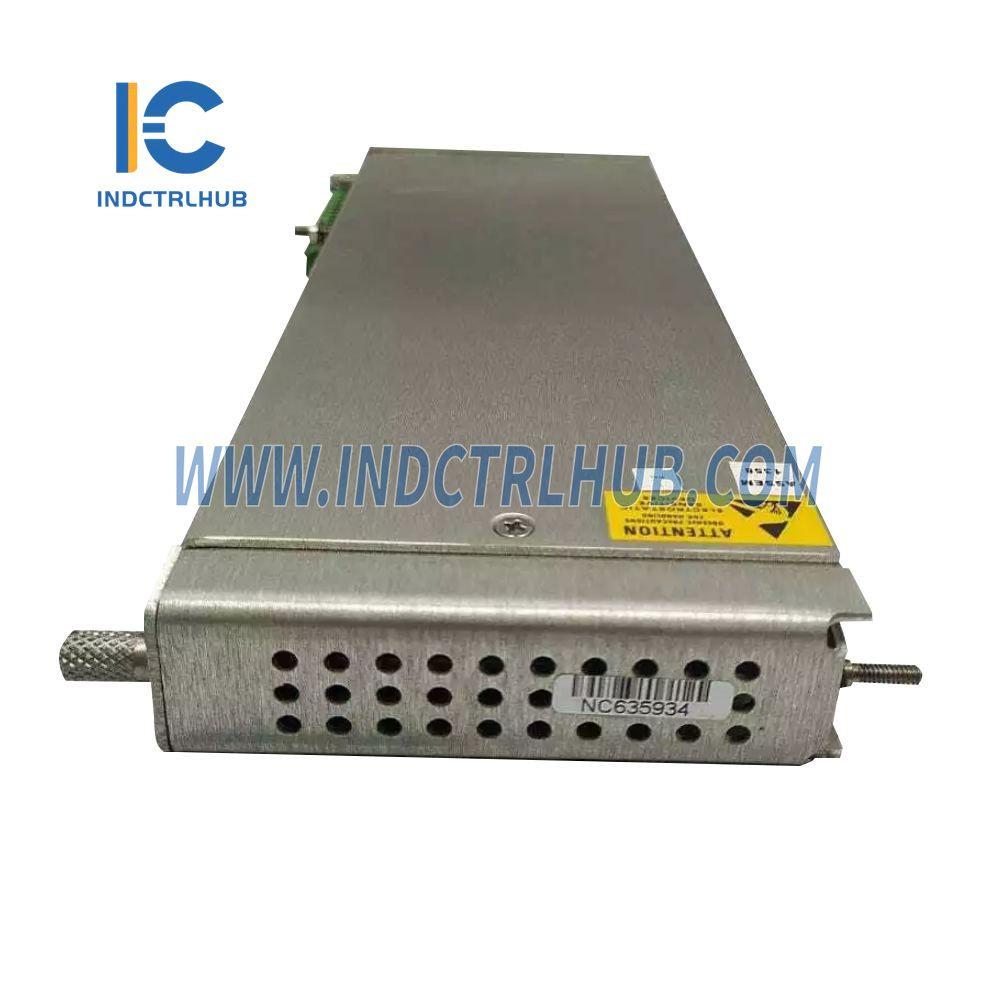

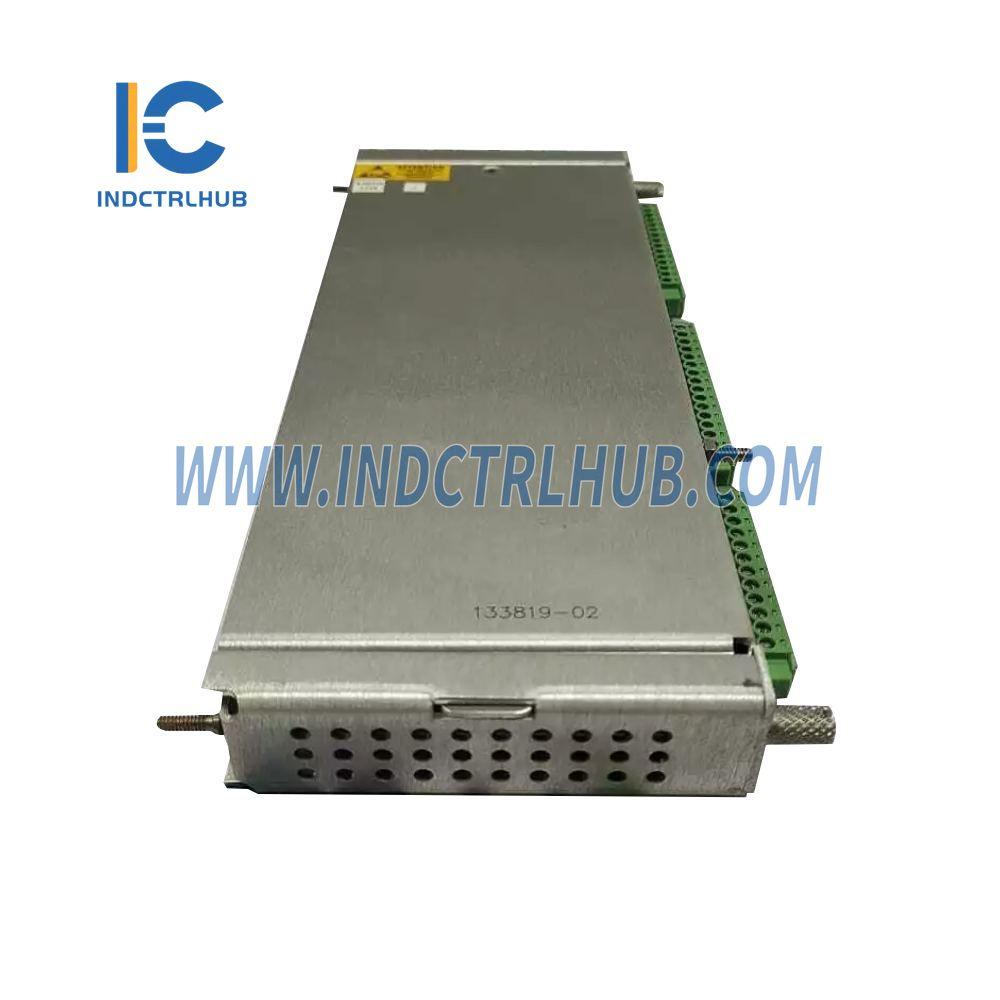

- Description: 3500/61 RTD/TC Non-Isolated I/O Module Internal Terminations
Inputs
- Signal Type: Accepts 1 to 6 RTD (Resistance Temperature Detector) or TC (Thermocouple) transducer signals.
- Input Impedance: 10 MΩ for each lead input.
Power Consumption
- 3500/61 Module: Nominal consumption of 9 watts.
Transducers and Isolation
- System Isolation: 500 Vdc
- Channel-to-Channel Isolation: 250 Vdc
- Notes: Isolation is required only for fault scenarios; these voltages are not present on the I/O module inputs under normal conditions.
Environmental Limits
| Parameter | Condition | Temperature Range |
|---|---|---|
| Operating Temperature | With Internal/External Termination I/O Modules | -30°C to +65°C (-22°F to +150°F) |
| With Internal Barrier I/O Modules (Internal Termination) | 0°C to +65°C (32°F to +150°F) | |
| Storage Temperature | - | -40°C to +85°C (-40°F to +185°F) |
Physical Dimensions
| Parameter | Dimensions (H x W x D) | Weight |
|---|---|---|
| I/O Modules | 241.3 mm x 24.4 mm x 99.1 mm | 0.45 kg (1.0 lb) |
| I/O Modules (with Internal Barrier) | 241.3 mm x 24.4 mm x 163.1 mm | 0.46 kg (1.01 lb) |
Rack Space Requirements
- I/O Modules: Occupies 1 full-height rear slot in the rack.
