Product Description
Product Details
- Manufacturer: Allen-Bradley
- Model/Part Number: SLC 500 1747-L543

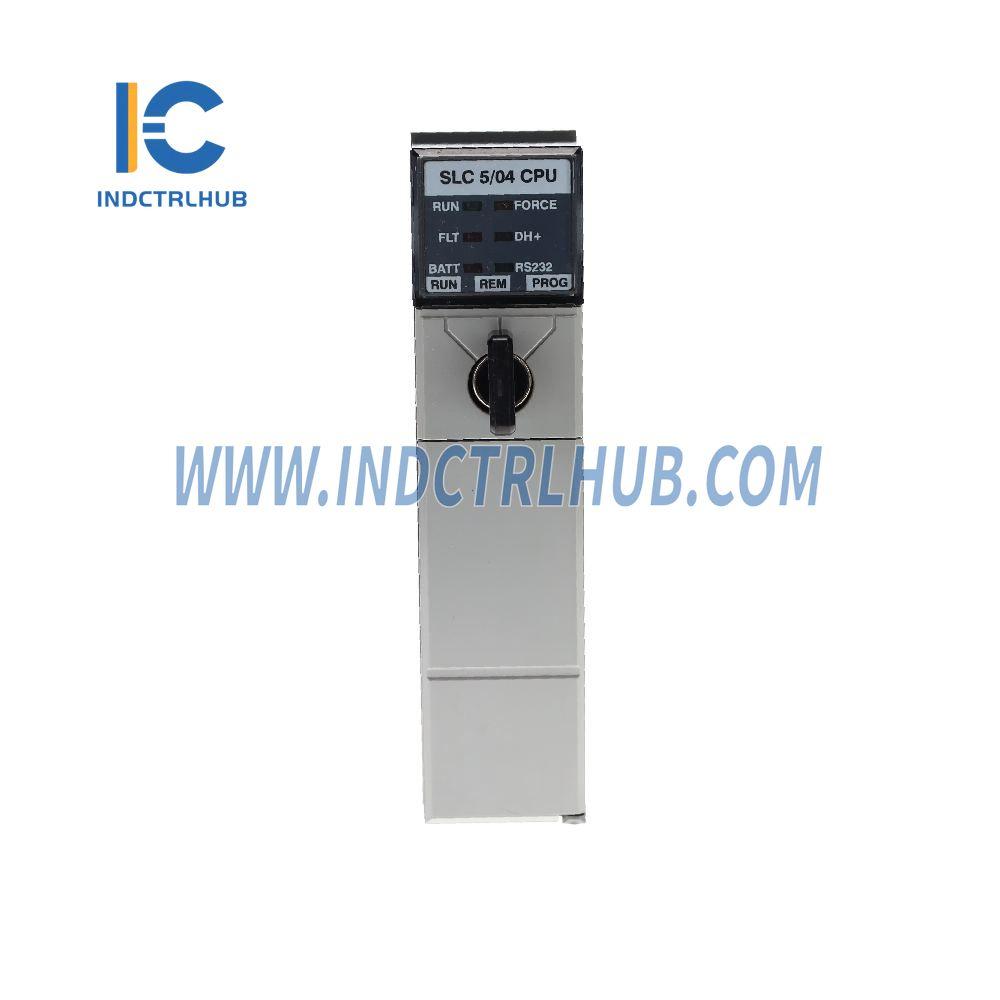

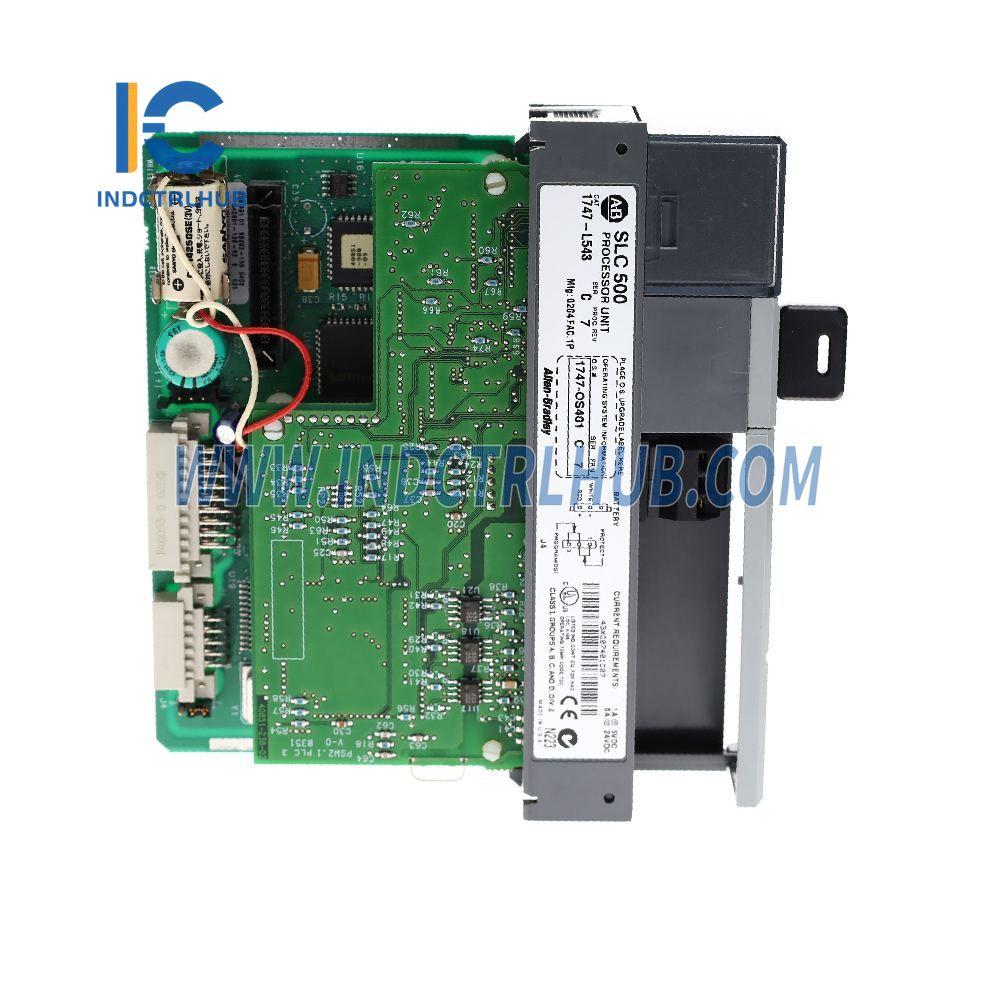

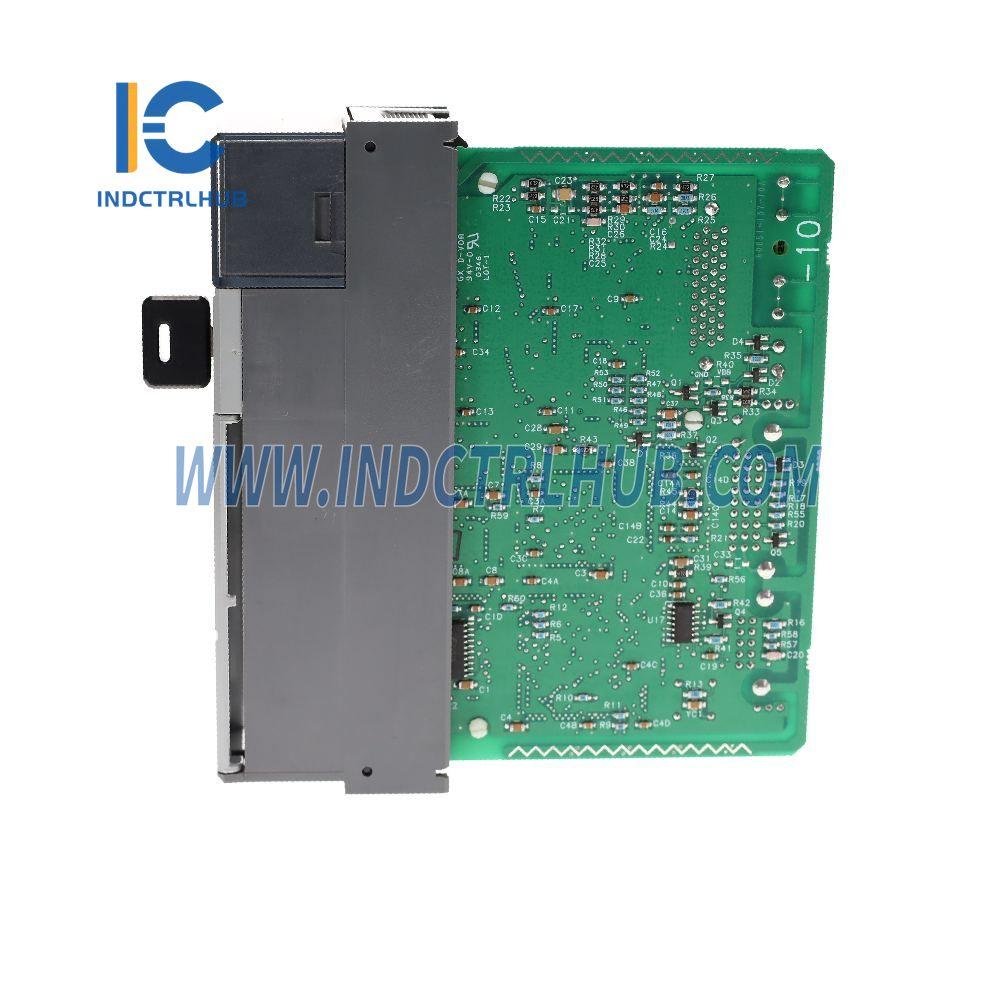

- Description: SLC 5/04 Modular Processor
Specifications
- Memory: 64K words
- I/O Capacity: 4096 discrete inputs / 4096 discrete outputs
- Local System Max: 3 chassis / 30 slots
- Programming Instructions: 107
- Typical Scan Time: 0.9 ms/K
- Bit Execution (XIC): 0.37 µs
- Programming Software: SLC 5/03s and SLC 5/04s
Power Supply Loading
-
5V DC:
- 500 mA (SLC 5/03)
- 1.0 A (SLC 5/04 and 5/05)
-
24V DC:
- 175 mA (SLC 5/03)
- 0 mA (SLC 5/04 and 5/05)
Program Scan Hold-Up Time
- 20 ms to 3 s (dependent on power supply loading)
Environmental Ratings
- Noise Immunity: NEMA Standard ICS 2-230
-
Vibration:
- Displacement: 0.015 in., peak-to-peak at 5-57 Hz
- Acceleration: 2.5 g at 57-2000 Hz
- Shock (Operating): 30 g
-
Temperature Ratings:
- Operating: 0 to 60 °C (32 to 140 °F)
- Storage: -40 to 85 °C (-40 to 185 °F)
- Humidity: 5 to 95% without condensation
Certifications
- UL Listed (Industrial Control Equipment)
- C-UL Listed for use in Canada
- UL Listed for Class I, Division 2, Hazardous Locations (Groups A, B, C, D)
- CE Compliant
- C-Tick Marked
