Product Description
Product Details:
- Manufacturer: Allen-Bradley

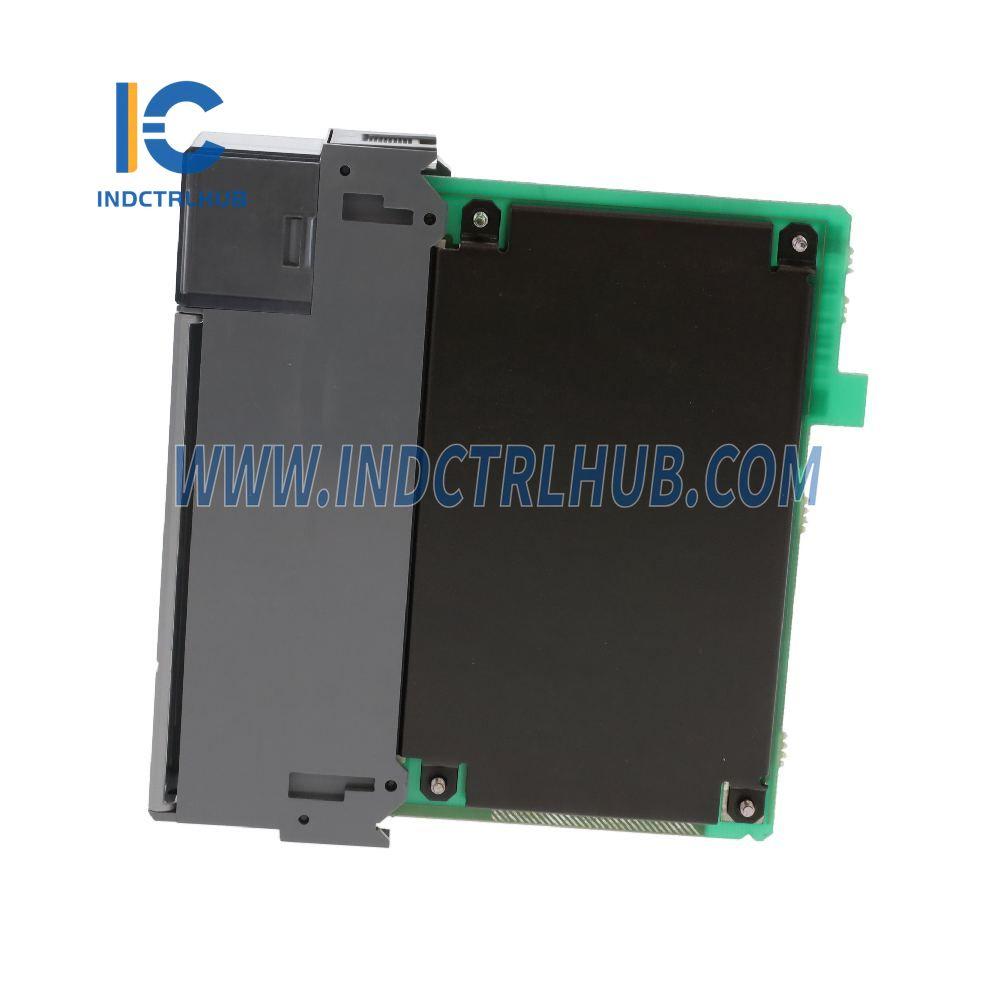

- Model/Part Number: SLC 500 1747-L514
- Description: SLC 5/01 Central Processing Unit (CPU) Processor
Environmental Specifications:
- Operating Temperature: 0°C to +60°C (32°F to 140°F)
- Storage Temperature: -40°C to +85°C (-40°F to 185°F)
- Humidity: 5 to 95% non-condensing
Specifications:
| Specification | Details |
|---|---|
| Program Memory | 1000 or 4000 instructions |
| Additional Data Memory | 0 |
| Maximum I/O Capacity | 3940 discrete inputs 3940 discrete outputs |
| Maximum Number of Chassis/Slots | 3/30 |
| Programming Software | RSLogix 500 |
| Programming Instructions | 52 |
| Typical Cycle Time | 8 ms/K |
| Bit Execution (XIC) | 4 µs |
| DH-485 Communication (Receive) | reception |
| Power Supply Load (5V DC) | 90 mA |
| Power Supply Load (24V DC) | 0 mA |
| Program Scan Delay Times | 20 ms to 3 s (depends on power supply load) |
| Noise Immunity | NEMA Standard ICS 2-230 |
| Vibration Resistance | Displacement: 0.381 mm, Peak-to-Peak at 5-57 Hz Acceleration: 2.5 g at 57-2000 Hz |
| Shock Resistance (in operation) | 30 g |
| Memory Module Backup Options | 1747-M1, -M2 |
