Product Description
Product Details:
- Manufacturer: Allen-Bradley

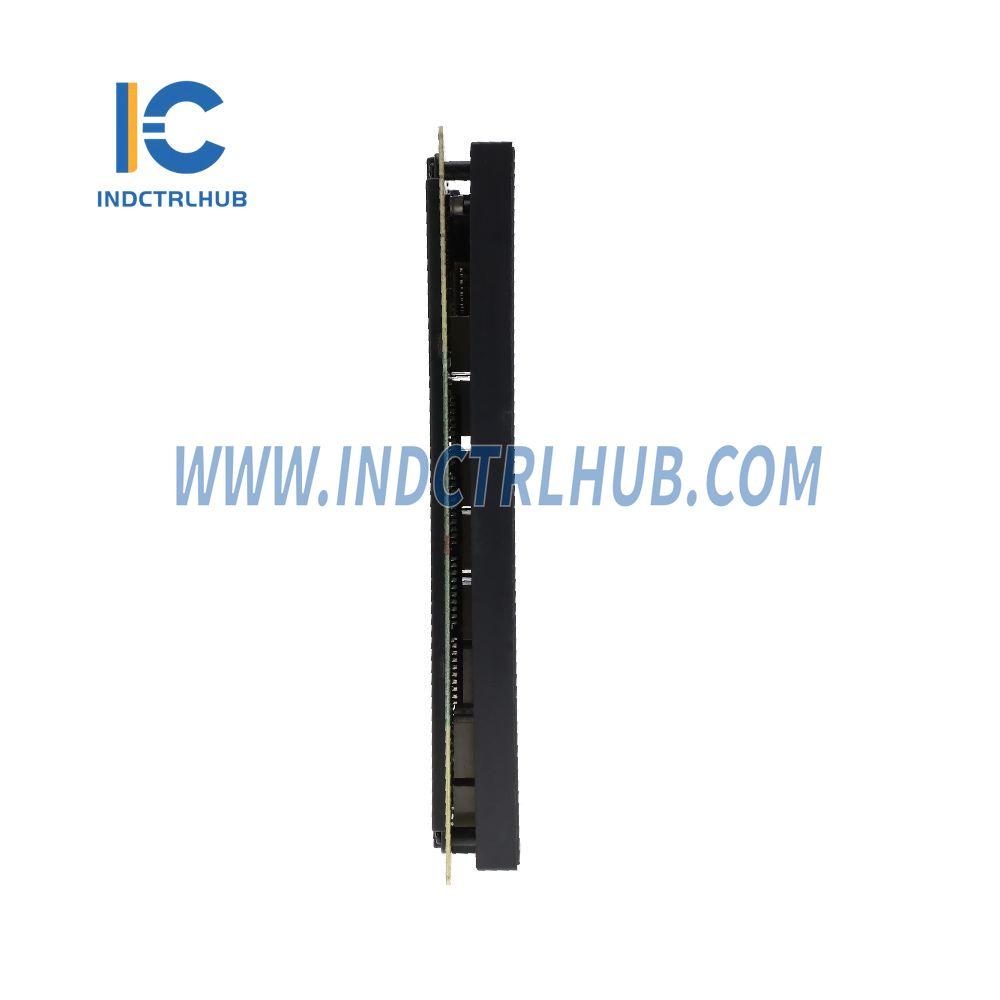

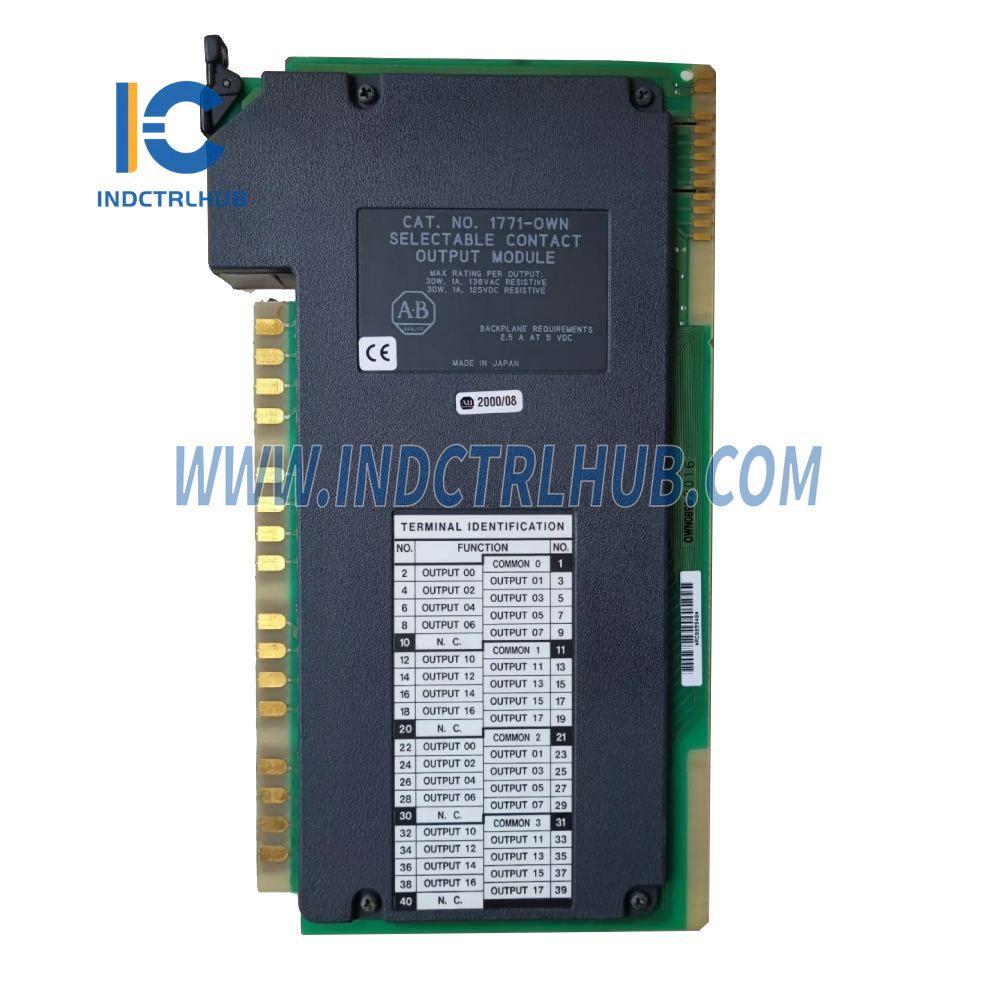

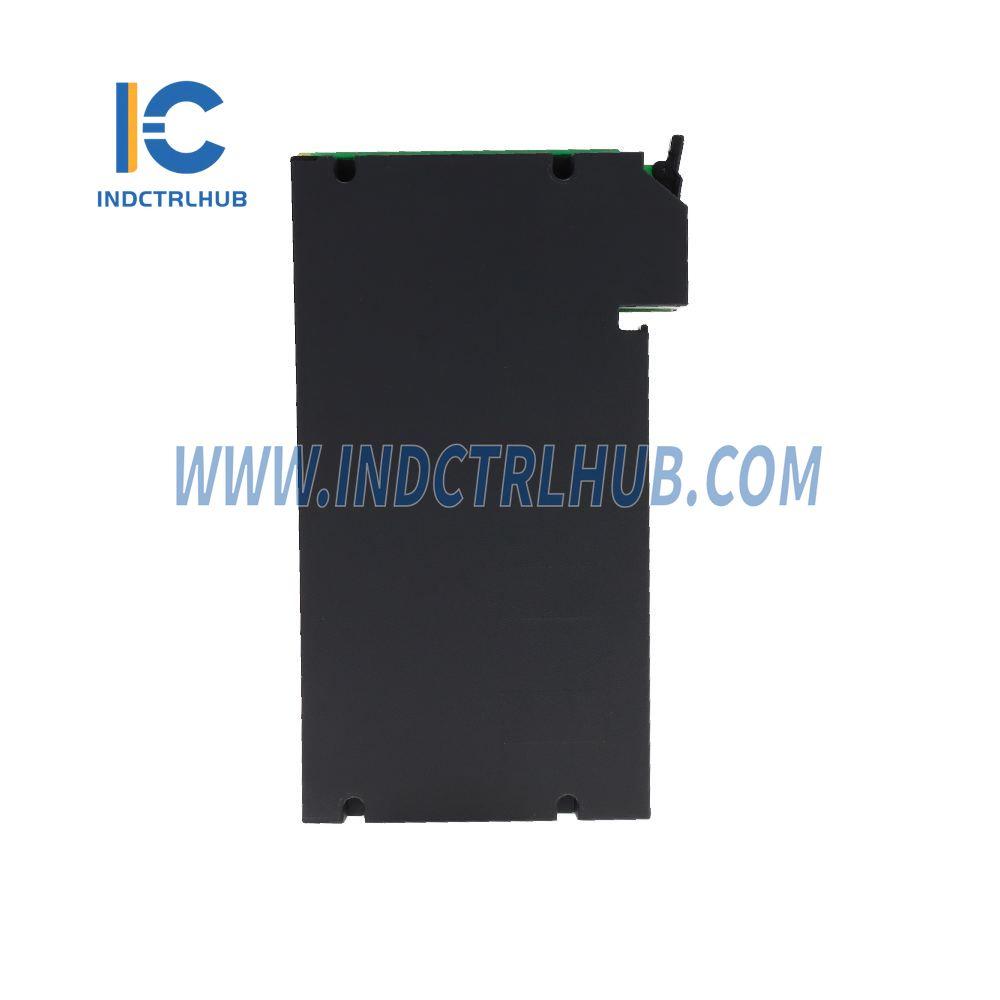

- Model/Part Number: PLC-5 1771-OWN
- Description: Point Digital Output Module
Specifications:
Attribute | Value |
---|---|
Outputs per Module | 32 (4 groups of 8) |
Module Location | 1771-A1B through -A4B, 1771-AM1, -AM2 Chassis |
Voltage Rating | 24-138V AC (rms); 24-125V DC |
Current Rating | Max. per Output: 1A (derate linearly 0.033A/°C above 45°C) |
Max. per Module: 12A (derate linearly 0.4A/°C above 45°C) | |
Max. per Group: 4A (derate linearly 0.133A/°C above 45°C) | |
Surge Current | 1A (maximum) per output (at rated power) |
Power Rating | DC: 30W per output (resistive) maximum |
AC: 30W per output (resistive) maximum | |
Minimum Contact Load | 10mA |
Operate/Release Time | 5ms (±1ms) typical |
Bounce Time | 1ms (maximum) |
Switching Frequency | 10Hz (maximum) |
Power Dissipation | All relays off: 15mW; All relays on: 12.5W (maximum) |
Thermal Dissipation | All relays off: 0.05 BTU/hr; All relays on: 42.75 BTU/hr (maximum) |
Backplane Current | 2.5A maximum; 1.8A nominal |
Isolation Voltage | 1000V between open contacts |
1500V between coil and contact | |
Interconnect Cable Length | 1000 ft. (304.8 meters) maximum |
Conductors / Wire Size | 14 gauge (2mm²) stranded (maximum); 3/64 inch (1.2mm) insulation (maximum) |
Environmental Conditions | Operational Temperature: 0°C to 60°C (32°F to 140°F) |
Storage Temperature: -40°C to 85°C (-40°F to 185°F) | |
Relative Humidity: 5% to 95% (without condensation) | |
Keying | Between 6 and 8 |
Field Wiring Arm | Catalog Number 1771-WN |
Wiring Arm Screw Torque | 7-9 inch-pounds |
Agency Certification | CSA certified, CSA Class I, Division 2, Groups A, B, C, D certified, UL listed, CE marked for all applicable directives |
Installation Data Number | 1771-5.37 |
