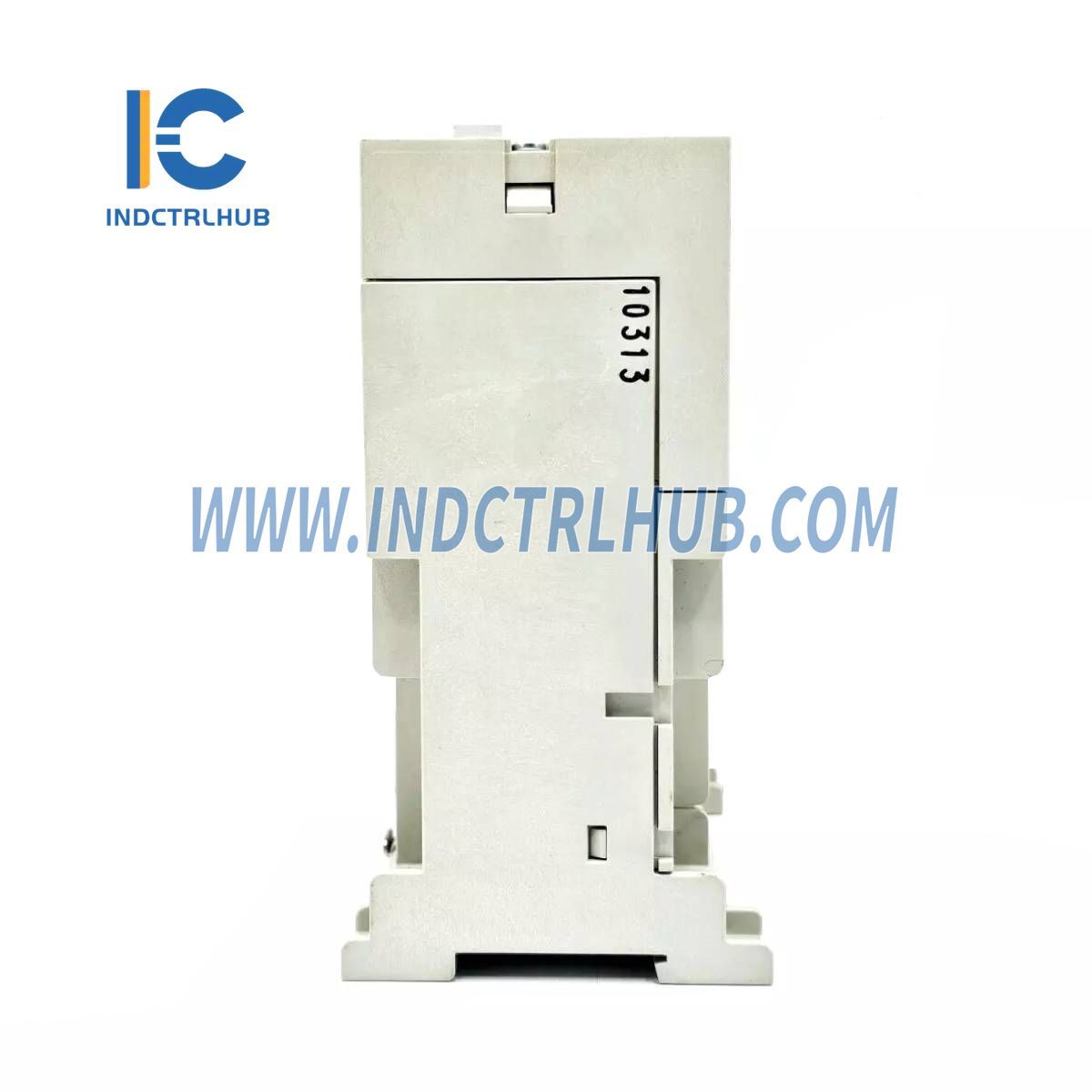

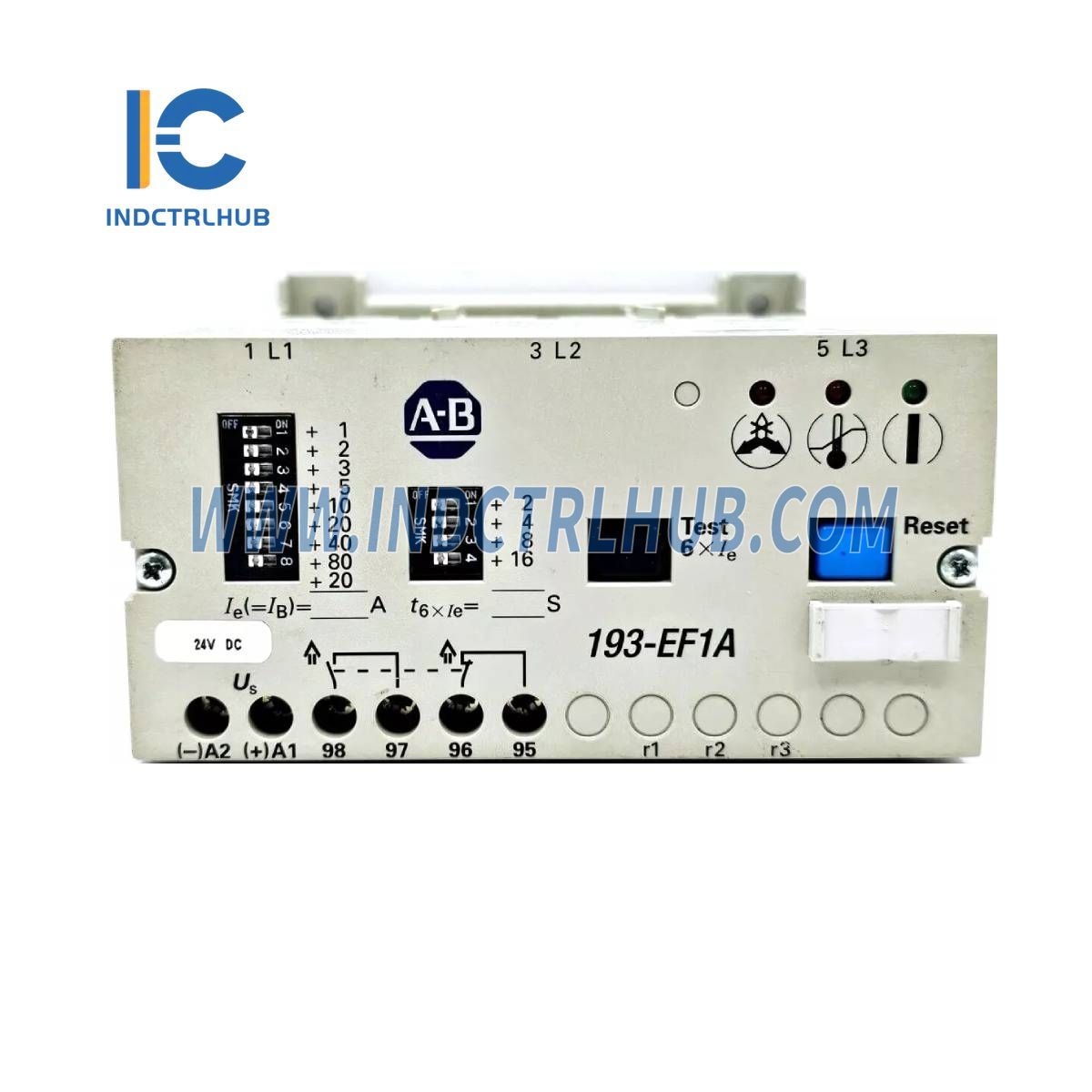

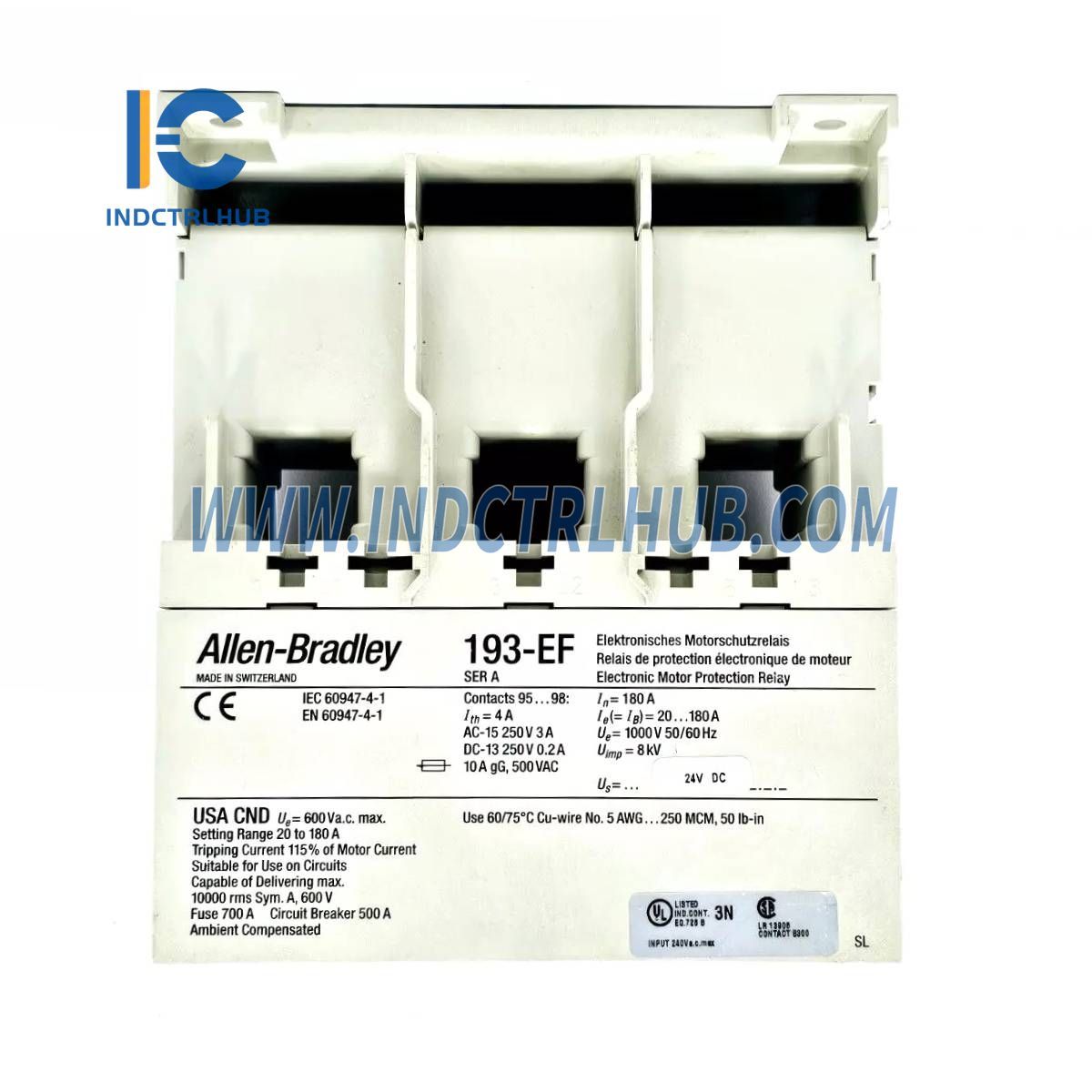

Allen-Bradley 193-EF1A Overload Relay

Allen-Bradley 193-EF1A Overload Relay

  • Manufacturer: Allen-Bradley

  • Product No.: 193-EF1A

  • Condition:1000 in stock

  • Product Type: Overload Relay

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1070g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Allen-Bradley 193-EF1A Overload Relay

Product Overview

The Allen-Bradley 193-EF1A is a high-performance overload relay designed to provide comprehensive motor protection in industrial applications. It features thermal overload, phase loss, and PTC thermistor protection, making it ideal for use in harsh environments. This relay complies with IEC, UL, CSA, and maritime safety standards for global usability.


Technical Specifications

Electrical Ratings

Attribute Specifications
Rated Voltage (Motor Circuit) IEC 947, EN 60947: 1000V CSA, UL: 600V
Control Circuit Voltage IEC 947, EN 60947: 440V CSA, UL: 240V
Rated Control Voltage (US) AC (50/60 Hz): 24, 36, 48, 110, 120, 230, 240, 400, 415, 440V (0.8…1.1 US) DC: 24, 48V (0.9…1.2 US)
Device Protection Fuse 10 A Type gG or 16 A Type gG

Output Relay Contact Information

Contact Assembly 1 N.O. and 1 N.C., Galvanically Separated
Rated Operating Voltage UL/CSA Pilot Duty: 240V
Rated AC Operating Current (AC-15) 24V: 3A 110…125V: 3A 220…250V: 1.2A
Max. Permissible Switching Current (cos φ = 0.3, AC-15) 24V: 30A 110…125V: 30A 220…250V: 12A
Rated DC Operating Current (DC-13, L/R = 300ms) 24V: 2A 110…125V: 0.3A 220…250V: 0.2A
Max. Rated Backup Fuse Current 10 A, 500V AC Type gG

Environmental Ratings

Condition Temperature Range
Operation -5…+60°C
Storage -50…+60°C
Transport -50…+85°C

Sensor Measurement Circuit

Attribute Specifications
Measurement Circuit Cross Section 0.5 - 1.5 mm²
Max. Lead Length 0.5 mm²: 200m 1.5 mm²: 600m
Max. Cold Resistance of PTC Sensor Chain 1.5 kΩ
Max. Number of PTC Sensors (IEC 34-11-2) 6

Physical Dimensions & Weight

Component Weight (g)
193-EF1A Overload Relay 1,070g
193-EF2A Overload Relay 1,090g
193-EF1B Overload Relay 2,510g
193-EF2B Overload Relay 2,530g
193-EF2C Overload Relay 5,550g
193-LB1 Indication Module 160g
193-RB1 Remote Reset Module 160g
196-MTM Adapter 5g
193-PA Front Cover 3g
193-HD Terminal Lug 40g
Bus Bars (825-MVM, 825-MVM2, 825-MVS, 825-MVS2) 230g - 350g
