Product Description
Product Details:
- Manufacturer: Allen-Bradley

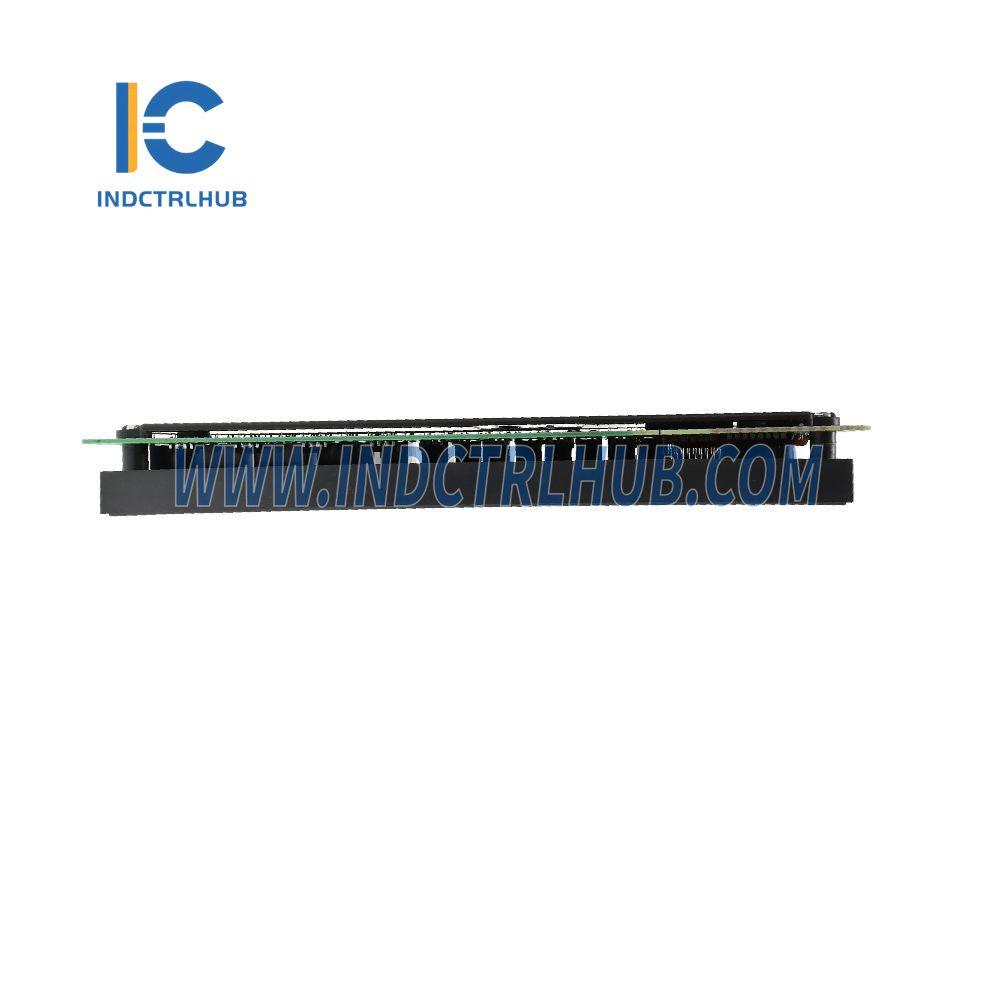

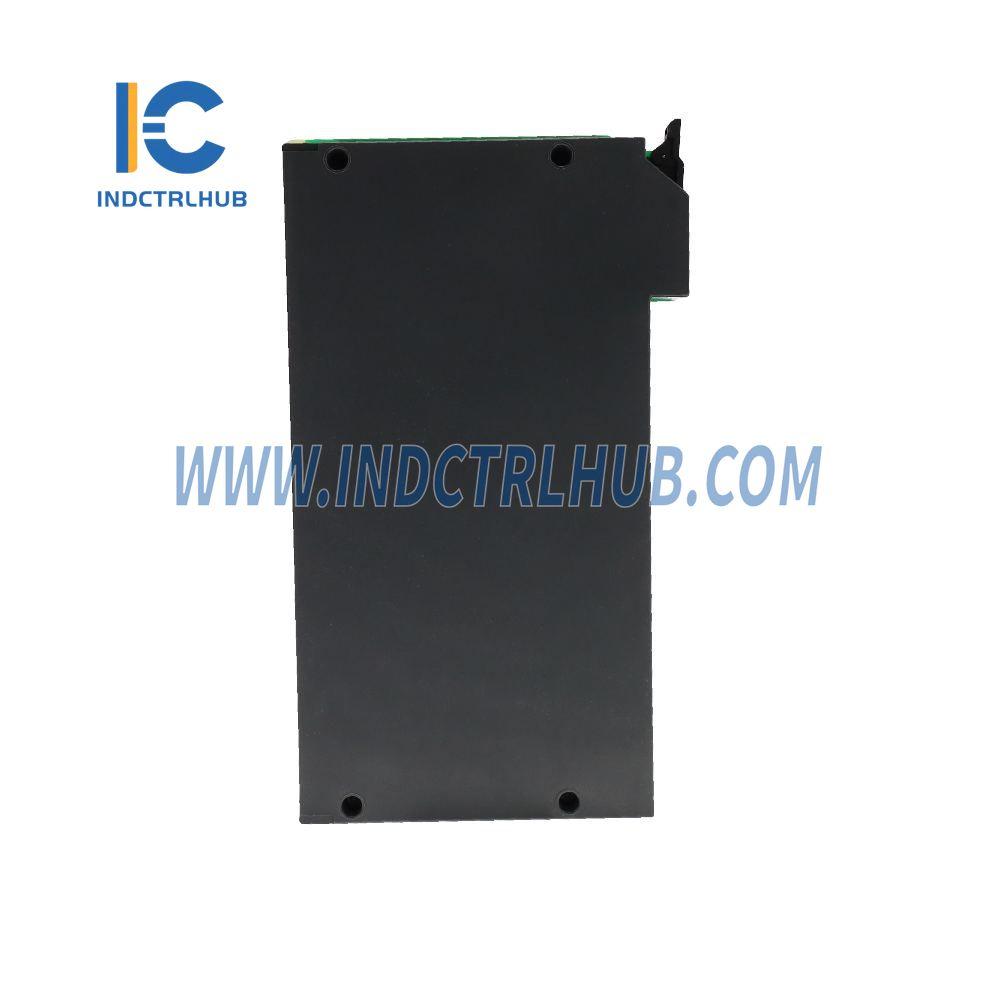

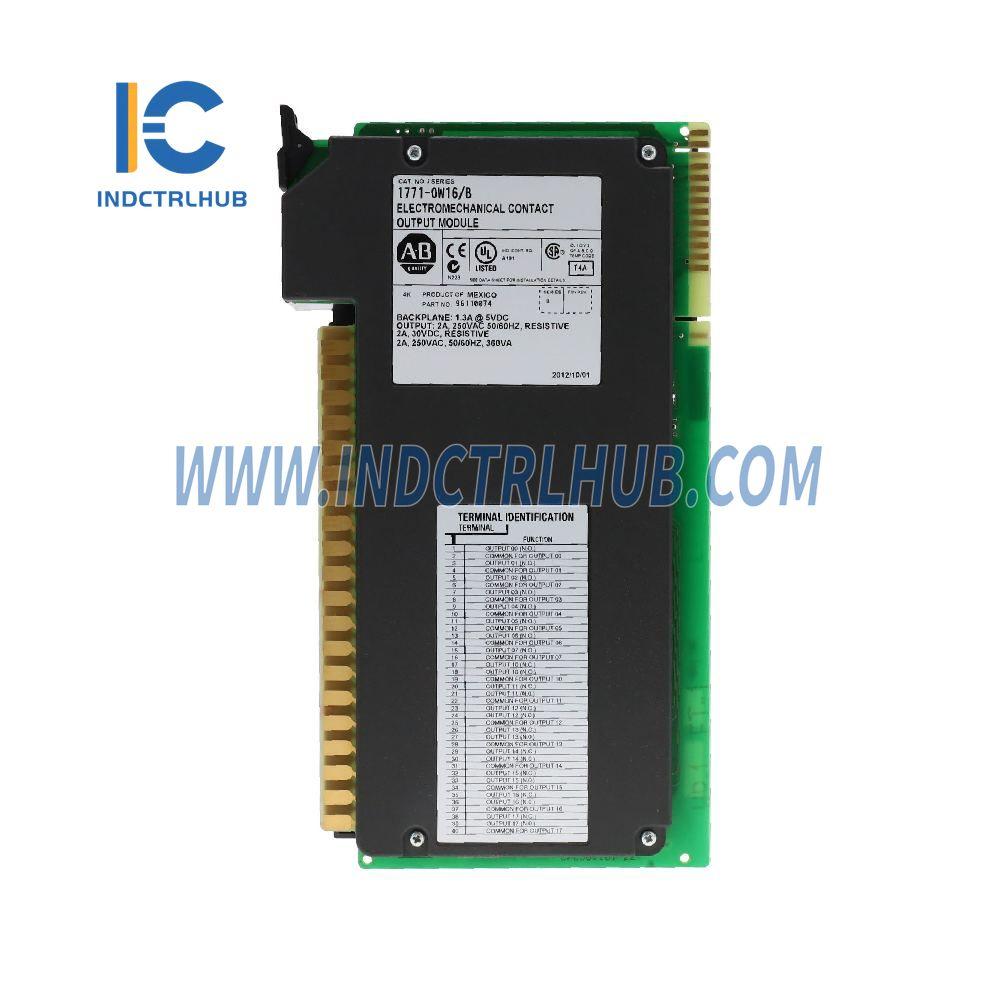

- Model/Part Number: PLC-5 1771-OW16 Series B
-
Description: 16 Point Digital Output Module
Specifications:
Attribute | Value |
---|---|
Outputs per Module | 16 |
Module Location | 1771-A1B through -A4B I/O Chassis; 1771-AM1 or -AM2 |
Voltage Rating | 24-250V AC (rms), 47-63Hz; 24-150V DC |
Power Rating | DC: 80 Watts per output (max); 1280 Watts per module (max.) |
AC: 500 VA per output (max); 1440 VA per module (max.), cos Φ ≥ 0.4 | |
Current Rating (Maximum per Channel) | AC: 2A per output at rated power |
DC: 2A per output up to 40V; 1A per output at 50V | |
0.5A per output at 100V; 0.25A per output at 150V | |
Maximum Surge Current | DC: 2A maximum per output (at rated power); AC: Refer to Table A below |
Minimum Contact Load | 10mA |
Operate/Release Time | 10ms maximum; 5ms (+1ms) typical |
Bounce Time Maximum | 4ms |
Switching Frequency Maximum | 1/3Hz @ maximum load |
Expected Life of Electrical Contacts | 300K operations @ 25°C (cos Ф = 1) |
Power Dissipation | All relays off: 0.015 Watts; All relays on: 6.55 Watts |
Thermal Dissipation | All relays off: 0.05 BTU/hr; All relays on: 22.24 BTU/hr |
Backplane Current | 1.3A maximum |
Maximum Cable Length | 1000ft (304.8m) |
Isolation Voltage | 1500V AC for 1 second (customer side to system side) |
1500V AC for 1 second (channel to channel); Relay rated 4000V coil to contact | |
Conductors / Wire Size | 14 gauge (2mm²) stranded maximum; 3/64 inch (1.2mm) insulation maximum |
Environmental Conditions | Operational Temperature: 0°C to 60°C (32°F to 140°F) |
Storage Temperature: -40°C to 85°C (-40°F to 185°F) | |
Relative Humidity: 5% to 95% (without condensation) | |
Keying | Between 2 and 4 |
Field Wiring Arm | Catalog Number 1771-WN |
Wiring Arm Screw Torque | 7-9 inch-pounds |
Agency Certification | CSA certified, CSA Class I, Division 2, Groups A, B, C, D certified, UL listed, CE marked for all applicable directives |
Installation Data Number | 1771-2.206 |
