Product Description
Product Overview

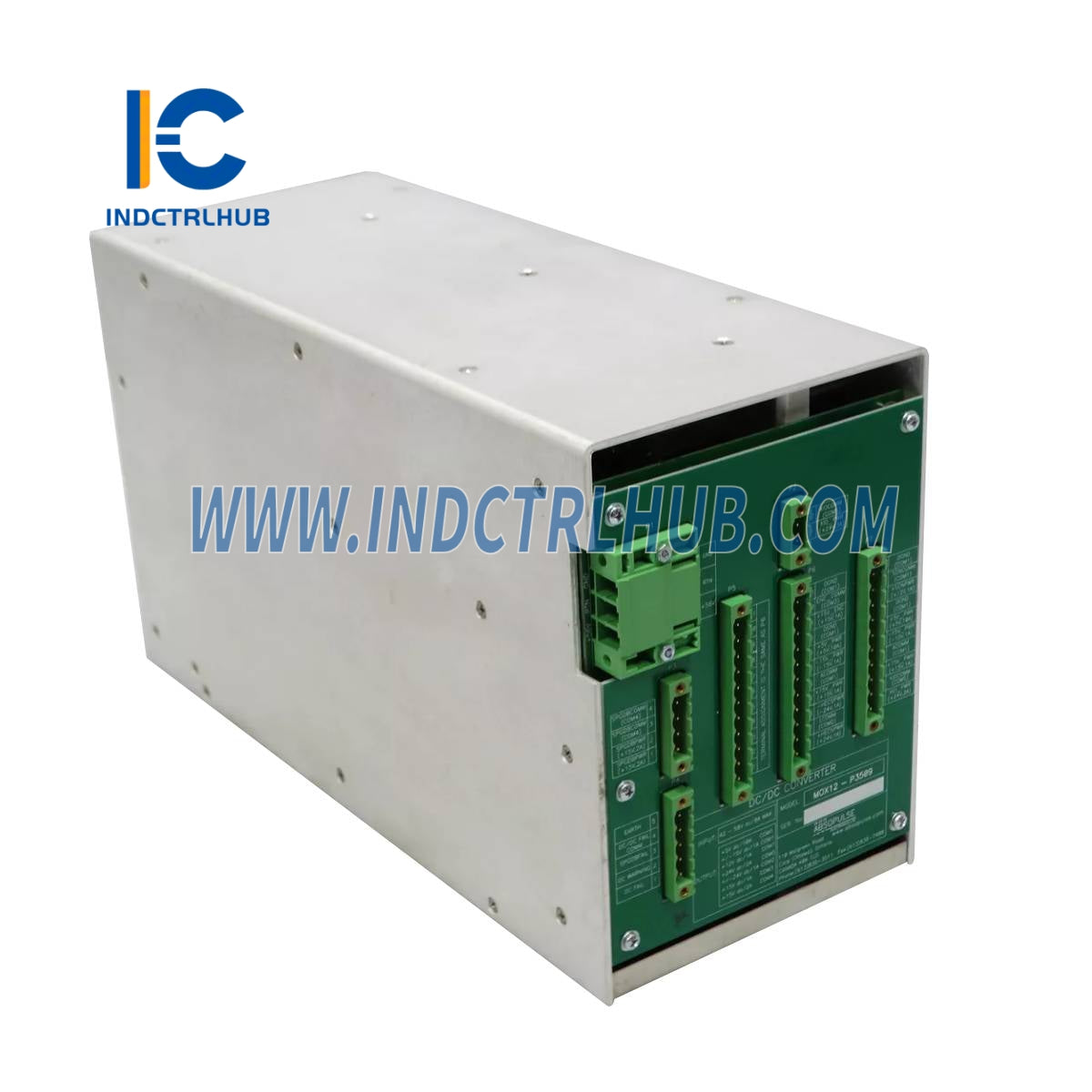

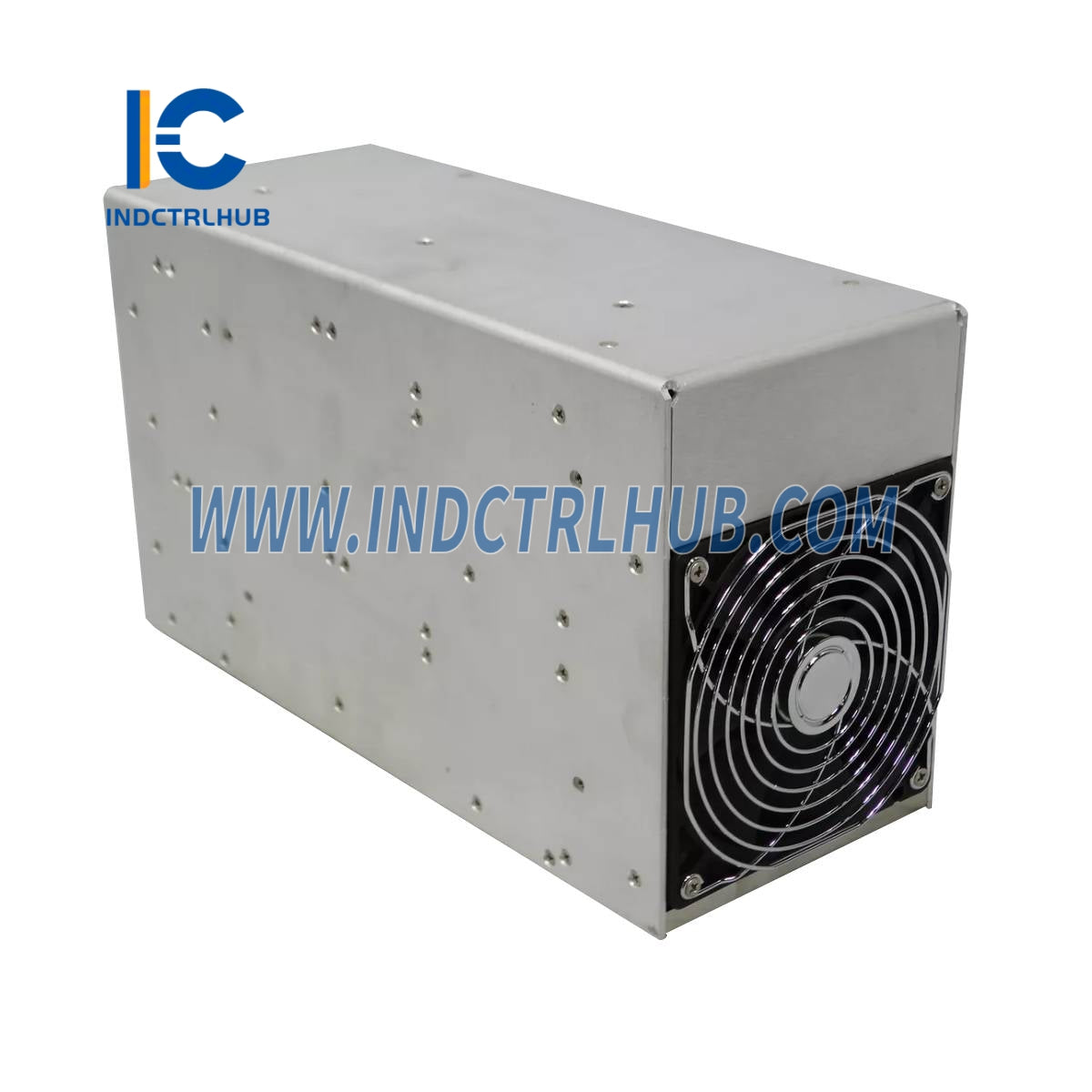

The Allen-Bradley 80026-173-23 is a DC/DC Power Supply designed for industrial automation applications, commonly used within Rockwell Automation systems such as the PowerFlex 7000 medium voltage drives. Manufactured by Allen-Bradley (a Rockwell Automation brand), this module converts a DC input voltage to multiple regulated DC output voltages, providing reliable power for control system components. It is engineered for use in harsh industrial environments like manufacturing, process control, and machinery automation, where consistent power delivery is critical. The “80026-173-23” is the base model number, often seen with suffixes like “-R” (e.g., 80026-173-23-R) indicating conformal coating for enhanced durability.
Technical Specifications
The 80026-173-23 has the following specifications based on supplier data and inferred characteristics from similar Allen-Bradley power supplies:
| Item | Specification |
|---|---|
| Model/Part Number | 80026-173-23 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | DC/DC Power Supply |
| Series | PowerFlex 7000 Compatible |
| Input Voltage | 42-50 V DC |
| Output Voltage | 5 V DC, ±15 V DC, 12 V DC, 24 V DC (multi-output) |
| Output Current | 8 A (total capacity, varies by output) |
| Output Power | Approximately 100-150 W (estimated) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | Approximately 0.9 kg (2 lbs) |
Additional Details
The 80026-173-23 includes the following additional information based on its standard use and supplier documentation:
| Category | Details |
|---|---|
| Function | Converts DC input to multiple regulated DC outputs for control systems |
| Mounting | DIN rail or panel mountable |
| Connectivity | Screw terminals for input/output wiring |
| Features | Conformal coating, high efficiency (up to 90%), overvoltage/overcurrent protection |
| Certifications | Designed for industrial standards (e.g., UL, CE |
