Product Description
Product Overview

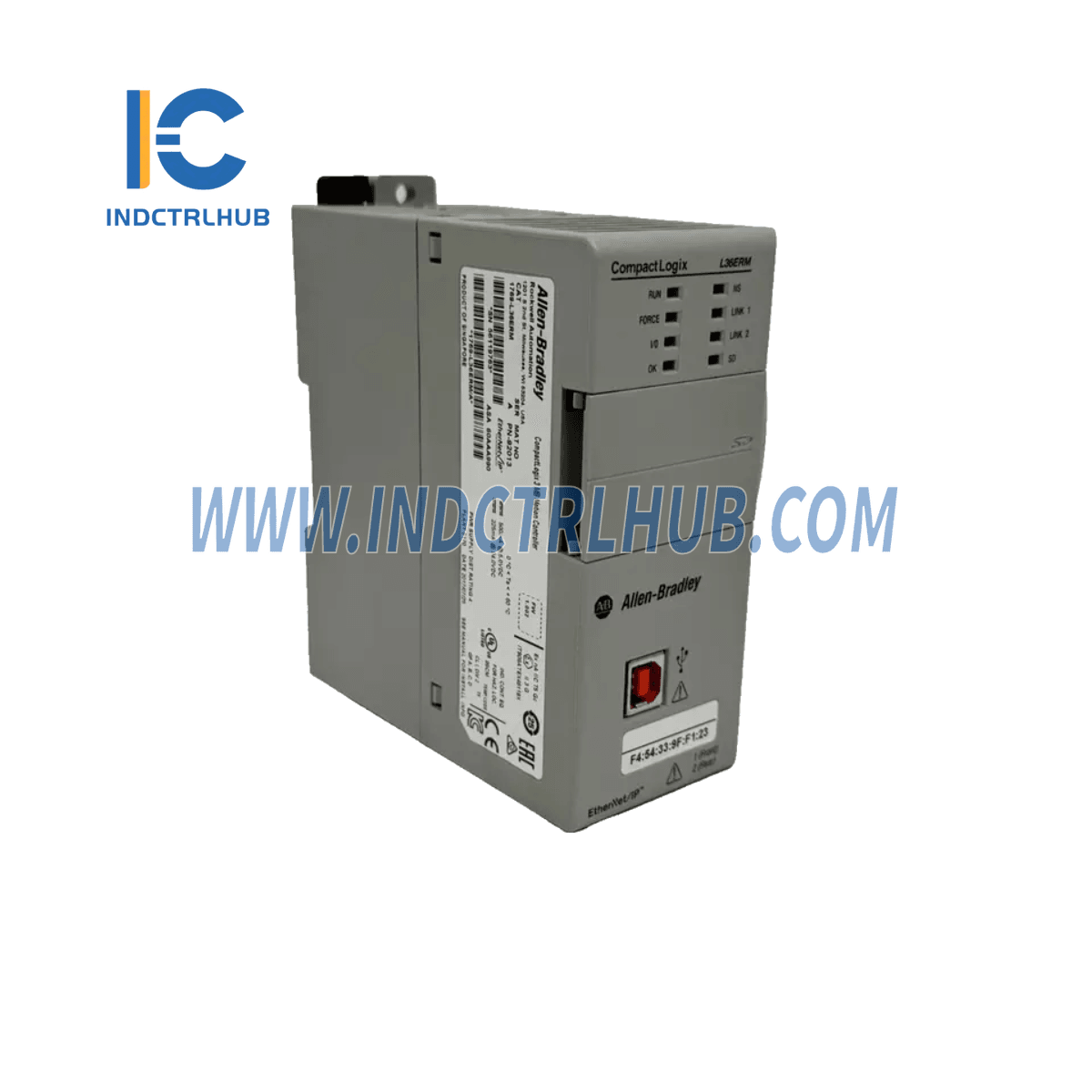

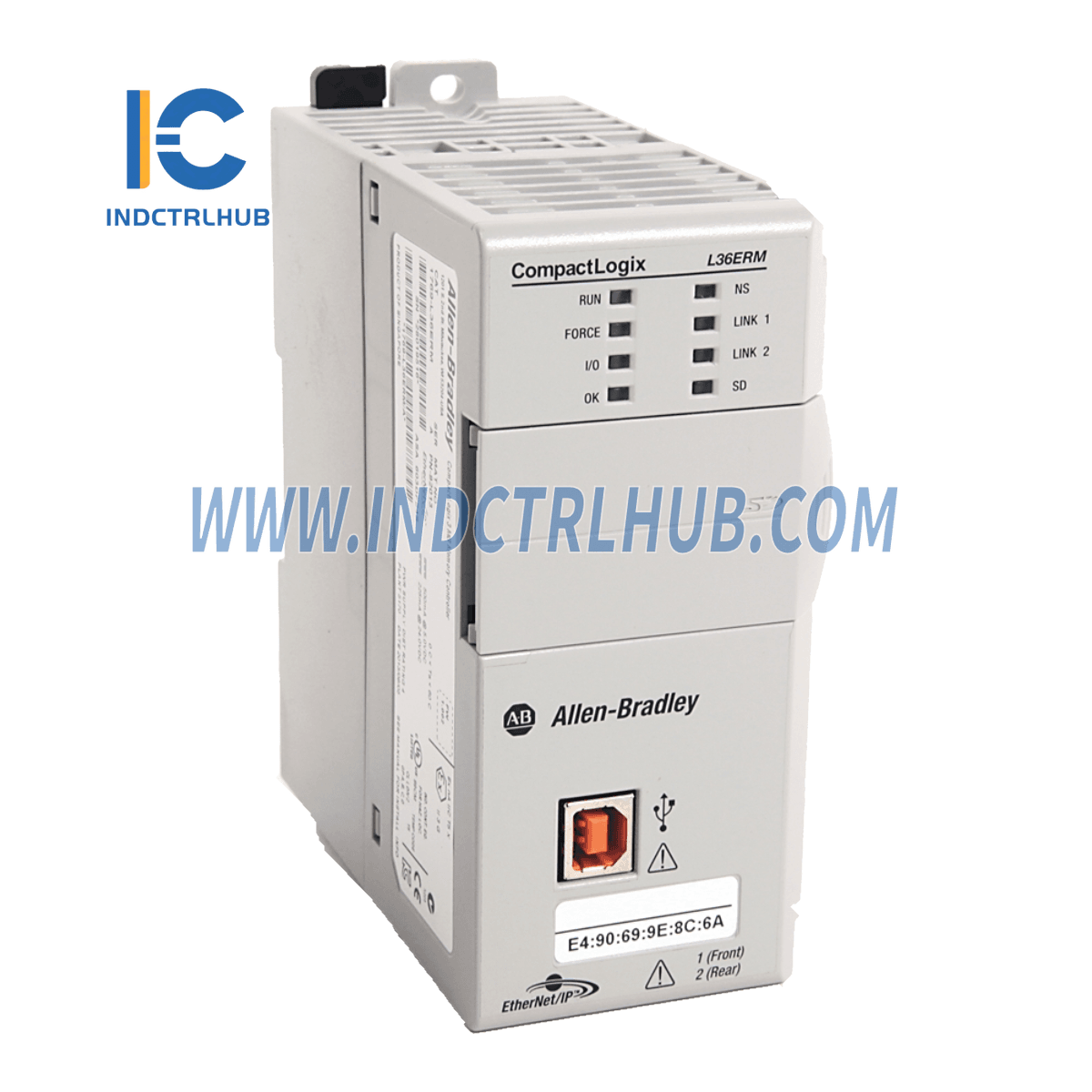

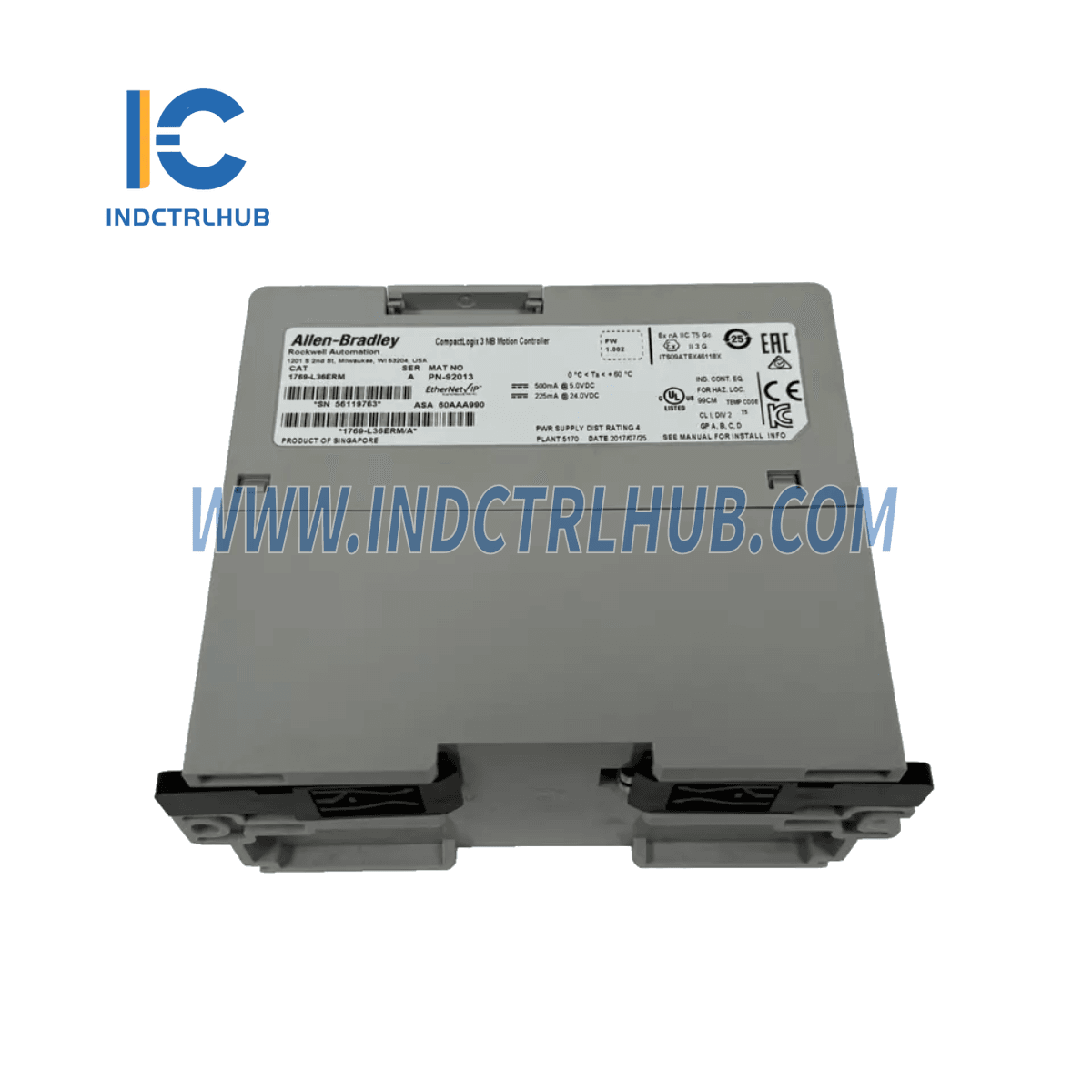

- Manufacturer: Allen-Bradley
- Model/Part Number: 1769-L36ERM
- Series: CompactLogix 5370 L3
- Type: CompactLogix 3MB Motion Controller
-
Description:
- Dual Ethernet with DLR (Device Level Ring) capability
- 3MB user memory
- 30 I/O expansion modules supported
- 48 Ethernet IP nodes
- 16-axis CIP (Common Industrial Protocol) motion with kinematics function
- Ships with a 1GB SD card (supports up to 2GB SD card)
Technical Specifications
Communication
- Ports: Ethernet, USB
-
Isolation Voltage:
- 30V (continuous), Basic Insulation Type
- USB to system, Ethernet to system, and Ethernet to Ethernet
- Type tested at 500V AC for 60s
Memory
- User Memory: 3MB
-
Non-Volatile Memory Options:
- 1GB SD Card (1784-SD1, included with controller)
- 2GB SD Card (1784-SD2, available separately)
Power & Electrical
-
Current Draw:
- @ 5V DC: 500 mA
- @ 24V DC: 225 mA
- Power Dissipation (Max): 4.5 W
Physical Specifications
- Width: 55.00 mm (2.17 in.)
- Weight: 0.31 kg (0.68 lb)
- Module Location: DIN rail or panel mount
- Panel-Mount Screw Torque: 1.1 - 1.8 N•m (10 - 16 lb•in)
-
Embedded Power Supply Compatibility:
- 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
I/O & Expansion
- Max Number of I/O Module Banks: 3
-
Power Supply Distance Rating:
- Controller & 1769-SDN: 4
- 1769 Compact I/O modules: 4 to 8 (depending on the module)
Wiring & Connectivity
- Wire Category: 2 (communication ports)
-
Wire Type (Ethernet):
- RJ45 connector (IEC 60603-7)
- 2 or 4 pair Category 5e minimum cable (TIA 568 B.1)
- Category 5 cable (ISO/IEC 24702)
Environmental Ratings
- North American Temperature Code: T5
- UKEX/ATEX Temperature Code: T5
Features & Capabilities
- Supports 30 I/O expansion modules
- Supports 48 Ethernet IP nodes
- 16-axis CIP motion control with kinematics function
- Redundant Ethernet connections with DLR capability
- Compact design with high-speed processing
- Secure data storage with expandable SD memory
Applications
- Industrial automation and control systems
- Motion control applications with CIP motion
- Machine automation and robotics
- Ethernet/IP-based industrial communication networks
- Manufacturing and process automation
