Product Description

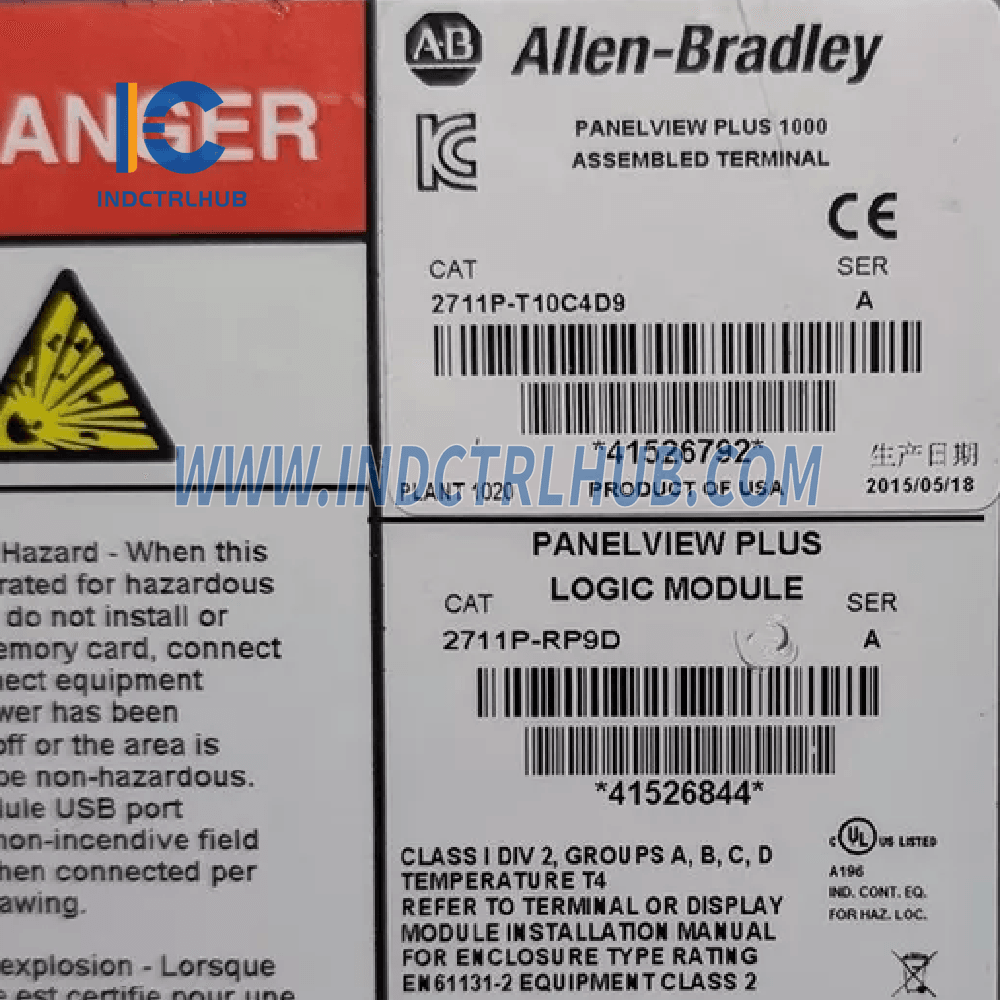

Product Overview: Allen-Bradley PanelView Plus Terminal 1000 Color Display
Manufacturer: Allen-Bradley
Model/Part Number: 2711P-T10C4D9
Description: PanelView Plus Terminal 1000 Color Display
Display Type: Color active-matrix TFT
Screen Size: 10.4 inches
Resolution: 640 x 480 pixels (Vertical x Horizontal)
Touch Technology: 8-wire analog resistive
Electrical Specifications:
| Attribute |
Specification |
| Supply Voltage (DC) |
18V (nominal) |
| Power Consumption (Max) |
70 W (2.9A @ 24V DC) |
| Power Consumption (Typical) |
39 W (1.6A @ 24V DC) |
| Battery (Real-time Clock) |
Battery-backed clock with ±2 min/month accuracy |
| Battery Life |
4 years min at 25°C (77°F) |
| External Storage |
SD card (hot-swappable), USB flash drives (hot-swappable) |
| Operating System |
Windows CE 6.0 with extended features |
| Software Support |
FactoryTalk View Machine Edition (6.0+), FactoryTalk ViewPoint (1.2+) |
| Communication Ports |
1 x Ethernet, 1 x RS-232, 2 x USB host, network interface for optional modules |
| Touch Screen Actuation |
1 million presses, operating force: 10g |
Mechanical Specifications:
| Attribute |
Specification |
| Dimensions (HxWxD) |
248 mm x 399 mm x 55 mm |
| Cutout Dimensions |
224 mm x 305 mm |
| Mounting |
Wall mounting, direct mounting |
| Weight |
2.5 kg |
| Display Area |
211 mm x 158 mm |
Environmental Specifications:
| Attribute |
Specification |
| NEMA Rating |
NEMA 12, 13, 4X (indoor use only) |
| IP Rating |
IP54, IP65 (front side) |
| Operating Temperature |
0°C to 50°C |
| Non-operating Temperature |
-25°C to 70°C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Altitude (Operating) |
2000 meters max |
| Vibration |
10...57 Hz, 0.012 peak-to-peak displacement, 57...500 Hz, 2 G peak acceleration |
| Shock |
15 G at 11 ms |
| Heat Dissipation |
240 BTU/hr |
