Product Description
Product Overview
- Manufacturer: Allen-Bradley

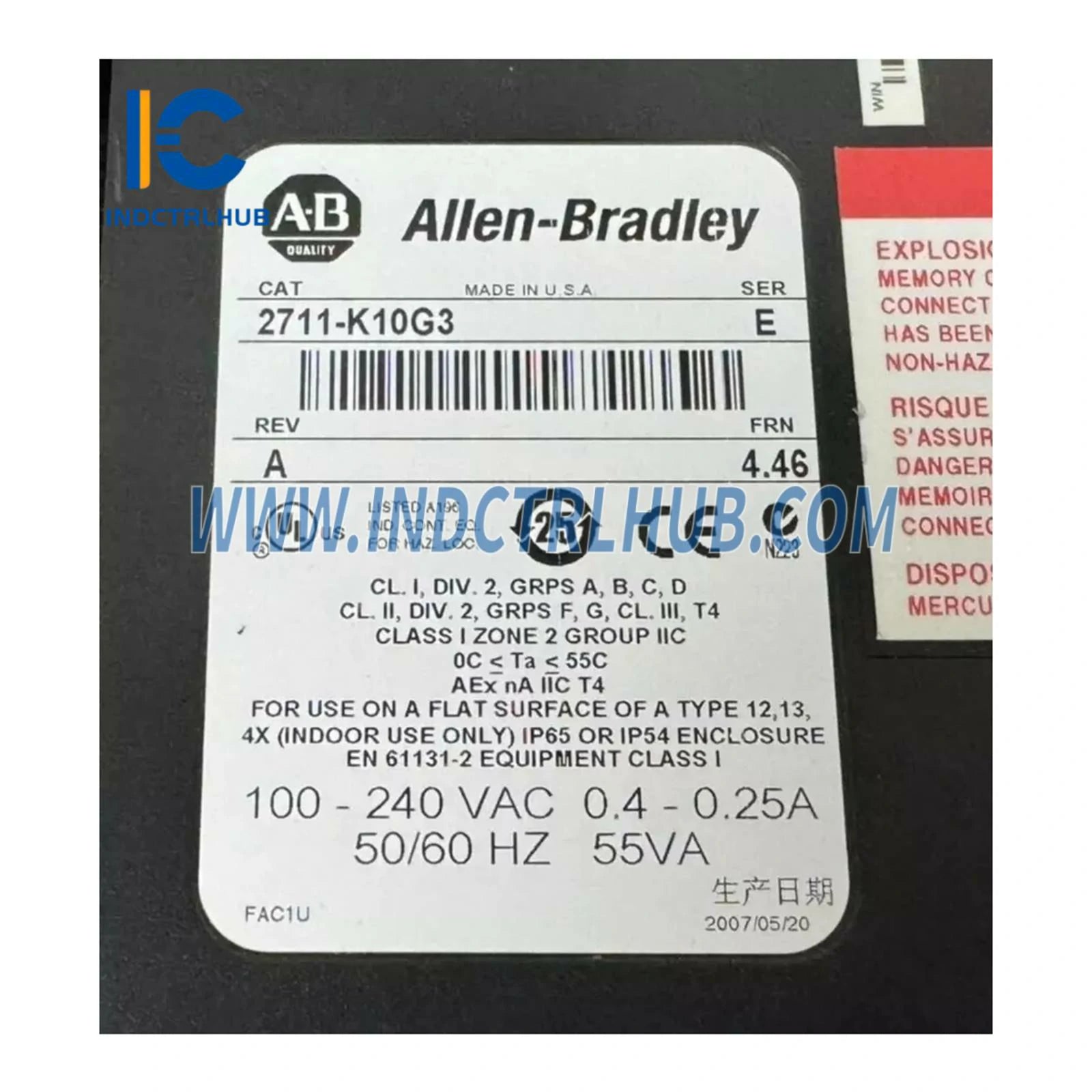

- Model/Part Number: 2711-K10G3
-
Description: PanelView 1000 Operator Terminal
- Available in Color (PV1000C) and Grayscale (PV1000G) versions
Specifications
Power and Electrical
| Power Type | Supply Voltage | Power Consumption |
|---|---|---|
| AC Power | 85…264V AC, 47…63 Hz | 55 VA maximum |
| DC Power | 18…32V DC (24V nominal) | 24 W max (1.0 A @ 24V DC) |
Mechanical
| Attribute | Details |
|---|---|
| Enclosure Rating | NEMA Type 12/13, 4X (Indoor use only) |
| IP54, IP65 | |
| Weight | PV1000G: 3.06 kg (6.7 lb) |
| PV1000C: 3.00 kg (6.6 lb) | |
| Dimensions (mm/in) | Keypad: 282 x 423 x 112 mm (11.11 x 16.64 x 4.40 in) |
| Touchscreen: 282 x 370 x 112 mm (11.11 x 14.58 x 4.40 in) | |
| Installed Depth | Without Memory Card Retainer: 97 mm (3.81 in) |
| With Memory Card Retainer: 129 mm (5.06 in) | |
| Clearance with Retainer: 220 mm (8.65 in) |
Display Features
| Type | Size (mm/in) | Resolution | Touch Cells | Touch Cell Size |
|---|---|---|---|---|
| PV1000G | 211 x 158 mm (8.3 x 6.2 in) | 640 x 480 | 384 (24 columns x 16 rows) | 26 x 30 pixels |
| PV1000C | 211 x 158 mm (8.3 x 6.2 in) | 640 x 480 | Not specified | Not specified |
Memory
- Total Application Flash Memory: 1008 KB (application screens)
Environmental Specifications
| Attribute | Details |
|---|---|
| Operating Temperature | 0…55 °C (32…131 °F) |
| Storage Temperature | -25…70 °C (-13…158 °F) |
| Relative Humidity | 5…95% (non-condensing) |
| Heat Dissipation | 39 W (132 BTU/hr) |
| Shock Resistance | Operating: 15 g, Non-operating: 30 g |
| Vibration Resistance | 2 g up to 2,000 Hz |
User Interface
| Character Size (Pixels) | Characters/Row | Rows | Character Dimensions (mm) |
|---|---|---|---|
| 8 x 16 | 79 | 24 | 2.2 x 5.3 |
| 8 x 24 | 79 | 19 | 2.6 x 7.9 |
| 16 x 24 | 39 | 19 | 5.3 x 7.9 |
| 24 x 32 | 26 | 14 | 7.9 x 10.6 |
| 32 x 40 | 19 | 11 | 10.6 x 13.2 |
Status Indicators
-
COMM Fault Status Indicators:
- Green: Normal operation
- Red: Fault condition
