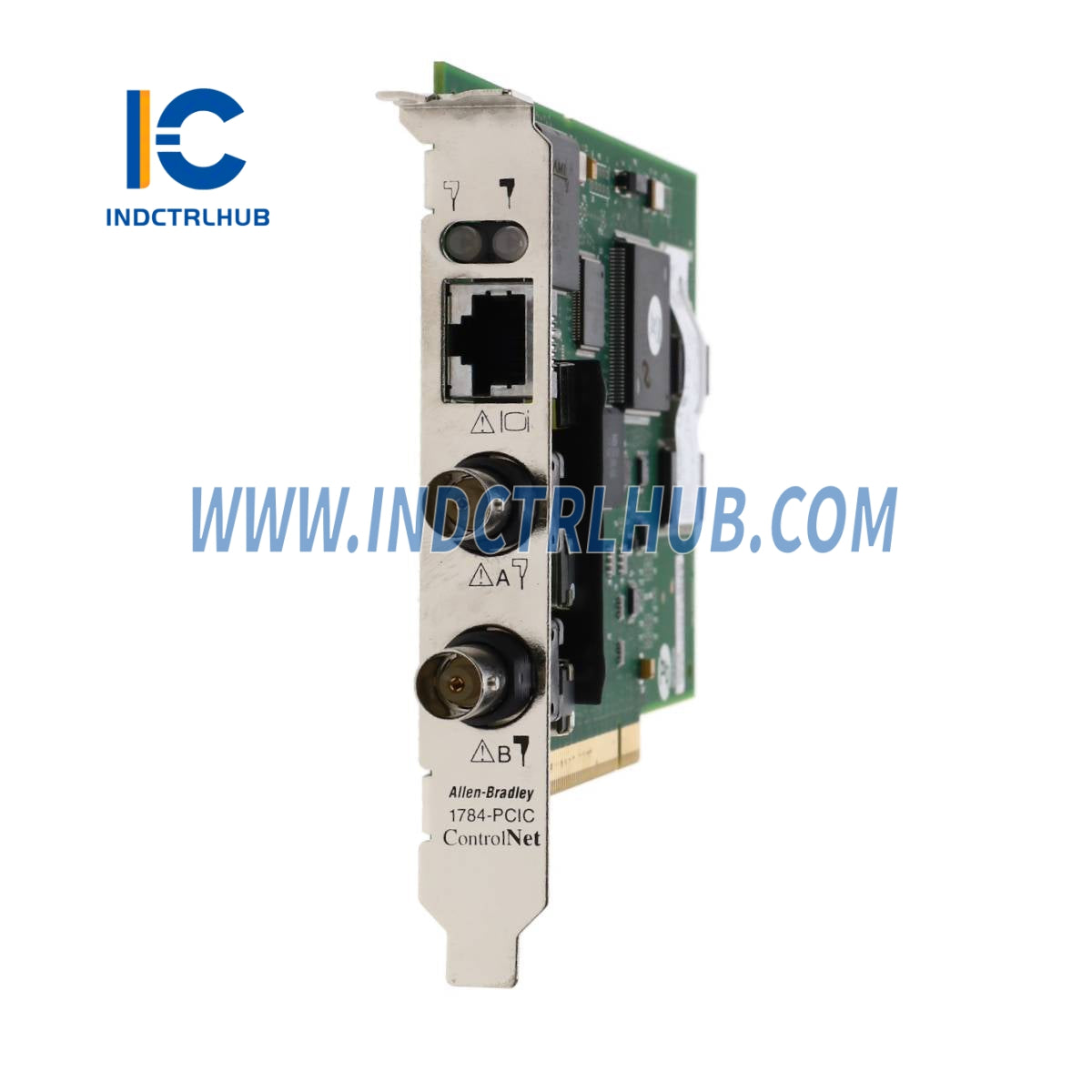

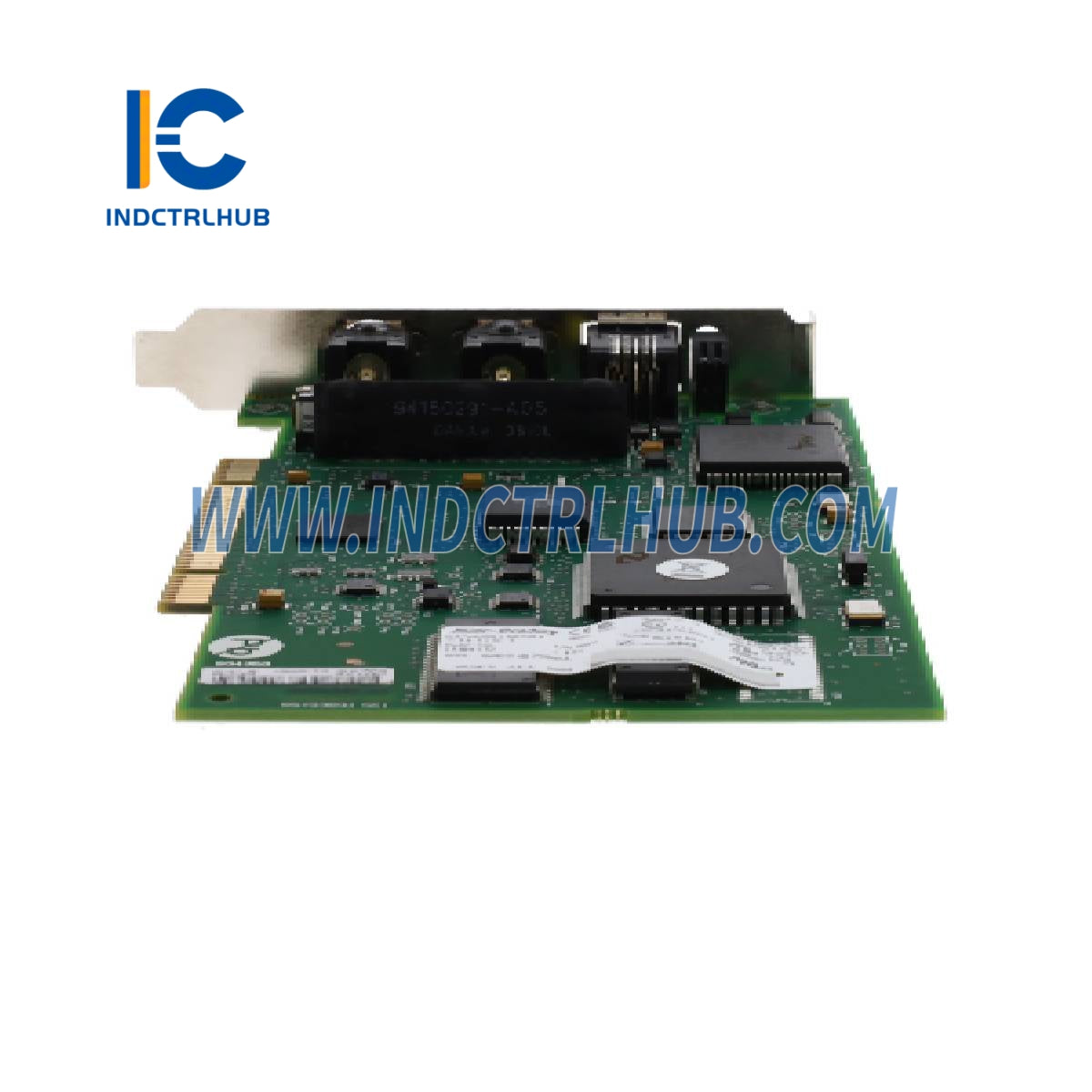

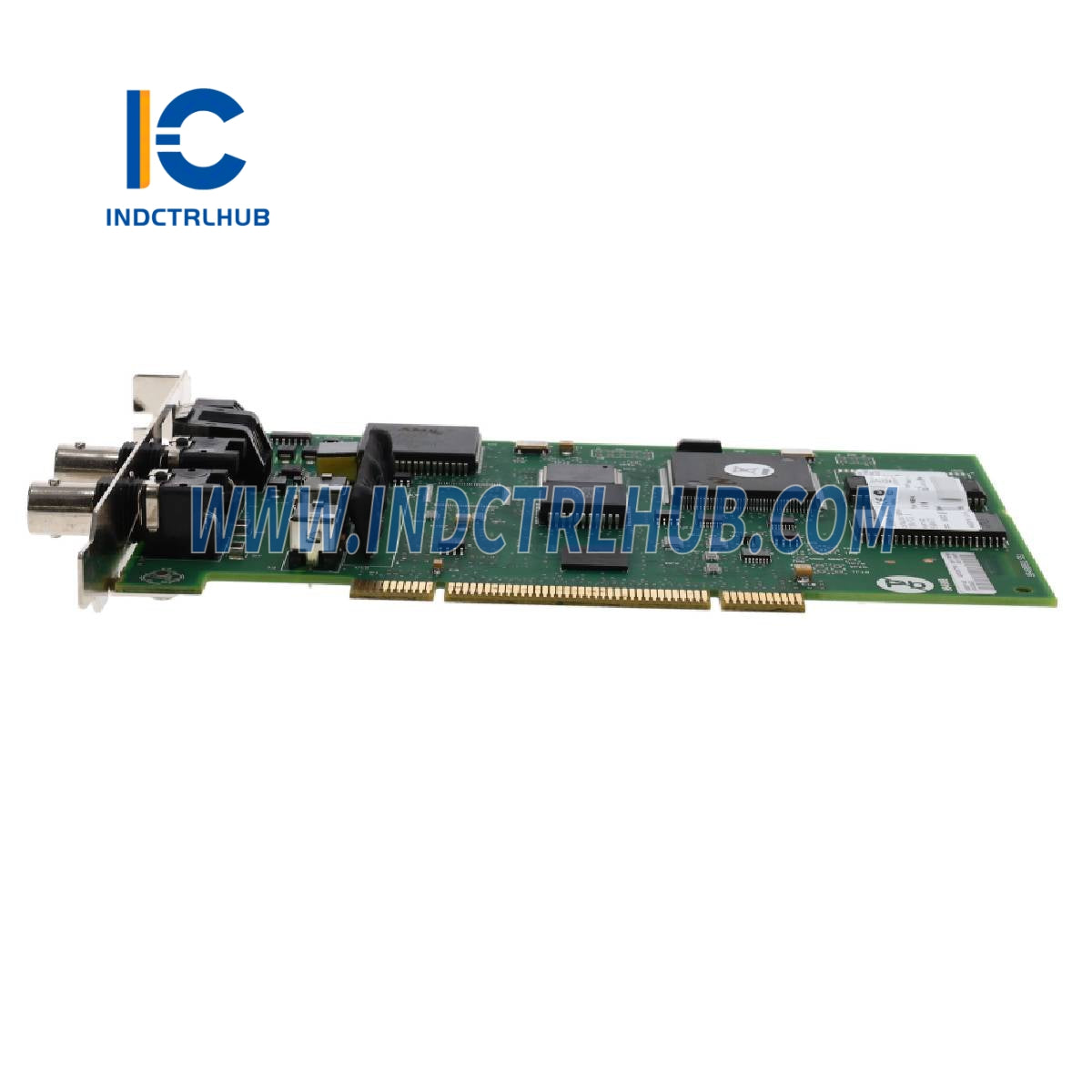

ALLEN BRADLEY 1784-PCIC ControlNet Universal PCI Communication Interface Card

PCI Local Bus

Compliant to PCI revision 2.2

Compatibility

Compatible with 5V and 3.3V PCI slots, 32-bit and 64-bit PCI slots, and PCI-X slots (Not compatible with PCI Express)

Mechanical Form Factor

Universal PCI 32-bit short card (10.7 cm x 16.5 cm)

Driver Compatibility

Microsoft Windows XP (SP1+), Windows 2000 (SP4+), Windows 98, Windows Me

Software Compatibility

Rockwell Software RSLinx (version 2.42.00 or later)

Operational Temperature

0…55 °C (32…131 °F)

Storage Temperature

-40…85 °C (-40…185 °F)

Relative Humidity

5…95% noncondensing

Vibration

2g @ 10…500Hz

Operating Shock

30 g

Non-operating Shock

50 g

Emissions

CISPR 11: Group 1, Class A

ESD Immunity

6 kV contact discharges, 8 kV air discharges

Radiated RF Immunity

10V/m @ 80MHz-2000MHz, 10V/m @ 900MHz & 1890MHz

EFT/B Immunity

±2 kV at 5 kHz on communications ports

Surge Transient Immunity

±2 kV line-earth (CM) on communications ports

Conducted RF Immunity

10Vrms @ 150kHz-80MHz

Enclosure Type Rating

None (open-style)

Power Requirements

5V DC, 700 mA max., Class 2

Power Dissipation

3.5 W

Isolation Voltage

50V continuous, tested to withstand 600V for 60 s

Wiring Category

2 - on communications ports
