Product Description
Product Details

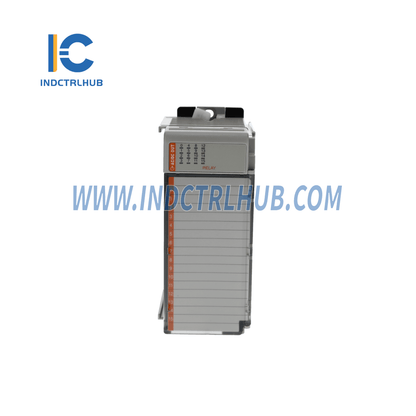

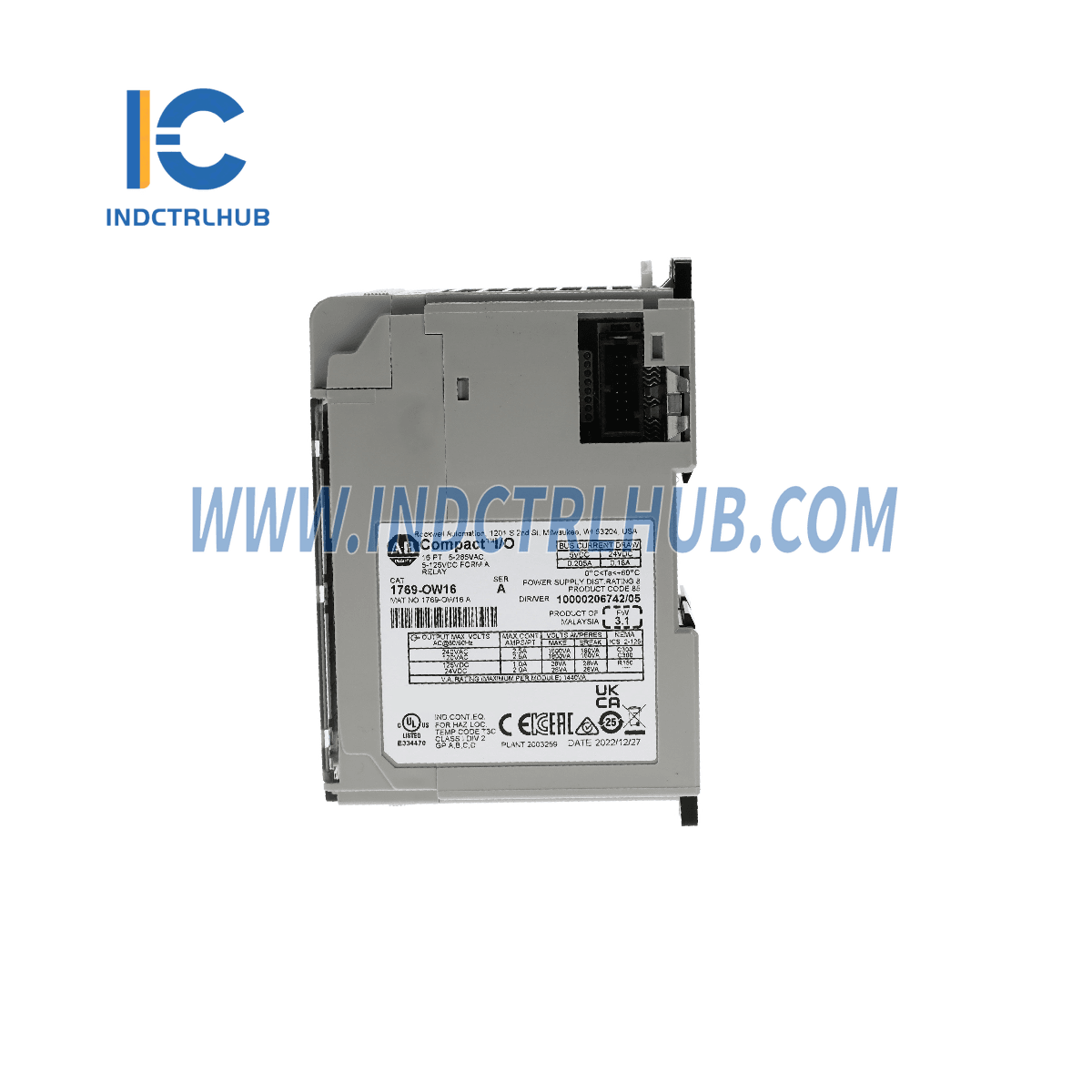

- Manufacturer: Allen-Bradley
- Model/Part Number: 1769-OW16
- Model Type: CompactLogix 16 Pt D/O Relay Module
Technical Specifications - Allen-Bradley 1769-OW16
General Specifications
| Attribute | Value |
|---|---|
| Dimensions |
118 mm (H) x 87 mm (D) x 52.5 mm (W) (4.65 in. x 3.43 in. x 2.07 in.) Height including mounting tabs is 138 mm (5.43 in.) |
| Approximate Shipping Weight | 450 g (0.99 lbs.) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
| Operating Humidity | 5% to 95% non-condensing |
| Operating Altitude | 2000 meters (6561 feet) |
| Vibration (Operating) | 10 to 500 Hz, 5G, 0.030 inches maximum peak-to-peak |
| Shock (Operating) | 30G panel mounted (20G DIN rail mounted) |
| Agency Certifications | C-UL certified (under CSA C22.2 No. 142), UL 508 listed, CE, and C-Tick compliant for all applicable directives |
| Hazardous Environment Class | Class I, Division 2, Hazardous Location, Groups A, B, C, D (UL 1604, C-UL under CSA C22.2 No. 213) |
| Radiated and Conducted Emissions | EN50081-2 Class A |
| Electrical / EMC Compliance |
ESD Immunity (IEC61000-4-2): 4kV contact, 8kV air, 4kV indirect Radiated Immunity (IEC61000-4-3): 10 V/m, 80 to 1000 MHz Fast Transient Burst (IEC61000-4-4): 2 kV, 5 kHz Surge Immunity (IEC61000-4-5): 2 kV common mode, 1 kV differential mode Conducted Immunity (IEC61000-4-6): 10V, 0.15 to 80 MHz |
Output Specifications
| Attribute | Value |
|---|---|
| Voltage Category | AC/DC normally open relay |
| Operating Voltage Range |
5 to 265V ac 5 to 125V dc |
| Number of Outputs | 16 |
| Bus Current Draw (Max.) | 205 mA at 5V dc line, 180 mA at 24V dc line |
| Heat Dissipation | 4.75 Total Watts (The Watts per point, plus the minimum Watts, with all points energized.) |
| Signal Delay (Max.) | 10 ms turn-on, 10 ms turn-off |
| Off-State Leakage (Max.) | 0 mA |
| On-State Current (Min.) | 10 mA at 5V dc |
| Continuous Current per Point (Max.) | 2.5A |
| Continuous Current per Common (Max.) | 10A |
| Continuous Current per Module (Max.) | 20A |
| Power Supply Distance Rating | 8 (The module may not be more than 8 modules away from the power supply.) |
| Output Point to Bus Isolation |
Verified by dielectric tests: 1836V ac for 1 sec. or 2596V dc for 2 sec. 265V ac working voltage (IEC Class 2 reinforced insulation) |
| Isolated Groups | Group 1: outputs 0 to 7, Group 2: outputs 8 to 15 |
| Output Group to Output Group Isolation |
Verified by dielectric tests: 1836V ac for 2 sec. or 2596V dc for 2 sec. 265V ac working voltage (basic insulation) 150V ac working voltage (IEC Class 2 reinforced insulation) |
