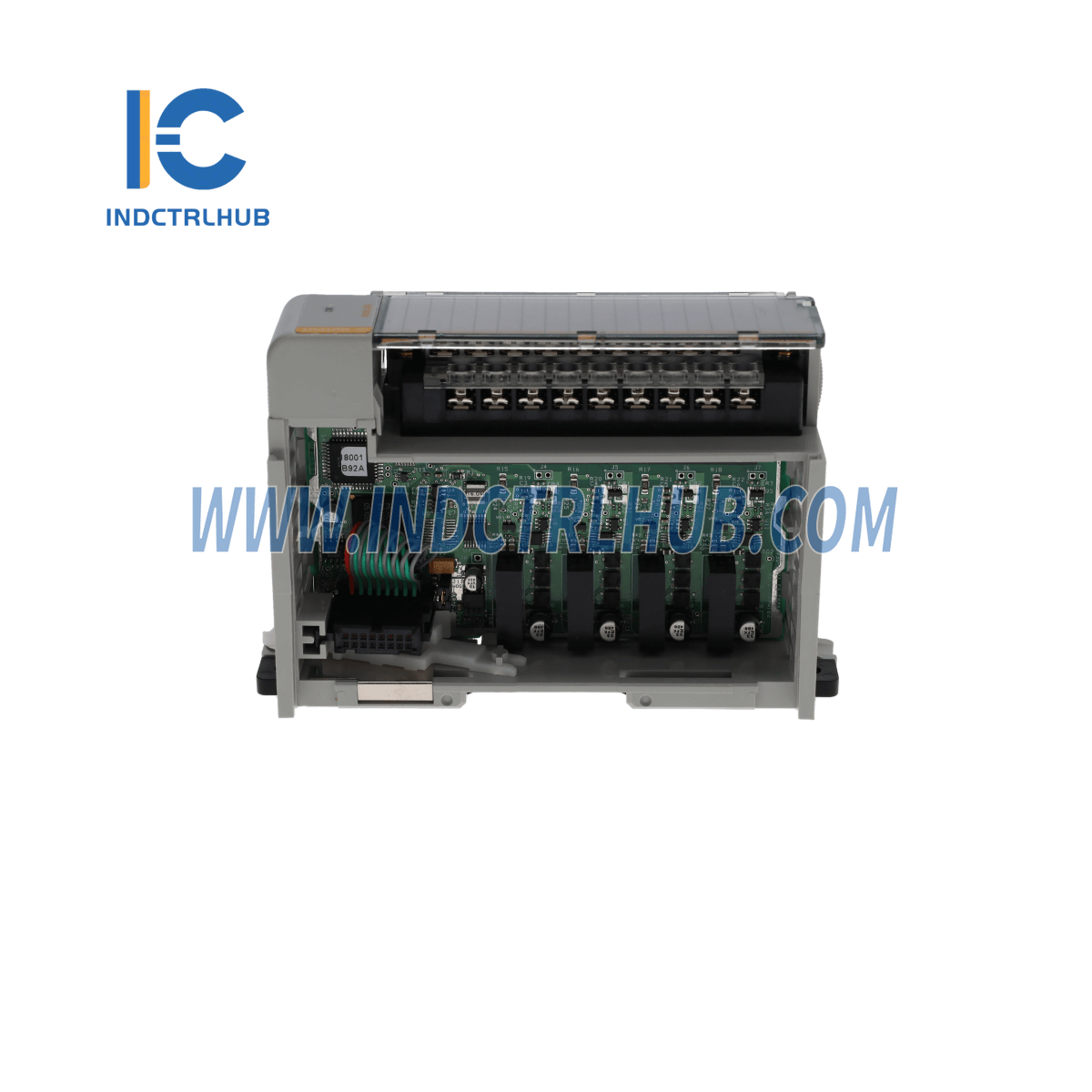

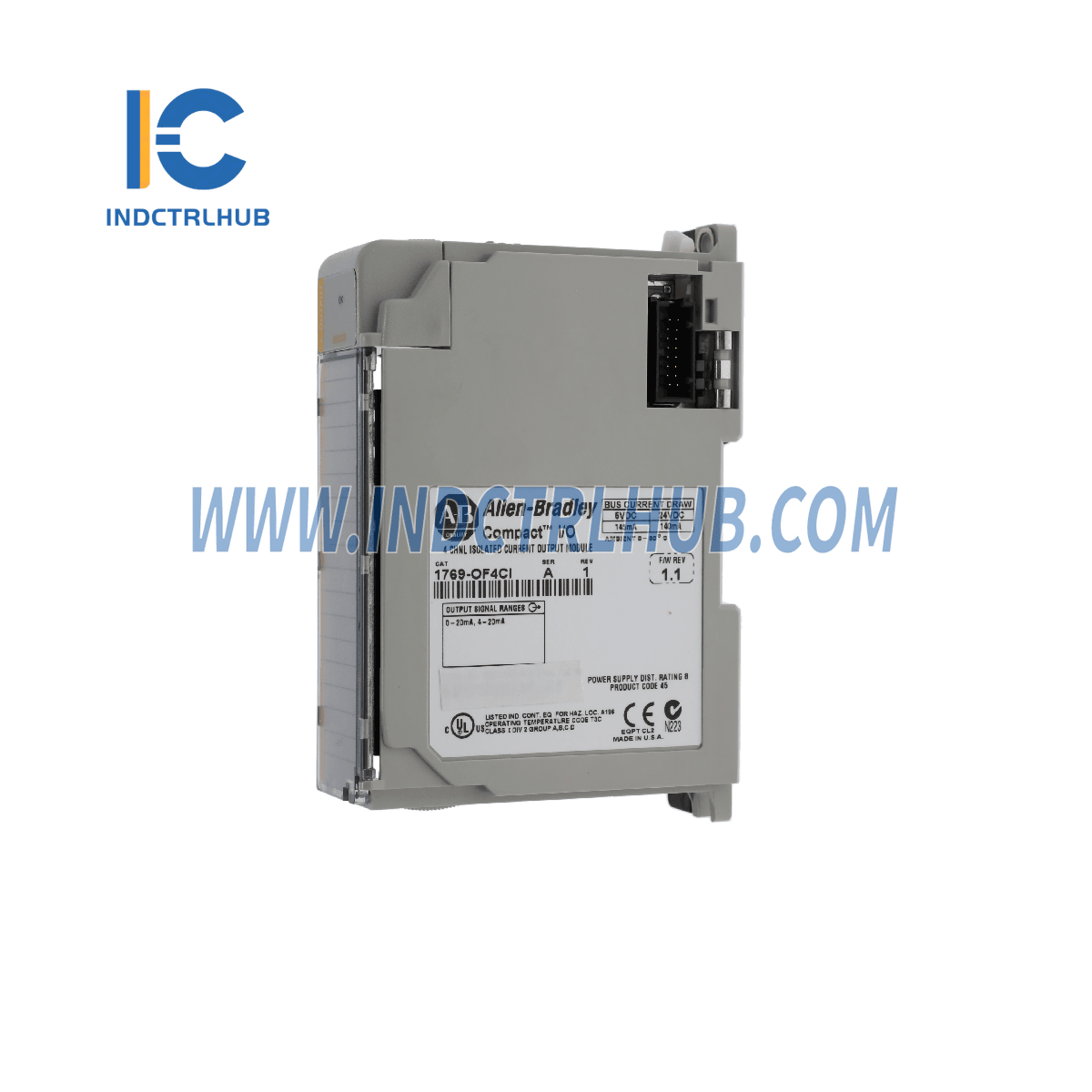

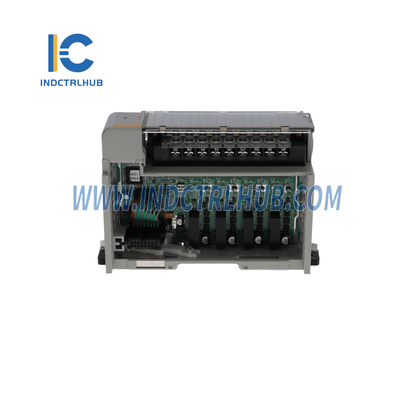

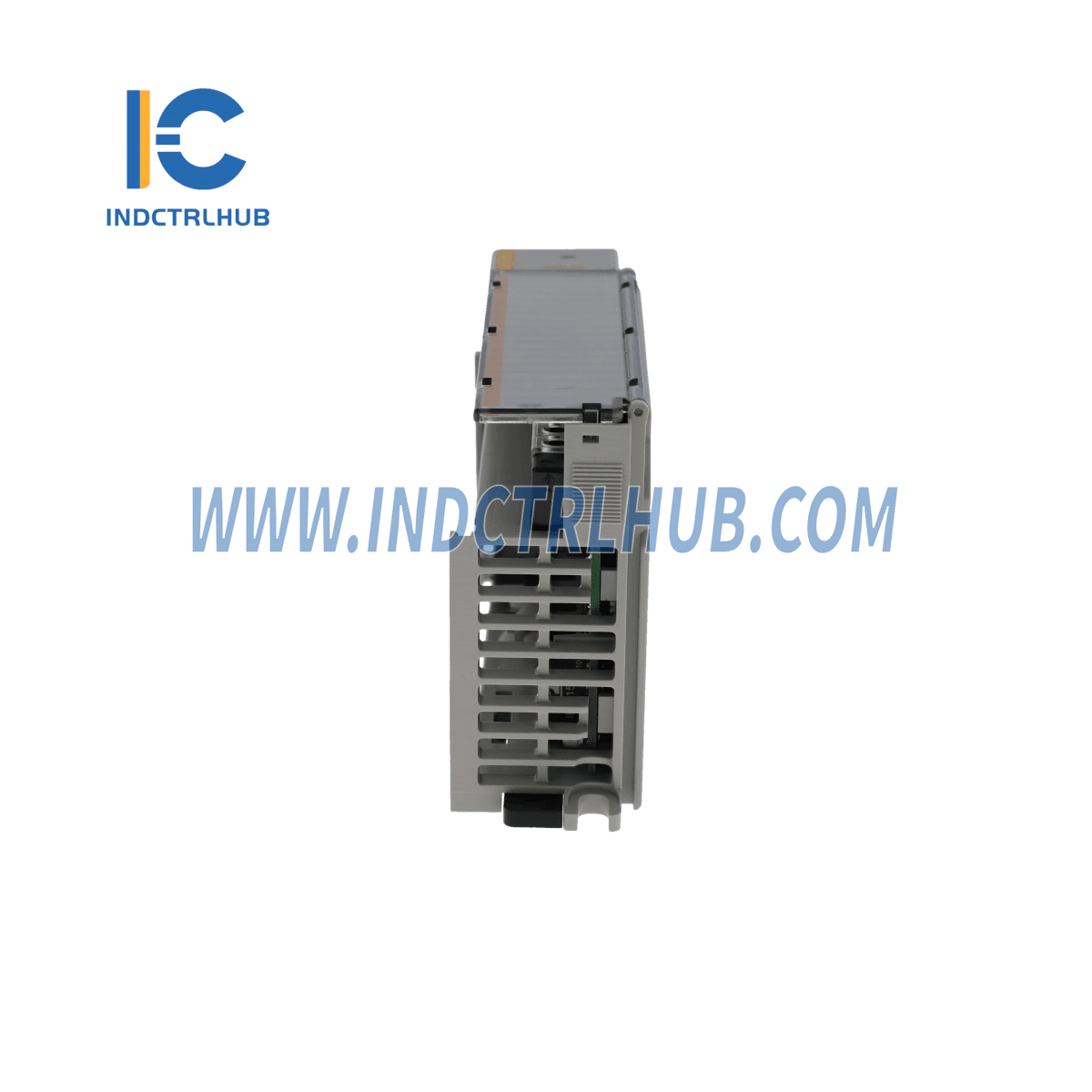

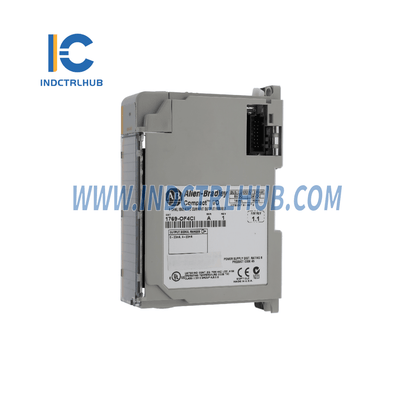

Product Description
Product Details
- Manufacturer: Allen-Bradley
- Model/Part Number: 1769-OF4CI
- Model Type: CompactLogix 4 Pt A/O Current Module
Technical Specifications - Allen-Bradley 1769-OF4CI
General Specifications
| Attribute | Value |
|---|---|
| Output Overvoltage Protection | Yes |
| Output Response at System Power-up and Power-down | No current glitch |
| Rated Working Voltage | 30V AC / 30V DC |
| Isolation Voltage | 500V AC or 710V DC for 1 min (output group to bus) |
| Working Voltage (Output Group) | 30V AC / 30V DC (IEC Class II reinforced insulation) |
| Weight | 270 g (0.60 lb) |
| Dimensions (HxWxD) | 118 mm x 35 mm x 87 mm (4.65 in x 1.38 in x 3.43 in) |
| Height with Mounting Tabs | 138 mm (5.43 in) |
| Slot Width | 1 |
| Module Mounting | DIN rail or panel mount |
| Power Supply | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 |
| Power Supply Distance Rating | 8 modules |
| Terminal Screw Torque | 0.68 N•m (6 lb•in) |
| Retaining Screw Torque | 0.46 N•m (4.1 lb•in) |
| Wire Size | 22–14 AWG (solid), 22–16 AWG (stranded) |
| Wire Type | Cu-90°C (194°F) |
| Recommended Cable | Belden 8761 (shielded) |
| Replacement Terminal Block | 1769-RTBN18 (1 per kit) |
| Replacement Door Label | 1769-RL2 (2 per kit) |
| Replacement Door | 1769-RD (2 per kit) |
I/O Details
| Attribute | Value |
|---|---|
| Input Words | 6 |
| Output Words | 5 |
| Configuration Words | 32 |
