Product Description
Product Overview

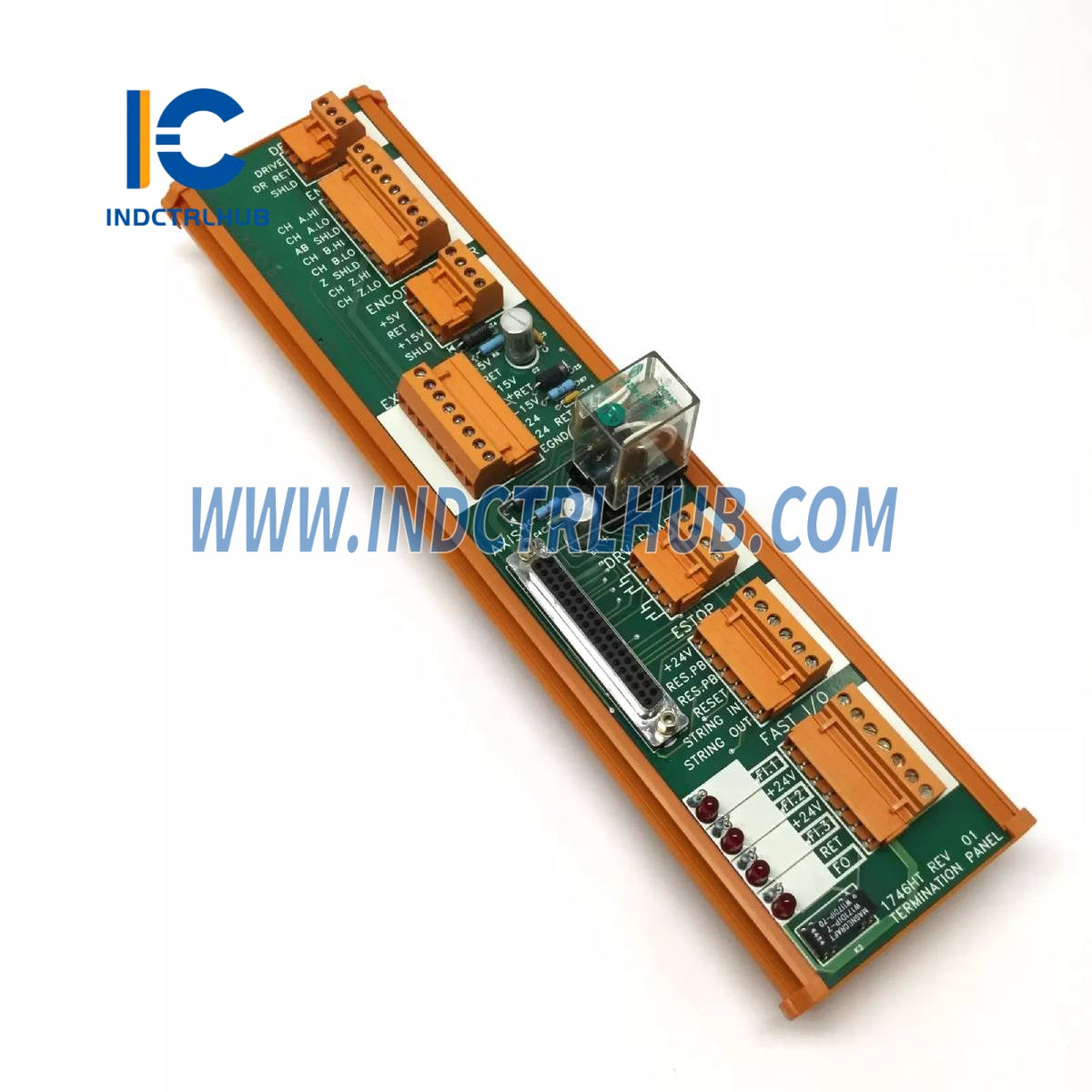

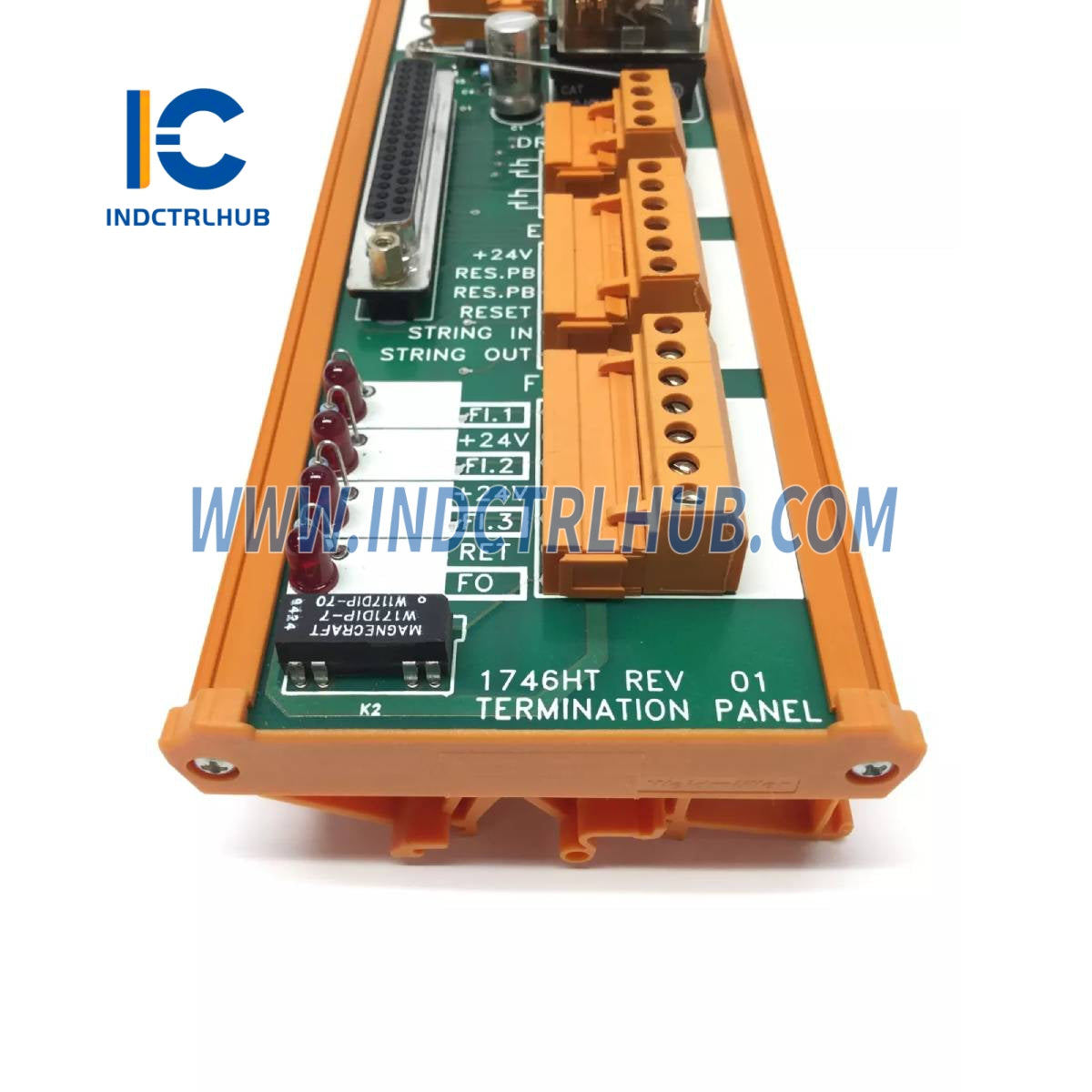

The Allen-Bradley 1746-HT is a Termination Panel designed for industrial automation applications within Rockwell Automation systems. Manufactured by Allen-Bradley (a Rockwell Automation brand), this panel is part of the SLC 500 series and serves as an interface for connecting servo control modules, such as the 1746-HSRV, to external devices like encoders, drives, and power supplies. It is built for reliability and ease of integration in environments such as manufacturing, process control, and industrial machinery, providing a centralized point for wiring and signal termination.
Technical Specifications
The 1746-HT has the following specifications based on supplier data from Rockwell Automation and industry sources:
| Item | Specification |
|---|---|
| Model/Part Number | 1746-HT |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | Termination Panel |
| Series | SLC 500 |
| Mounting | 35 mm DIN rail |
| Dimensions | 292 x 70 mm (11.5 x 2.75 in) |
| Weight | 0.85 kg (1.87 lbs) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
Additional Details
The 1746-HT includes the following additional information based on supplier documentation:
| Category | Details |
|---|---|
| Function | Interfaces servo control modules with external devices |
| Compatibility | 1746-HSRV servo module, connects via 1746-HCA cable |
| Connections | E-stop, fast I/O (3 inputs, 1 output), encoder feedback, analog drive, external power (+5 V DC, ±15 V DC, +24 V DC) |
| Features | LED status indicators for I/O, supports up to 7 ft (2.1 m) from motion control module |
| Certifications | CE, cULus |
