Product Description
Product Overview

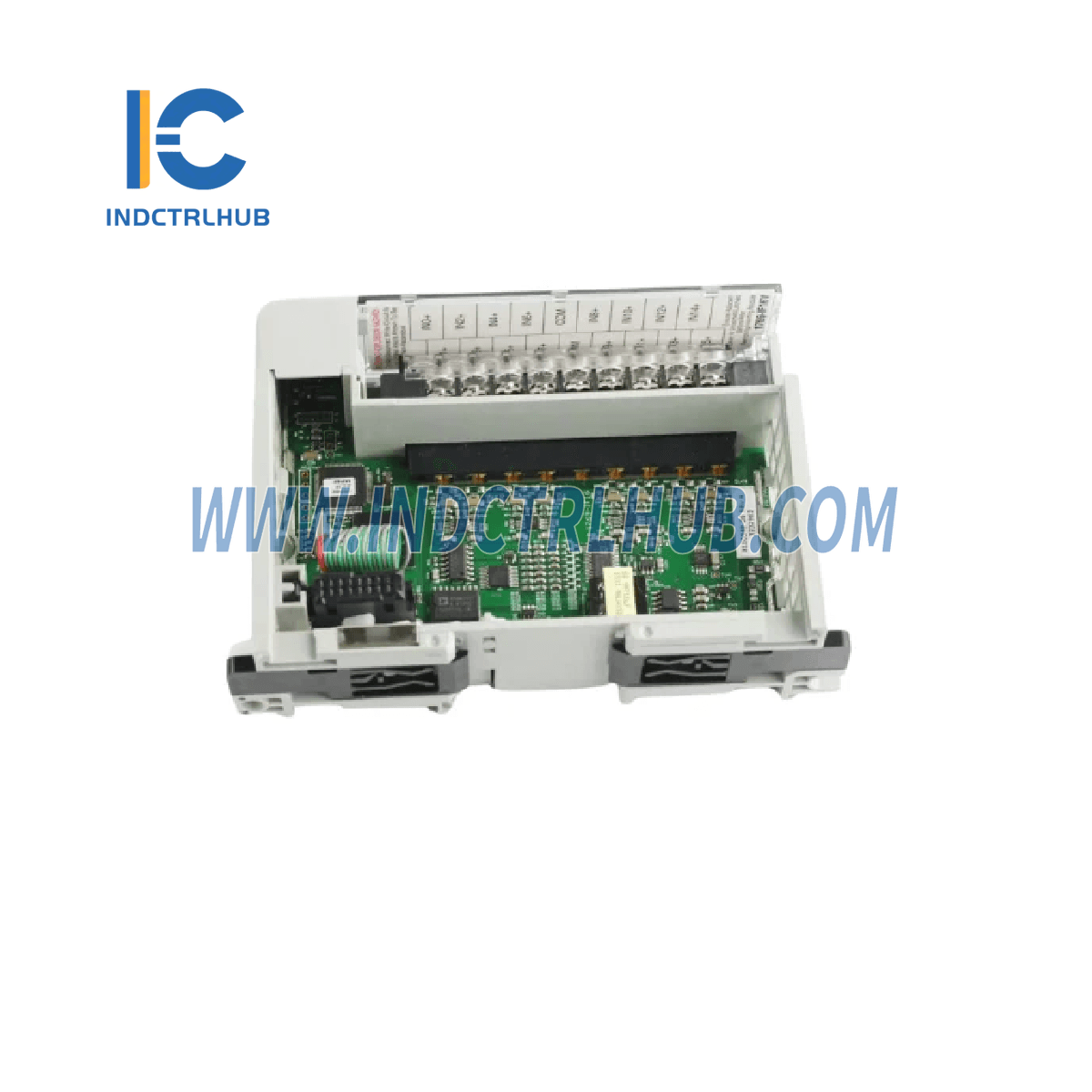

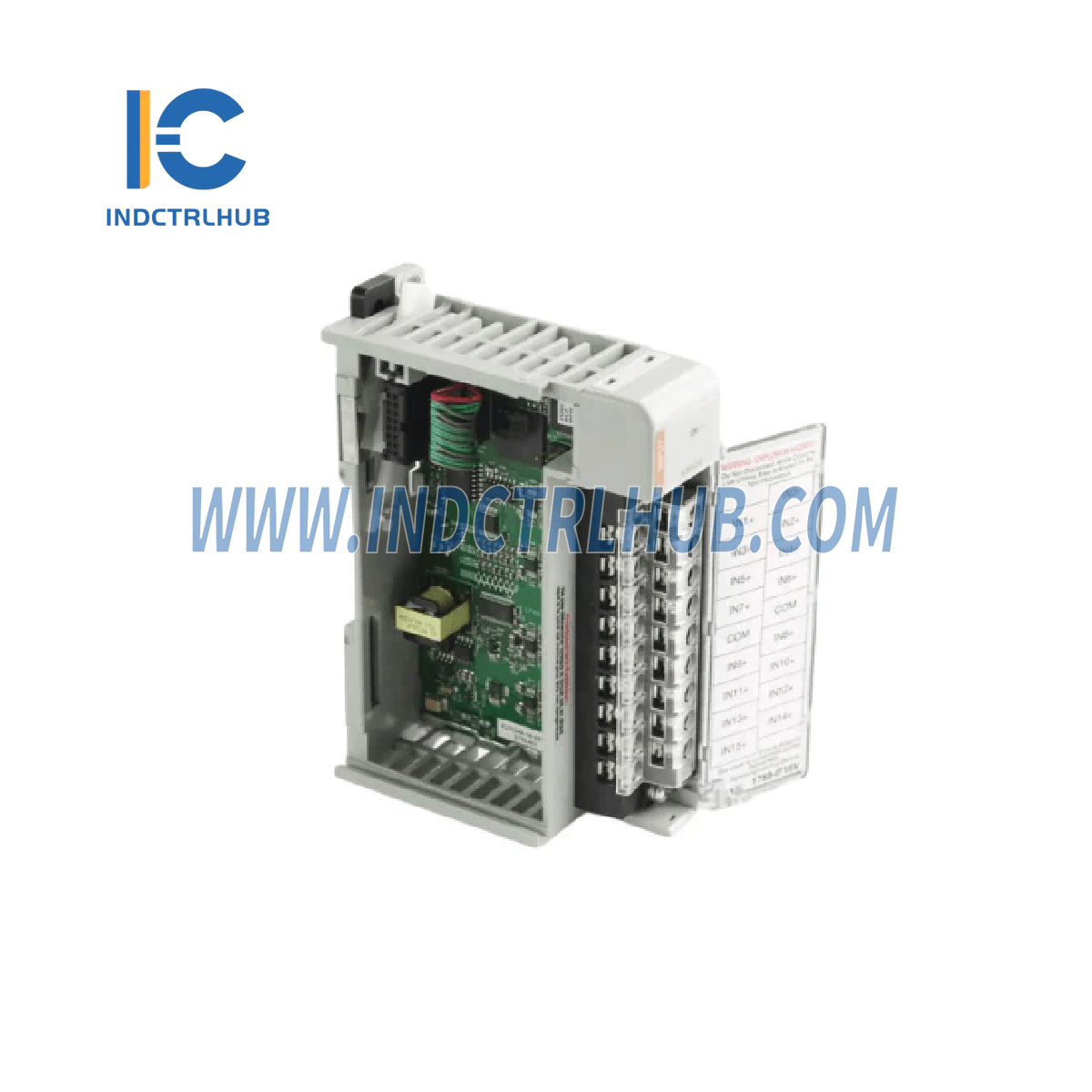

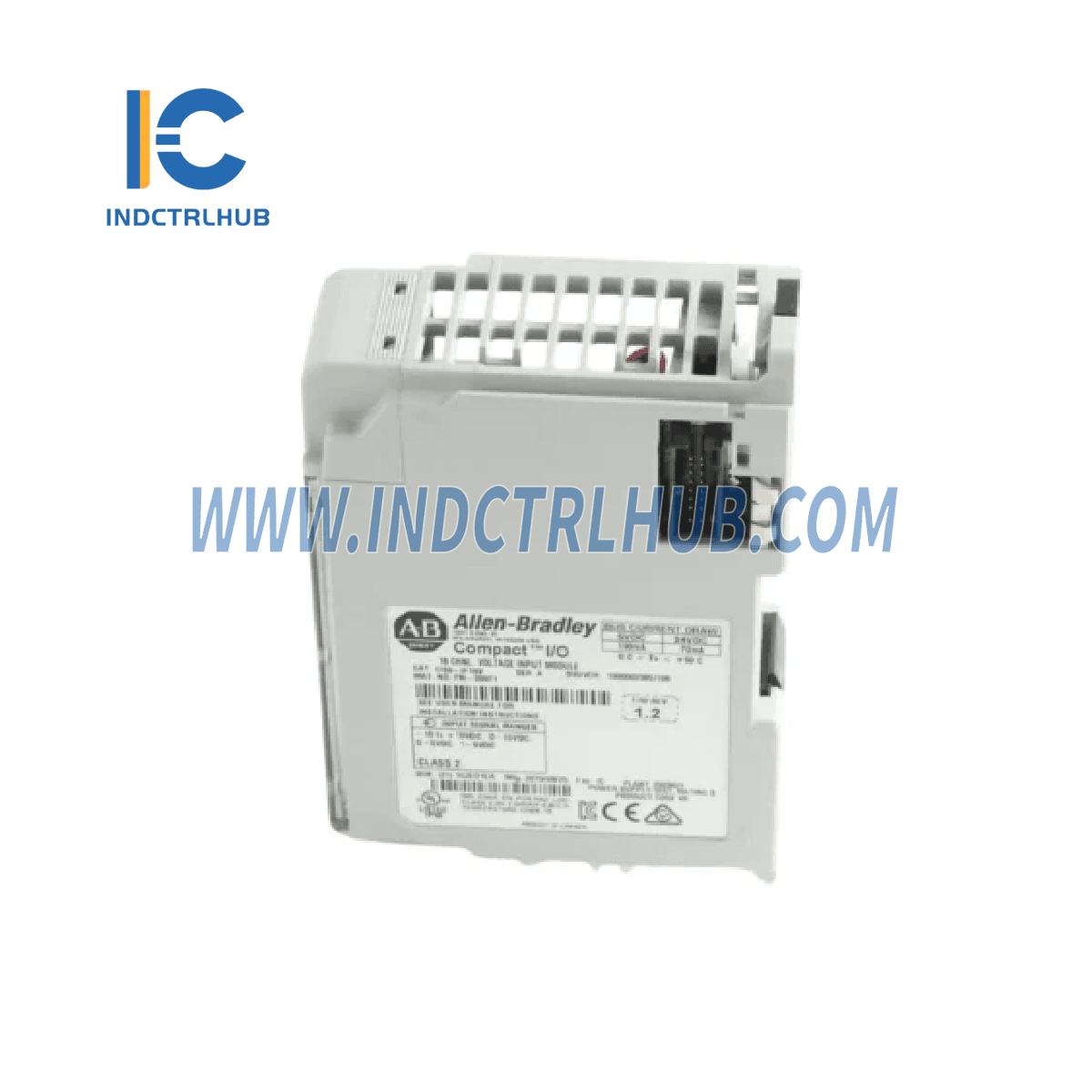

- Manufacturer: Allen-Bradley
- Model/Part Number: 1769-IF16V
- Model Type: CompactLogix 16 Point A/I Voltage Module
Technical Specifications
| Attribute | Specification |
|---|---|
| Number of Input Channels | 16 |
| Input Signal Types | Voltage (±10V, ±1V, 0–10V DC, etc.) |
| Input Resolution | Dependent on filter setting (up to 16-bit) |
| Response Speed |
- 16 Hz Filter: 1550 ms update per input point
- 50 Hz Filter: 500 ms update per input point
- 60 Hz Filter: 420 ms update per input point
- 315 Hz Filter: 90 ms update per input point
-
1365 Hz Filter: 35 ms update per input point
| Overload at Input Terminals (Max) | ±30 mA continuous, ±7.6V DC | | Isolation Voltage | 500V AC or 710V DC for 1 minute (qualification test) | | Rated Working Voltage | 30V AC / 30V DC (IEC Class II reinforced insulation) | | Terminal Torque (Screw) | 0.68 N•m (6 lb•in) | | Weight | Approx. 281 g (0.62 lb) | | Dimensions (HxWxD) | 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in.) | | Height (with mounting tabs) | 138 mm (5.43 in.) | | Slot Width | 1 | | Mounting | DIN rail or panel mount | | Power Supply Compatibility | 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4 | | Power Supply Distance Rating | Supports up to 8 modules | | Wire Size | 22–14 AWG solid or 22–16 AWG stranded copper wire | | Replacement Components | - Terminal Block: 1769-RTBN18 (1 per kit)
- Door Label: 1769-RL2 Series B (2 per kit)
- Replacement Door: 1769-RD (2 per kit) | | Enclosure Type Rating | None (open-style) | | Vendor ID Code | 1 | | Product Type Code | 10 | | Product Code | 46 | | Input Words | 22 | | Output Words | 2 | | Configuration Words | 98 |
Response Speed and Filter Frequencies
| Filter Frequency | Step Response | Update per Input Point | Update per Module |
|---|---|---|---|
| 16 Hz | 1550 ms | 200 ms | 1600 ms |
| 50 Hz | 500 ms | 70 ms | 560 ms |
| 60 Hz | 420 ms | 60 ms | 480 ms |
| 315 Hz | 90 ms | 15 ms | 120 ms |
| 1365 Hz | 35 ms | 5 ms | 40 ms |
Key Features
- 16 Analog Input Channels for voltage measurements
-
Input Voltage Range:
- ±10V DC (Typical)
- Other ranges available based on configuration
- Overload Protection: ±30mA continuous, ±7.6V DC at input terminals
- High Isolation Voltage: 500V AC or 710V DC for 1 minute (qualification test)
- IEC Class II Reinforced Insulation
- Update Speed Options: Selectable filter frequencies (16 Hz to 1365 Hz) for different response times
- DIN Rail or Panel Mounting for flexible installation
- Wide Compatibility: Works with CompactLogix 1769 series controllers
- Replaceable Components: Includes options for replacement terminal blocks and door labels
- Temperature Rating: Designed to operate in industrial environments
Applications
- Voltage Signal Measurement: Ideal for systems requiring accurate measurement of analog voltage signals.
- Industrial Automation: Can be used in process control, machine monitoring, and other automation tasks requiring voltage sensing.
- Data Acquisition: Suitable for applications where high-speed voltage data acquisition is necessary.
- OEM Equipment: Frequently used in embedded control systems requiring analog input from sensors or other devices.
