Product Description
General Information
|
Attribute |
Value |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model/Part Number |
1794-TBN |
|
Description |

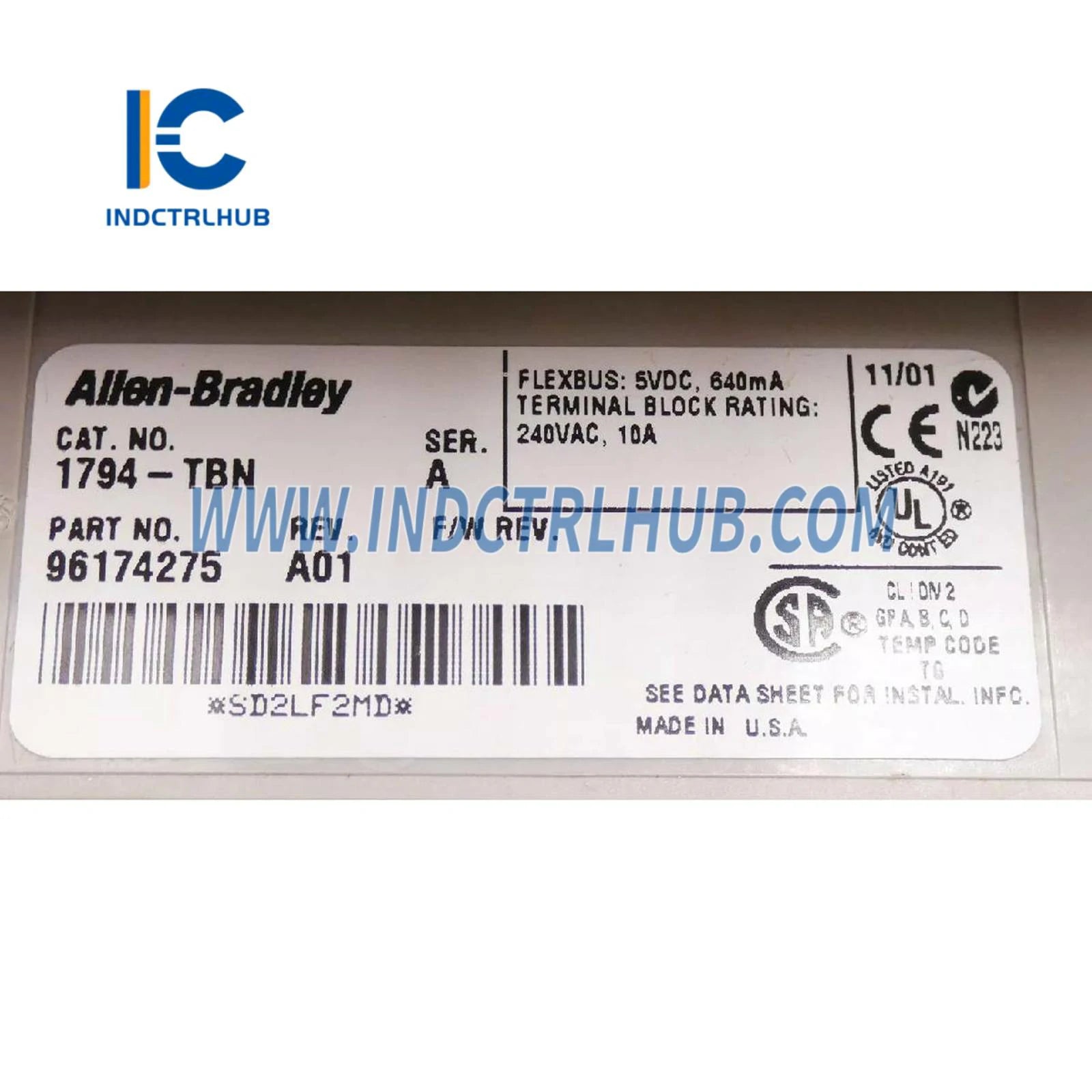

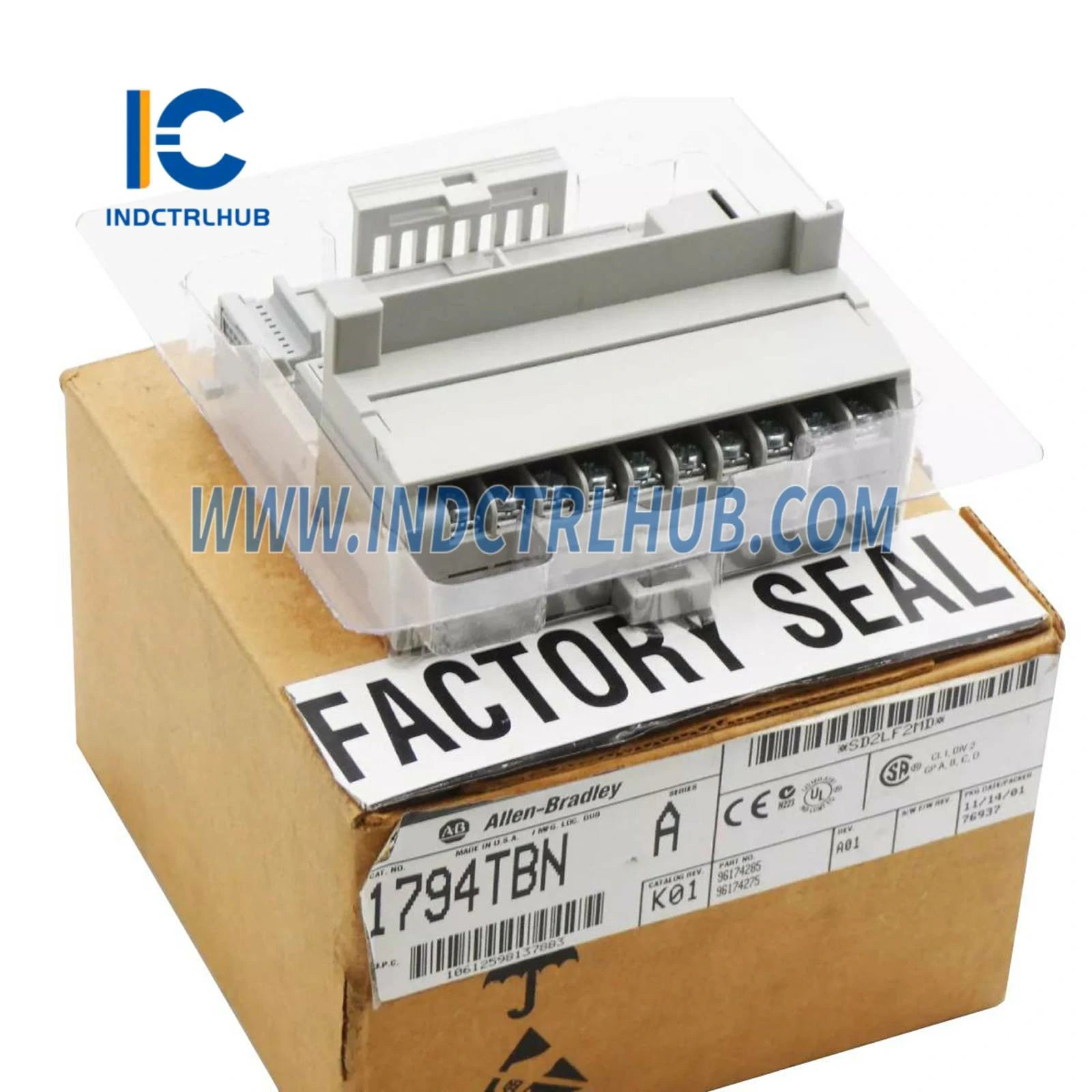

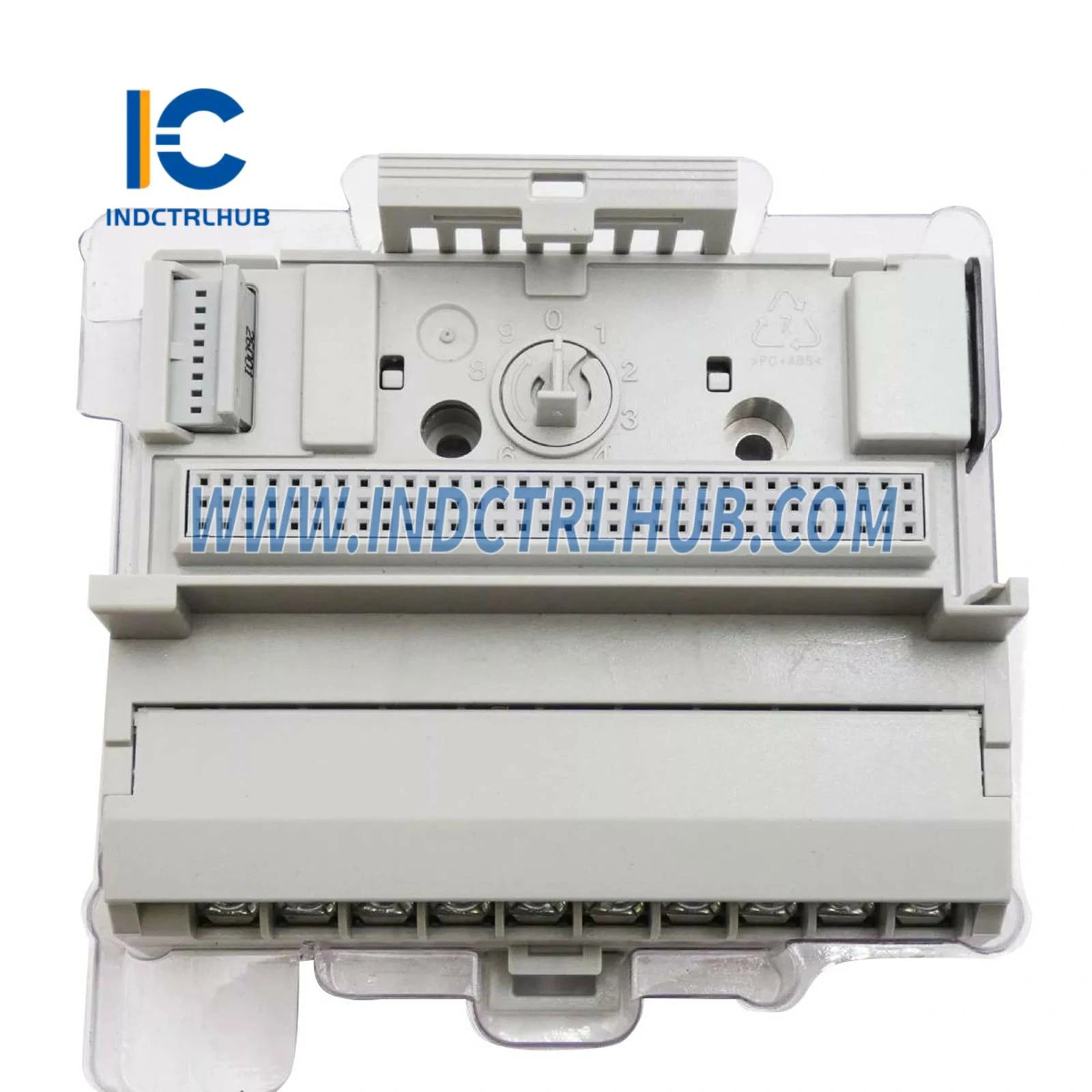

Flex Terminal Base |
Specifications
General Specifications
|
Attribute |
Value |
|---|---|
|
Terminal screw torque |
1.4 N•m (12 lb•in) |
|
Supply voltage range (max) |
V/COM Terminals: 250V DC/AC, 50/60 Hz, 10 A |
|
Isolation voltage |
Capable of 250V (continuous) max, Basic Insulation Type, Field Wiring Terminals to Flexbus |
|
Enclosure type rating |
None (open-style) |
|
Wire size |
0.34…3.3 mm² (22…12 AWG) solid or stranded copper wire rated at 105 °C (221 °F) or greater, 1.2 mm (3/64 in.) insulation max |
|
Strip Length |
5…6 mm (0.20…0.24 in.) |
|
Wiring category |
Established by the installed module |
|
North American temp code |
T4A |
|
UKEX/ATEX temp code |
T4 |
|
IECEx temp code |
T4 |
|
Dimensions (H x W x D) |
94 x 94 x 69 mm (3.7 x 3.7 x 2.7 in.) (with module installed) |
Environmental Specifications
|
Attribute |
Value |
|---|---|
|
Operating temperature |
-20…+70 °C (-4…+158 °F) |
|
Non-operating temperature |
-40…+85 °C (-40…+185 °F) |
|
Relative humidity |
5…95% non-condensing |
|
Vibration |
5 g @ 10…500 Hz |
|
Operating shock |
30 g |
|
Non-operating shock |
50 g |
