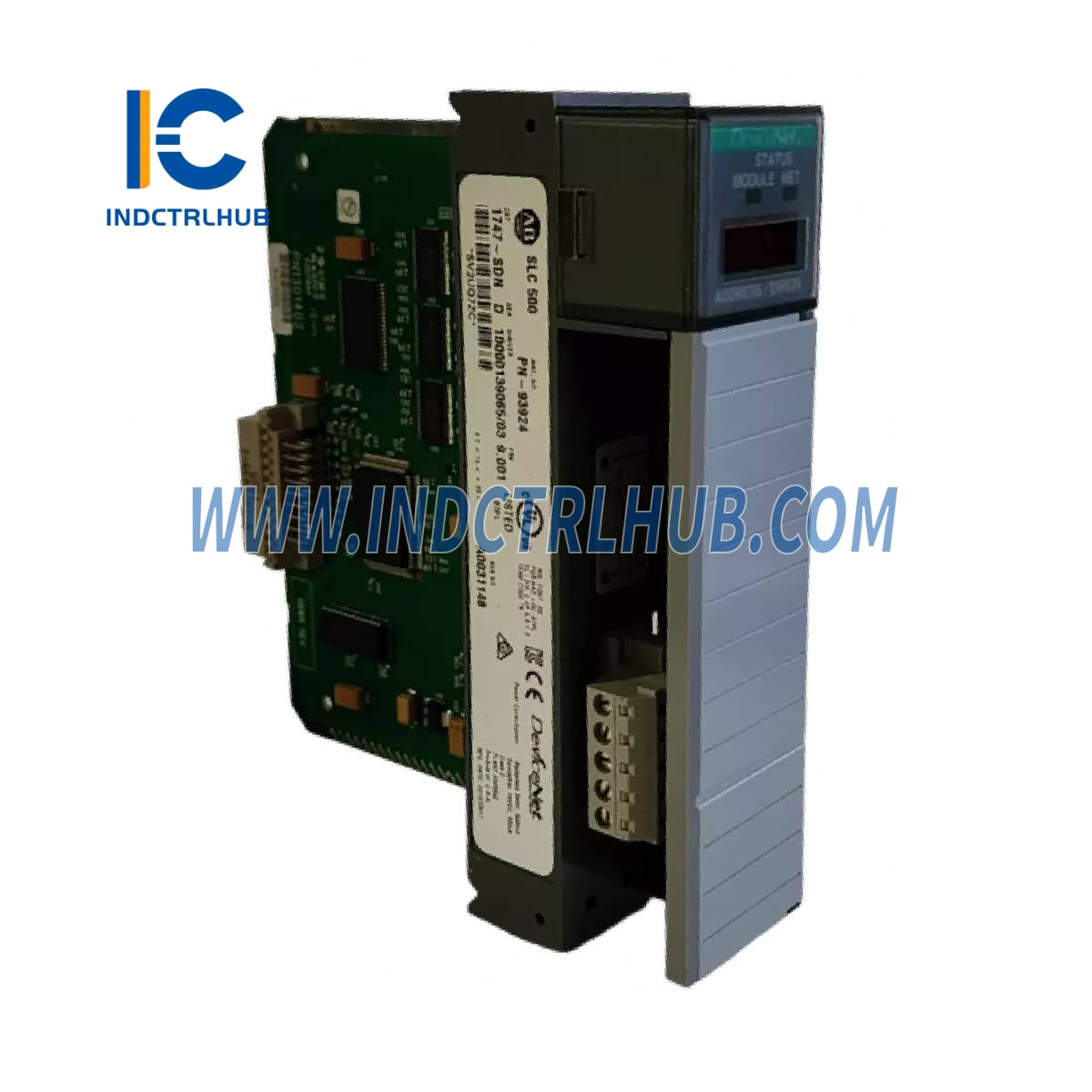

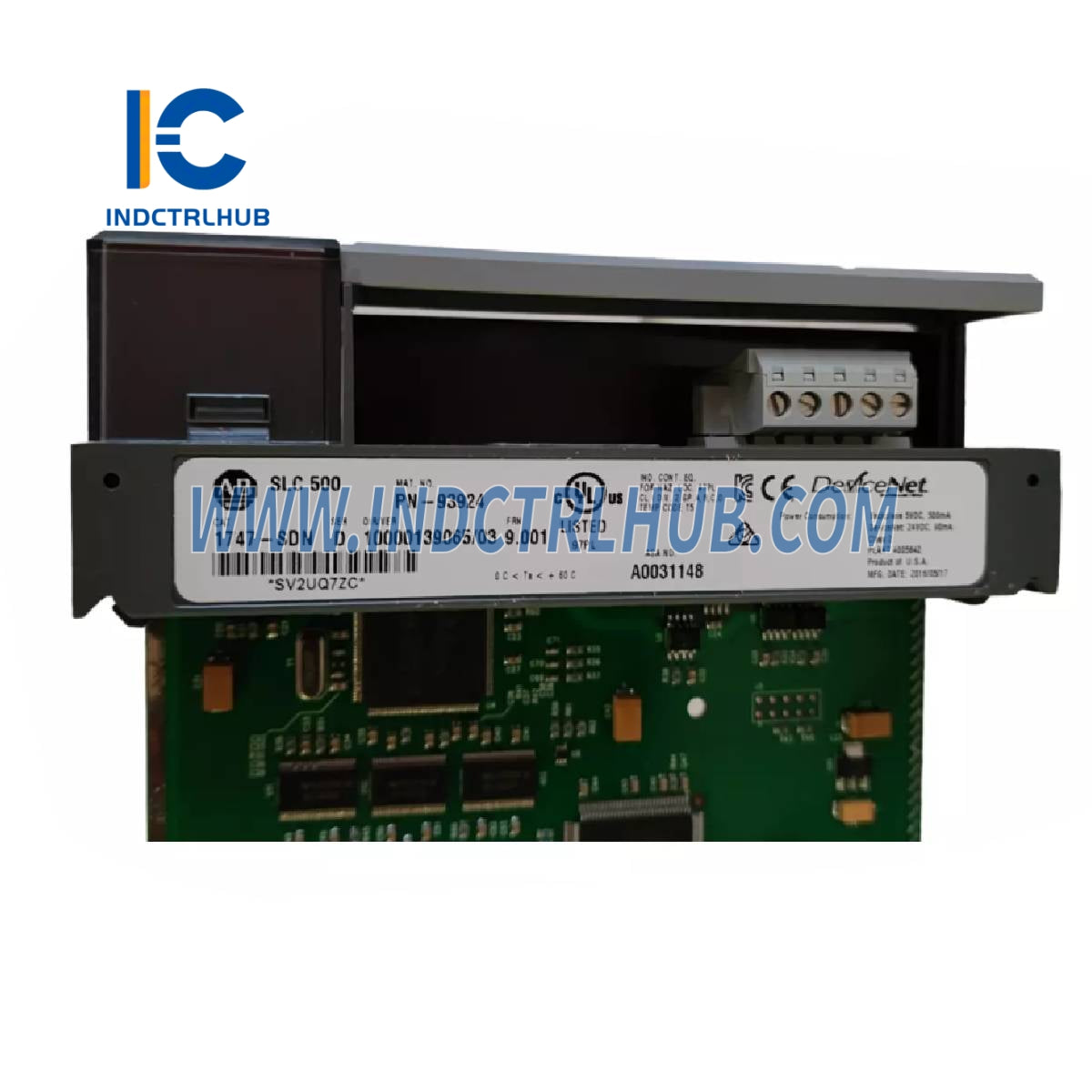

Product Description
__ General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1747-SDN/D |
|
Description |
SLC DeviceNet Scanner |
_
__ Error Codes
|
Error Code |
Description |
|---|---|
|
98 |
Unrecoverable firmware failure. Service or replace your module. |
|
99 |
Unrecoverable hardware failure. Service or replace your module. |
|
E2 |
RAM Test Failure. Service or replace your module. |
|
E4 |
Lost power during FLASH upgrade. Service or replace your module. |
|
E5 |
No application code. Service or replace your module. |
|
E9 |
Module memory has been flushed to factory default settings. Cycle module power to recover. |
_
__ Specifications
Module & Power Requirements
|
Specification |
Value |
|---|---|
|
Module Location |
SLC 5/02 or later chassis |
|
Node Address (Default) |
63 |
|
Baud Rate (Default) |
125 Kbps |
|
Power Consumption (Backplane Current) |
5V DC, 500 mA |
|
Power Consumption (DeviceNet) |
24V DC, 90 mA (Class 2) |
|
Isolation Voltage |
30V (continuous), Basic Insulation Type |
_
Environmental Conditions
|
Specification |
Value |
|---|---|
|
Operating Temperature |
0 to 60°C (32 to 140°F) |
|
Non-operating Temperature |
-40 to 85°C (-40 to 185°F) |
|
Relative Humidity |
5% to 95% non-condensing |
_
Mechanical Characteristics
|
Specification |
Value |
|---|---|
|
Vibration (Operating) |
2g @10 to 500 Hz |
|
Shock (Operating) |
30g |
|
Shock (Non-operating) |
50g |
_
Immunity & Radiated Fields
|
Specification |
Value |
|---|---|
|
Electrostatic Discharge (ESD) Immunity |
6 kV contact discharges, 8 kV air discharges |
|
Radiated RF Immunity |
10 V/m with 1 kHz sine-wave 80% AM from 80 to 2000 MHz |
|
EFT/B Immunity |
+2 kV at 5 kHz on communication ports |
|
Surge Transient Immunity |
±2 kV line-earth (CM) on communications ports |
|
Conducted RF Immunity |
10 Vrms with 1 kHz sine-wave 80% AM from 150 kHz to 80 MHz |
|
Magnetic Field Immunity |
30 A/m long duration at 50 Hz |
_
Enclosure & Wiring
|
Specification |
Value |
|---|---|
|
Enclosure Type Rating |
None (open style) |
|
Wiring Size |
2 _ on communication ports |
|
Connector |
10-pin Linear plug |
|
Torque |
0.6 to 0.8 Nm (5 to 7 lb-in) |
|
Catalog Number |
1787-PLUG10R |
|
North American Temperature Code |
T5 |
_
