Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1734-IV8 |
|
Description |

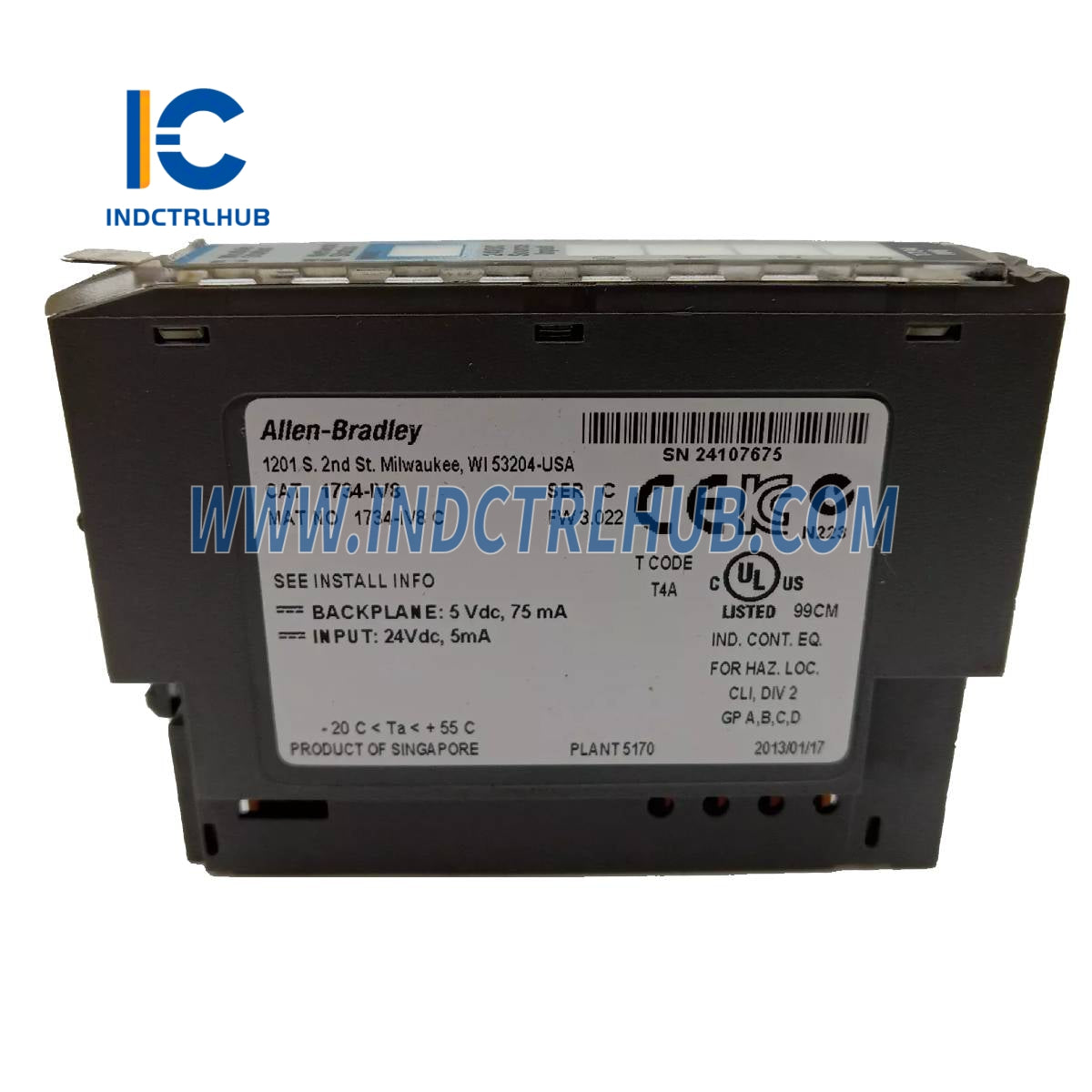

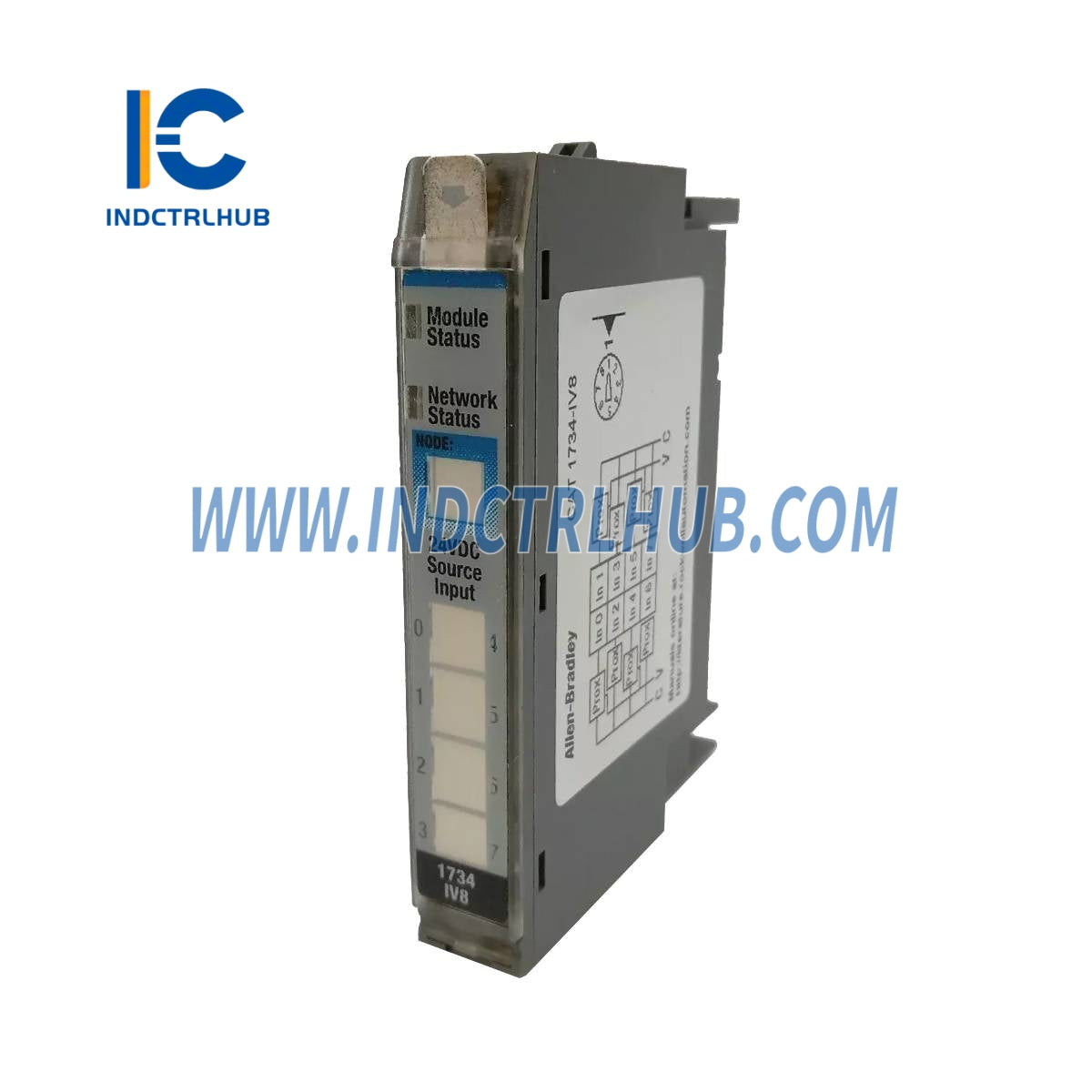

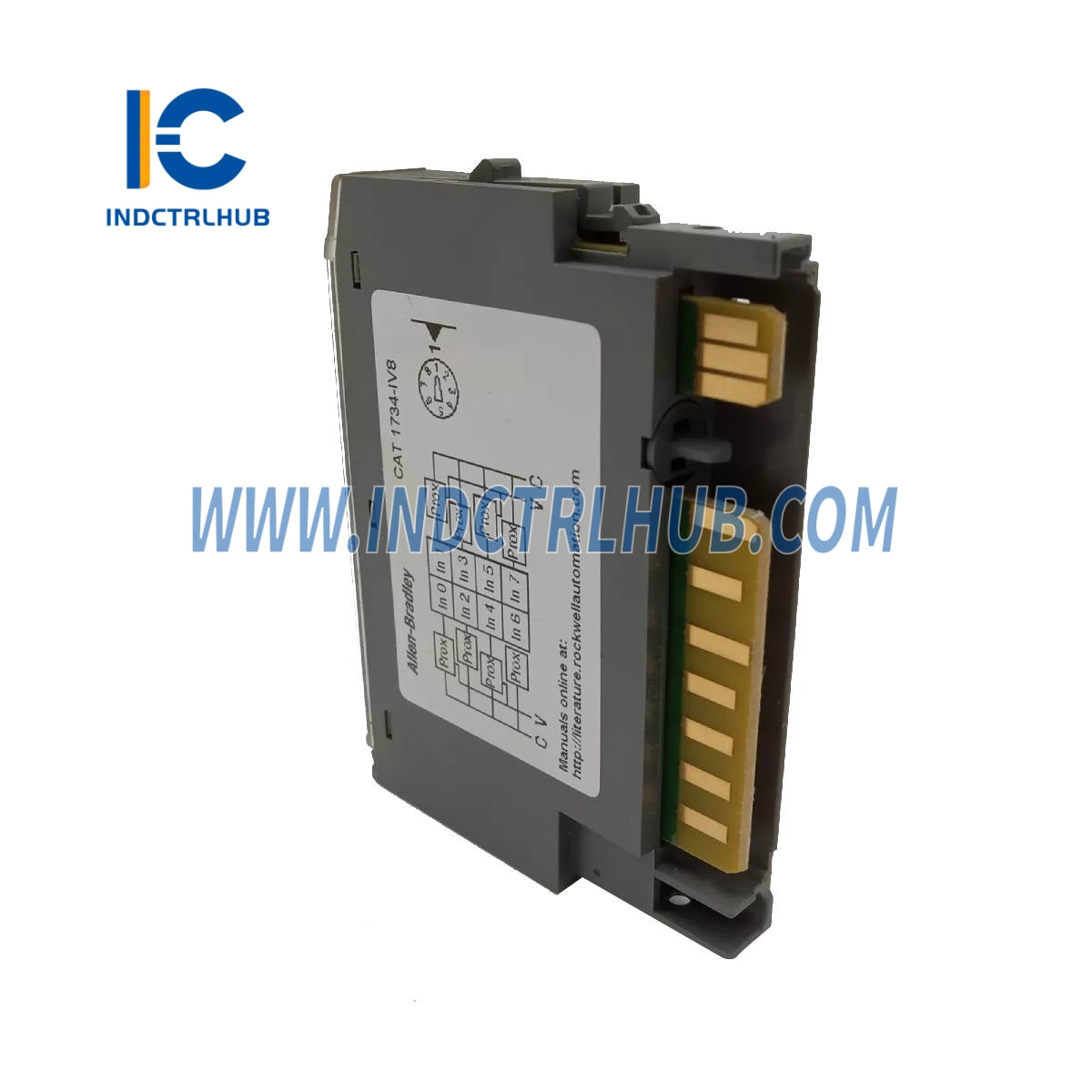

POINT I/O 8-Channel Digital DC Input Module |
🔹 General Specifications
|
Attribute |
1734-IV8 |
|---|---|
|
Terminal Base Screw Torque |
0.8 N•m (7 lb•in) |
|
Indicators (Logic Side) |
1 green/red – Module status indicator 1 green/red – Network status indicator 8 yellow – Input status indicators |
|
Module Location |
1734-TB or 1734-TBS wiring base assembly |
|
POINTBus™ Current (Max) |
75 mA @ 5V DC |
|
Power Dissipation (Max) |
1.6 W @ 28.8V DC |
|
Thermal Dissipation (Max) |
5.5 BTU/hr @ 28.8V DC |
|
Isolation Voltage |
50V continuous, Tested to withstand 2500V DC for 60 s |
|
Field Power Bus Supply Voltage (Nom.) |
24V DC |
|
Field Power Bus Voltage Range |
10…28.8V DC |
|
Dimensions (HxWxD), Approx. |
56 x 12 x 75.5 mm (2.21 x 0.47 x 2.97 in.) |
|
Wiring Category |
2 – on signal ports |
|
Wire Size |
0.25…2.5 mm² (22…14 AWG) solid or stranded shielded copper wire rated at 75 °C (167 °F) or greater, 1.2 mm (3/64 in.) insulation max |
|
Weight, Approx. |
32.3 g (1.14 oz) |
|
Enclosure Type Rating |
None (open-style) |
|
Temperature Codes |
- North American Temp Code: T4A - IECEx Temp Code: T4 - UKEX/ATEX Temp Code: T4 |
|
Keyswitch Position |
1 |
🔹 Environmental Specifications
|
Attribute |
Value |
|---|---|
|
Operating Temperature |
-20 °C to +55 °C (-4 °F to +131 °F) |
|
Storage Temperature |
-40 °C to +85 °C (-40 °F to +185 °F) |
|
Max Surrounding Air Temperature |
55 °C (131 °F) |
|
Relative Humidity |
5…95% non-condensing |
