Product Description
Product Overview

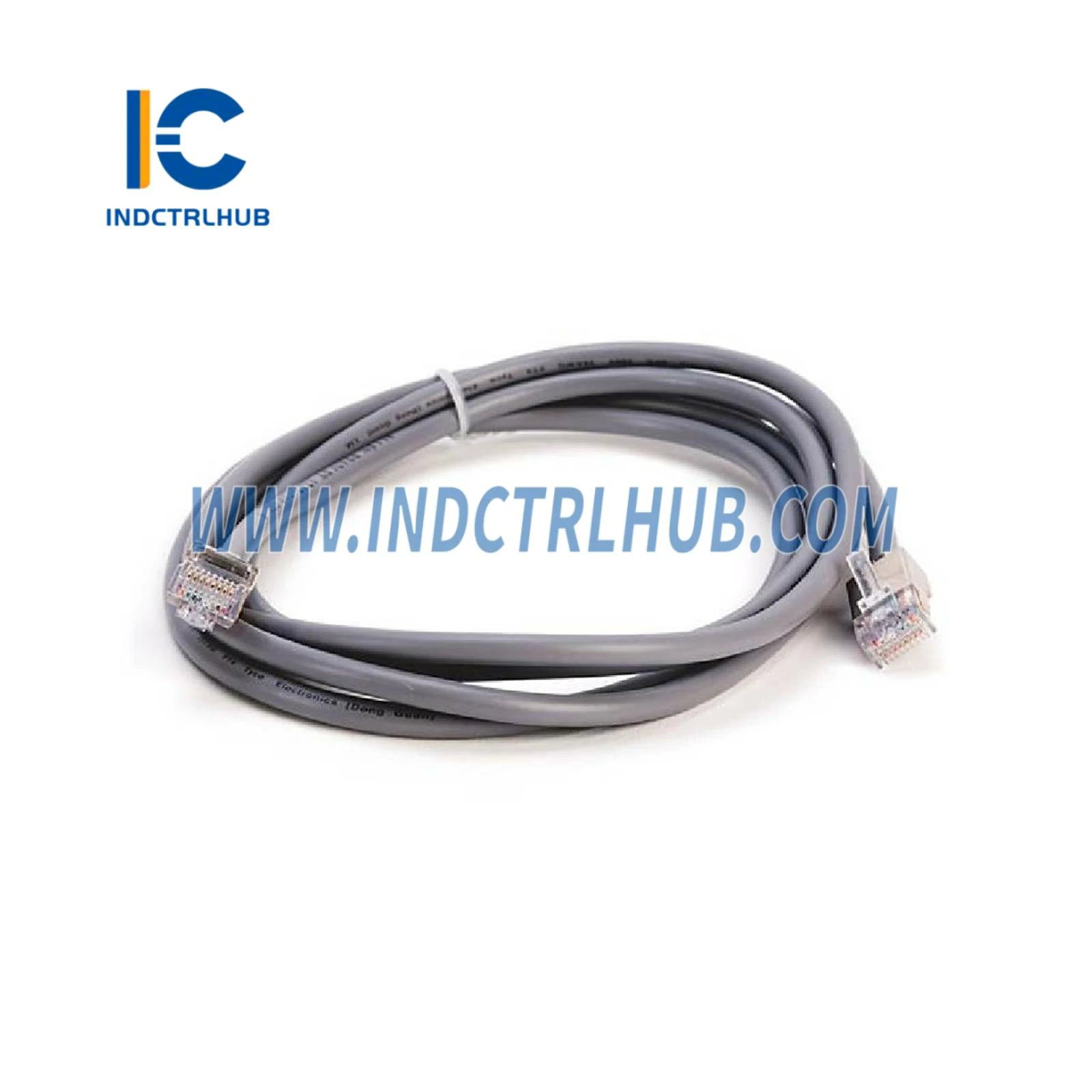

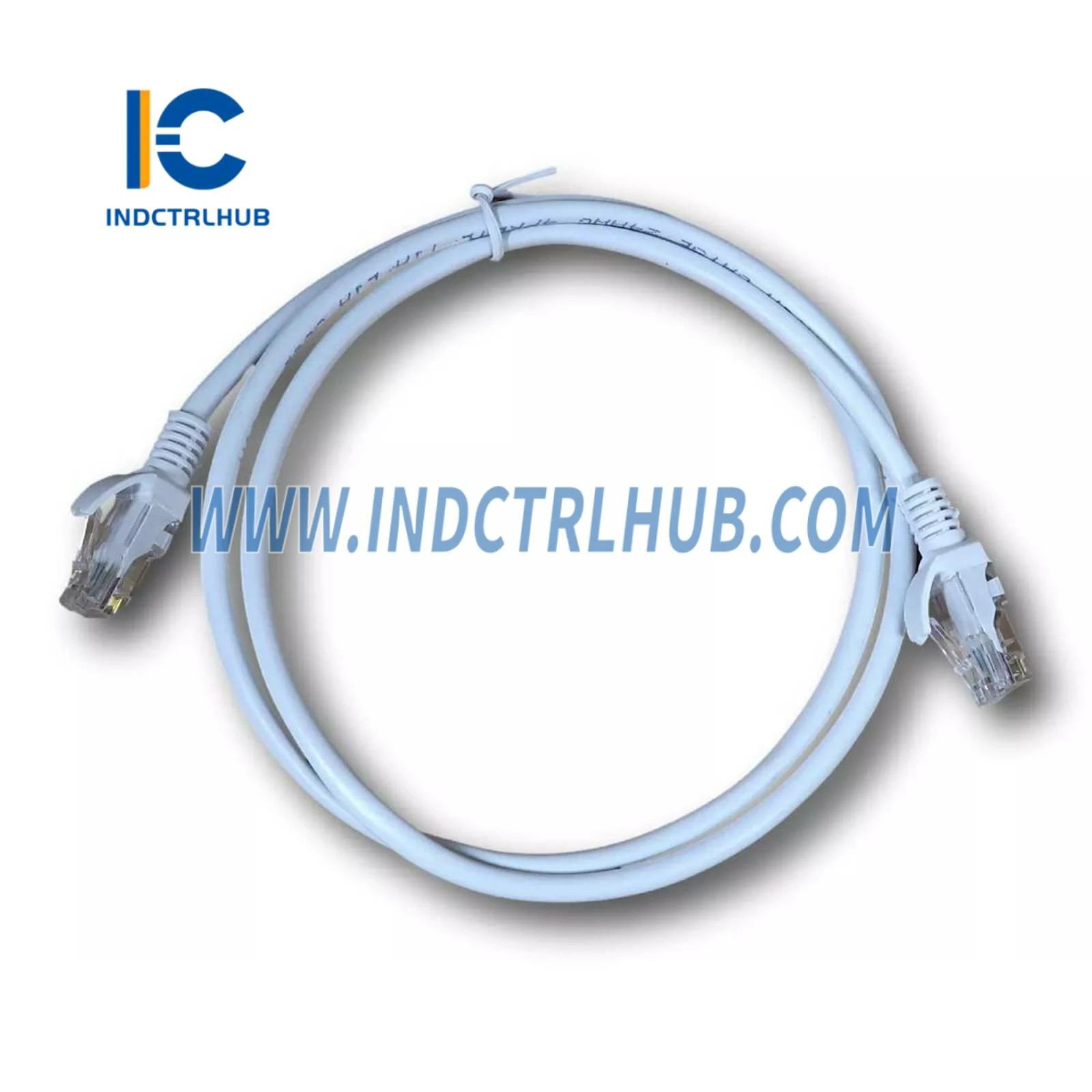

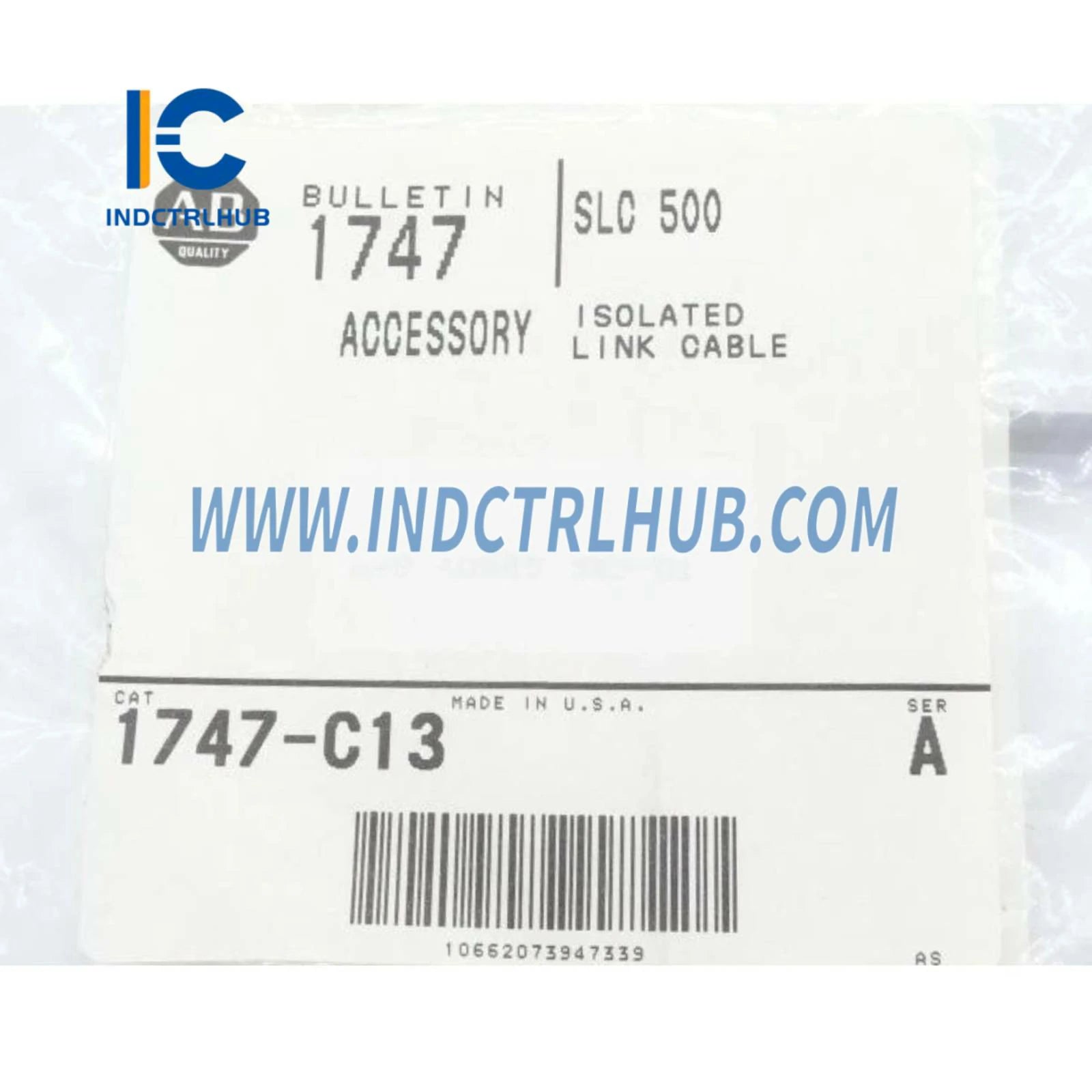

The Allen-Bradley 1747-C13 is an SLC 500 Isolated Link Cable designed for industrial automation applications within Rockwell Automation systems. Manufactured by Allen-Bradley (a Rockwell Automation brand), this cable connects a 1747-UIC USB-to-DH485 Interface Converter to an SLC 500 processor or other DH485-compatible devices, enabling communication over the DH485 network. It is built for reliable signal transmission in environments such as manufacturing plants, process industries, and industrial machinery. The 1747-C13 is a patch cable specifically intended for use with the 1747-UIC, providing a direct replacement for maintaining network connectivity.
Technical Specifications
The 1747-C13 has the following specifications based on supplier data from Rockwell Automation and industry sources:
| Item | Specification |
|---|---|
| Model/Part Number | 1747-C13 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | SLC 500 Isolated Link Cable |
| Series | SLC 500 |
| Length | 3 ft (0.91 m) |
| Connector Types | RJ45 male to RJ45 male |
| Communication | DH485 protocol |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Weight | 0.08 kg (0.18 lbs) |
Additional Details
The 1747-C13 includes the following additional information based on supplier documentation:
| Category | Details |
|---|---|
| Function | Connects 1747-UIC to SLC 500 processors or DH485 devices |
| Compatibility | 1747-UIC, SLC 5/01, 5/02, 5/03, 5/04, 5/05, PanelView terminals |
| Construction | Shielded twisted pair with metal-jacketed RJ45 connectors |
| Features | Pin 3 disconnected (per DH485 spec), durable shielding for noise reduction |
| Certifications | CE, cULus |
