Product Description
Product Overview

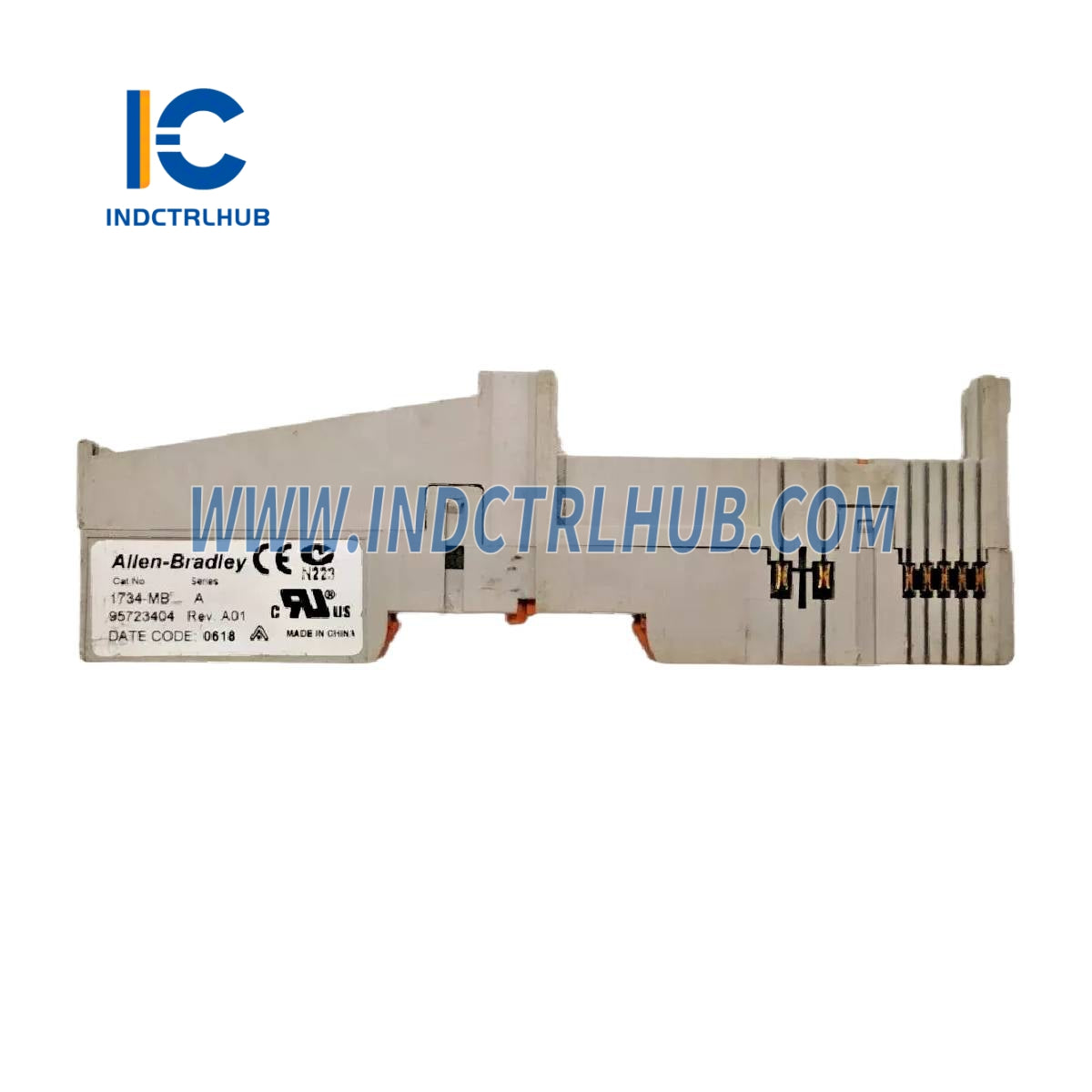

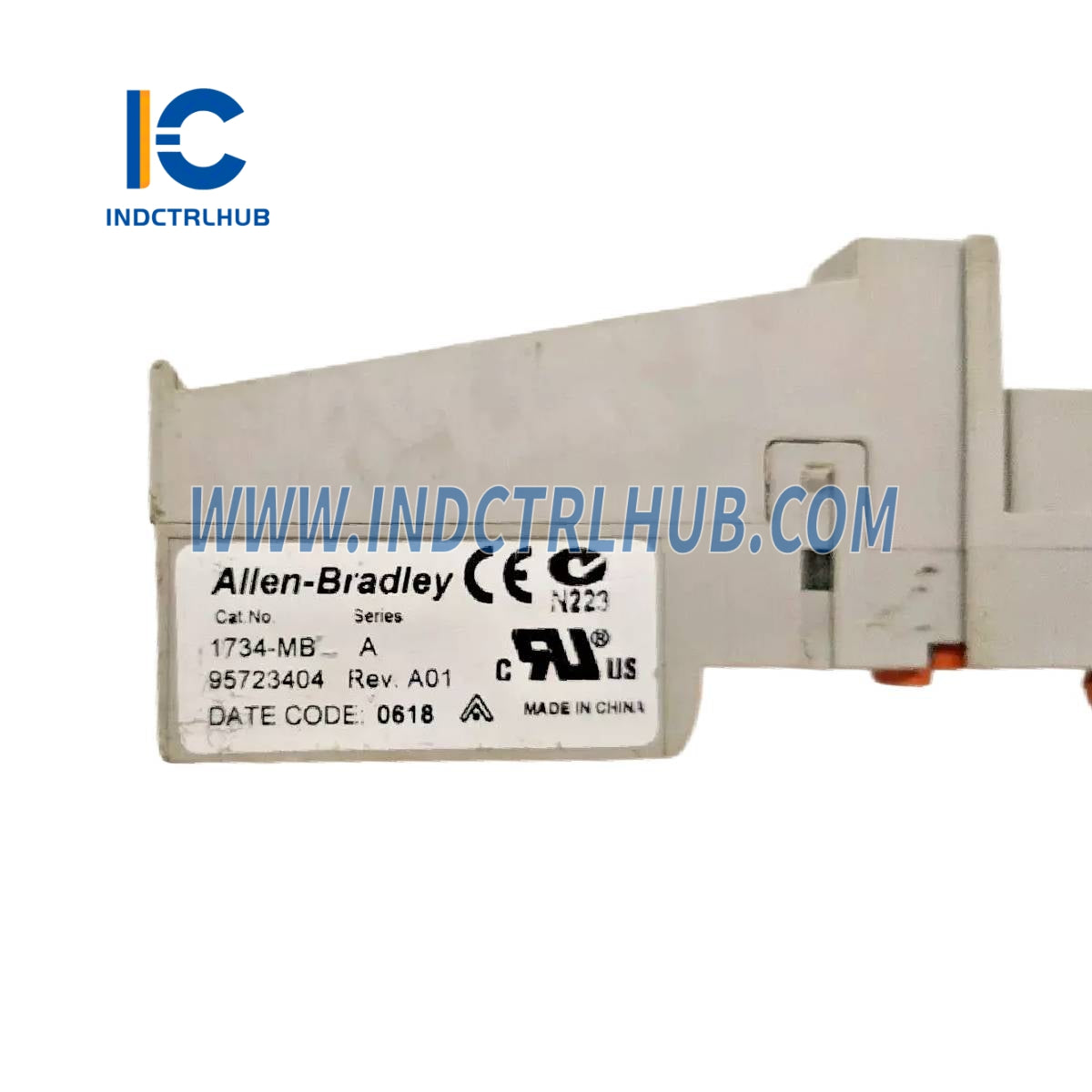

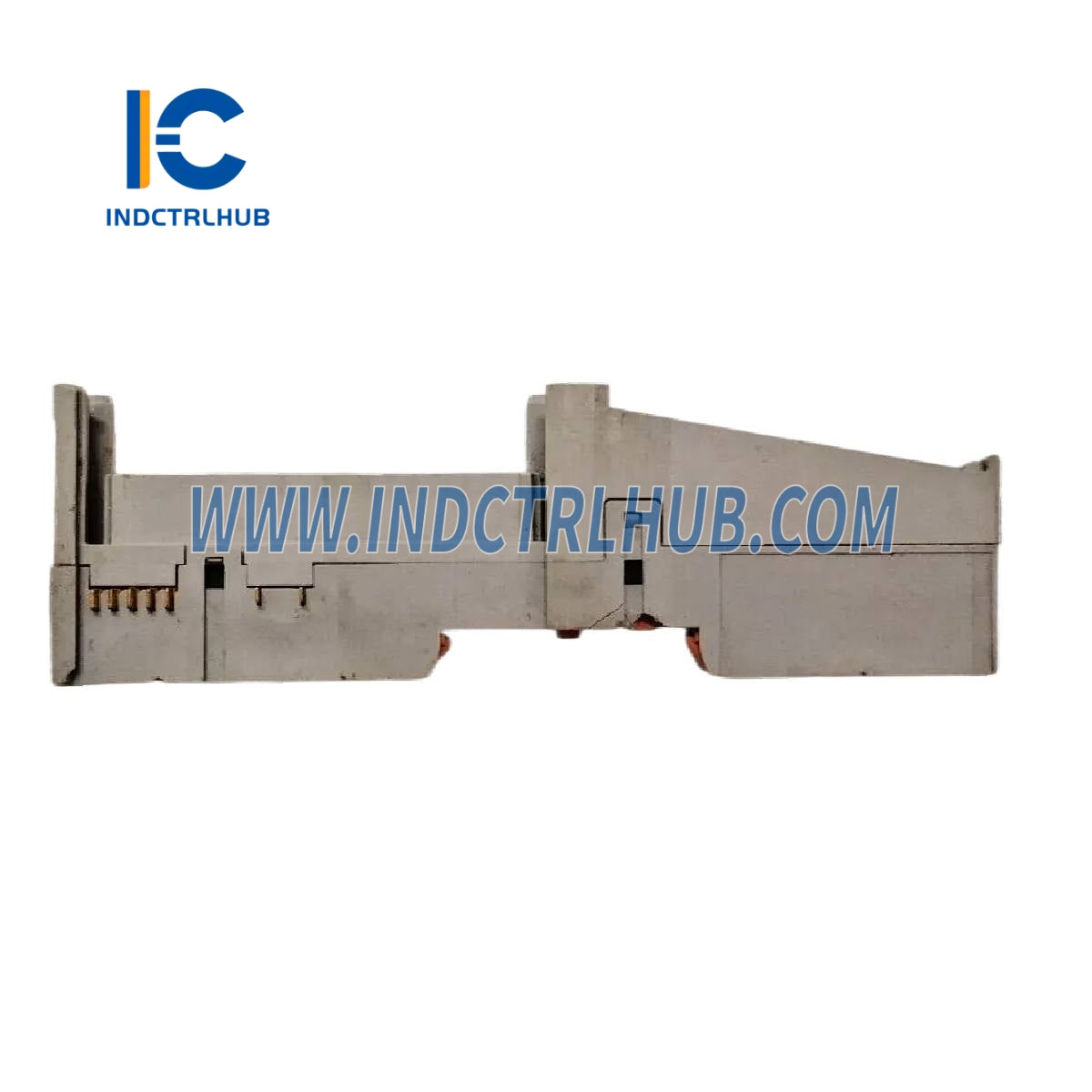

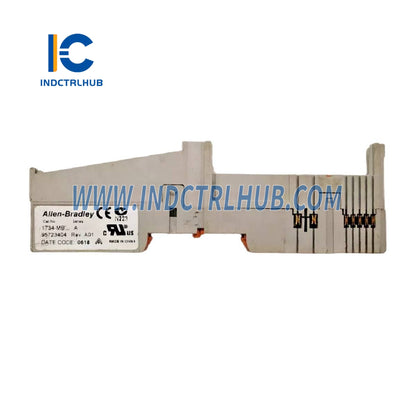

The Allen-Bradley 1734-MB is a POINT I/O Mounting Base designed for industrial automation applications within Rockwell Automation systems. Manufactured by Allen-Bradley (a Rockwell Automation brand), this mounting base is a foundational component of the 1734 POINT I/O series, providing a secure platform for installing POINT I/O modules and removable terminal blocks (RTBs). It facilitates interconnection between the POINTBus backplane and field power distribution, making it essential for modular I/O configurations in environments such as manufacturing, process control, and industrial machinery.
Technical Specifications
The 1734-MB has the following specifications based on supplier data from Rockwell Automation and industry sources:
| Item | Specification |
|---|---|
| Model/Part Number | 1734-MB |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | POINT I/O Mounting Base |
| Series | 1734 POINT I/O |
| Mounting | 35 mm DIN rail |
| Terminal Block | 8-contact removable terminal block (RTB) |
| Dimensions | 77 x 25 x 132 mm (3.03 x 0.98 x 5.20 in) |
| Weight | 0.12 kg (0.26 lbs) |
| Operating Temperature | -20°C to 55°C (-4°F to 131°F) |
Additional Details
The 1734-MB includes the following additional information based on supplier documentation:
| Category | Details |
|---|---|
| Function | Provides mounting and electrical interconnection for POINT I/O modules |
| Compatibility | Supports all 1734 POINT I/O modules except communication adapters |
| Connectivity | Interlocks with adjacent bases via POINTBus |
| Features | Mechanical keying, locking mechanism, supports Removal and Insertion Under Power (RIUP) |
| Certifications | CE, cULus |
