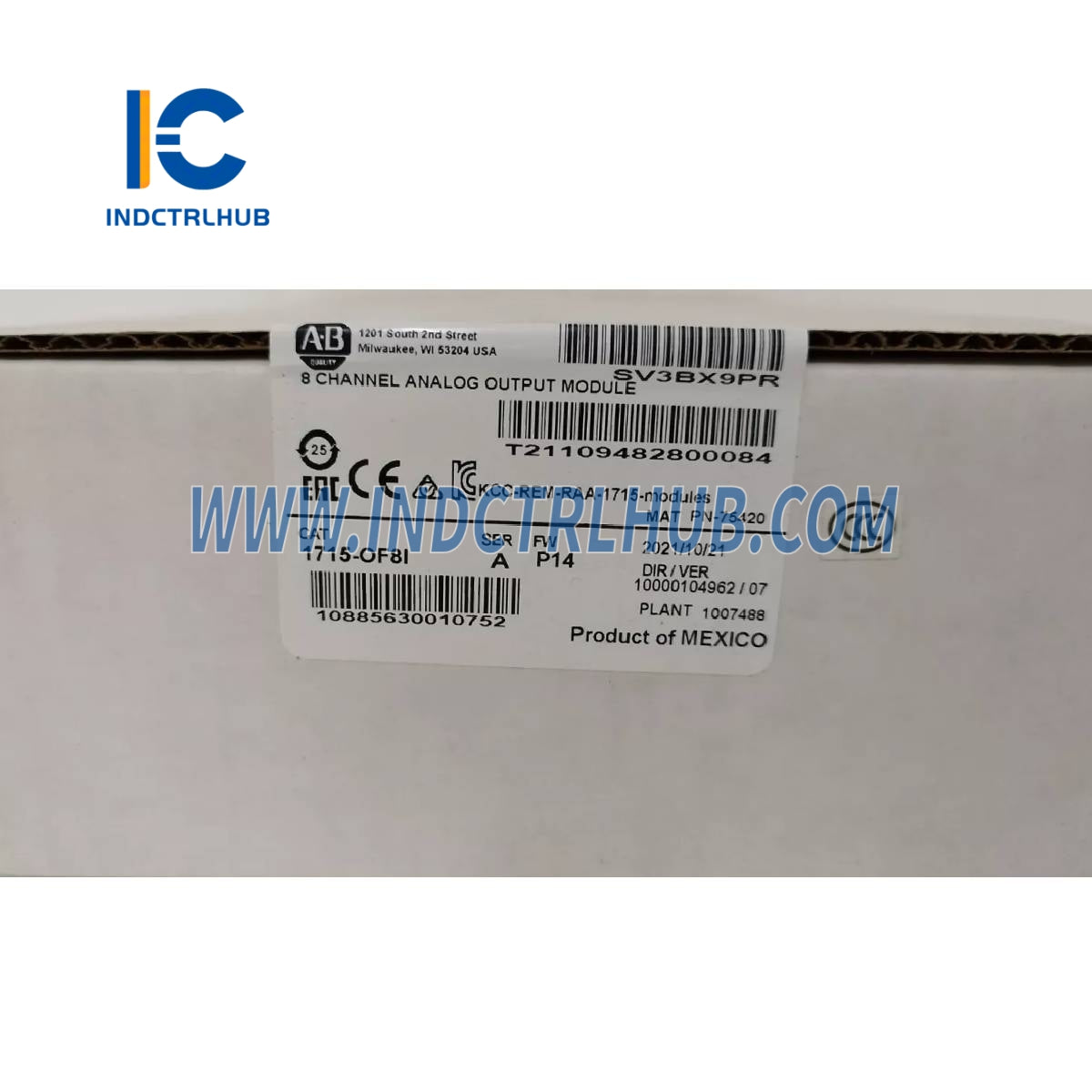

Product Description
🔹 General Information
|
Manufacturer |
Allen-Bradley |
|---|---|
|
Model/Part Number |
1715-OF8I/A |
|
Description |
1715-OF8I Analog Output Module with 1715-A3IO Module Base and 1715-TASOF8I, 1715-TADOF8I Termination Assemblies |
🔹 Technical Specifications
|
Attribute |
Value |
|---|---|
|
Operating Voltage Range |
18-32V DC |
|
Power Requirements |
- 1715-OF8I backplane: 260mA @ 18-32V DC - 1715-TASOF8I, 1715-TADOF8I I/O: 0-24mA per channel @ 18-32V DC |
|
Compliance Voltage Slew Rate (Max) |
No limit identified within compliance voltage range |
|
Power Dissipation |
- System: 3.6W max - Field loop: 0.64W per field loop |
|
Isolation Voltage |
- 50V (continuous), basic insulation type - I/O ports to backplane - 50V isolation between individual I/O ports - Type tested at 500V AC for 60s |
🔹 Mechanical Specifications
|
Attribute |
Value |
|---|---|
|
Weight |
- 1715-OF8I module: 340g (11.99 oz) - I/O base unit: 133g (5 oz) - Termination assembly: 133g (5 oz) / 260g (10 oz) |
|
Dimensions (H x W x D) |
166 x 42 x 118 mm (6.5 x 1.625 x 4.625 in.) |
|
Wire Size |
0.33-1.5 mm² (22-16 AWG) solid or stranded shielded copper wire, rated at 85°C (185°F) or greater |
|
Wiring Category |
2 - on shielded signal ports |
|
Wire Type |
Shielded |
🔹 Environmental Specifications
|
Attribute |
Value |
|---|---|
|
Temperature Rating |
- North American: T4 - IEC: T4 |
|
Enclosure Type |
None (Open-style) |
