Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model/Part Number |
1440-TB-C |
|
Description |

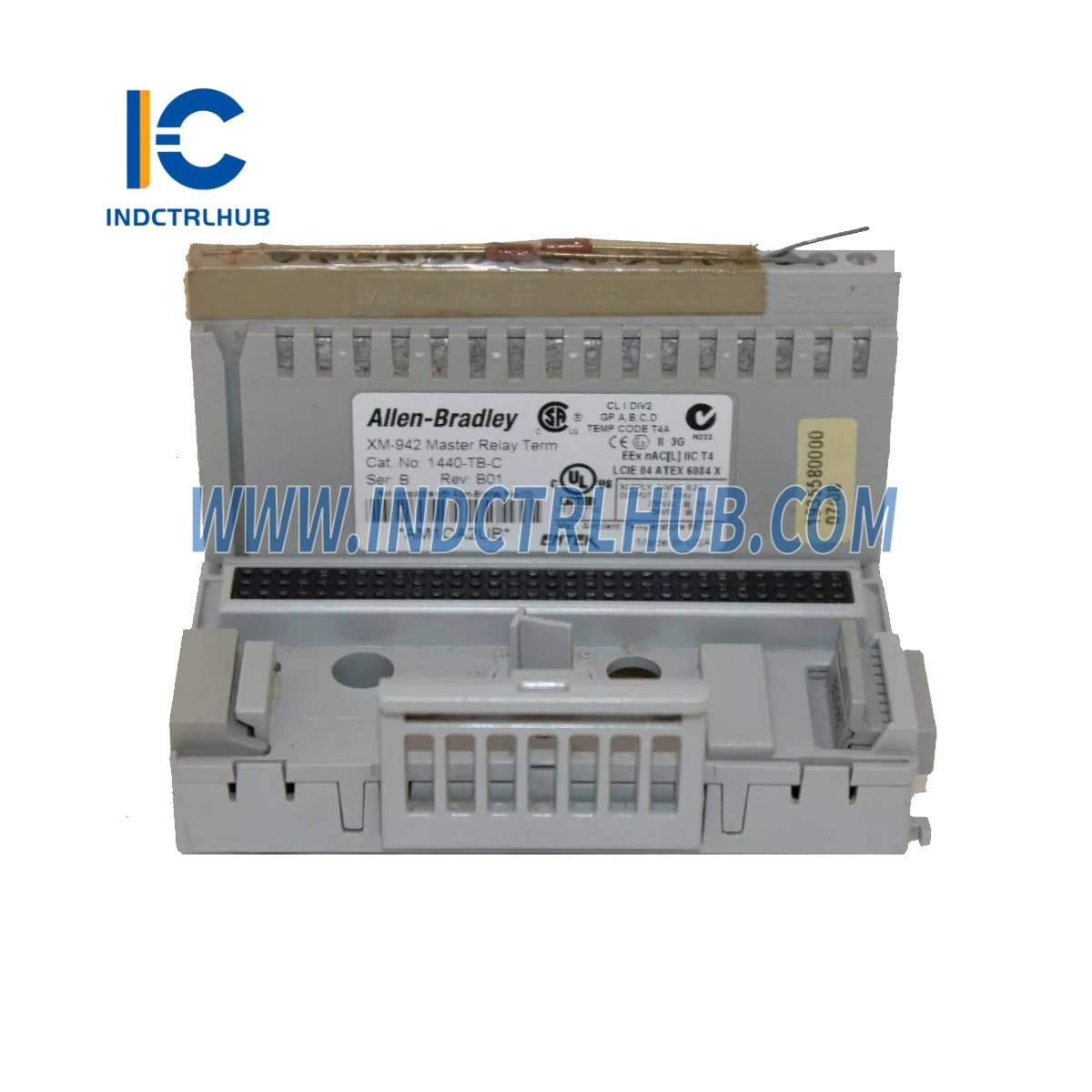

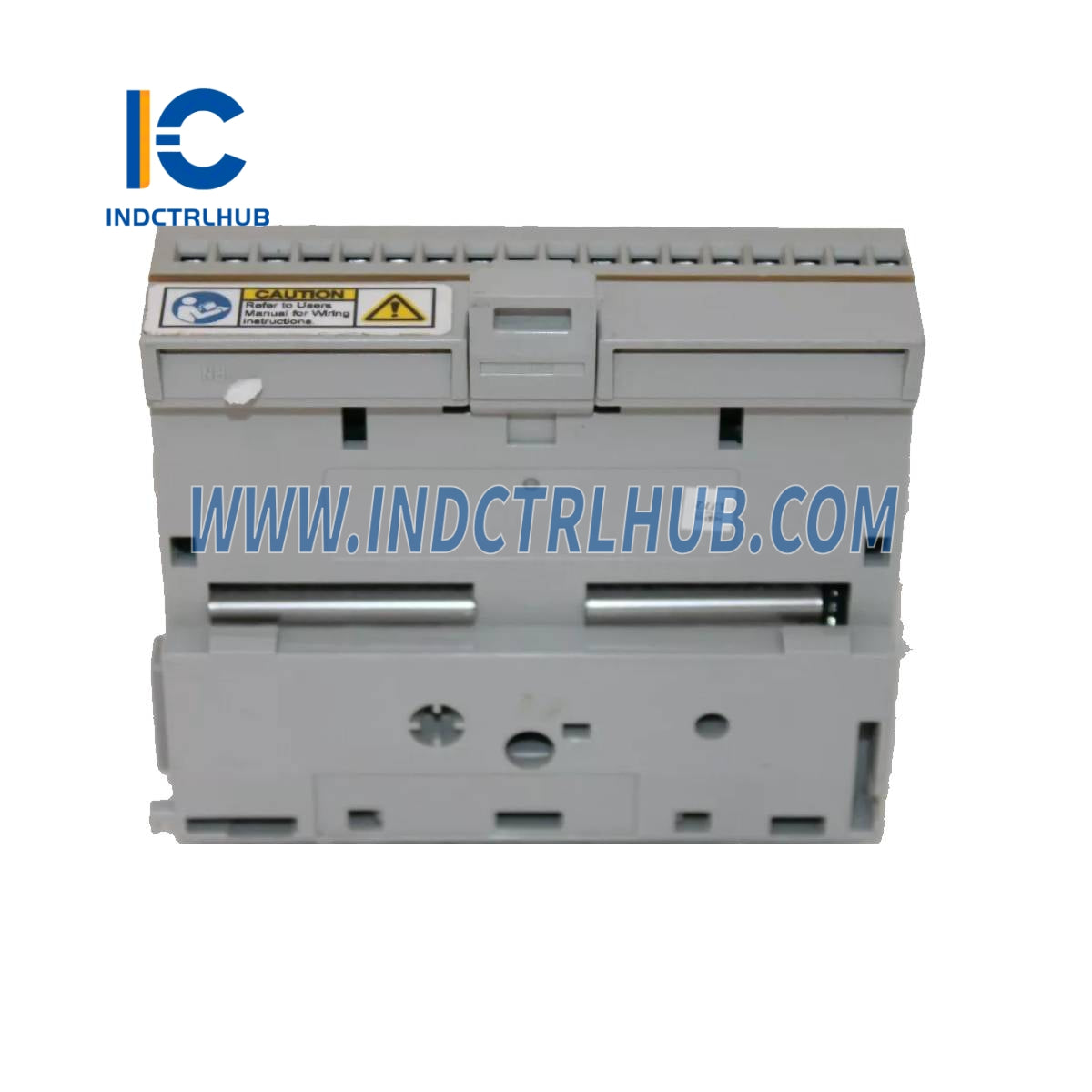

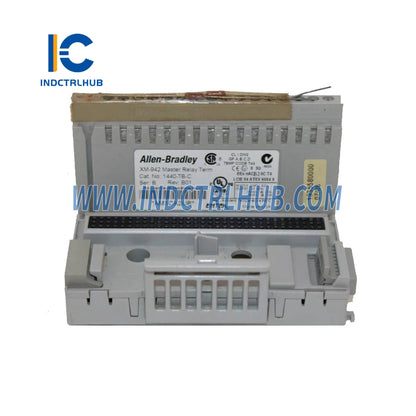

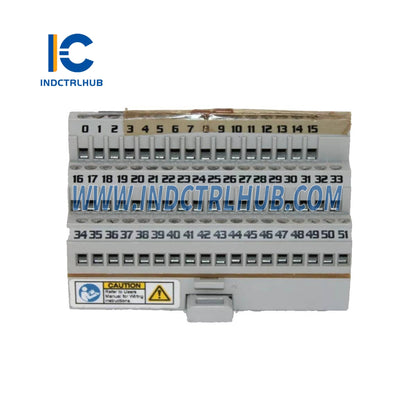

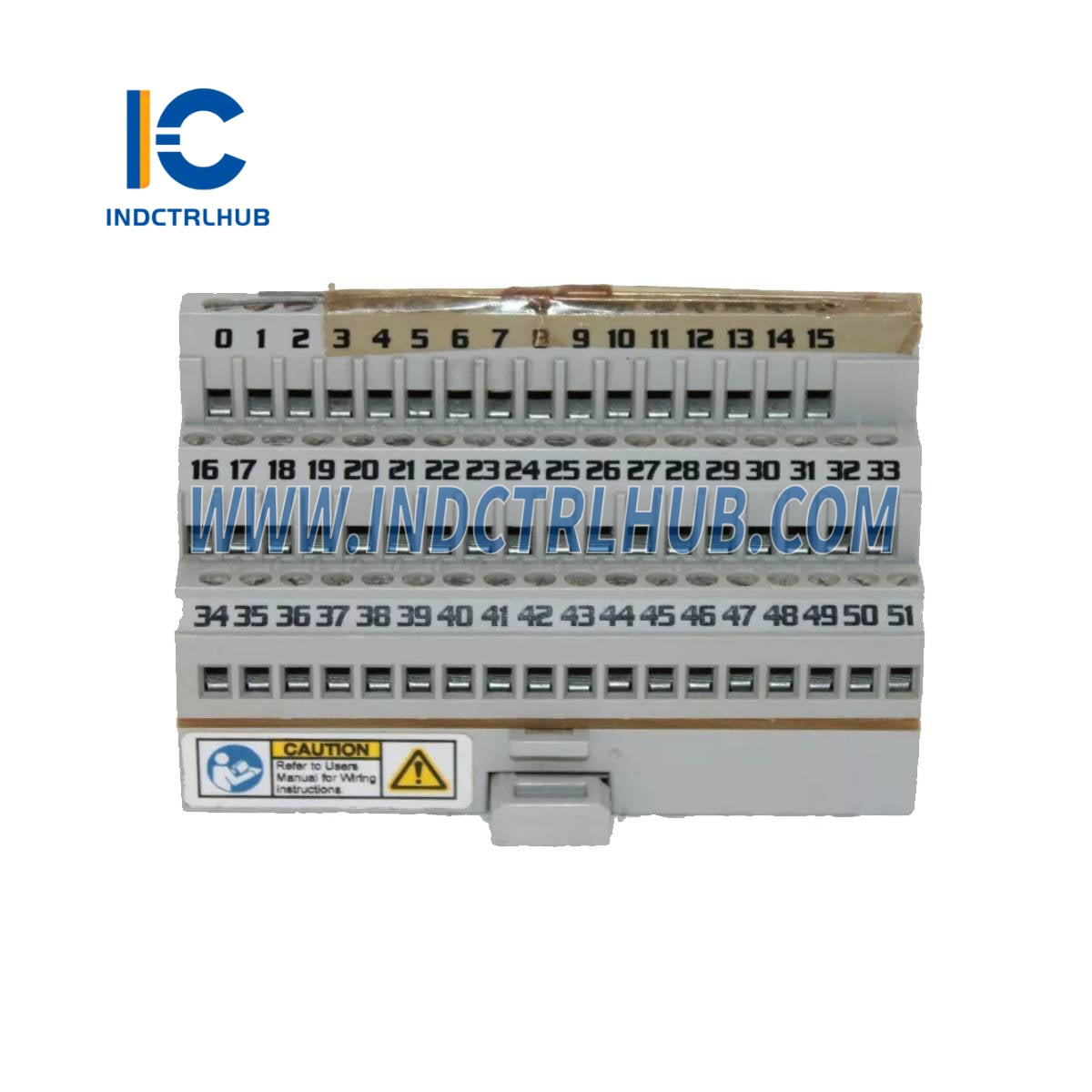

XM-942 Master Relay Terminal Base |
Technical Specifications
Power Requirements
|
Parameter |
Value |
|---|---|
|
Module Voltage |
+21.6 to +26.4V DC |
|
Power Consumption |
200 mA (max) |
|
Heat Production |
3.4 W (11.6 BTU/hr) (max) |
Environmental Limits
|
Parameter |
Value |
|---|---|
|
Operating Temperature |
-20 to +65°C (-4 to +149°F) |
|
Storage Temperature |
-40 to +85°C (-40 to +185°F) |
|
Relative Humidity |
95% non-condensing |
|
Conformal Coating |
Printed circuit boards are conformally coated per IPC-A-610C |
Physical Characteristics
|
Parameter |
Value |
|---|---|
|
Dimensions (W x D x H) |
3.875 x 3.75 x 2.25 inches (9.48 x 9.53 x 5.72 cm) |
|
Terminal Screw Torque |
7 lb-in (0.6 Nm) |
