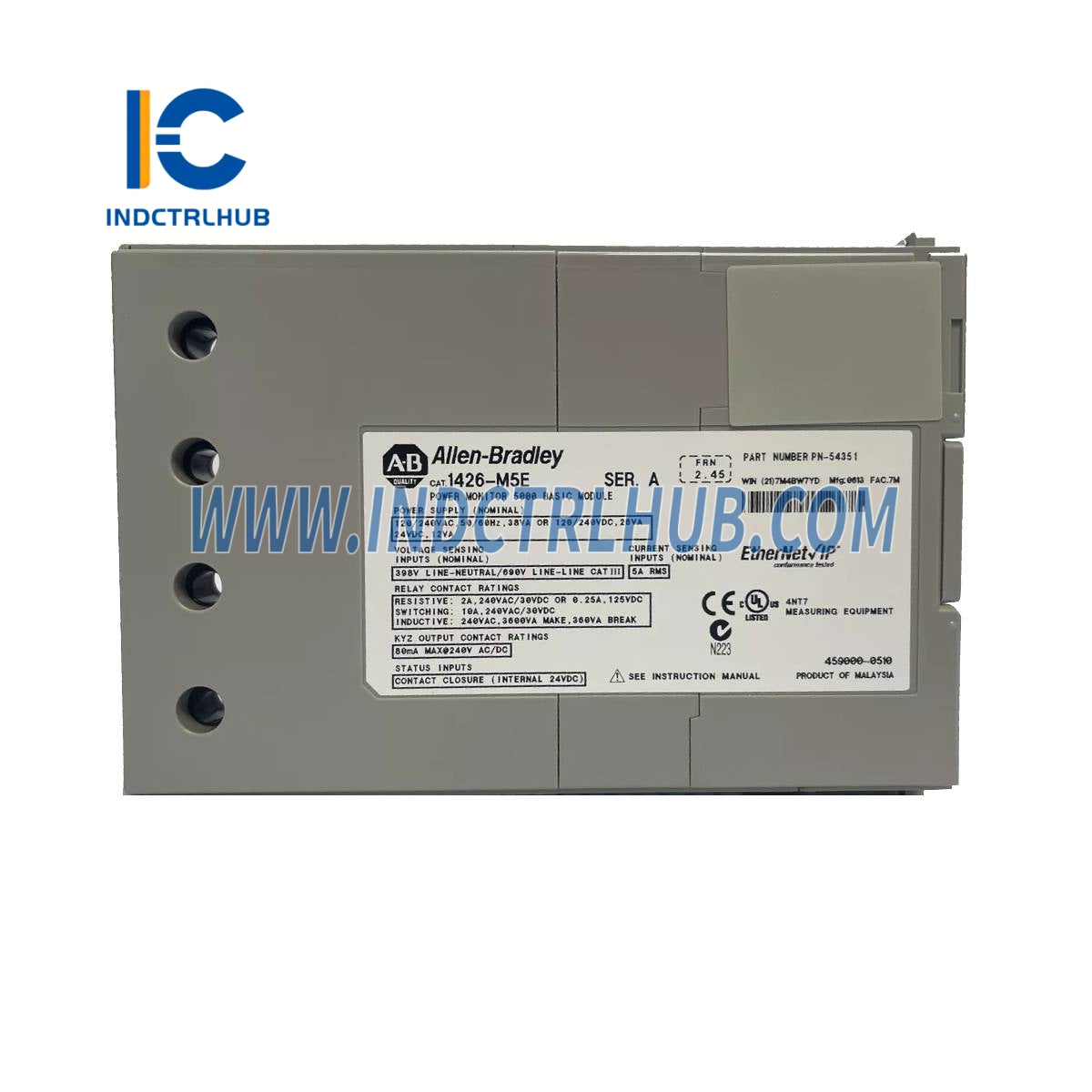

Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model/Part Number |

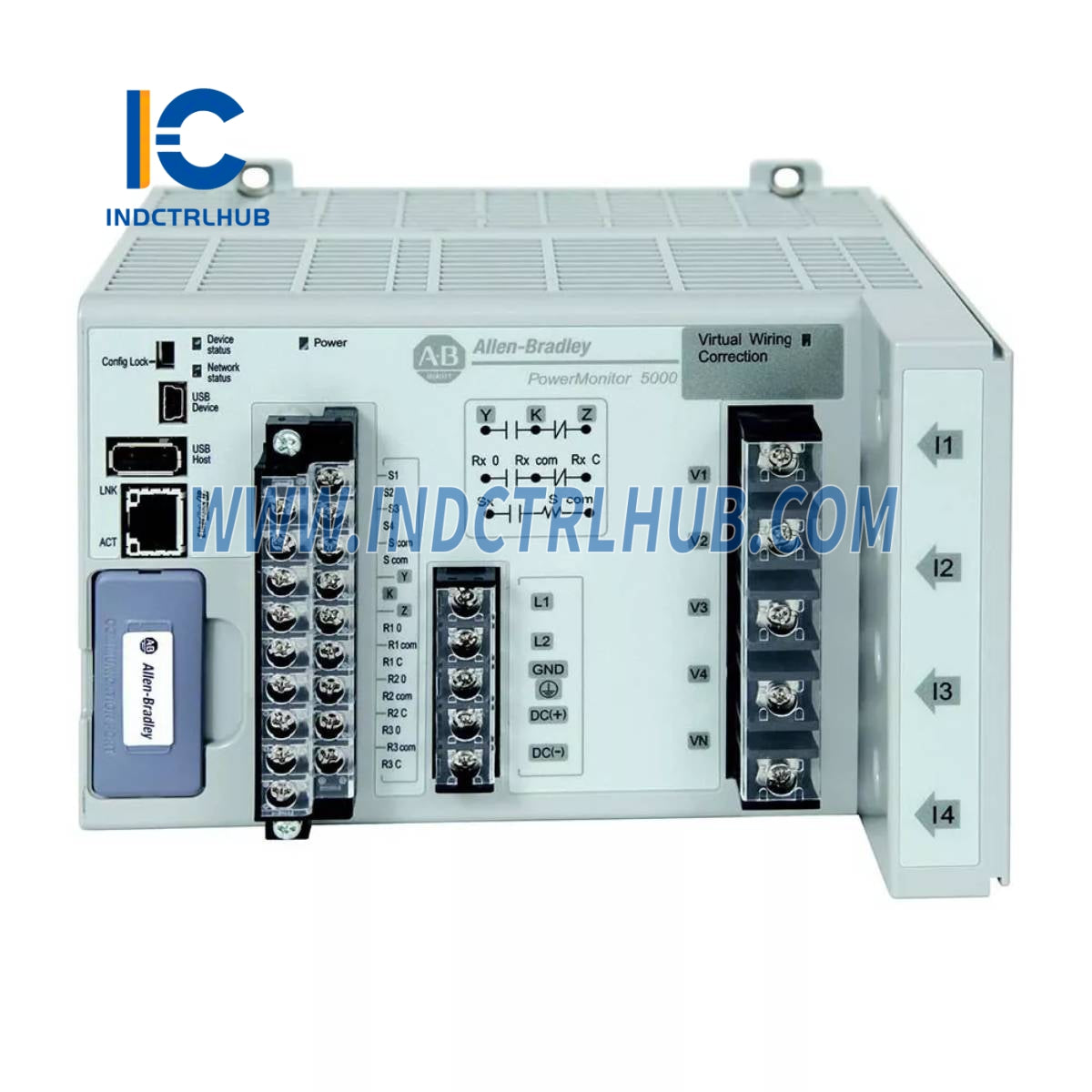

1426-M5E |
|
Description |
Power Meter |
Technical Specifications
|
Parameter |
Value |
|---|---|
|
Voltage Sense Inputs (V1, V2, V3, VN) |
±0.1% accuracy, Line-neutral rms: 398V nominal (15…660V), Line-line rms: 690V nominal (26…1144V) |
|
Current Sense Inputs (I1, I2, I3, I4) |
±0.1% accuracy, 5A nominal (0.05…15.6 A rms) |
|
Frequency |
±0.05 Hz, 50 or 60 Hz nominal (40…75 Hz) |
|
Power Functions |
kW, kVA, kVAR |
|
Demand Functions |
kW, kVA |
|
Energy Functions |
kWH, kVAH |
|
Accuracy Standards |
ANSI C12.20 -2010 Class 0.2, EN 62053-22 -2003 Class 0.2 |
|
Metering Update Rate |
Every line cycle |
Input and Output Ratings
|
Parameter |
Rating |
|---|---|
|
Control Power (AC) |
85…264V AC, 47…63 Hz (38VA) |
|
Control Power (DC) |
106…275V DC (26VA) / 22.8V DC…25.2V DC (12VA) |
|
Voltage Sense Inputs (V1, V2, V3, VN) |
Input Impedance: 5 MΩ minimum, Input Current: 2 mA max |
|
Current Sense Inputs (I1, I2, I3, I4) |
Overload withstand: 22A continuous, 200A for 1 sec |
|
Burden & Impedance |
Negligible |
|
Maximum Crest Factor at 5A |
4.0 |
|
Starting Current |
5 mA |
|
Status Inputs |
Contact closure (internal 24V DC) |
|
KYZ Output |
Solid state KYZ: 80 mA at 240V AC/DC |
|
Control Relay |
ANSI C37.90 trip duty: 2005 |
Mechanical Dimensions
|
Parameter |
Value |
|---|---|
|
Width x Height x Depth |
185 mm x 132 mm x 178 mm (7.29” x 5.2” x 7.0”) |
Environmental Ratings
|
Parameter |
Rating |
|---|---|
|
Operating Temperature |
-20°C to +70°C (+4°F to +158°F) |
|
Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
|
Humidity (Non-condensing) |
5% to 95% |
|
Shock (Operating) |
30G |
|
Shock (Non-operating) |
50G |
