Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model/Part Number |
1407-CGCM |
|
Description |

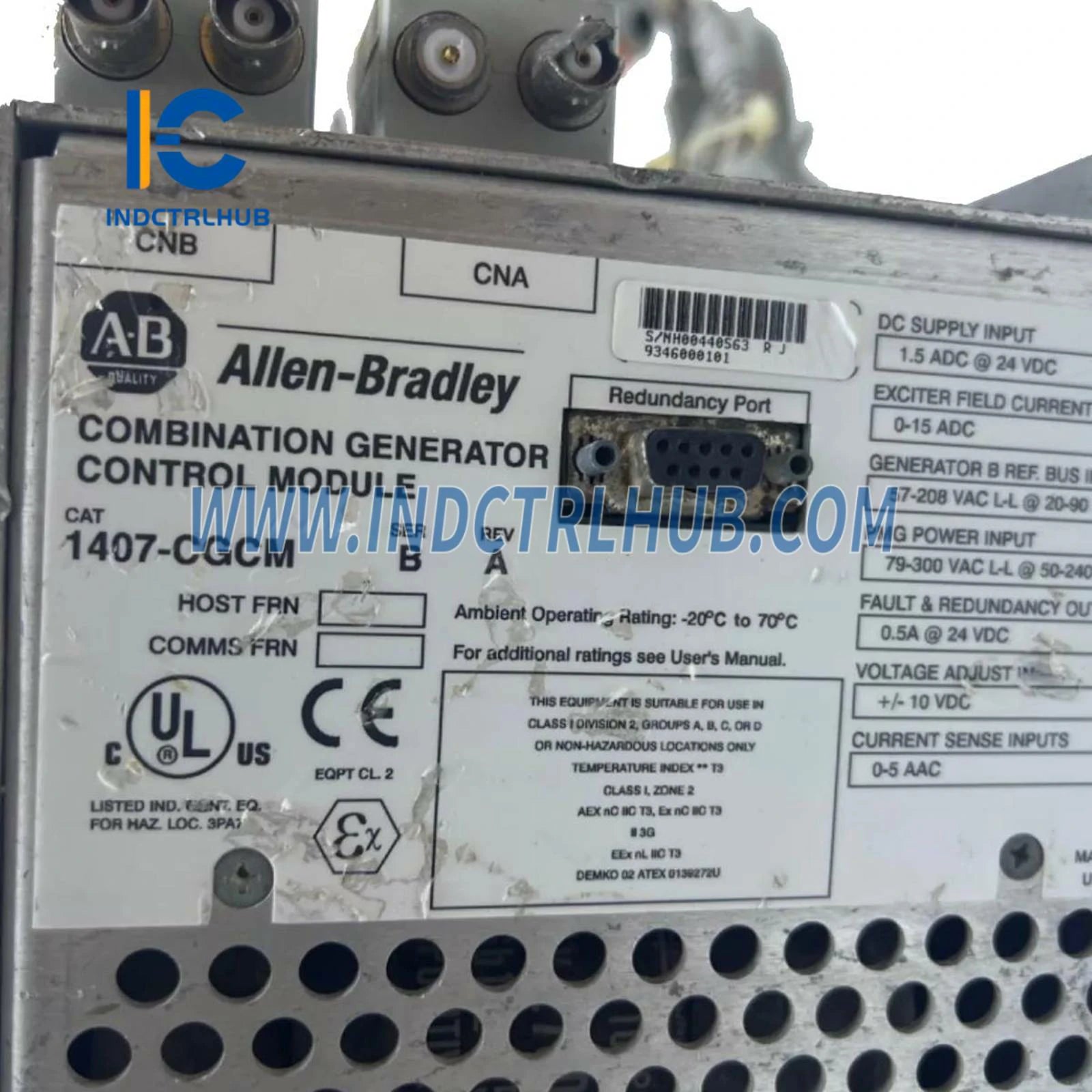

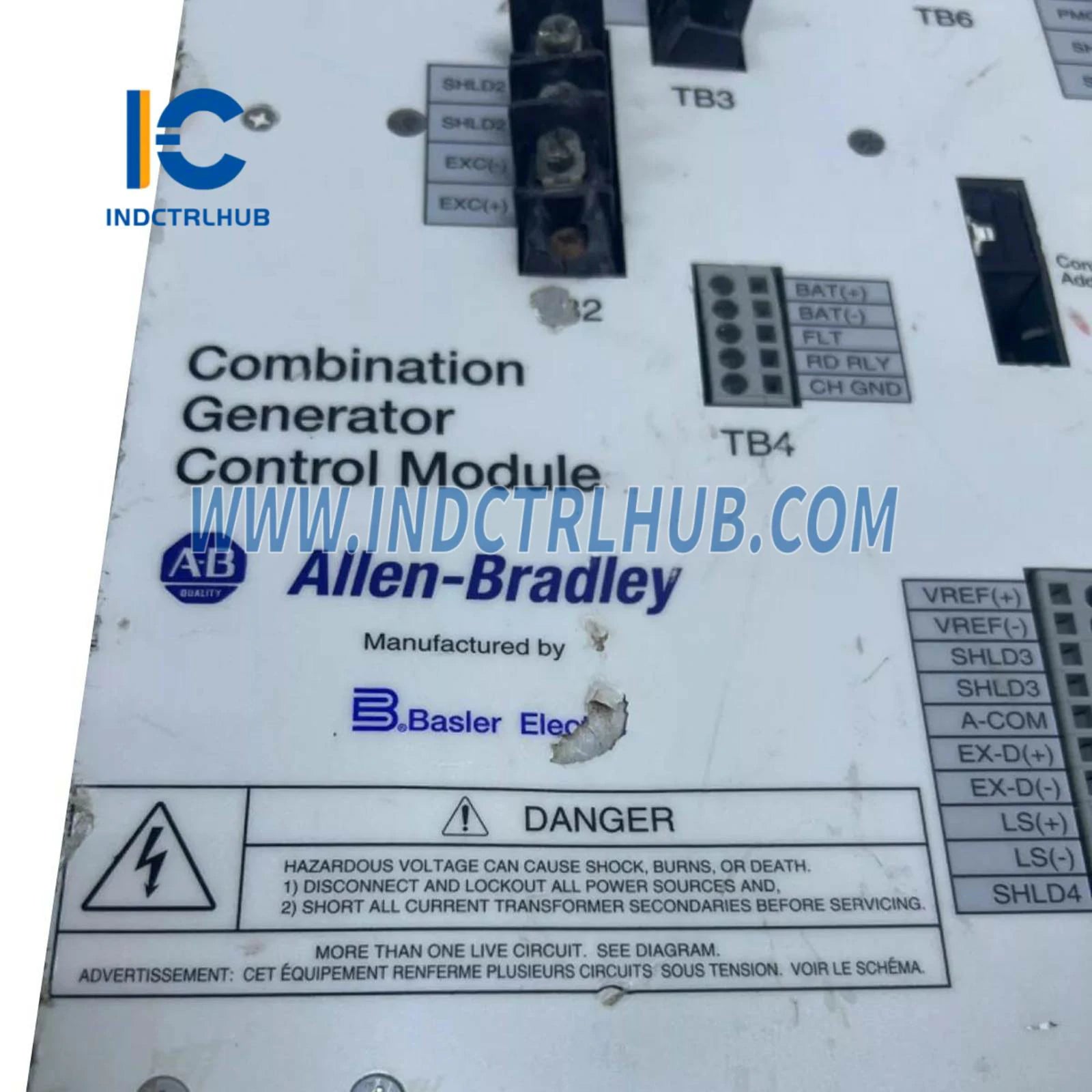

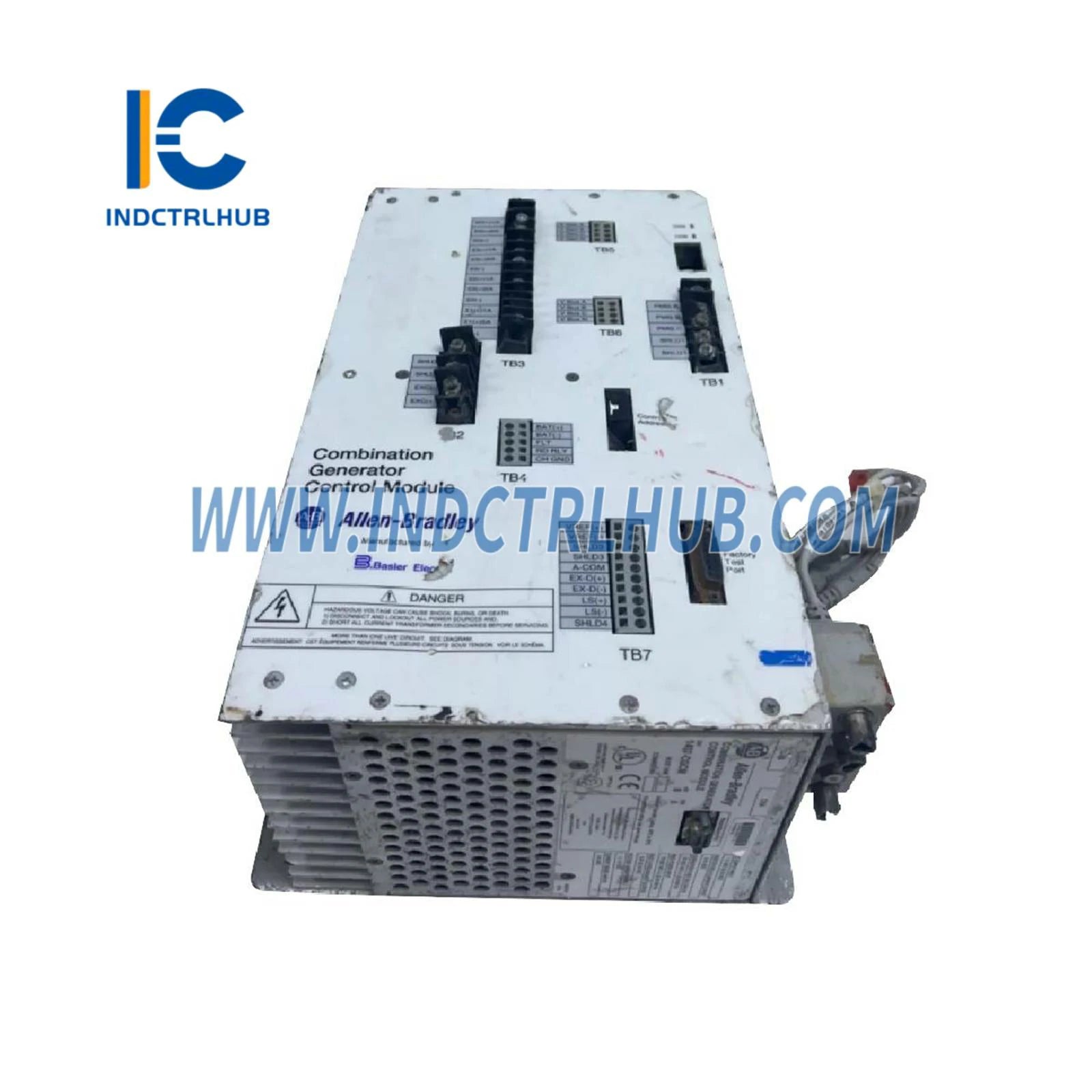

Combination Generator Control Module |
Temperature Specifications
|
Attribute |
Value |
|---|---|
|
Operating Temperature |
-20 to 70 °C (-4 to 158 °F) |
|
Storage Temperature |
-40 to 85 °C (-40 to 185 °F) |
Power Wiring Specifications
|
Circuit |
Input Voltage |
Wire Type |
Wire Size |
Terminal Screw Torque |
|---|---|---|---|---|
|
Control Power |
18…32V DC |
Cu 105 °C (221 °F), stranded or solid |
1.6…1.0 mm² (14…18 AWG) |
N/A (Spring clip terminals) |
|
Generator Reference |
57…208V AC |
- |
- |
- |
|
Bus Reference |
57…208V AC |
- |
- |
- |
|
PMG Power |
79…300V AC |
- |
2.6…2.1 mm² (10…12 AWG) |
1 N•m (9 lb•in) |
|
Current Sense |
0…5 A AC |
- |
- |
- |
