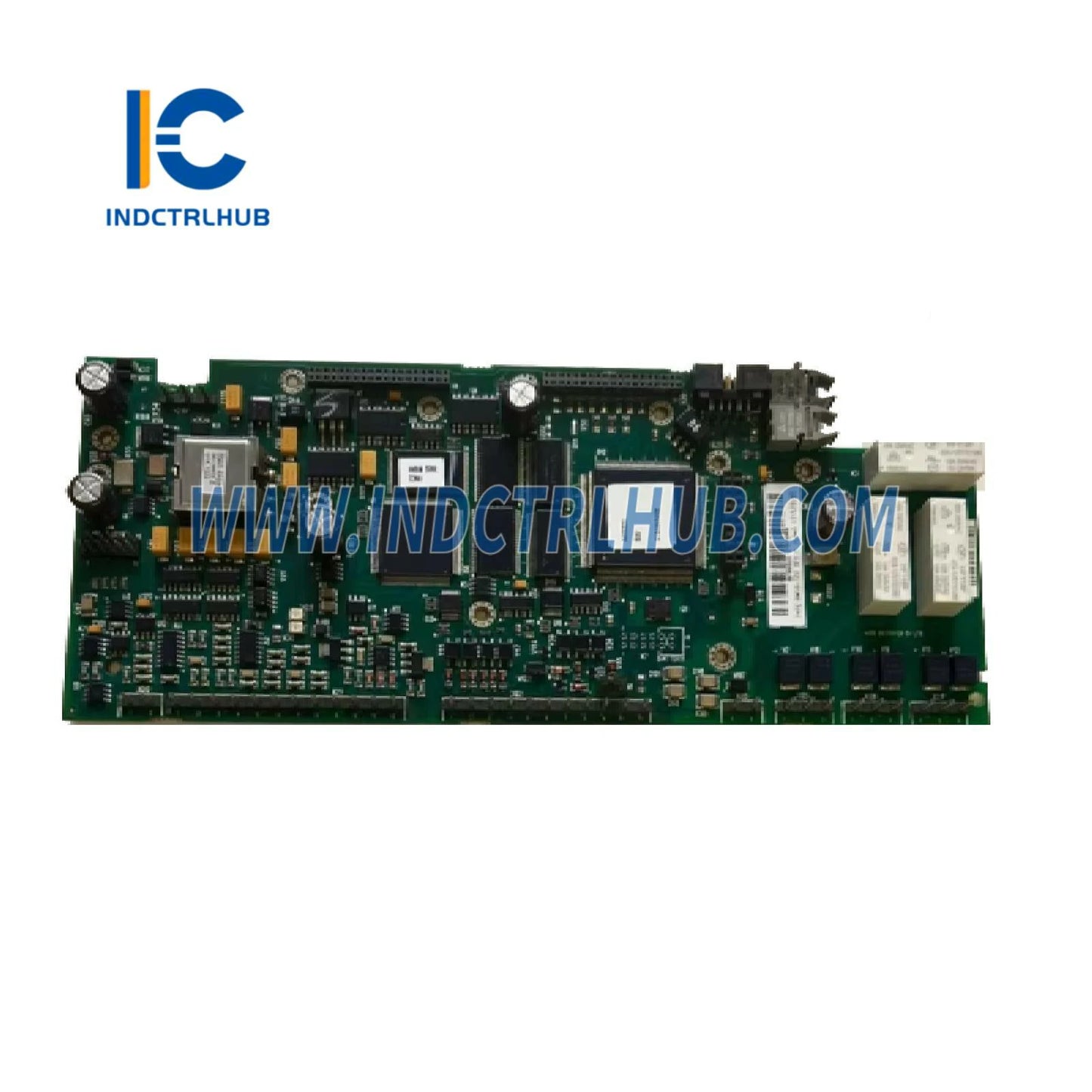

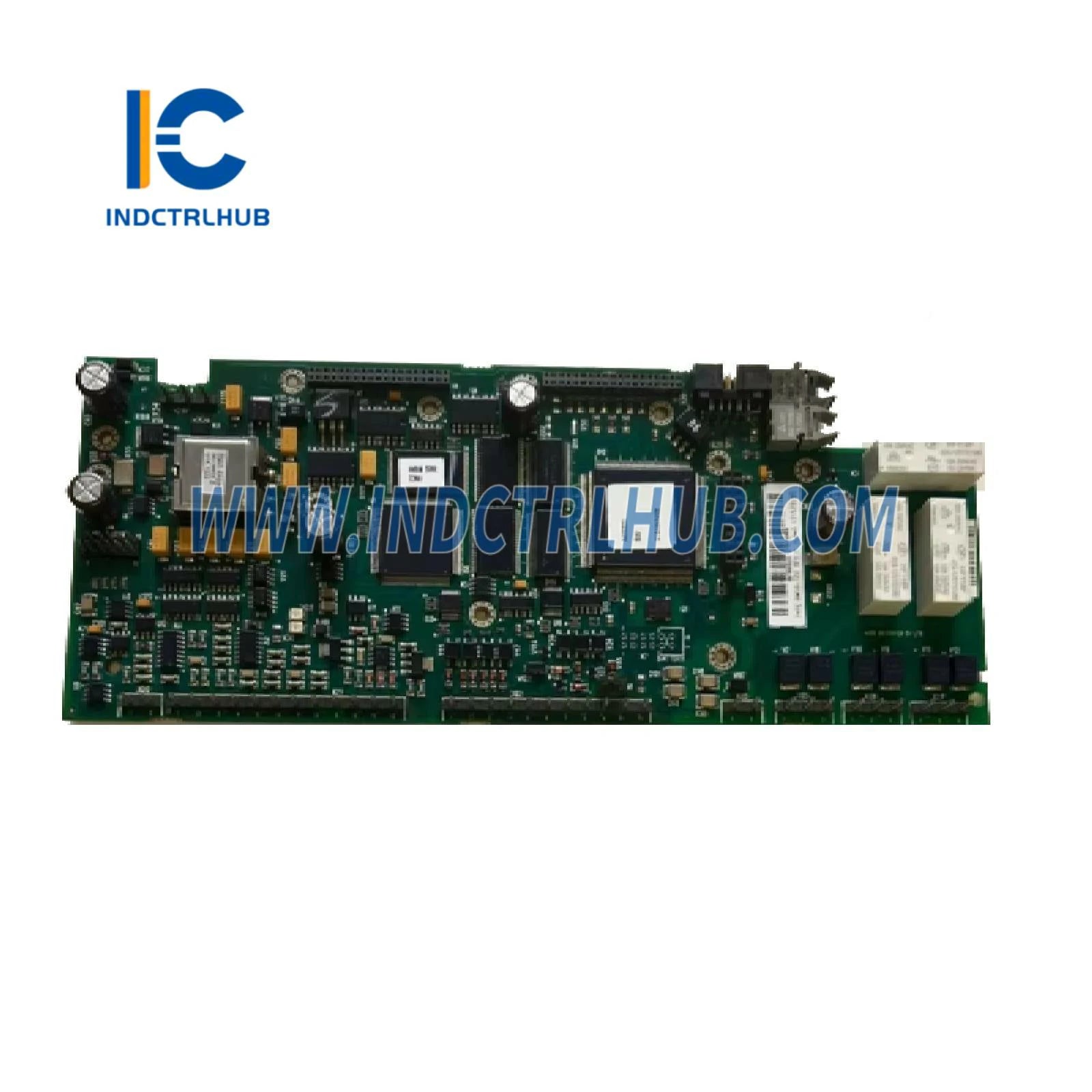

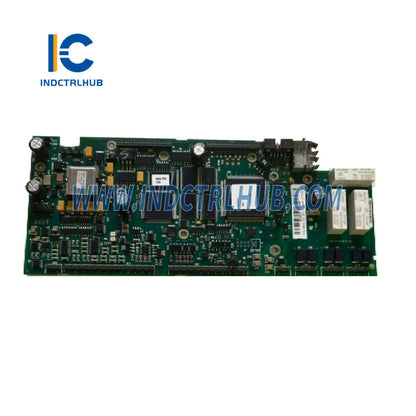

ABB RMIO-12C Relay Module I/O Interface

ABB RMIO-12C Relay Module I/O Interface for Relion Protection Systems

The ABB RMIO-12C Relay Module I/O Interface delivers robust electromechanical relay outputs for ABB Relion series protection and control relays deployed in electrical substations, power generation facilities, and industrial distribution networks. Featuring 12 independent relay contact outputs with high make/break capacity, this I/O module enables reliable switching of circuit breaker trip coils, alarm annunciators, control circuits, and auxiliary devices across utility and industrial power systems requiring proven relay technology.

Core Technical Specifications

• Relay Output Channels: 12 independent electromechanical relay contacts
• Contact Configuration: Form C (SPDT) changeover contacts per relay
• Contact Rating: 5A @ 250 VAC/30 VDC resistive load
• Make/Break Capacity: 1250 VA / 150 W switching capability
• Inductive Load Rating: Suitable for solenoid coils and contactor switching
• Contact Material: Silver alloy for low contact resistance and long life
• Mechanical Life: >10 million operations without load
• Electrical Life: >100,000 operations at rated load
• Operating Time: <10ms typical relay actuation time
• Isolation Voltage: 2 kV between relay coils and contacts
• LED Indicators: Per-channel status indication for diagnostics
• Operating Temperature: -40°C to +70°C extended industrial range
• Mounting: DIN rail or panel mounting in relay panels
• Communication: Integration with Relion relay processors
• Compliance Standards: IEC 61850, IEEE 1613, IEC 60255

Advanced Relay Output Capabilities

The RMIO-12C incorporates proven electromechanical relay technology with sophisticated control features essential for mission-critical substation automation:

• High Contact Capacity: 5A switching capability per relay enables direct control of circuit breaker trip coils, motor contactors, and high-current alarm circuits without intermediate amplification or auxiliary relays
• Form C Contact Configuration: SPDT changeover contacts provide both normally-open and normally-closed connections per relay, enabling flexible wiring for fail-safe logic and redundant control schemes
• Galvanic Isolation: Complete electrical isolation between relay coils and contact circuits prevents ground loops and protects relay logic from high-voltage transients in switched circuits
• Arc Suppression: Contact protection circuits and arc-resistant contact materials extend relay life when switching inductive loads including transformer tap changers and motor starters
• Positive Contact Indication: Mechanical contact position provides definitive switching state verification independent of electronic circuits, critical for safety-critical applications
• Diagnostic Intelligence: Per-relay LED indicators and relay coil monitoring enable rapid troubleshooting and predictive maintenance through contact wear detection

Substation Automation & Control Applications

This relay module addresses critical switching requirements across electrical protection and control applications where proven relay technology ensures reliable operation in demanding environments:

• Circuit Breaker Trip & Close: Directly switches high-current trip and close coils in transmission and distribution circuit breakers, providing positive isolation between protection logic and breaker control circuits with proven reliability
• Lockout Relay Functions: Implements 86 lockout relay logic in protection schemes, latching trip conditions and preventing automatic reclosure until manual reset by operations personnel
• Alarm Annunciation: Drives alarm panels, horn circuits, and indicator lamps in control rooms and switchyards, providing visual and audible notification of abnormal conditions and equipment status
• Auxiliary Relay Coordination: Controls auxiliary relays in complex protection schemes including transfer trip, breaker failure, and zone interlocking applications requiring multiple relay coordination
• Automatic Transfer Switching: Implements source changeover logic in automatic transfer schemes, coordinating utility and generator breaker operations during power source transitions
• Capacitor Bank Switching: Controls vacuum contactors and circuit breakers in capacitor bank installations, managing reactive power compensation with coordinated switching sequences
• Generator Excitation Control: Interfaces with excitation system field breakers and voltage regulator controls in synchronous generator protection and control schemes
• Transformer Tap Changer Control: Drives tap changer motor controls in load tap changing transformers, enabling automatic voltage regulation under varying load conditions

Relion System Integration

The RMIO-12C integrates seamlessly within ABB's Relion family of protection and control products, mounting in standard relay panels and connecting to Relion relay processors via dedicated communication interfaces. The module maps relay outputs to protection logic elements in PCM600 configuration software, supporting trip matrices, interlocking schemes, and SCADA integration through IEC 61850 GOOSE messaging for high-speed peer-to-peer communication.

Engineering Design Excellence

• Proven Relay Technology: Electromechanical relays provide definitive contact closure independent of electronic circuits, ensuring fail-safe operation during power supply failures or processor malfunctions
• Hot-Swappable Operation: Module replacement during system operation in redundant configurations without interrupting protective relay functions through automatic state retention
• Flexible Wiring Options: Removable terminal blocks with screw connections accept 14-22 AWG wire, simplifying installation and enabling module replacement without field rewiring
• EMC Hardening: Robust electromagnetic immunity design withstands industrial noise, transients, and interference per IEC 61000 standards ensuring reliable operation in electrically harsh switchyards
• Conformal Coating Protection: Circuit board coating provides resistance to moisture, dust, salt spray, and corrosive gases in harsh substation environments including coastal and industrial locations
• Seismic Qualification: Mechanical design withstands seismic events per IEEE 693 requirements for critical infrastructure applications in earthquake-prone regions
• Extended Service Life: Industrial-grade relay components and conservative contact ratings ensure >20-year operational life matching substation equipment lifecycles

Installation & Commissioning

The module installs via DIN rail mounting or panel screws with connection to relay coil power supply and field devices through removable screw terminal blocks. Installation involves verifying coil voltage compatibility, connecting contact wiring to controlled devices, and confirming proper grounding for isolation integrity. Commissioning includes relay output mapping in PCM600 software, functional testing of all contacts, and integration verification with protection logic—typically completed in 30-45 minutes per module by qualified substation technicians.

Quality Standards & Compliance

Manufactured under ISO 9001:2015 quality management systems with complete component traceability and environmental stress screening. Complies with IEC 61850 substation automation standards, IEEE 1613 environmental specifications for substation equipment, and IEC 60255 protective relay standards. Meets CE electromagnetic compatibility directives and UL recognition for industrial control equipment. Suitable for installation in Class I Division 2 hazardous locations when properly configured.
