Product Description
Product Overview

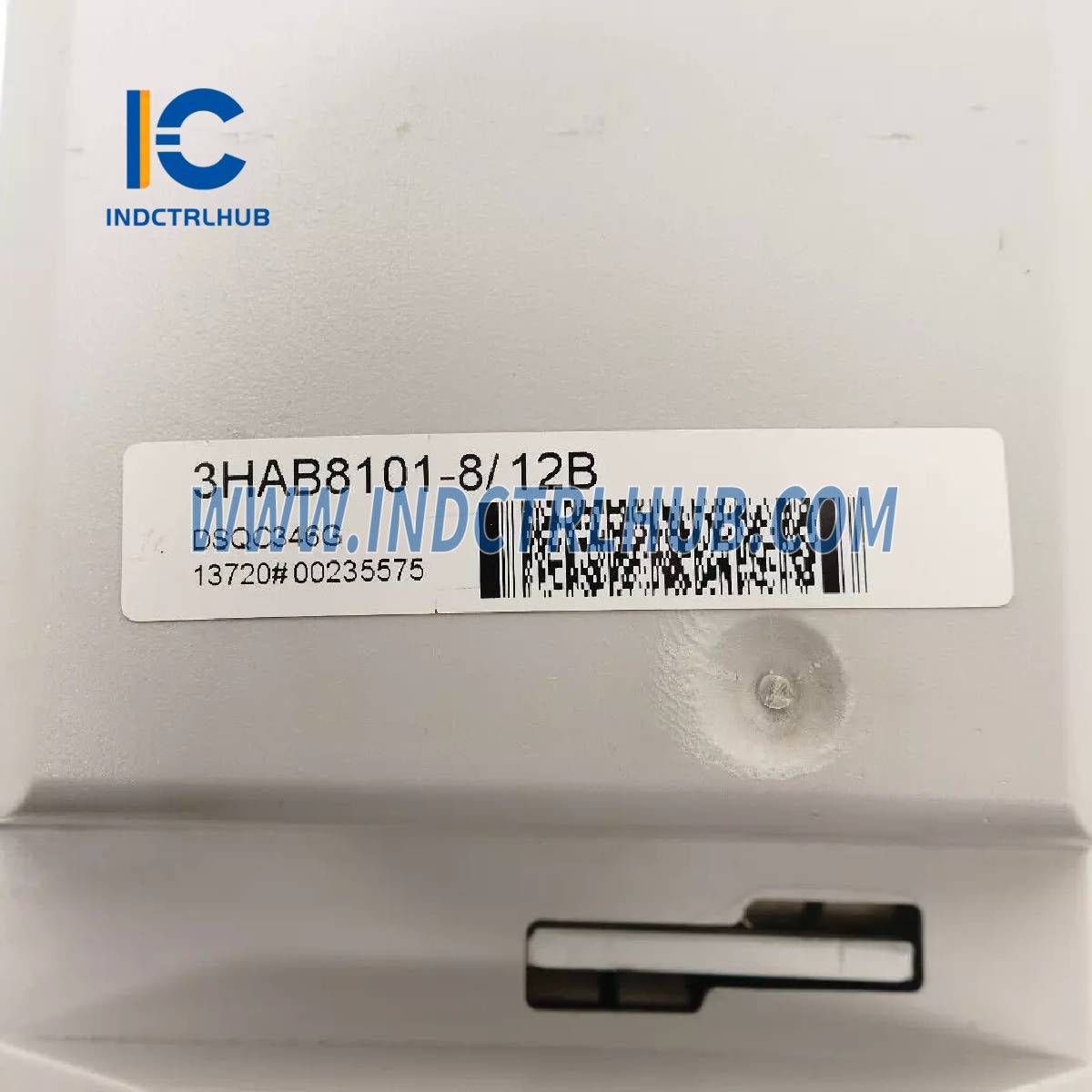

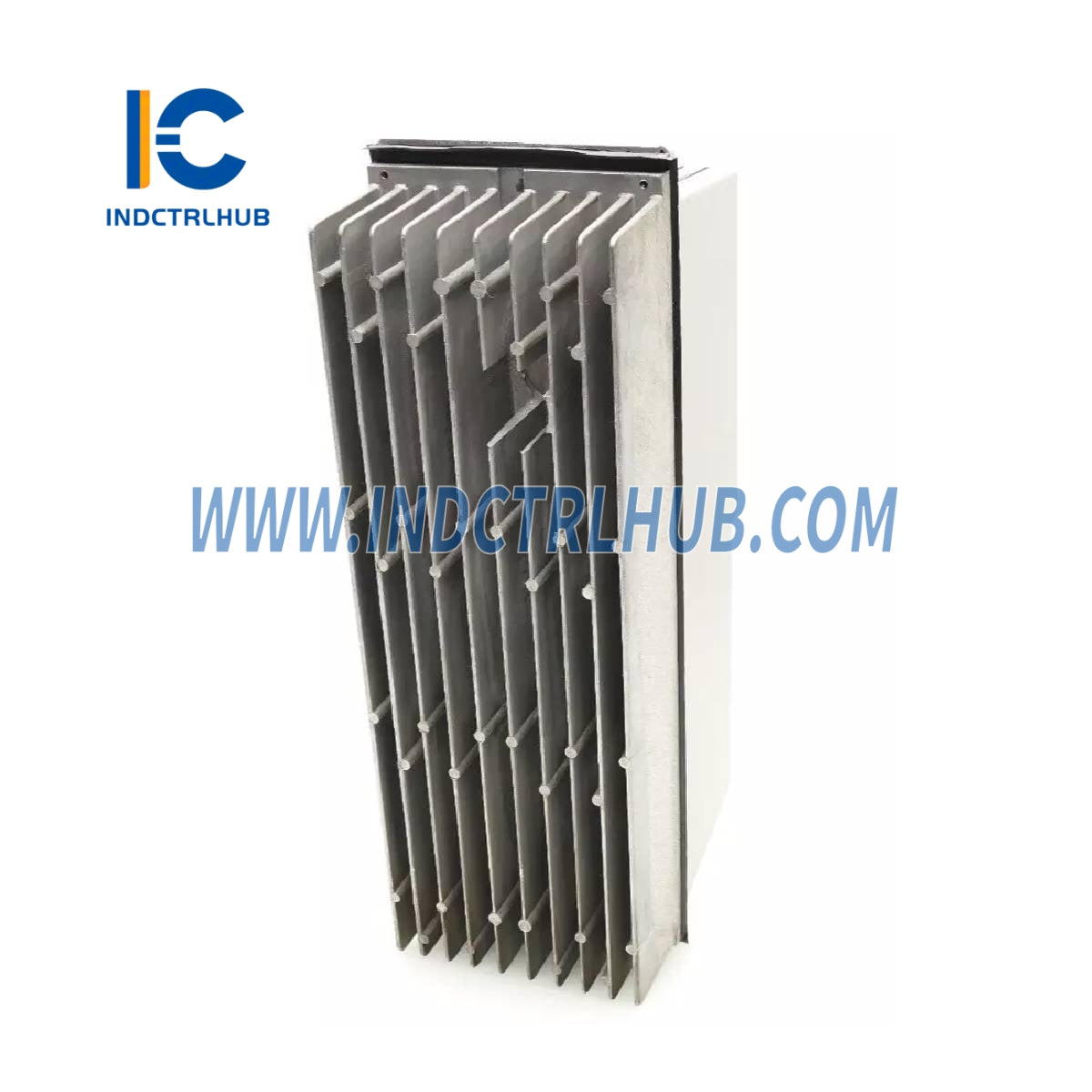

The ABB DSQC346B is a Servo Drive Unit designed for use in ABB’s industrial robotic systems, specifically within the S4, S4C, and S4C+ controller platforms for robots like the IRB 2400 series. Manufactured by ABB, this module serves as a critical component in the robot’s drive system, controlling the servo motors that power the robot’s axes. It ensures precise motion control, enabling high performance in material handling, machine tending, and other automated processes. The DSQC346B is often referenced with part number **3HAB8101-6**, with variants like 3HAB8101-6/07B indicating specific revisions or configurations. Known for its reliability and compact design, it is a key spare part for maintaining ABB robotic systems.
Technical Specifications
The DSQC346B has the following specifications based on supplier data and inferred characteristics from ABB robotics documentation:
| Item | Specification |
|---|---|
| Model/Part Number | DSQC346B (3HAB8101-6) |
| Manufacturer | ABB |
| Description | Servo Drive Unit |
| Series | S4 / S4C / S4C+ |
| Power Supply | 400-480 V AC, 50/60 Hz (via rectifier) |
| Output Power | Up to 1.5 kW (typical for IRB 2400 servo motors) |
| Control Method | Vector control |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Weight | Approximately 3.31 kg (7.3 lbs) |
Additional Details
The DSQC346B includes the following additional information based on its standard use and supplier documentation:
| Category | Details |
|---|---|
| Function | Drives servo motors for robot axis control |
| Mounting | Installed in S4C controller rack |
| Connectivity | Interfaces with robot controller and motor cabling |
| Features | High reliability, precise motion control, compact design |
| Certifications | Designed for industrial standards (e.g., CE) |
