Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Product ID |
3BHT300036R1 |
|
Medium Description |

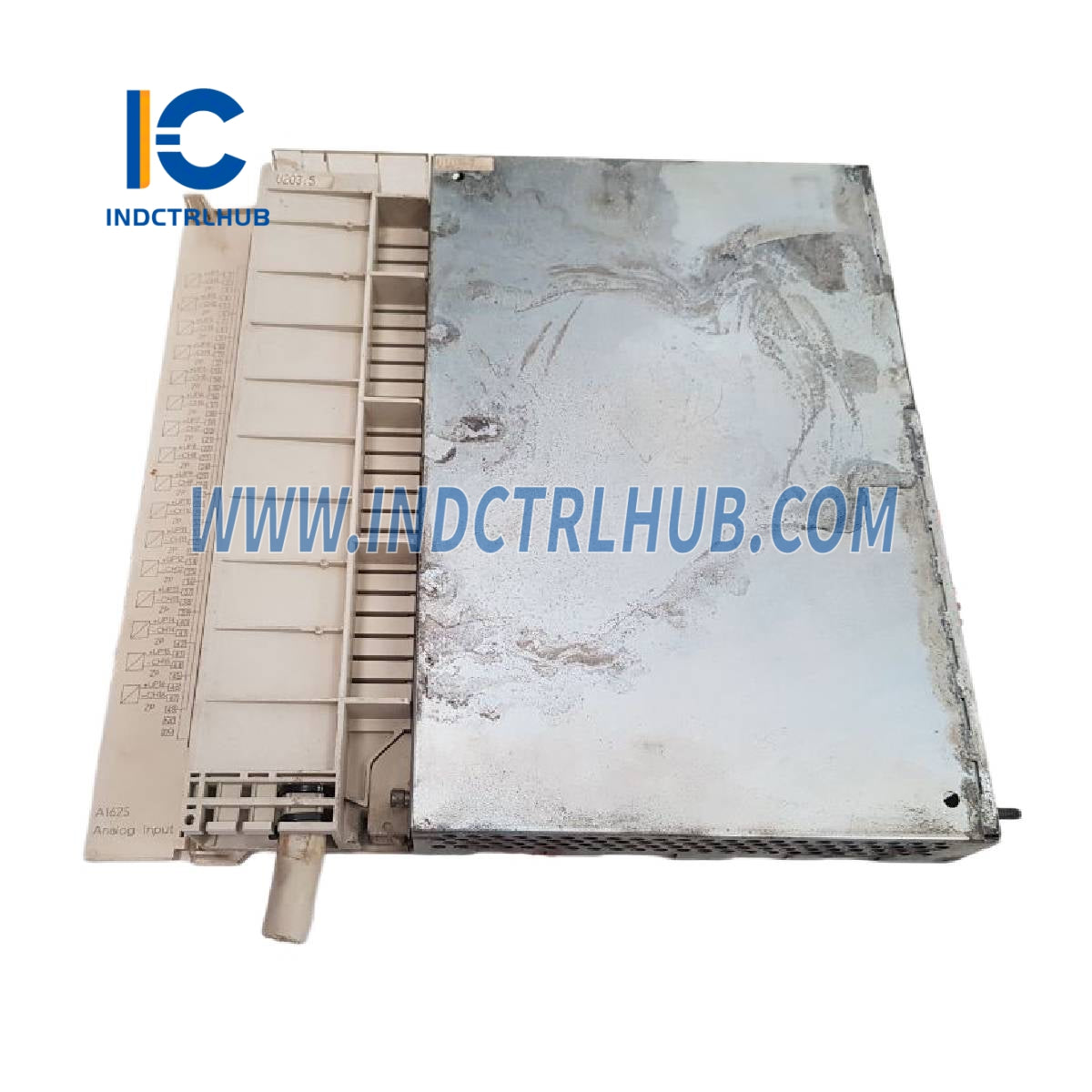

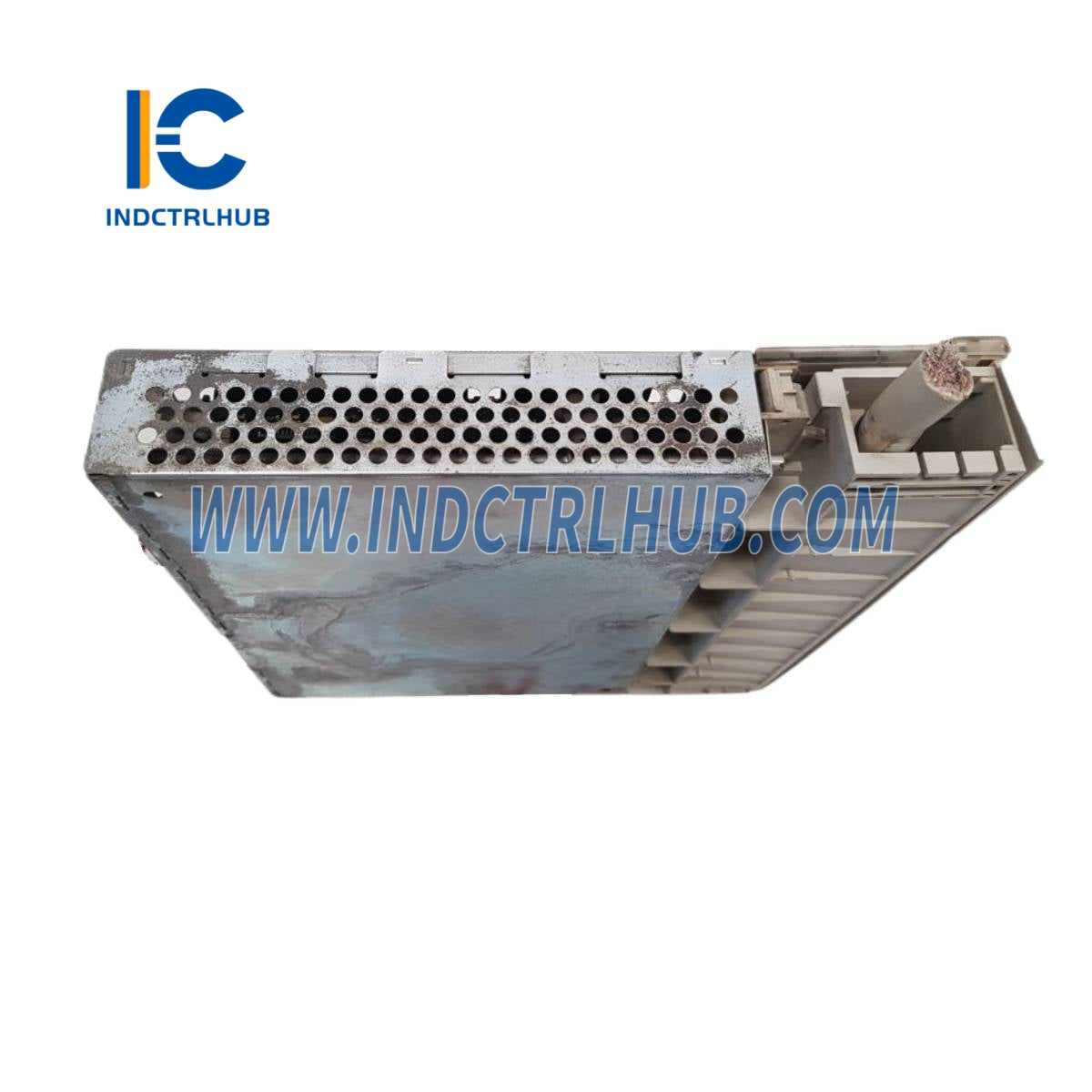

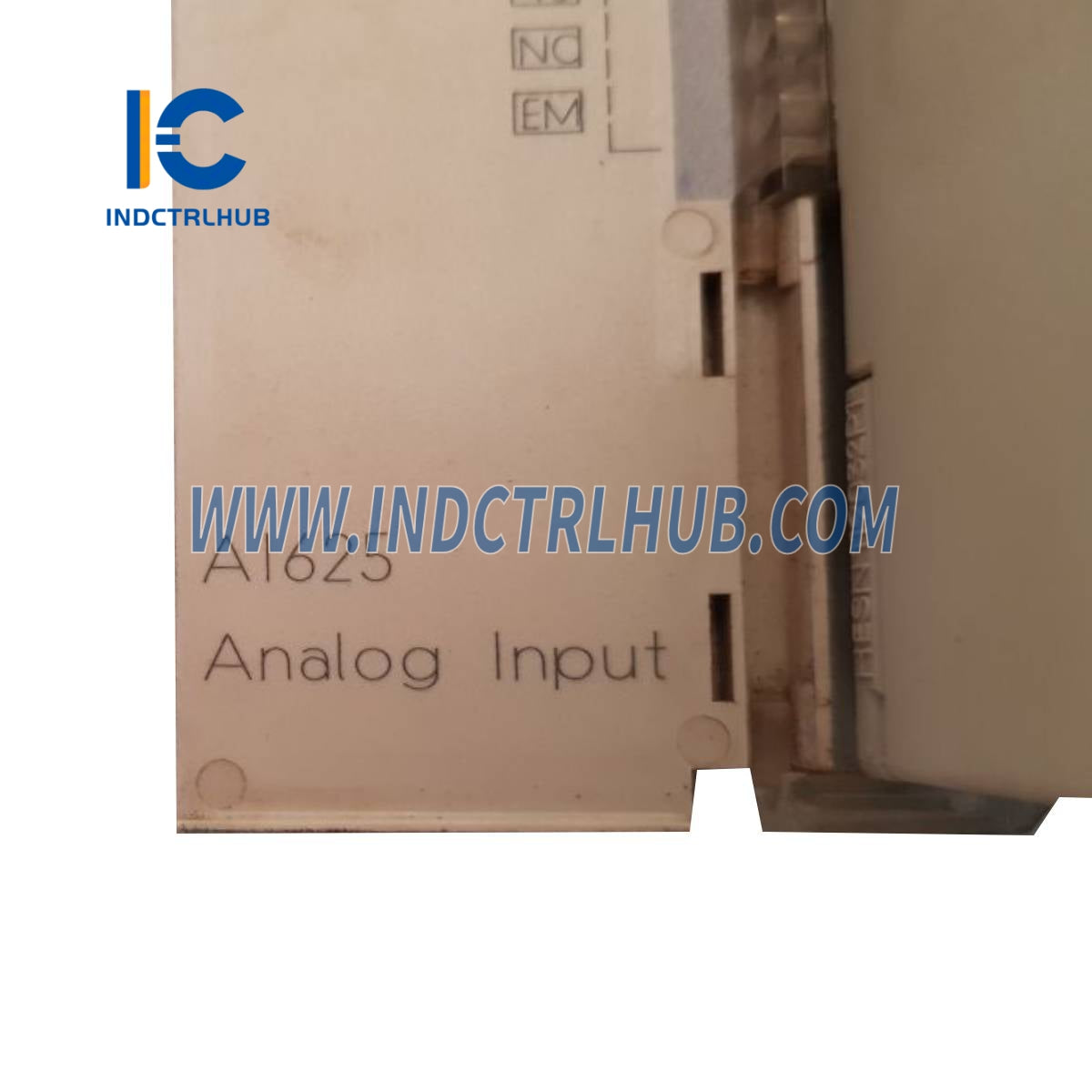

AI625 Analog Input 16Ch 12 Bit, 4-20 mA |
|
Product Type |
I-O_Module |
Technical Information
|
Parameter |
Value |
|---|---|
|
Channel Type |
AI (Analog Input) |
|
Number of Input Channels |
16 |
|
Resolution |
12 bits |
|
Current Measurement Range |
0-20 mA |
|
Galvanic Isolation |
As one group |
|
Common Mode Voltage (CMV) |
50 V |
|
Common Mode Rejection Ratio (CMRR) |
>100 dB |
|
Shunt Resistor |
100 Ω |
|
System Compatibility |
S600 I/O Analog Input Module |
Physical Dimensions
|
Parameter |
Value |
|---|---|
|
Product Net Depth / Length |
252 mm |
|
Product Net Height |
273 mm |
|
Product Net Width |
40 mm |
|
Product Net Weight |
1.225 kg |
Environmental Compliance
|
Parameter |
Value |
|---|---|
|
RoHS Status |
Exempt from EU Directive 2011/65/EU |
|
WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
SCIP Reference |
f252bedf-684b-4413-987d-ce8381a68754 (Sweden) |
|
Number of Batteries |
0 |
Ordering Information
|
Parameter |
Value |
|---|---|
|
HS Code |
853890 (Parts suitable for use with apparatus of heading 85.35, 85.36, or 85.37) |
|
Customs Tariff Number |
85389091 |
Product Classification
This module is classified under Control System Products and is used in I/O Products, specifically under S600 I/O modules and Advant OCS with Master SW controllers:
• S600 I/O - Modules → AI625 Analog Inputs → AI625 Analog Input
• Advant OCS with Master SW → Controllers → Advant Controller 160 → Advant Controller 160 Version 2.2 → I/O Modules
• Parts & Services → Control Systems → Advant OCS with Master SW → I/Os → S600 I/O → I/O Modules
