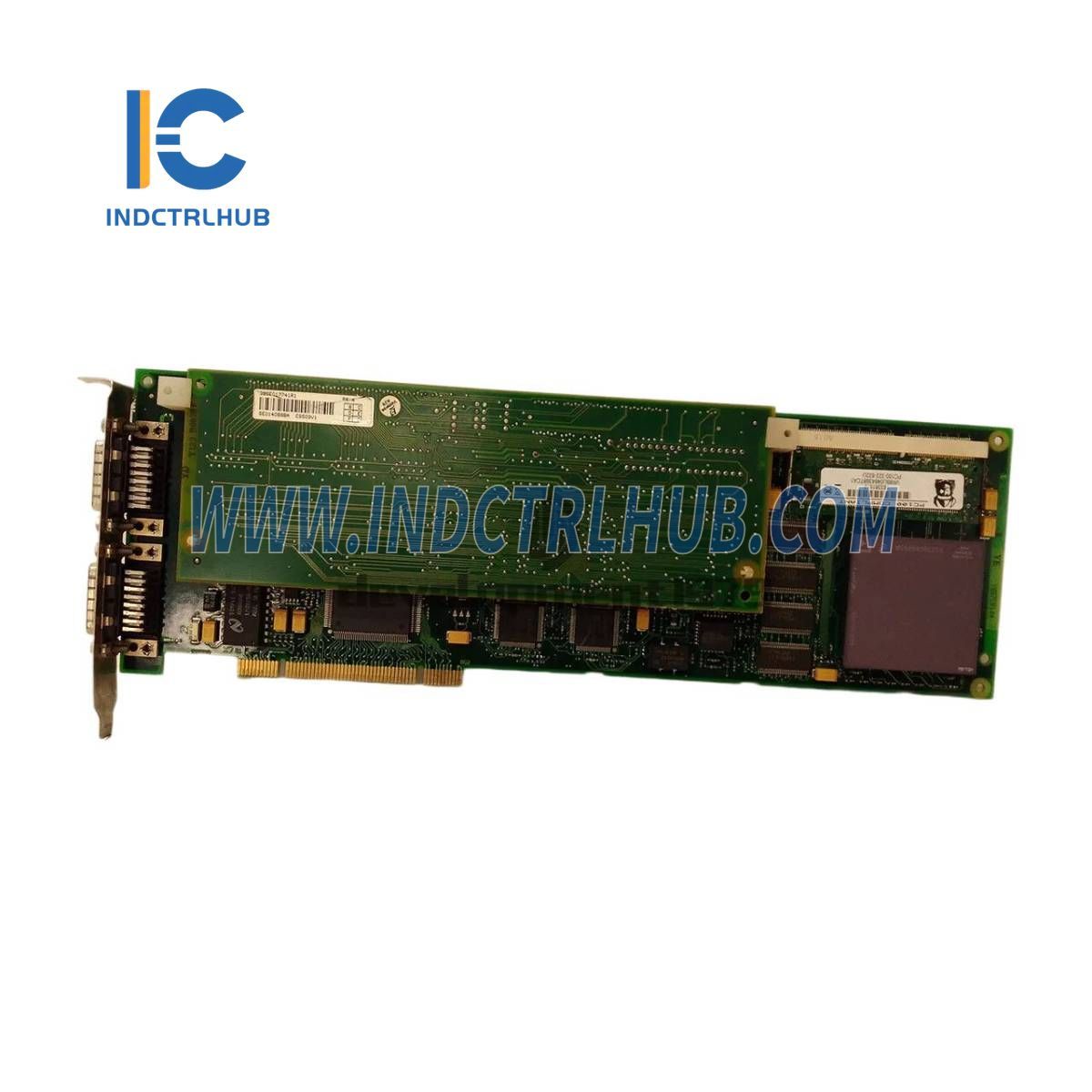

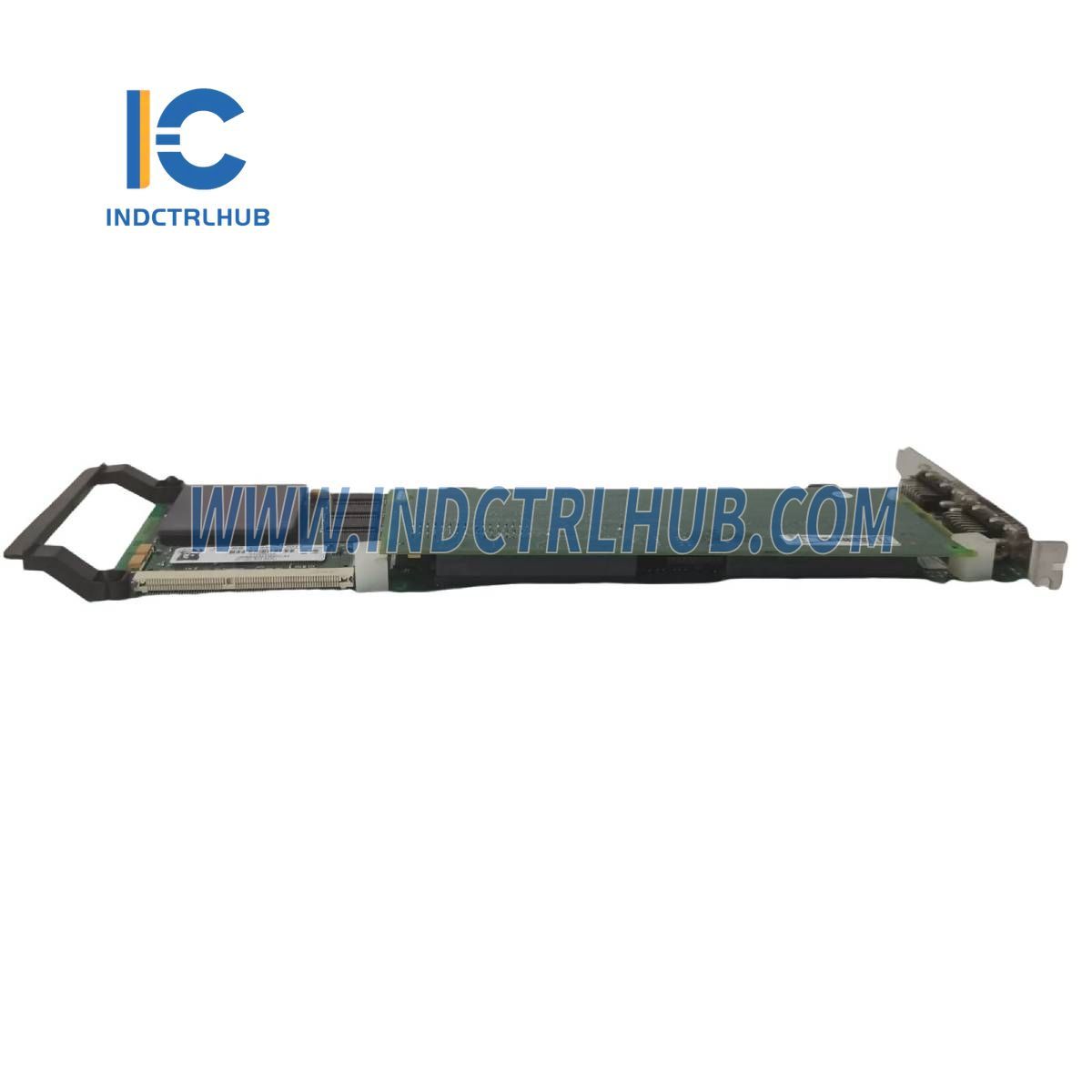

3BSE032401R1 | ABB PU515A Real-Time Accelerator, RTA, board
3BSE032401R1 | ABB PU515A Real-Time Accelerator, RTA, board
Manufacturer: ABB
Product No.: 3BSE032401R1
Condition:1000 in stock
Product Type: Real-Time Accelerator, RTA, board
Product Origin: Switzerland
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Details
- Manufacturer: ABB
- Model/Part Number: PU515A (3BSE032401R1)
- Description: Real-Time Accelerator (RTA) Board
General Information
| Attribute | Details |
|---|---|
| Product ID | 3BSE032401R1 |
| ABB Type Designation | PU515A |
| Catalog Description | PU515A Real-Time Accelerator, RTA, board |
| Technical Information | PU515A Real-Time Accelerator (RTA) board, used with Master and MOD eDCN systems. Installed in 3.3V or 5V 32-bit 33MHz PCI or 100/133MHz PCI-X slot (runs at 33MHz). Includes CS503V1 dual-channel MB300 communication module and 16MB RAM. Features two 15-pin female D-sub connectors. Can also be installed in a 64-bit slot. |
| Exchange Part Number | EXC3BSE032401R1 |
Technical Specifications
| Attribute | Details |
|---|---|
| Number of Processors | 1 |
| CPU Clock Frequency | 25 MHz |
| Memory Size | 16 MB |
| Product Type | Interface |
| Protocol Type | MB300 |
| Number of Channels | 2 |
| Communication Speed | 10,000 kbit/s |
Dimensions & Weight
| Attribute | Details |
|---|---|
| Product Net Weight | 0.4 kg |
Ordering Information
| Attribute | Details |
|---|---|
| Country of Origin | Sweden (SE) |
| Customs Tariff Number | 85389091 |
Product Categories & Compatibility
Products
- Control Systems _ 800xA _ System _ 800xA System _ 800xA 3.1 System _ Central Units
- Control Systems _ Advant OCS with Master SW _ 800xA for Advant Master _ 800xA System _ 800xA 3.1 System _ Central Units
- Control Systems _ Advant OCS with Master SW _ 800xA for Advant Master _ 800xA System _ 800xA 5.0 System _ Communication Modules
- Control Systems _ Advant OCS with MOD 300 SW _ 800xA for MOD 300 _ 800xA Operations _ 800xA 5.0 Operations _ Communication Modules
Parts & Services
- Control Systems _ Advant OCS with Master SW _ Engineering _ Advant Station 500 Series Engineering Station _ Communication Modules
- Control Systems _ Advant OCS with MOD 300 SW _ Communication _ RTA Communication Unit _ Communication Modules
