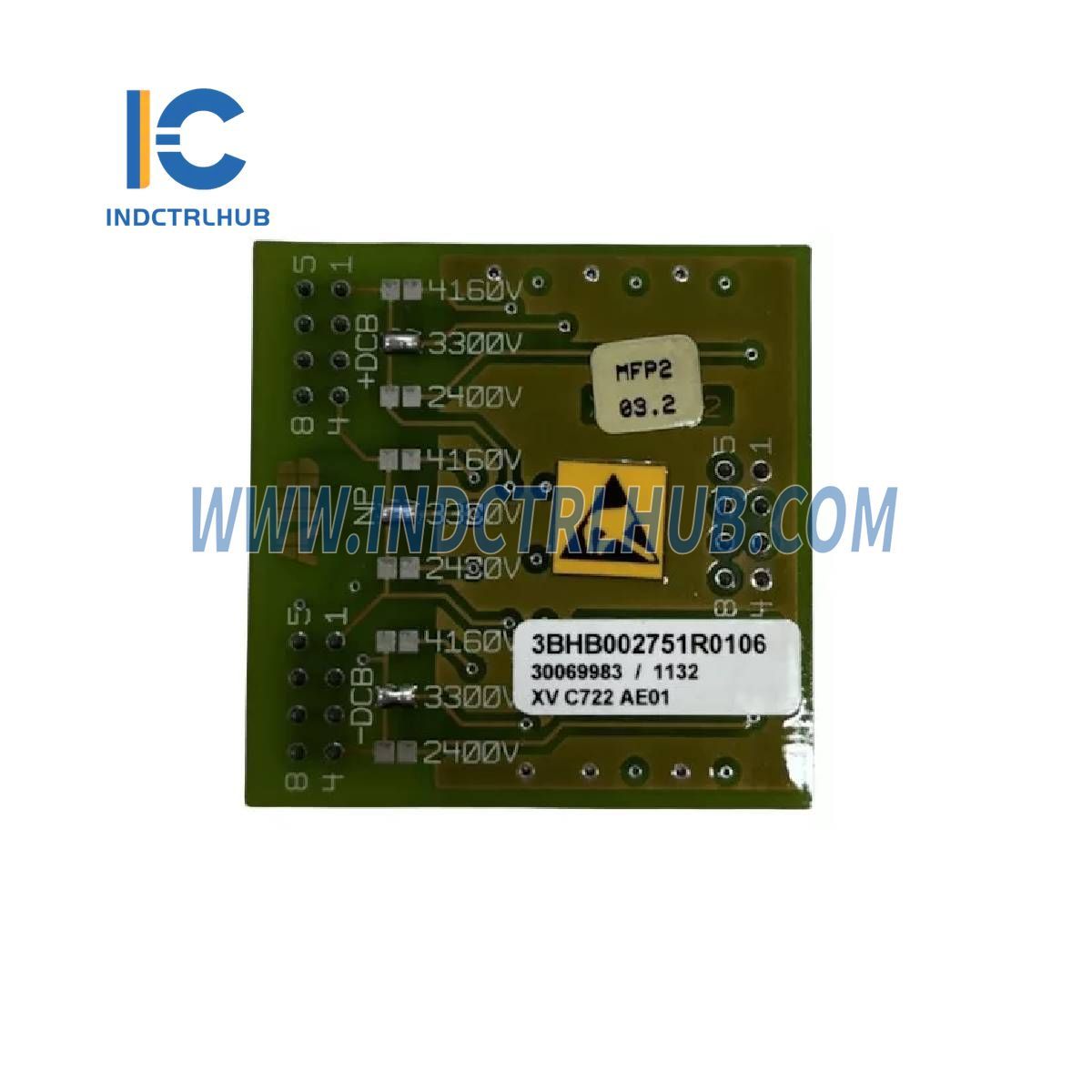

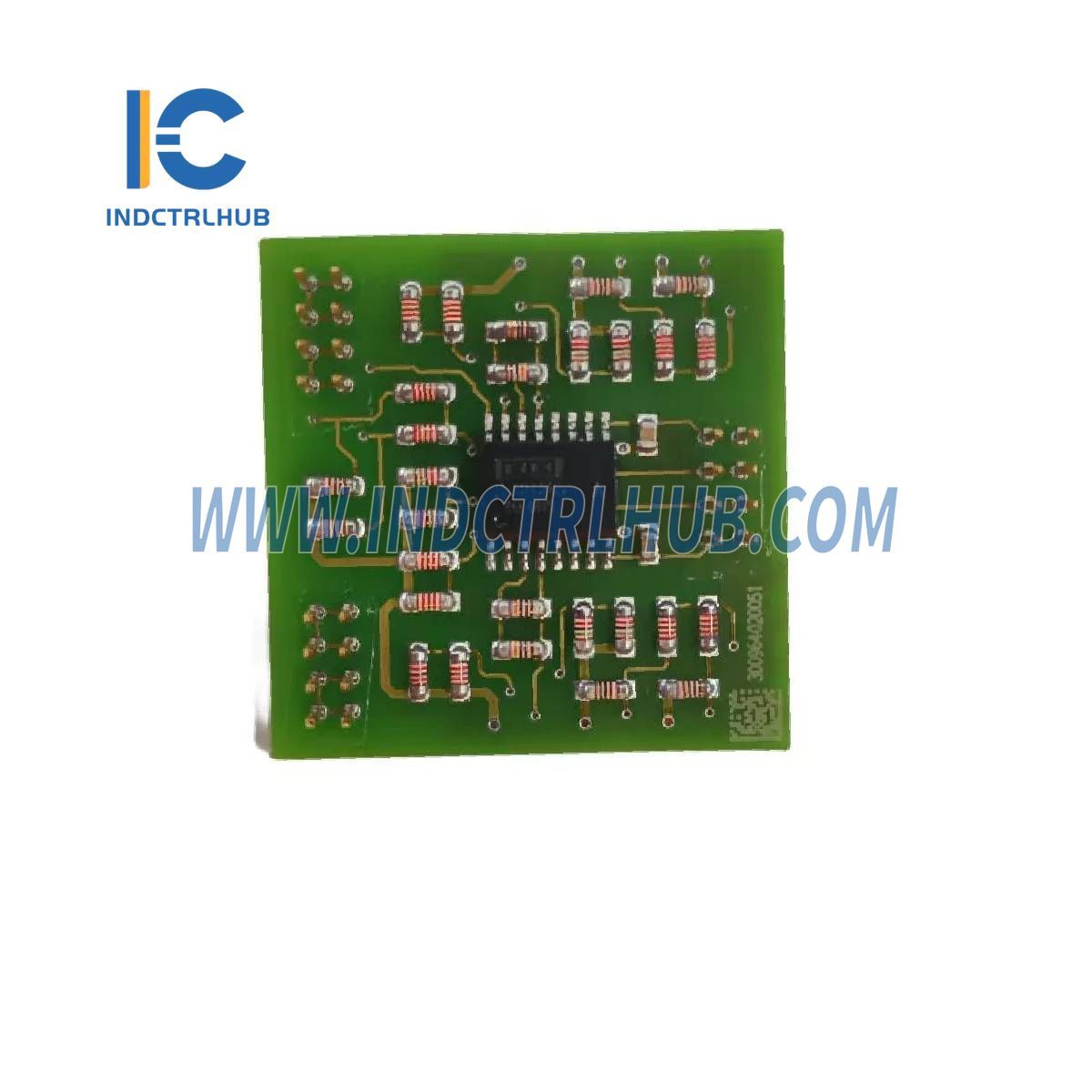

3BHB002751R0106 | ACS1000 12- or 24-pulse diode rectifier

3BHB002751R0106 | ACS1000 12- or 24-pulse diode rectifier

  • Manufacturer: ABB

  • Product No.: 3BHB002751R0106

  • Condition:1000 in stock

  • Product Type: pulse diode rectifier

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 100g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Manufacturer and Model

  • Manufacturer: ABB

  • Model/Part Number: 3BHB002751R0106 ACS1000

Input Specifications


Parameter Details
Input Configuration 12- or 24-pulse diode rectifier
Input Voltage External transformer: 1.3 kV, 1.9 kV, 2.3 kV

Integrated transformer: 2.3 kV, 3.3 kV, 4.16 kV, 6 – 6.9 kV, 10 – 11 kV

Note: Not all supply voltage and frequency combinations are available
Input Voltage Variation ±10%
Input Frequency 50 / 60 Hz
Input Frequency Variation <5%
Input Power Factor >0.95
Input Harmonics Complies with IEC 61000-2-4 and IEEE 519
Auxiliary Voltage 110 V DC, 220 V DC

110 – 240 V AC, 50/60 Hz

380 – 690 V AC, 50/60 Hz, 3-phase


Output Specifications

  • Output Power: 200 – 5000 kW

  • Output Voltage: 2.3 kV, 3.3 kV, 4.0 kV, 4.16 kV

  • Output Frequency: 0 – 82.5 Hz (higher frequencies available upon request)

  • Motor Type: Induction

  • Efficiency of Converter:

    • 98%, external transformer

    • 96%, integrated transformer

  • Motor Harmonics: <2% THDi

Mechanical Specifications

  • Enclosure:

    • Air-cooled: Standard IP21, optional IP22, IP32, and IP42

    • Water-cooled: Standard IP31, optional IP42 and IP54

  • Cable Entry: Top / bottom

  • Environmental Conditions:

    • 0 °C to +40 °C for air-cooled (lower and higher with derating)

    • +1 °C to +50 °C for water-cooled (lower and higher with derating)

    • 5500 m a.s.l. for air-cooled

    • 4000 m a.s.l. for water-cooled

    • Altitude:

    • Ambient Air Temperature:

    • External Cooling Water Temperature: +4 °C to +27 °C (lower and higher with derating)

  • Noise Level:

    • <75 dB(A) for air-cooled with external transformer

    • <80 dB(A) for air-cooled with integrated transformer

    • <70 dB(A) for water-cooled

Cooling and Standards

  • Cooling Type: Air, water

  • Standards: EN, IEC, CE, optional UL, and all common marine standards
