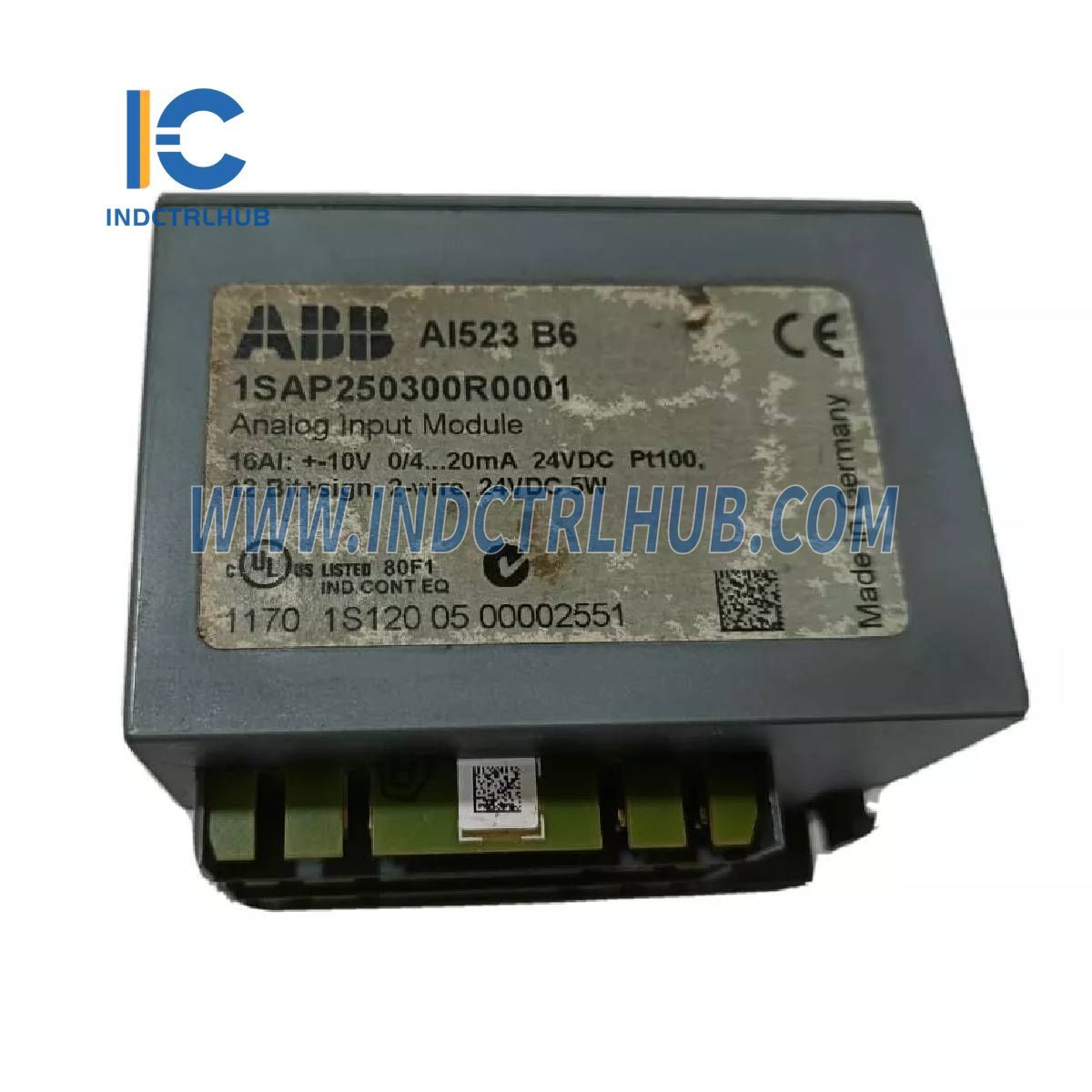

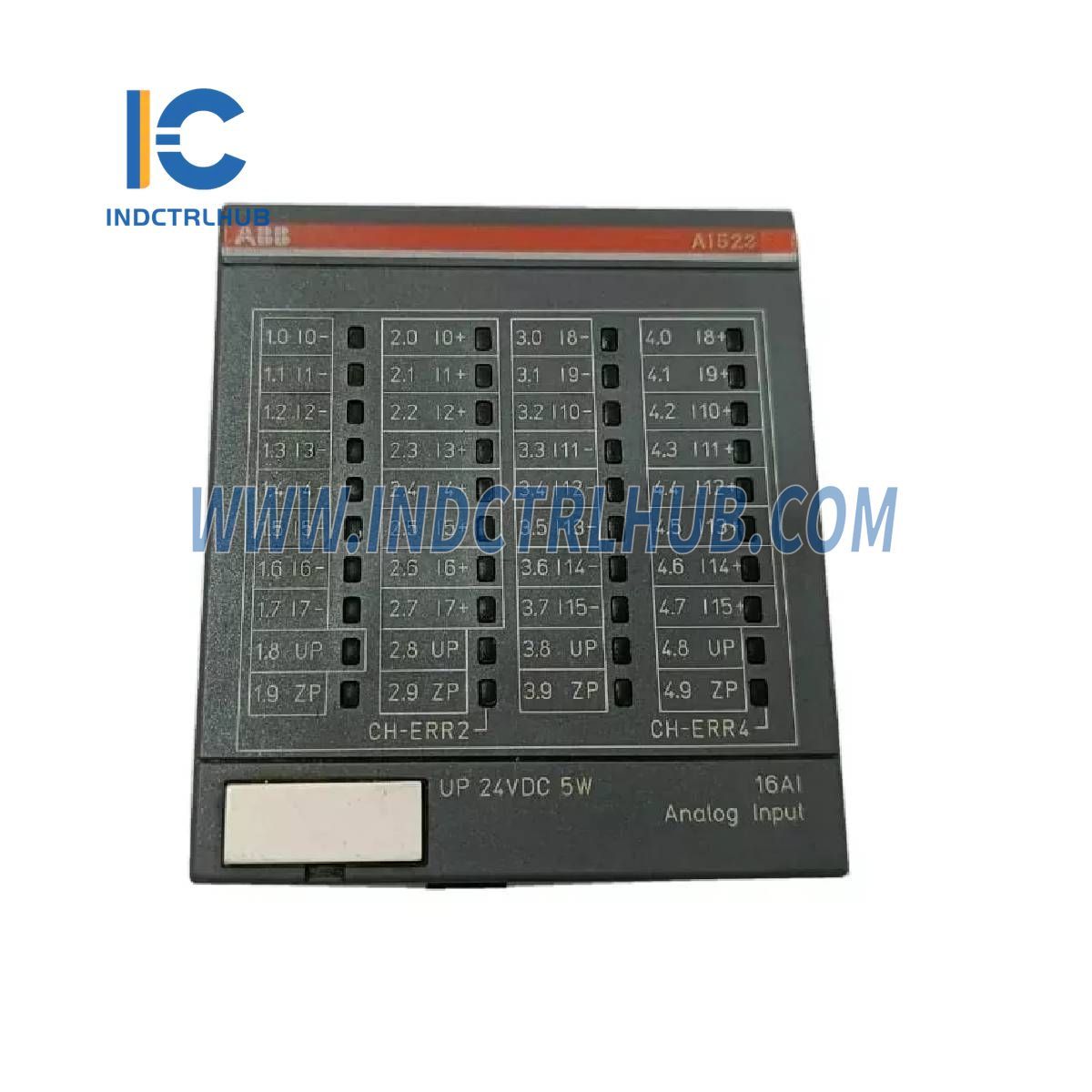

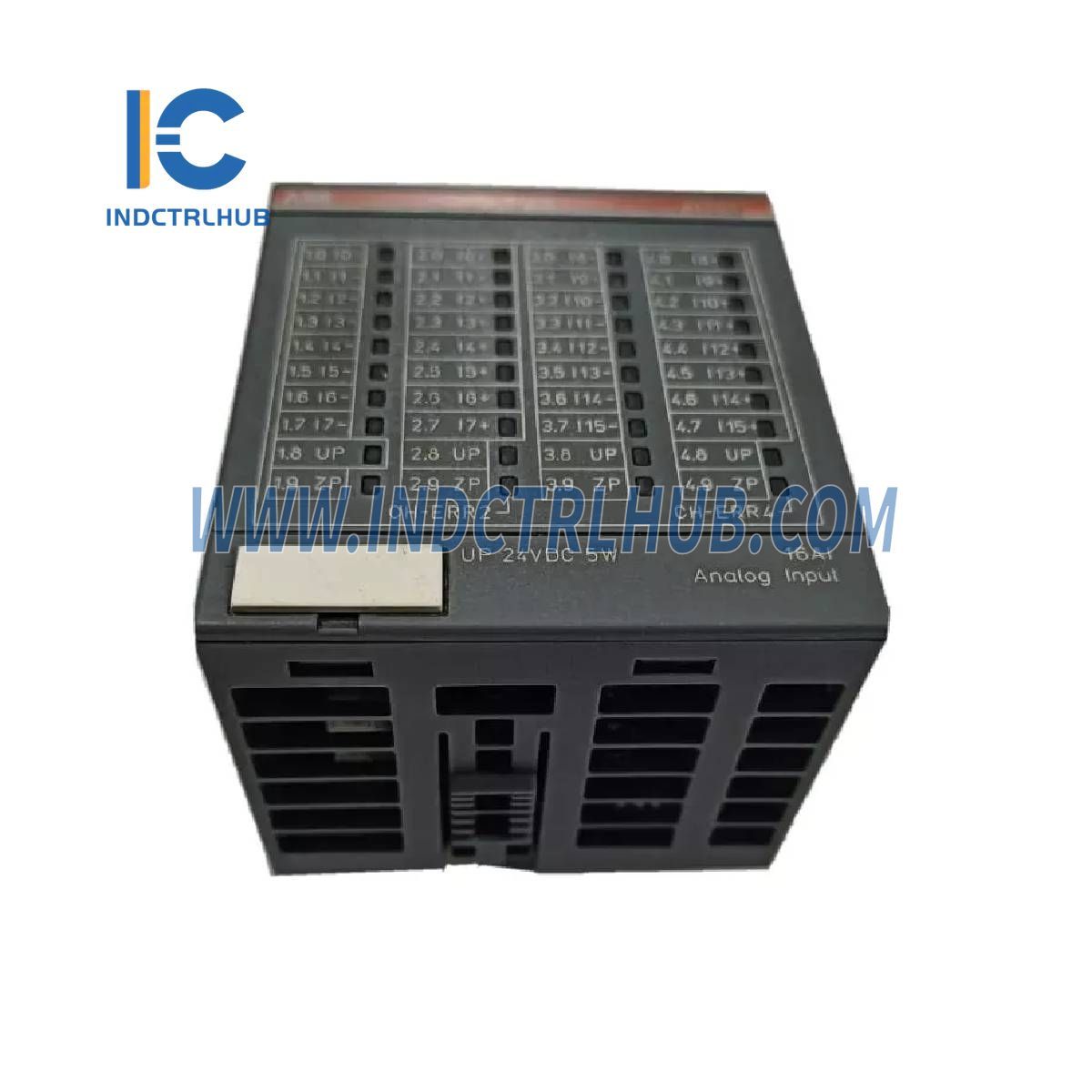

1SAP250300R0001 | ABB AI523 Analog Input Module
1SAP250300R0001 | ABB AI523 Analog Input Module
Manufacturer: ABB
Product No.: AI523
Condition:1000 in stock
Product Type: Analog Input Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 149g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Product Details
- Manufacturer: ABB
- Model/Part Number: AI523 (1SAP250300R0001)
- Description: Analog Input Module
General Information
| Attribute | Details |
|---|---|
| Extended Product Type | AI523 |
| Product ID | 1SAP250300R0001 |
| ABB Type Designation | AI523 |
| EAN | 4016779655941 |
| Catalog Description | Analog input module. 16 AI: U, I, RTD, DI (AI523) |
| Long Description | AI523: S500 Analog Input Module. 16 AI: U, I, RTD, DI. 13-bit incl. sign. 1-wire. |
| Product Main Type | AI523 |
| Product Name | Distributed Automation I/Os |
Ordering & Logistics
| Attribute | Details |
|---|---|
| CN8 Code | 85389091 |
| Invoice Description | Analog input module. 16 AI: U, I, RTD, DI (AI523) |
| Made to Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | Piece |
| Gross Weight | 0.149 kg |
| Stocked At | Various ABB Distribution Centers |
Dimensions & Environmental Conditions
| Attribute | Details |
|---|---|
| Product Net Weight | 0.125 kg |
| Product Net Dimensions (W x H x D) | 67.5 mm x 76 mm x 62 mm |
| Package Dimensions (W x H x D) | 71 mm x 72 mm x 84 mm |
| Ambient Air Temperature (Operation) | 0 ... +60 °C |
| Ambient Air Temperature (Storage) | -40 ... +70 °C |
| Degree of Protection | Housing IP20 |
Technical Specifications
| Attribute | Details |
|---|---|
| Function | 16 AI: U, I, RTD, DI |
| Number of Analog Configurable I/Os | 0 |
| Analog Inputs | 16 |
| Input Signal Types | Voltage (U), Current (I), Resistance Temperature Detector (RTD), Digital Input (DI) |
| Resolution | 13-bit Analog Input |
| Supply Voltage | 24 V DC |
