Product Description
Product Details

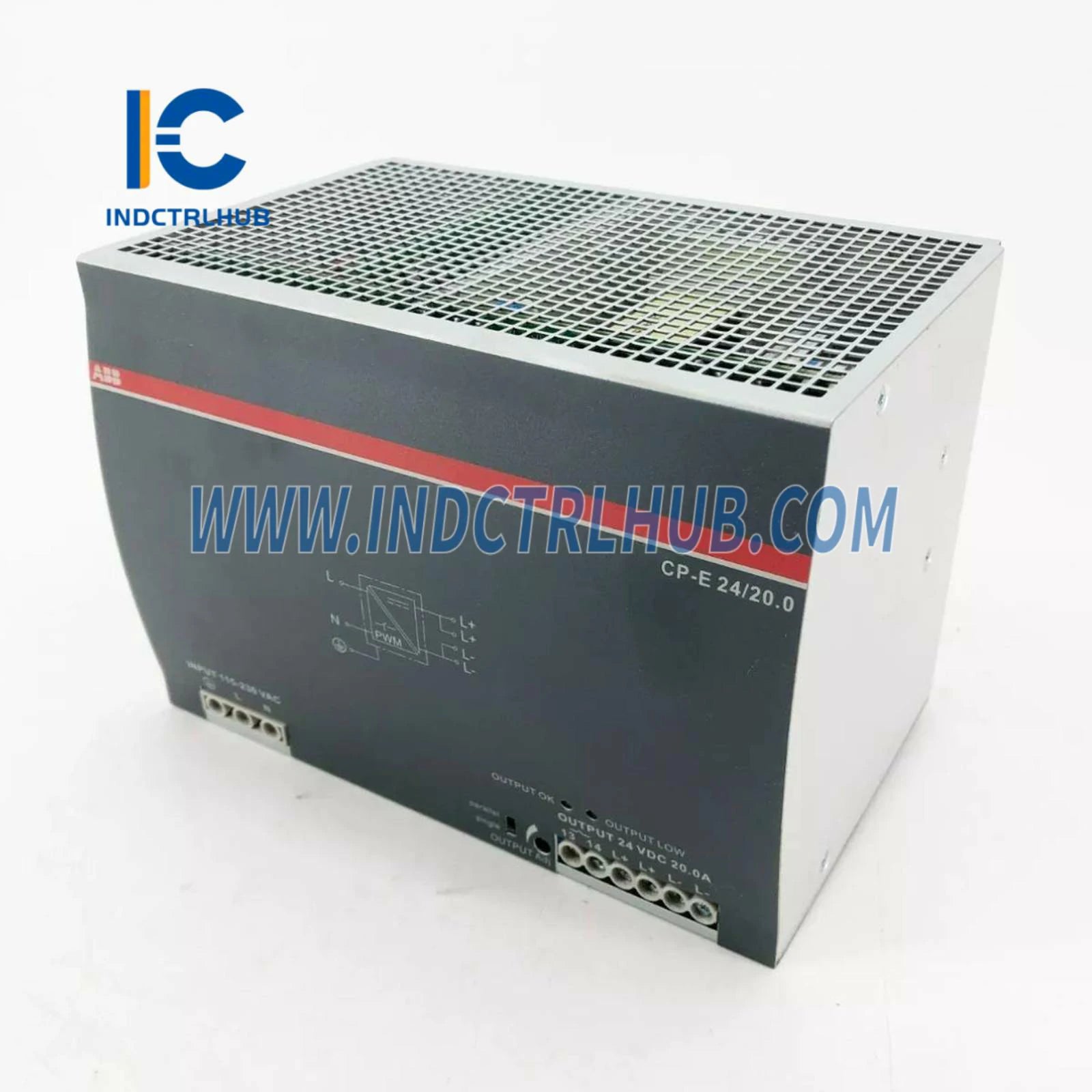

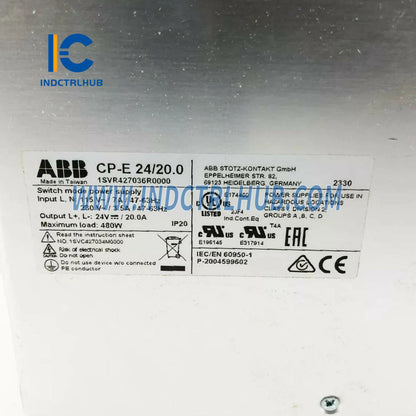

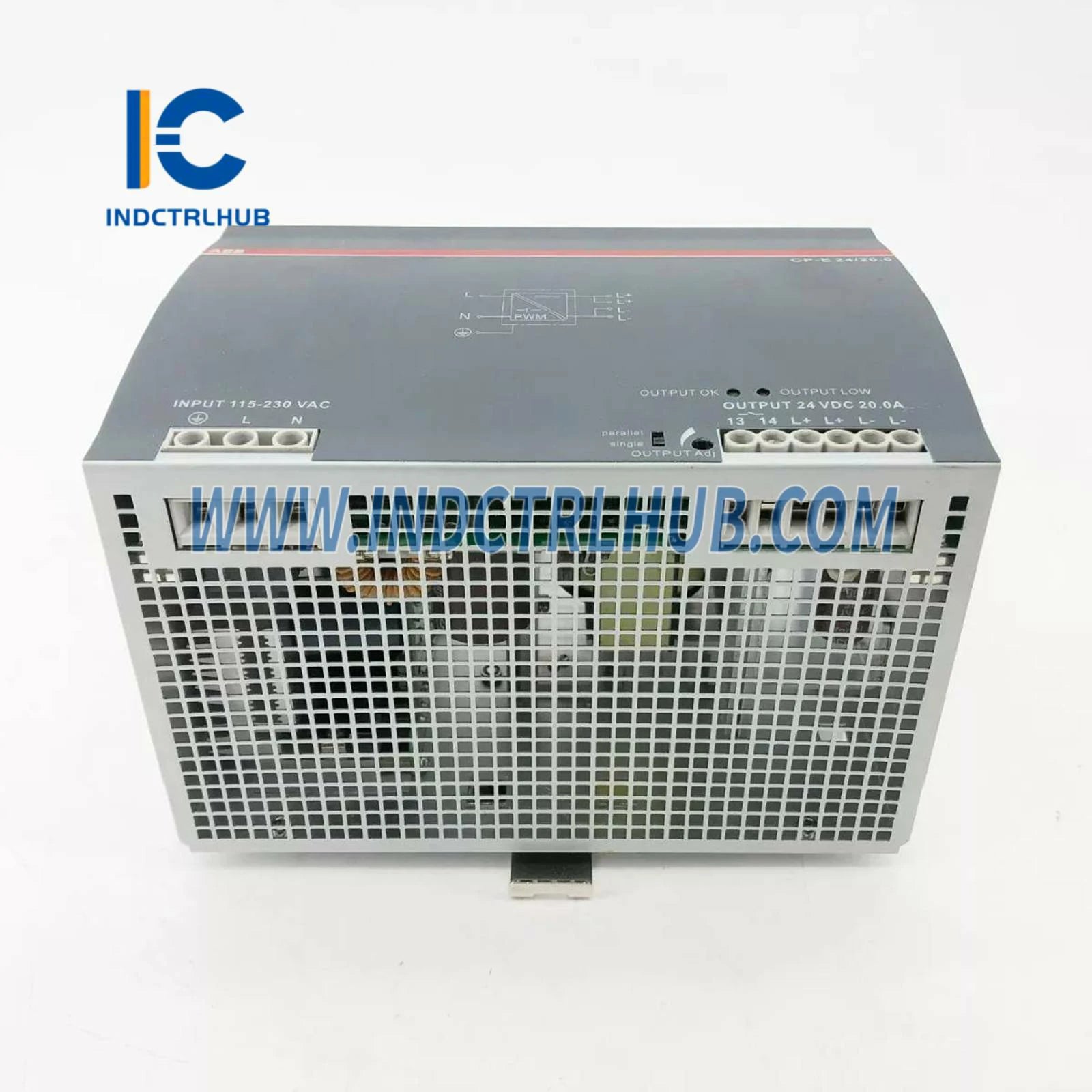

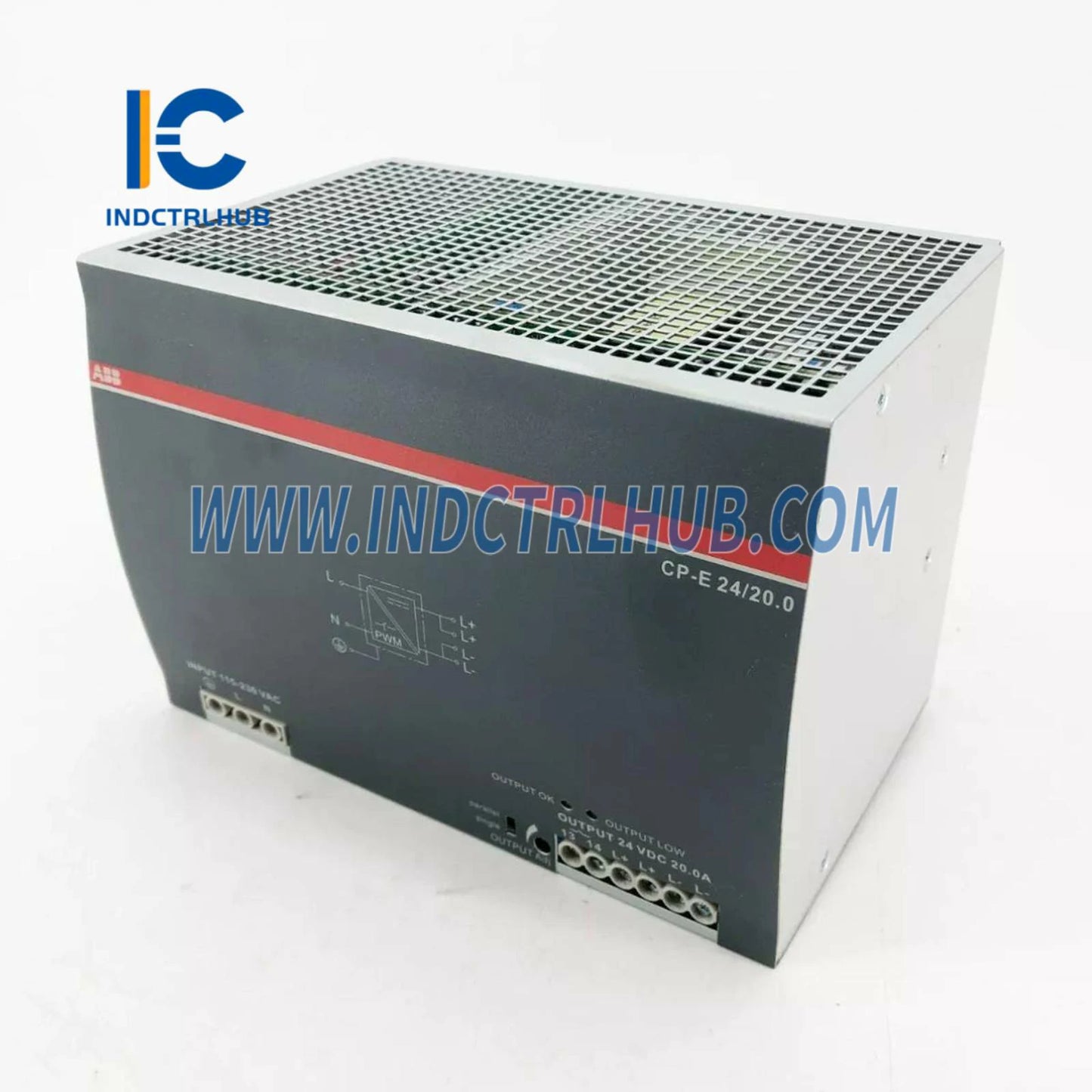

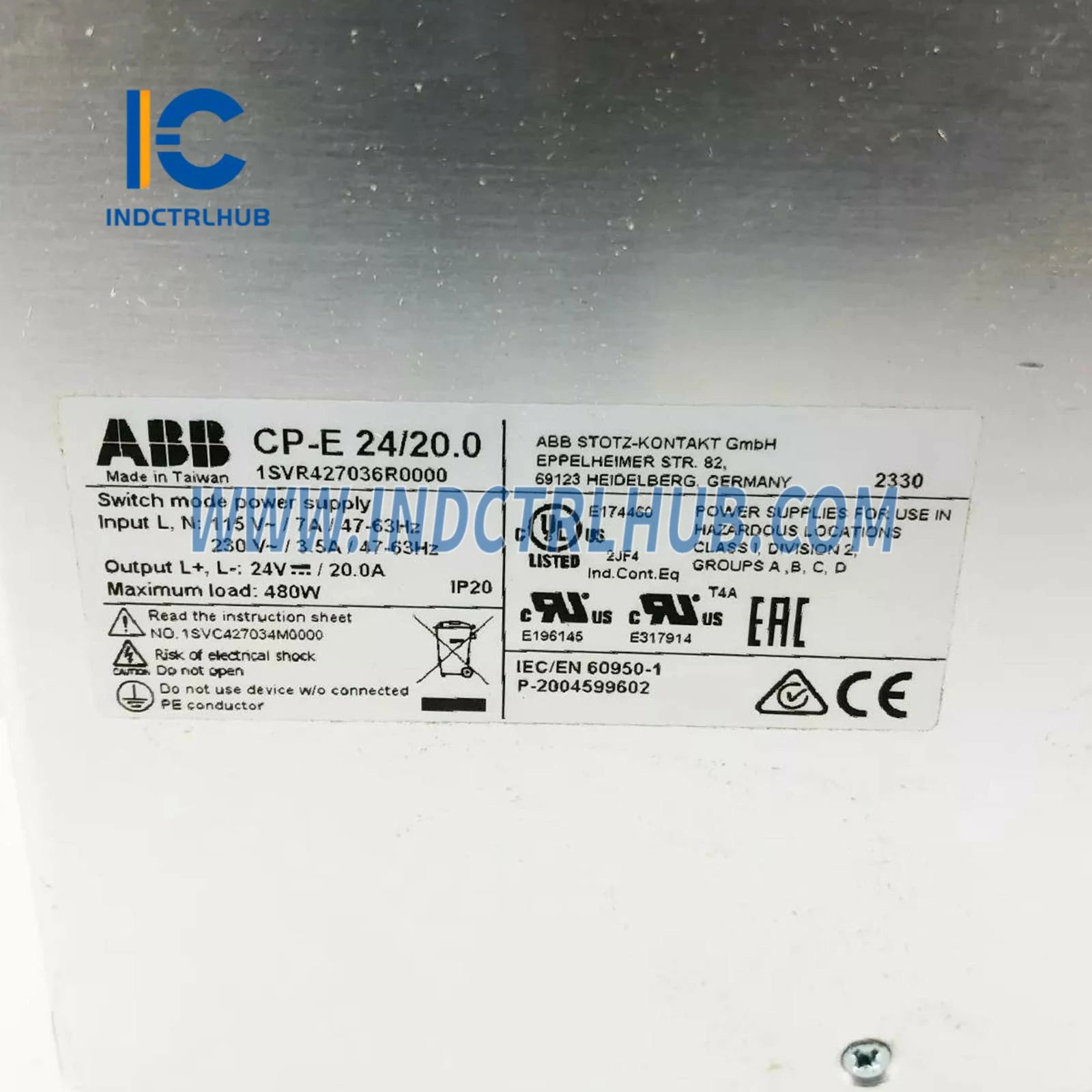

- Manufacturer: ABB
- Model/Part Number: CP-E 24/20.0 (1SVR427036R0000)
- Description: Power Supply Module
General Information
| Attribute | Details |
|---|---|
| Extended Product Type | CP-E 24/20.0 |
| Product ID | 1SVR427036R0000 |
| EAN | 4016779669702 |
| Catalog Description | CP-E 24/20.0 Power supply In:115/230VAC Out: 24VDC/20A |
| Long Description | The CP-E 24/20.0 is a power supply from the CP-E range. It offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage of 115-230 V AC. The rated output power is 480 W, rated output current is 20 A at an output voltage of 24 V DC. The output voltage is adjustable within a range of 22.5 to 28.5 V DC. Provides U/I output characteristic. Up to 3 units can be connected in parallel. A redundancy unit is available as an accessory. |
Ordering Information
| Attribute | Details |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85044095 |
| Popular Downloads | Data sheet - CP-E 24/20.0 Primary switch mode power supply |
| Instructions & Manuals | Instruction Sheet / Manual - CP-E 24/20.0 and CP-E 48/10.0 |
Dimensions & Packaging
| Attribute | Details |
|---|---|
| Product Net Width | 175 mm |
| Product Net Height | 123.6 mm |
| Product Net Depth / Length | 123.6 mm |
| Product Net Weight | 1.85 kg |
| Package Level 1 Width | 173 mm |
| Package Level 1 Depth / Length | 225 mm |
| Package Level 1 Height | 188 mm |
| Package Level 1 Gross Weight | 2.262 kg |
| Package Level 1 EAN | 4016779669702 |
| Package Level 1 Units | Box, 1 piece |
Technical Specifications
| Attribute | Details |
|---|---|
| Function | Switch mode power supply |
| Number of Phases | 1 |
| Rated Input Voltage (UIN) | 115 / 230 V AC |
| Input Voltage (Uin) | 90 ... 264 V AC, 120 ... 375 V DC |
| Rated Frequency (f) | 50 Hz |
| Rated Frequency Limits | 47 ... 63 Hz |
| Output Characteristic | U/I characteristic curve |
| Rated Output Power | 480 W |
| Output Voltage (Uout) | 24 V DC (adjustable from 22.5 to 28.5 V DC) |
| Rated Output Current | 20 A |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV (Input Circuit / Output Circuit) |
| Degree of Protection | IP20 |
| Pollution Degree | 2 |
| Mounting Position | 1 (DIN Rail TH35-15 or TH35-7.5, IEC 60715) |
Electromagnetic Compatibility (EMC)
| Attribute | Details |
|---|---|
| Electrostatic Discharge (ESD Immunity, IEC 61000-4-2) | Level 4, Air Discharge 15 kV / Contact Discharge 8 kV |
| Radiated Electromagnetic Field Immunity (IEC 61000-4-3) | Level 3, 10 V/m |
| Electrical Fast Transient (Burst Immunity, IEC 61000-4-4) | Level 4, Power Supply Port Signal 4 kV |
| Surge Immunity (IEC 61000-4-5) | Level 3, Line-to-Line 2 kV / Level 4, Line-to-Ground 4 kV |
| Conducted Disturbances Immunity (IEC 61000-4-6) | Level 3, 10 V |
Environmental Compliance
| Attribute | Details |
|---|---|
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Maximum Operating Altitude | 5000 m |
| RoHS Status | Compliant with EU Directive 2011/65/EU and Amendment 2015/863 |
| WEEE Category | Small Equipment (No External Dimension More Than 50 cm) |
