Product Description
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Model/Part Number |
CP435T-ETH |
|
Product ID |
1SBP260197R1001 |
|
ABB Type Designation |
CP435T-ETH |
|
EAN |
3471522601971 |
|
Catalog Description |

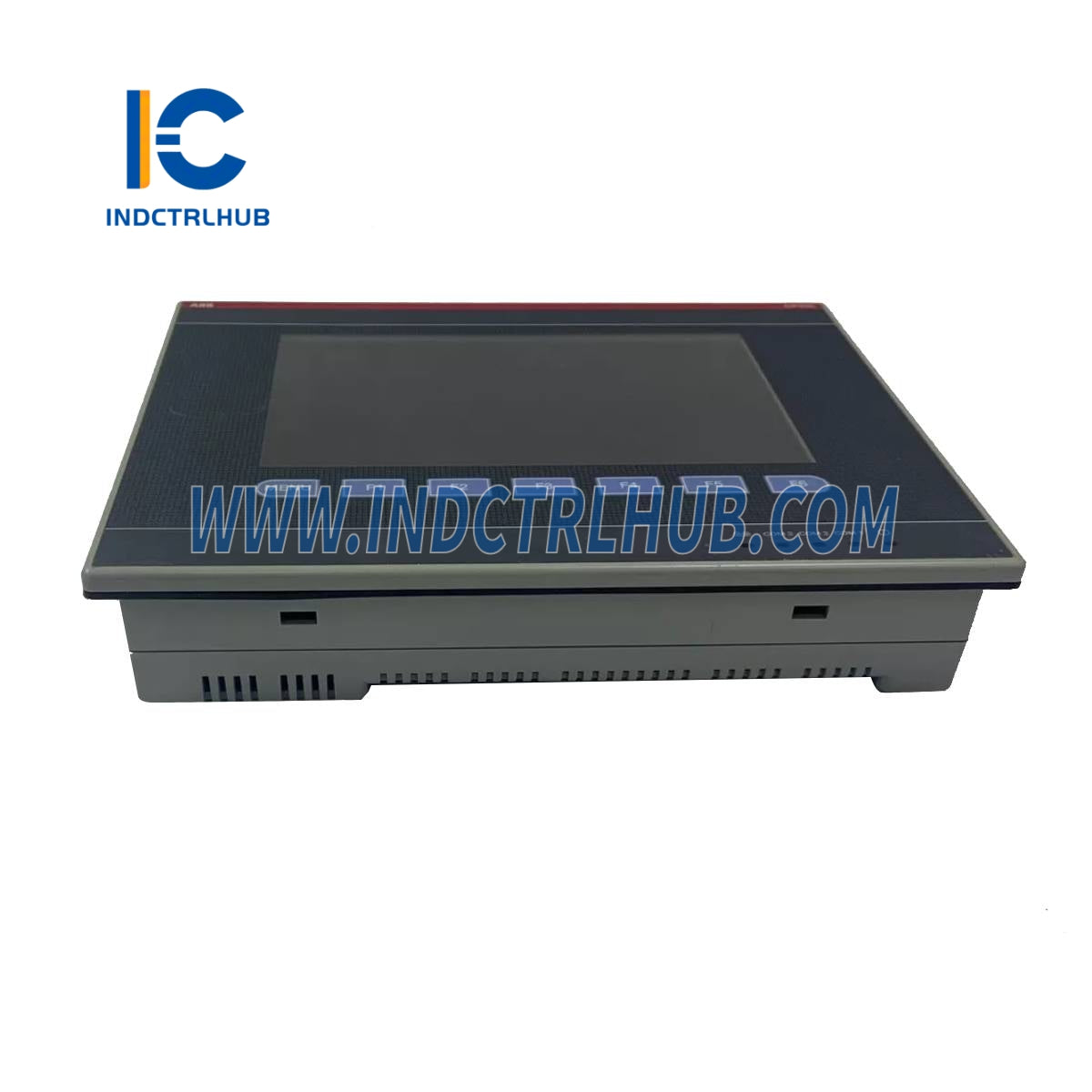

CP435T-ETH: CP400, Control Panel 1 menu + 6 definable keys, 7” TFT touchscreen, 64K colors, Ethernet |
|
Long Description |

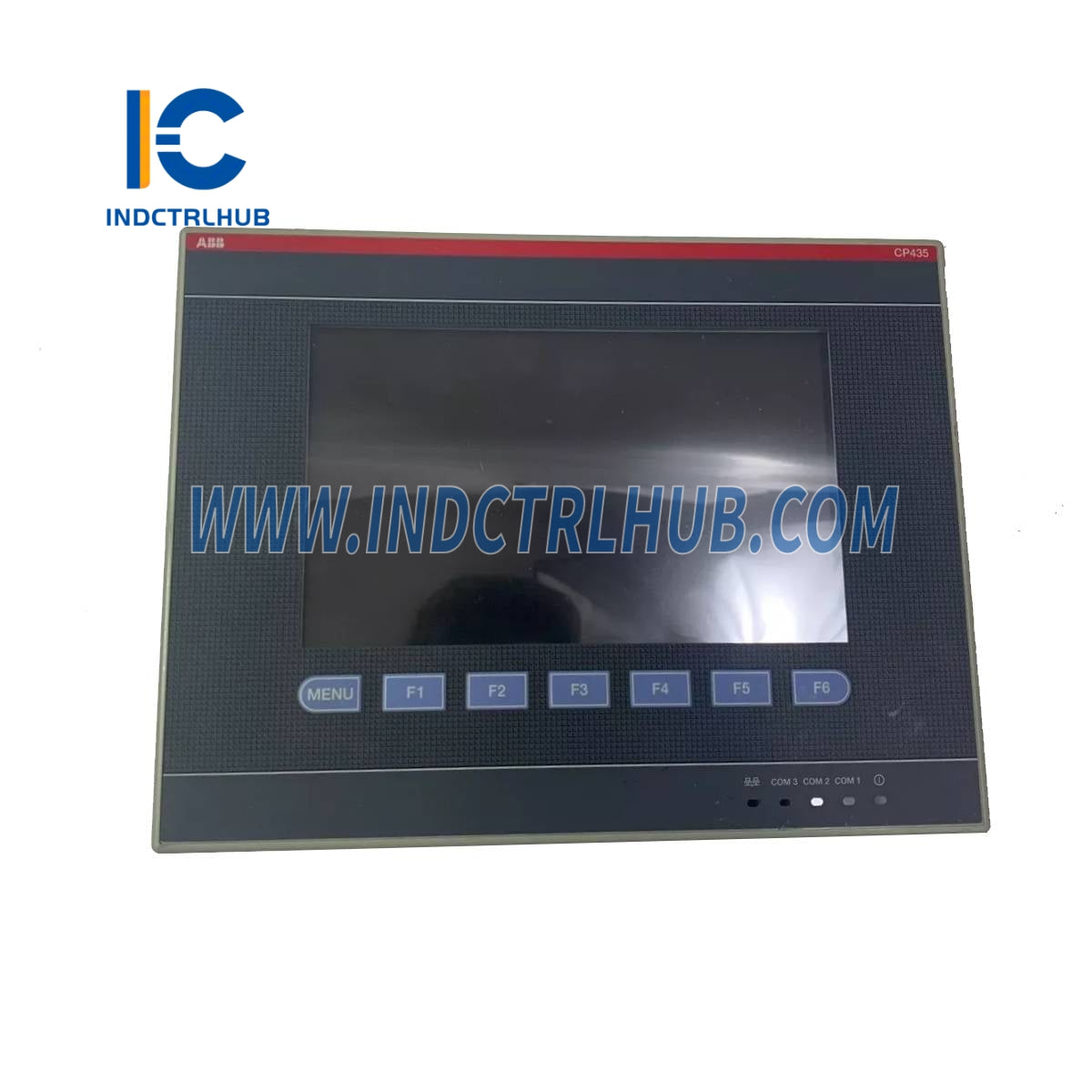

CP435T-ETH Control Panel with 1 menu, 6 defined keys, 7” TFT Touch Screen, 64K Colors + Ethernet |
|
Product Name |
Control Panel |
|
Product Main Type |
CP435 |
|
Product Type |
PLC-CP400 |
Technical Information
|
Parameter |
Value |
|---|---|
|
Display Type |
TFT Touch + Keys |
|
Screen Size |
7 inches (16:9 wide screen) |
|
Screen Resolution |
800 x 480 pixels |
|
Screen Color |
64K Colors |
|
Screen Type |
TFT color, CCFL backlight, touch screen |
|
Number of Function Keys |
6 |
|
Number of LEDs |
0 |
|
Number of Display Lines |
60 |
|
Number of Characters Per Line |
100 |
|
Security |
Password protection with 9 user levels |
|
Operating Mode |
Offline / Online |
|
Real-time Clock |
Yes |
|
Software Function |
Alarm management, recipe management, trends, macro & ladder, sub-screen |
|
Programming Software |
CP400 Soft |
Memory & Storage
|
Parameter |
Value |
|---|---|
|
Memory Size (User Data) |
512 kB RAM |
|
Memory Size (User Program) |
8 MB ROM |
Communication & Interfaces
|
Parameter |
Value |
|---|---|
|
Communication Speed |
4.8 … 187.5 kBd |
|
Communication Interface |
Ethernet |
|
Fieldbus Interface Type |
Modbus RTU, AC500, Modbus ASCII, others (contact ABB) |
|

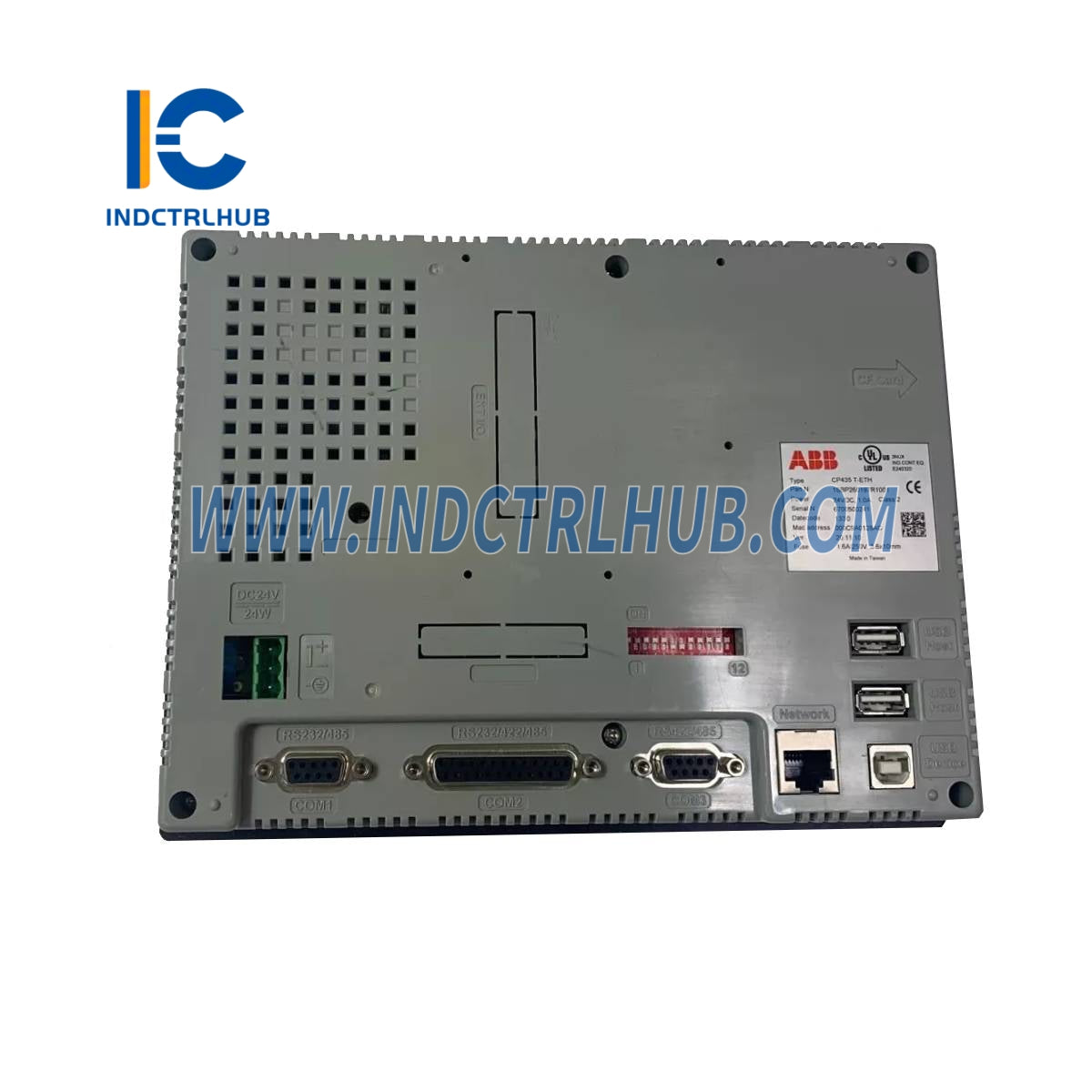

Serial Port 1 Type |
RS232/RS485 |
|
Serial Port 2 Type |
RS232/RS422/RS485 |
|
Profibus |
No |
|
USB Port 1 Type |
2 Host Ver. 2.0 |
|
USB Port 2 Type |
1 Device Ver. 2.0 |
Power & Environmental Specifications
|
Parameter |
Value |
|---|---|
|
Power Supply |
24 V DC |
|
Supply Voltage Range |
20.4 … 27.6 V DC |
|
Power Consumption |
20 VA |
|
Service Life |
50,000 hours |
|
Ambient Air Temperature (Operation) |
0 … +50 °C |
|
Ambient Air Temperature (Storage) |
-10 … +60 °C |
Mechanical & Mounting Information
|
Parameter |
Value |
|---|---|
|
Mounting Type |
Front face |
|
Mounting Position |
0 to 135° |
|
Mounting on DIN Rail |
No |
|
Short-Circuit Protective Devices |
gG Type Fuses Integrated |
| Check below popular items for more information in | Industrial Control Hub | |||
| Brand | Description | Price (USD) | Stock | Link |
| ABB | PM5650-2ETH Processor Module | 2643–3643 | 620 | PM5650-2ETH Processor Module |
| ABB | PM891K02 Redundant Processor Unit | 68071–69071 | 750 | PM891K02 Redundant Processor Unit |
| ABB | SD812F Power Supply 24 VDC | 1643–2643 | 570 | SD812F Power Supply |
| ABB | BGDR-01C Gate Driver Board | 35–1035 | 740 | BGDR-01C Gate Driver |
| ABB | XVC768AE116 Freelance DCS | 1929–2929 | 870 | XVC768AE116 Freelance DCS |
| ABB | PCB Circuit Board Module | 1143–2143 | 510 | PCB Circuit Board Module |
| ABB | LTC391AE01 Low Voltage Gate | 3071–4071 | 290 | LTC391AE01 Low Voltage Gate |
| ABB | IMASI23 Analog Input Module | 868–1868 | 360 | IMASI23 Analog Input |
Battery Information
|
Parameter |
Value |
|---|---|
|
Battery Type |
Portable |
|
Button Cell |
Yes |
|
Battery Weight |
0.0037 kg |
|
Contains Hg |
<0.001% |
|
Contains Cd |
<0.002% |
Dimensions & Weight
|
Parameter |
Value |
|---|---|
|
Product Net Weight |
0.86 kg |
|
Viewing Area Height |
92.4 mm |
|
Viewing Area Length |
153.7 mm |
Certifications & Compliance
|
Parameter |
Value |
|---|---|
|
CE Declaration |
1SBD240516C1000 |
|
UL Certificate |
NRAQ.E240320 |
|
cUL Certificate |
1SAA960000-1709 |
|
RoHS Information |
1SBD340002R0202 |
Ordering Information
|
Parameter |
Value |
|---|---|
|
EAN |
3471522601971 |
|
Minimum Order Quantity |
1 piece |
|
Order Multiple |
1 piece |
|
Customs Tariff Number |
85381000 |
