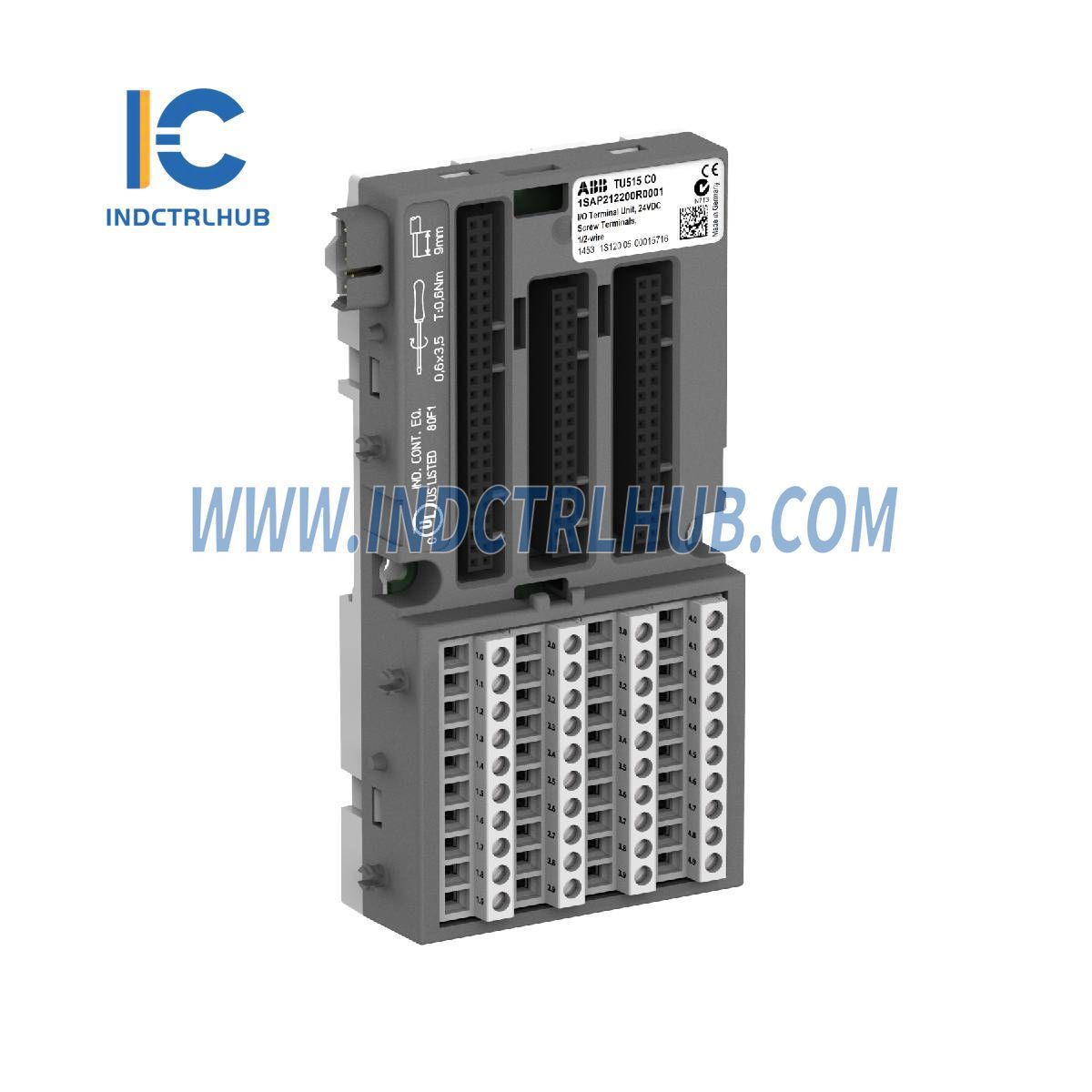

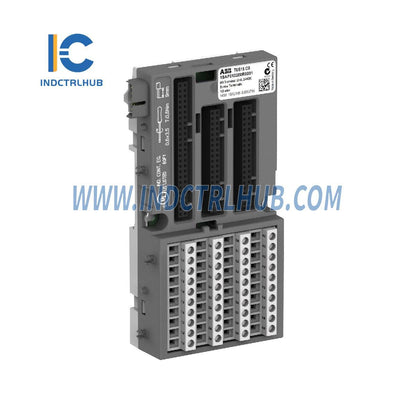

1SAP212200R0001 | ABB TU-515 I/O terminal unit

1SAP212200R0001 | ABB TU-515 I/O terminal unit

  • Manufacturer: ABB

  • Product No.: 1SAP212200R0001

  • Condition:1000 in stock

  • Product Type: I/O terminal unit

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 262g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

  • Extended Product Type: TU515
  • Product ID: 1SAP212200R0001
  • ABB Type Designation: TU515
  • EAN: 4016779649223
  • Catalog Description: I/O terminal unit. For analog and 24 VDC digital modules. Screw terminals (TU515)
  • Long Description: TU515: S500 I/O terminal unit. For analog and 24 VDC digital modules. Screw terminals.

Ordering

  • CN8 Code: 85389091
  • Invoice Description: I/O terminal unit. For analog and 24 VDC digital modules. Screw terminals (TU515)
  • Made To Order: No
  • Minimum Order Quantity: 1 piece
  • Order Multiple: 1 piece
  • Selling Unit of Measure: piece

Dimensions

Attribute Value
Product Net Weight 0.232 kg
Product Net Depth / Length 28 mm
Product Net Height 135 mm
Product Net Width 67.5 mm
Gross Weight 0.262 kg
Package Level 1 Depth / Length 147 mm
Package Level 1 Height 40 mm
Package Level 1 Width 78 mm
Package Level 1 Units 1 carton

Technical Information

  • Function: For analog and 24 VDC digital modules. Screw terminals
  • Number of Analog Configurable I/Os: 0
  • Degree of Protection: IP20
  • Supply Voltage: 24 V DC
  • Ambient Air Temperature:
    • Operation: 0 ... +60 °C
    • Storage: -40 ... +70 °C

Additional Information

  • Product Main Type: TU515
  • Product Name: Distributed Automation I/Os

External Classifications and Standards

  • eClass: 27-24-22-92
  • ETIM 8: EC000810 - PLC mounting rack
  • ETIM 9: EC000810 - PLC mounting rack
  • ETIM 10: EC000810 - PLC mounting rack
  • UNSPSC: 32151703

Environmental

  • WEEE B2C / B2B: Business To Business
  • WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)

Product Categories

  • Products → PLC Automation → Programmable Logic Controllers PLCs → AC500 → S500 I/O modules
