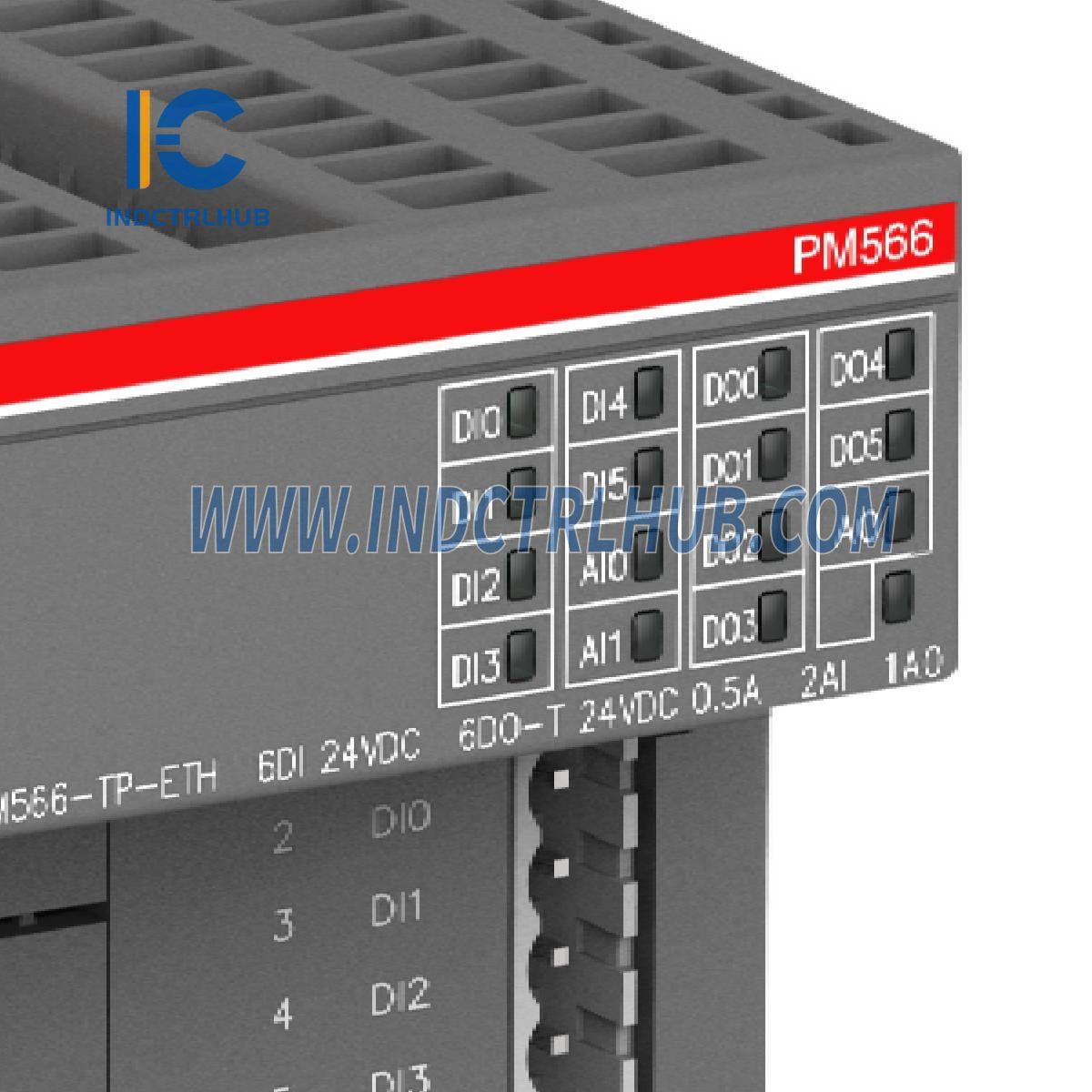

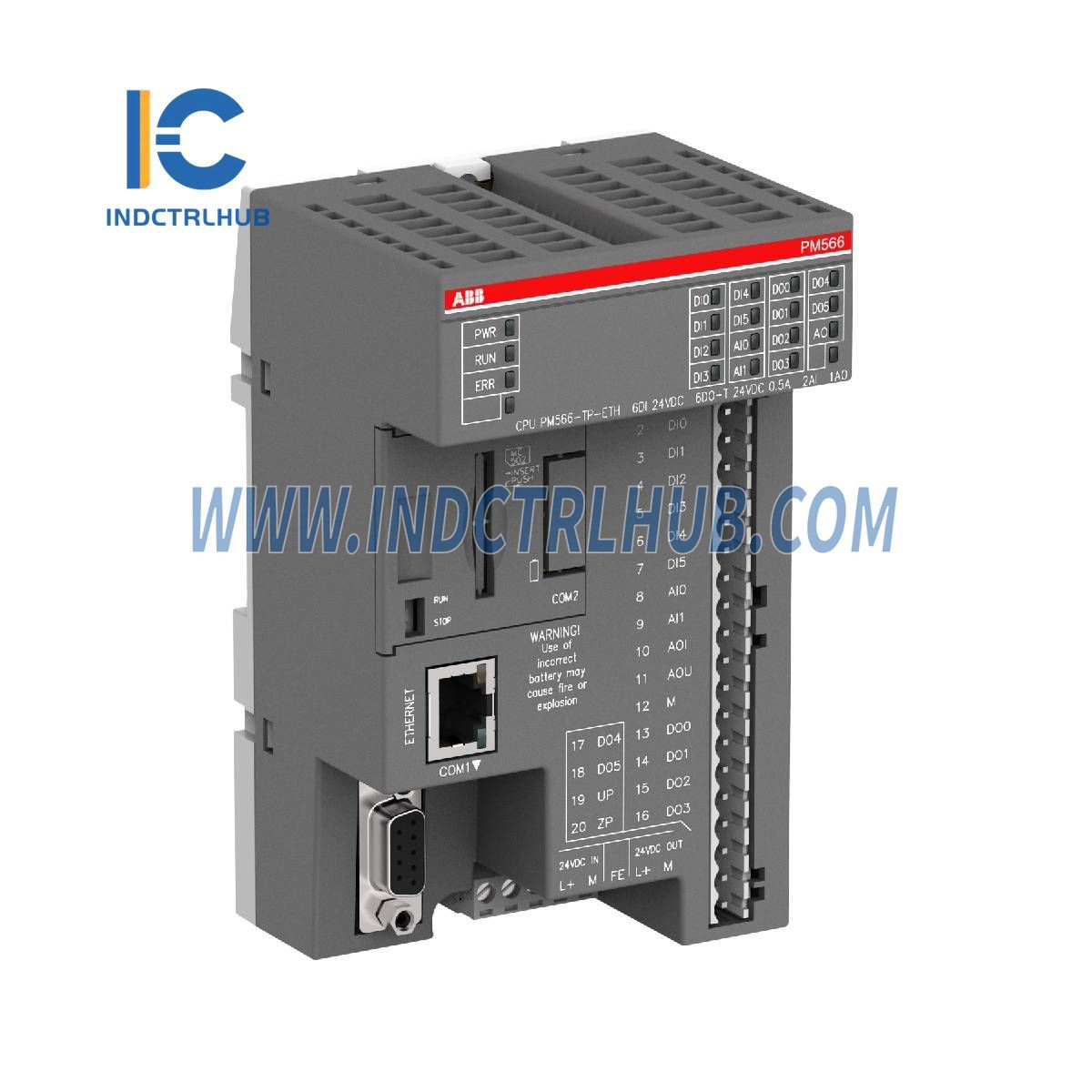

1SAP121500R0071 | ABB PM566-TP-ETH Programmable Logic Controller

1SAP121500R0071 | ABB PM566-TP-ETH Programmable Logic Controller

  • Manufacturer: ABB

  • Product No.: 1SAP121500R0071

  • Condition:1000 in stock

  • Product Type: Programmable Logic Controller

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 282g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

General Information

  • Extended Product Type: PM566-TP-ETH
  • Product ID: 1SAP121500R0071
  • ABB Type Designation: PM566-TP-ETH
  • EAN: 4013614501708
  • Catalog Description: PM566-TP-ETH: AC500, Programmable Logic Controller
  • Long Description: PM566-TP-ETH: AC500, Programmable Logic Controller, 512kB, 6DI/2AI/6DO-T/1AO, Ethernet, 24VDC, 1xRS485, 2xOption Slot

Technical Information

Specification Details
Number of Hardware Interfaces Industrial Ethernet: 1, RS-485: 1
Memory Size 642 kB
Memory Type (User Data) RAM
Controller Processing Time 0.00008 ms
Analog Inputs 2
Analog Outputs 1
Number of Digital Inputs 6
Number of Digital Outputs 6
Input Voltage Type DC
Rated Voltage (Ur) 24 V DC
Supply Voltage 20.4 – 28.8 V DC

Dimensions

  • Product Net Weight: 0.282 kg
  • Product Net Depth / Length: 74 mm
  • Product Net Height: 135 mm
  • Product Net Width: 82 mm
  • Gross Weight: 0.447 kg

Ordering

  • CN8 Code: 85371091
  • Invoice Description: PM566-TP-ETH: AC500, Programmable Logic Controller
  • Made To Order: No
  • Minimum Order Quantity: 1 piece
  • Order Multiple: 1 piece
  • Selling Unit of Measure: piece

Environmental

  • SCIP: 852a42d5-4a89-4671-9b02-2ba60164a151 (Germany)
  • WEEE Compliance: Business To Business
  • WEEE Category: Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

  • eClass: 27-24-22-07
  • ETIM: EC000236 - PLC CPU-module (ETIM 8, 9, 10)
  • UNSPSC: 32151705

Categories

  • Products → PLC Automation → Programmable Logic Controllers (PLCs) → AC500-eCo → CPUs
