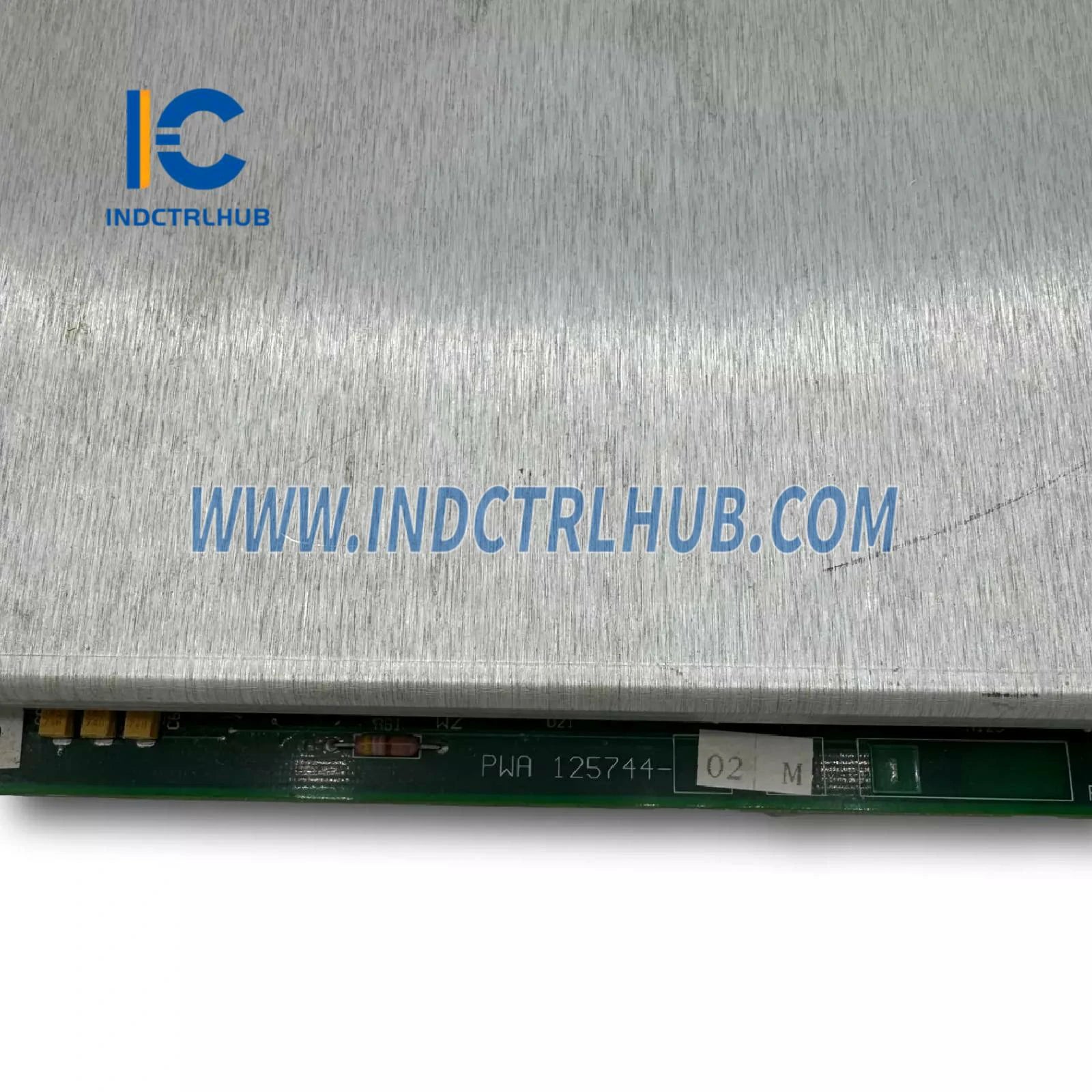

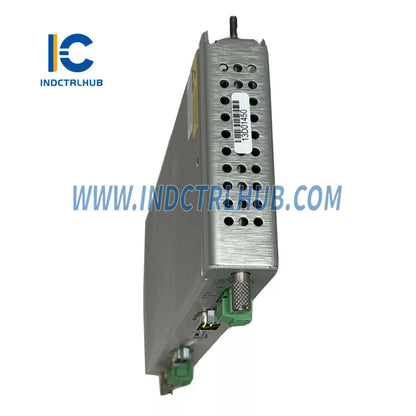

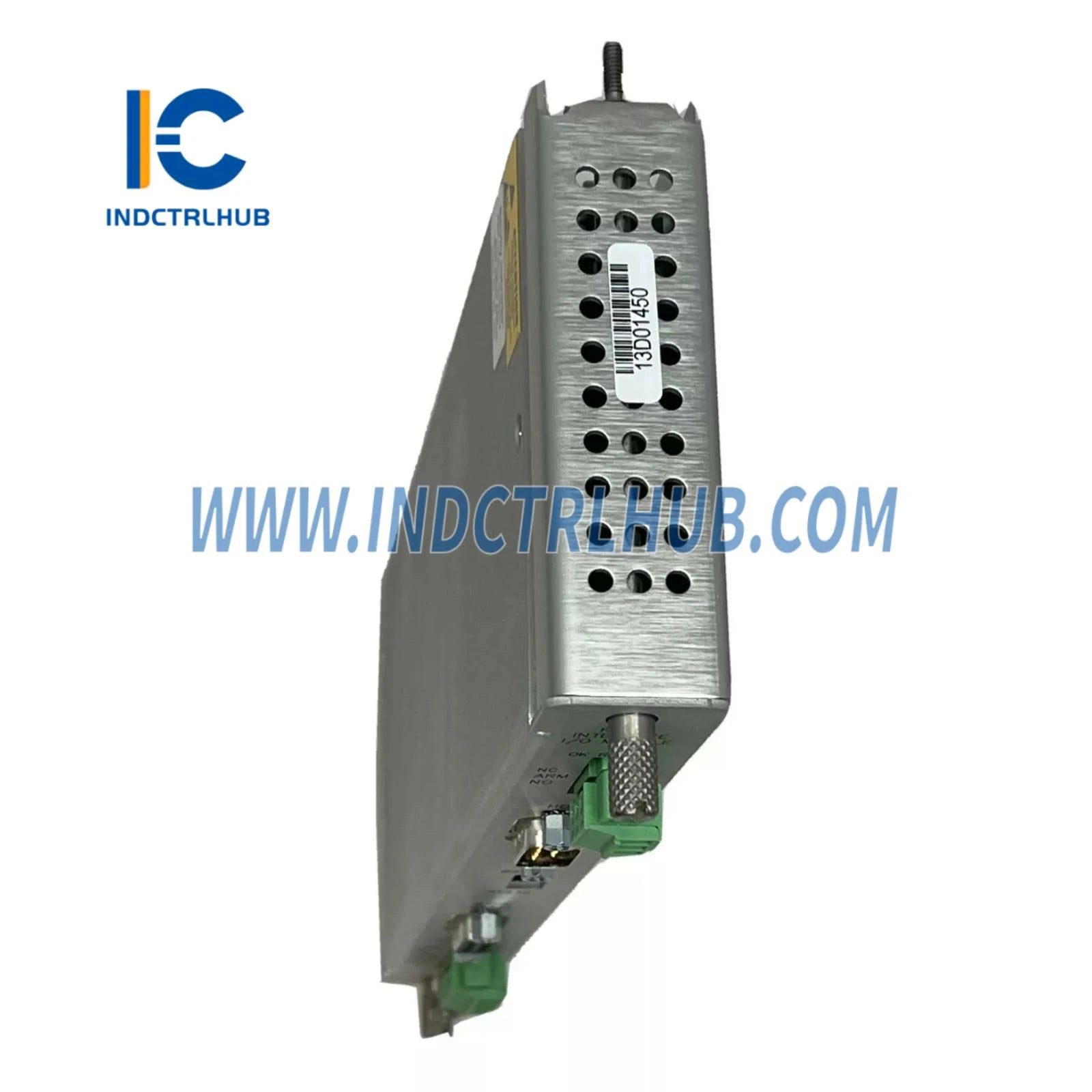

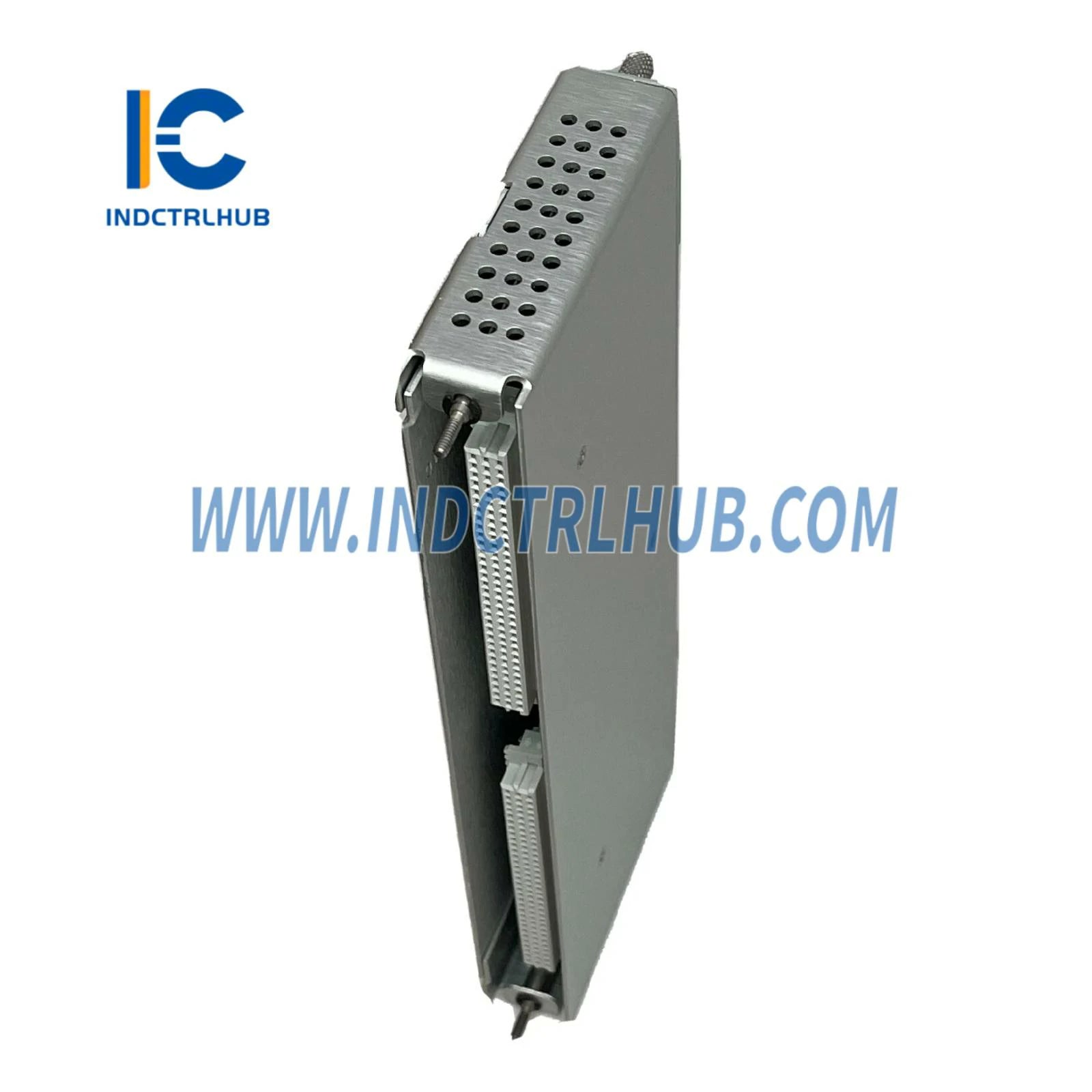

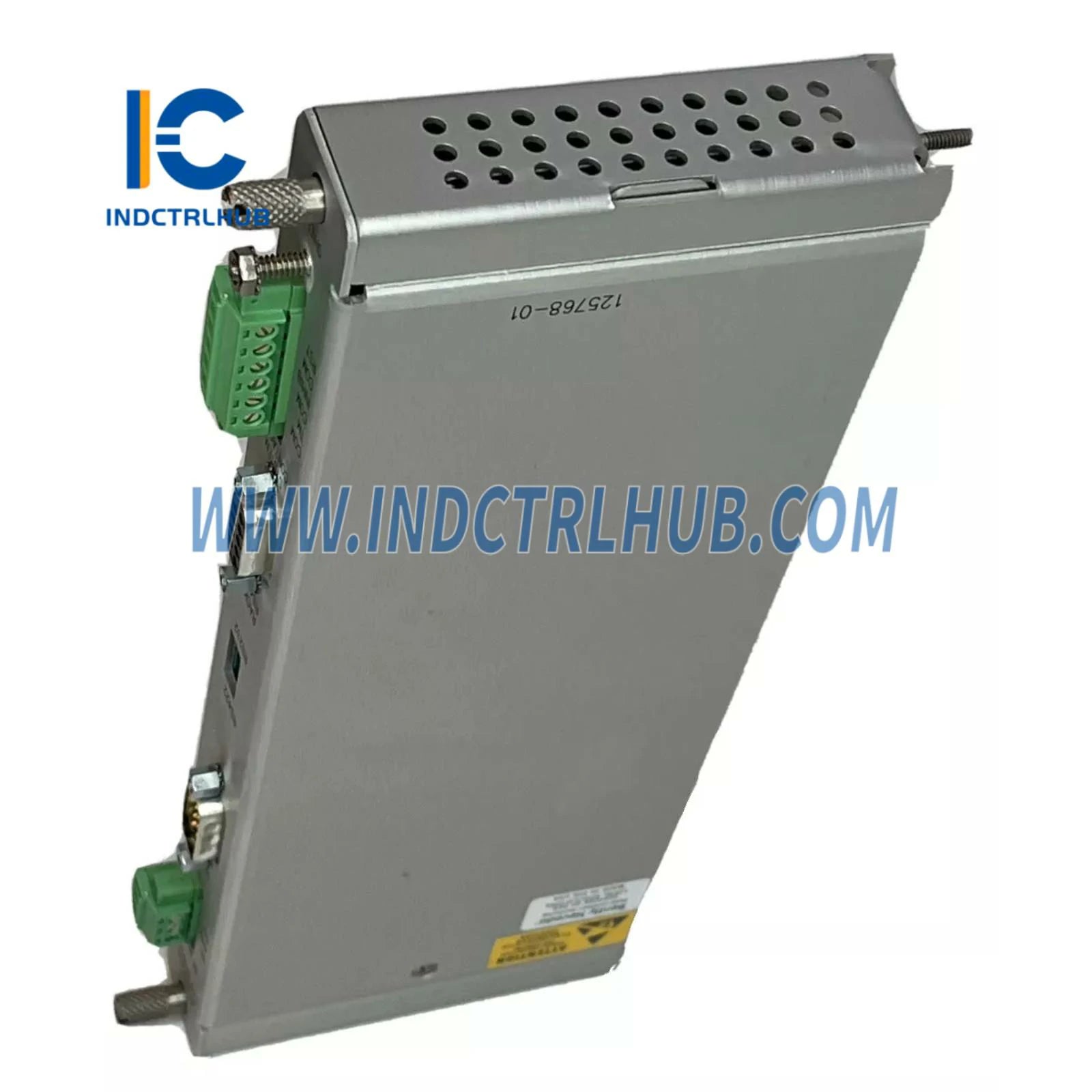

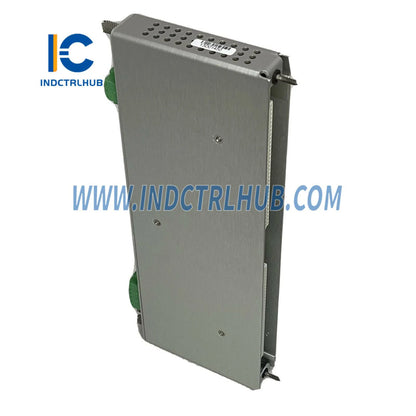

Bently Nevada 3500/20-01-02-00 125744-02 125768-01 Rack Interfeys Moduli

Bently Nevada 3500/20-01-02-00 125744-02 125768-01 Rack Interfeys Moduli

  • Manufacturer: Bently Nevada

  • Product No.: 125744-02 25768-01

  • Condition:Omborda 1000 ta mavjud

  • Product Type: Rack Interfeysi Moduli

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 910g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Qo'llab-quvvatlash
  • 30-Kunlik Qaytarishlar
  • Tez yetkazib berish

Mahsulot sharhi

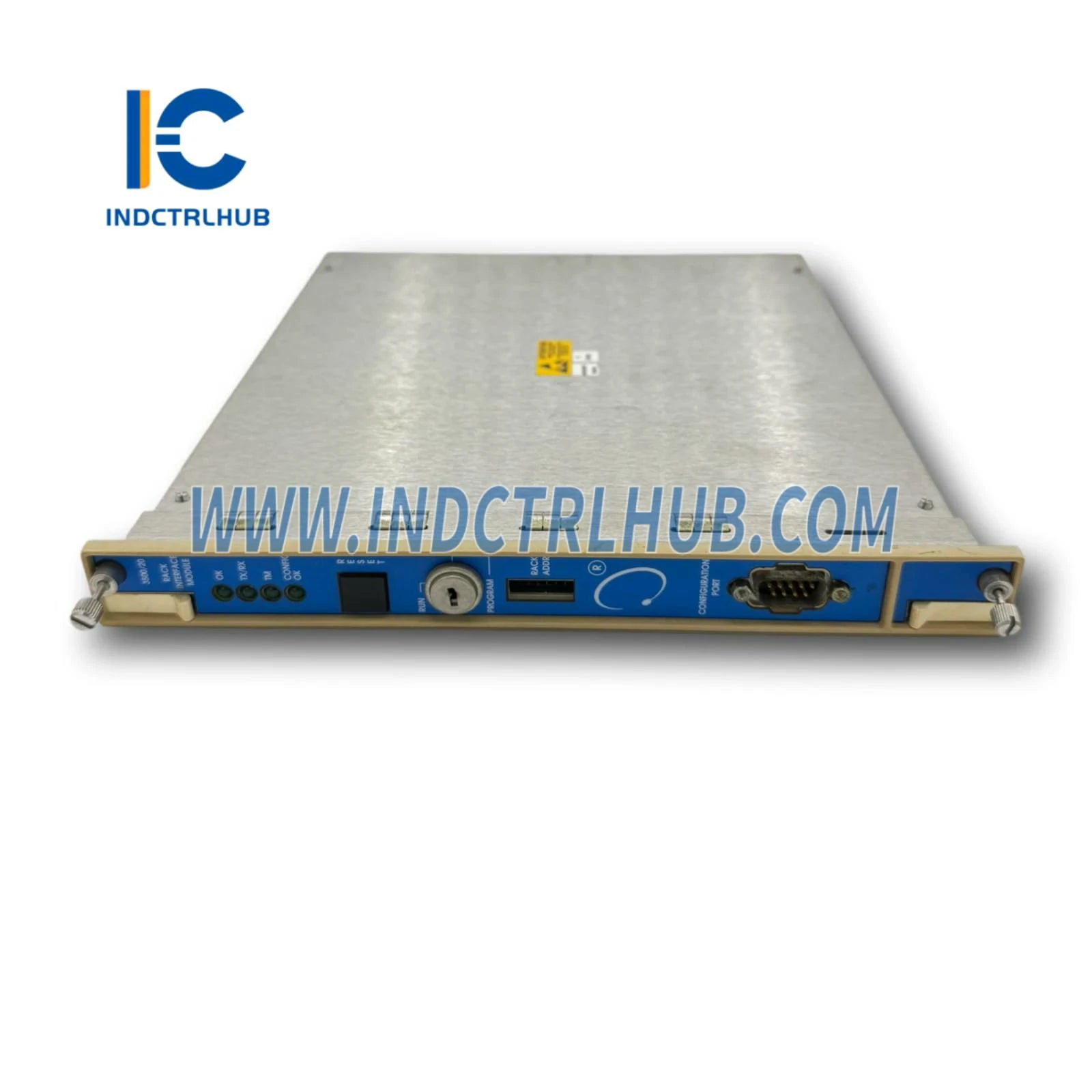

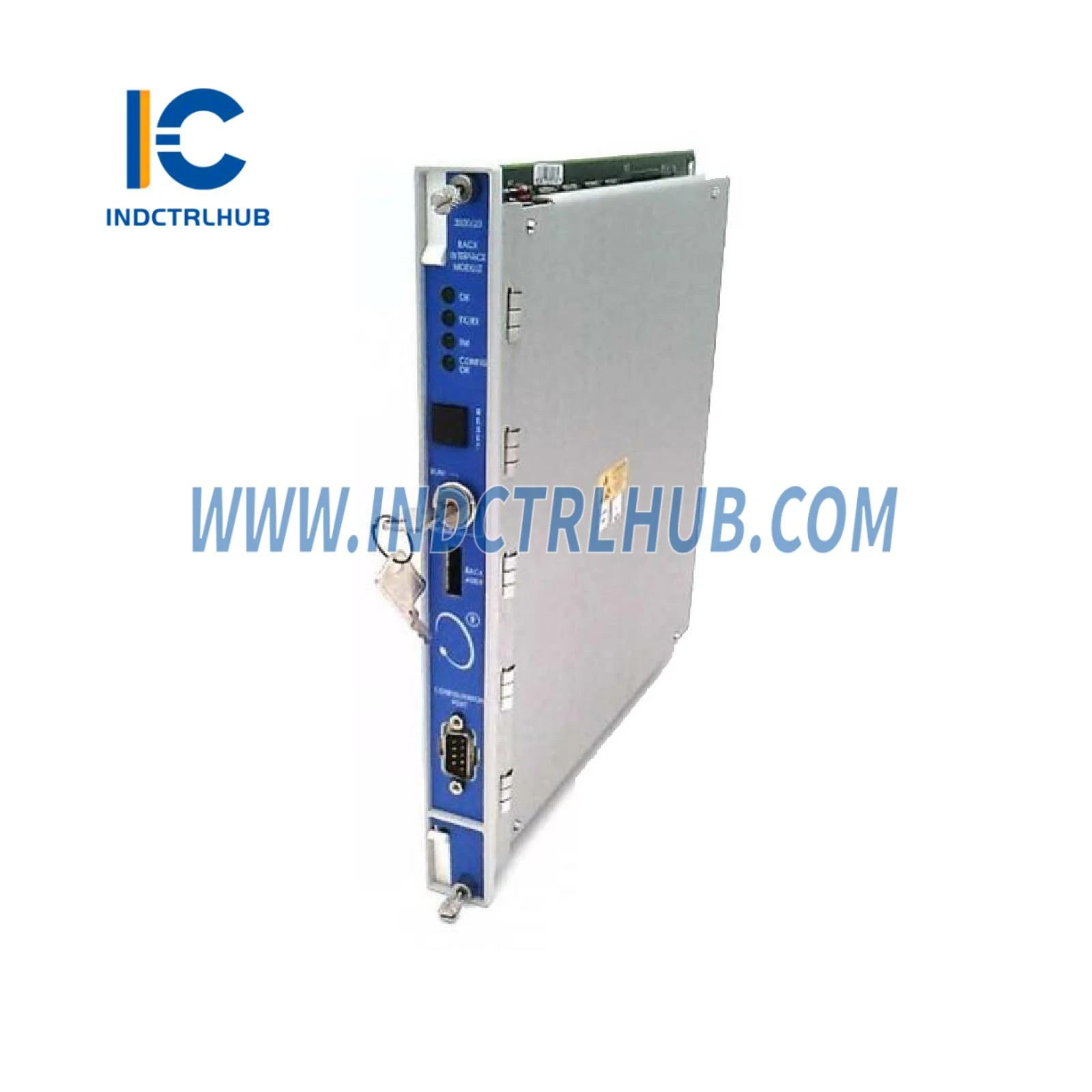

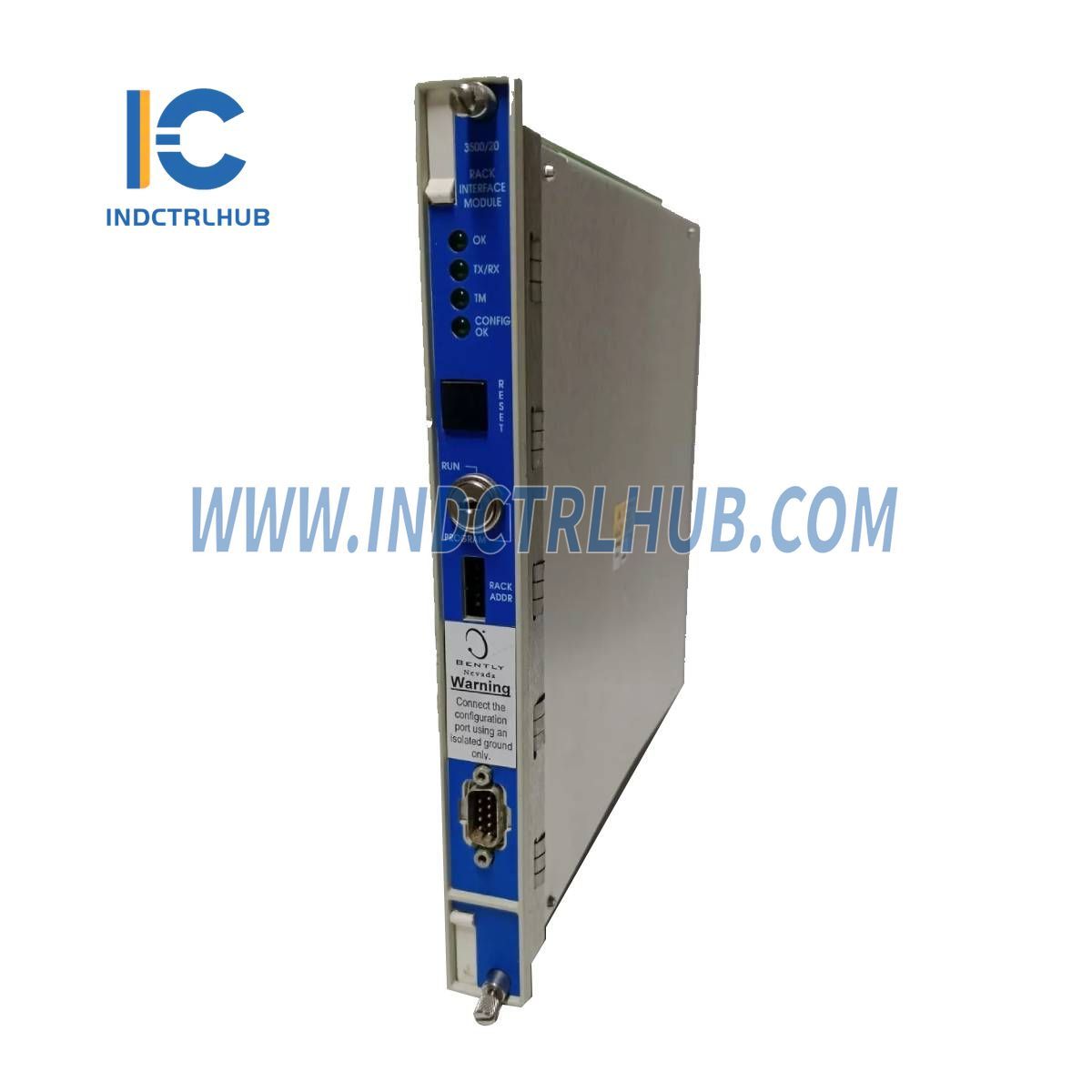

Bently Nevada 3500/20-01-02-00 3500/20 seriyasidan Rack Interface Module (RIM) bo'lib, 3500 rack tizimi uchun asosiy interfeys vazifasini bajaradi. Ushbu modul, Standart Rack Interface Module (125744-02) va RS232/RS422 interfeysli RIM I/O Moduli (125768-01) dan iborat bo'lib, rack konfiguratsiyasi va uskunalar ma'lumotlarini olish uchun maxsus protokolni qo'llab-quvvatlaydi. U rackning 1-slotiga, quvvat manbalarining yonida o'rnatilishi uchun mo'ljallangan bo'lib, sanoat monitoring tizimlarida uzluksiz aloqa ta'minlaydi.

Texnik Maʼlumotlar

Element Texnik xususiyatlar
Ishlab chiqaruvchi Bently Nevada
Seriya 3500/20
Model/Partiya raqami 3500/20-01-02-00 (125744-02 + 125768-01)
Model turi Rack Interfeys Moduli
Kirishlar - Quvvat iste'moli 4.75 vatt, odatiy
Ma'lumotlar - Old panel Standart RS232 seriyali aloqa
Ma'lumotlar tezligi: 38.4 k baud
Ma'lumotlar - I/O Modullari Standartlar: RS232/RS422 seriyali aloqa, Ichki modem aloqasi
Ma'lumotlar tezligi: maksimal 38.4 k baud (seriyali aloqa), 14.4 k baud (ichki modem aloqasi)
Ishlash harorati -30°C dan +65°C gacha (-22°F dan +150°F gacha)
Saqlash harorati -40°C dan +85°C gacha (-40°F dan +185°F gacha)
RIM O'lchamlari (B x K x Ch) 241.3 mm x 24.4 mm x 241.8 mm (9.5 in x 0.96 in x 9.52 in)
RIM Og‘irligi 0.91 kg (2.0 funt)
RS232/RS422 I/O O‘lchamlari (B x E x Ch) 241.3 mm x 24.4 mm x 99.1 mm (9.50 dyuym x 0.96 dyuym x 3.90 dyuym)
RS232/RS422 I/O Og‘irligi 0.45 kg (1.0 funt)

Zaxira Qismlar

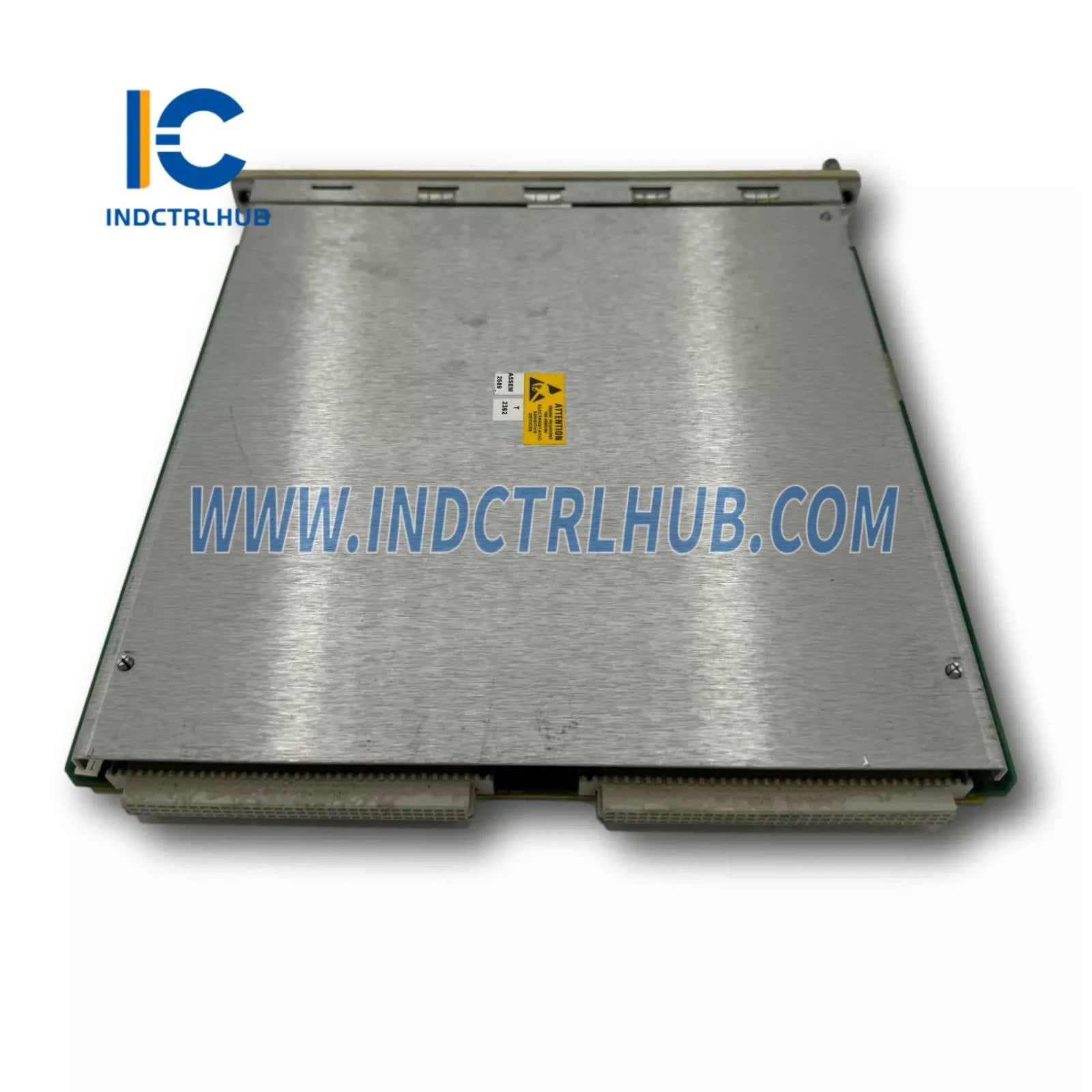

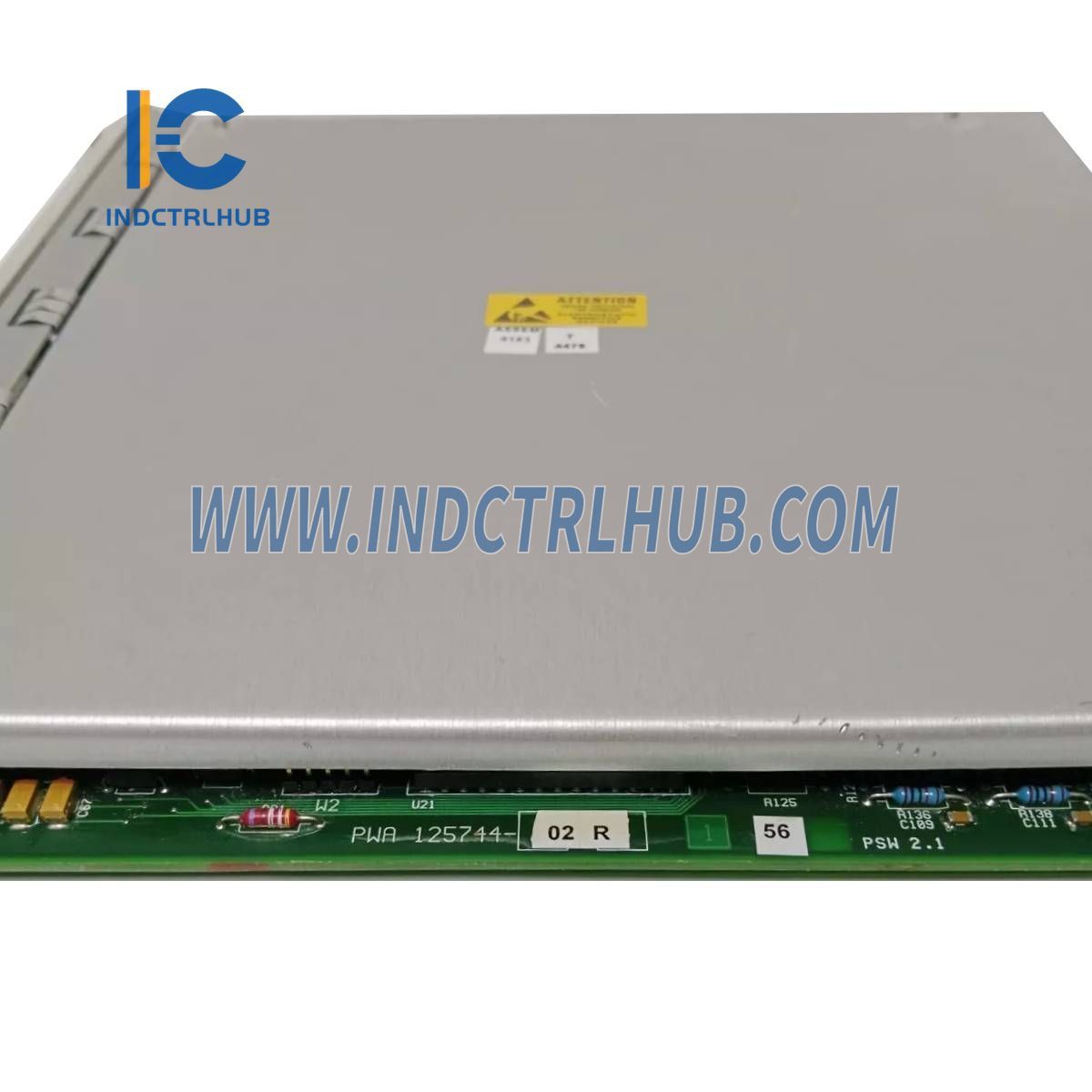

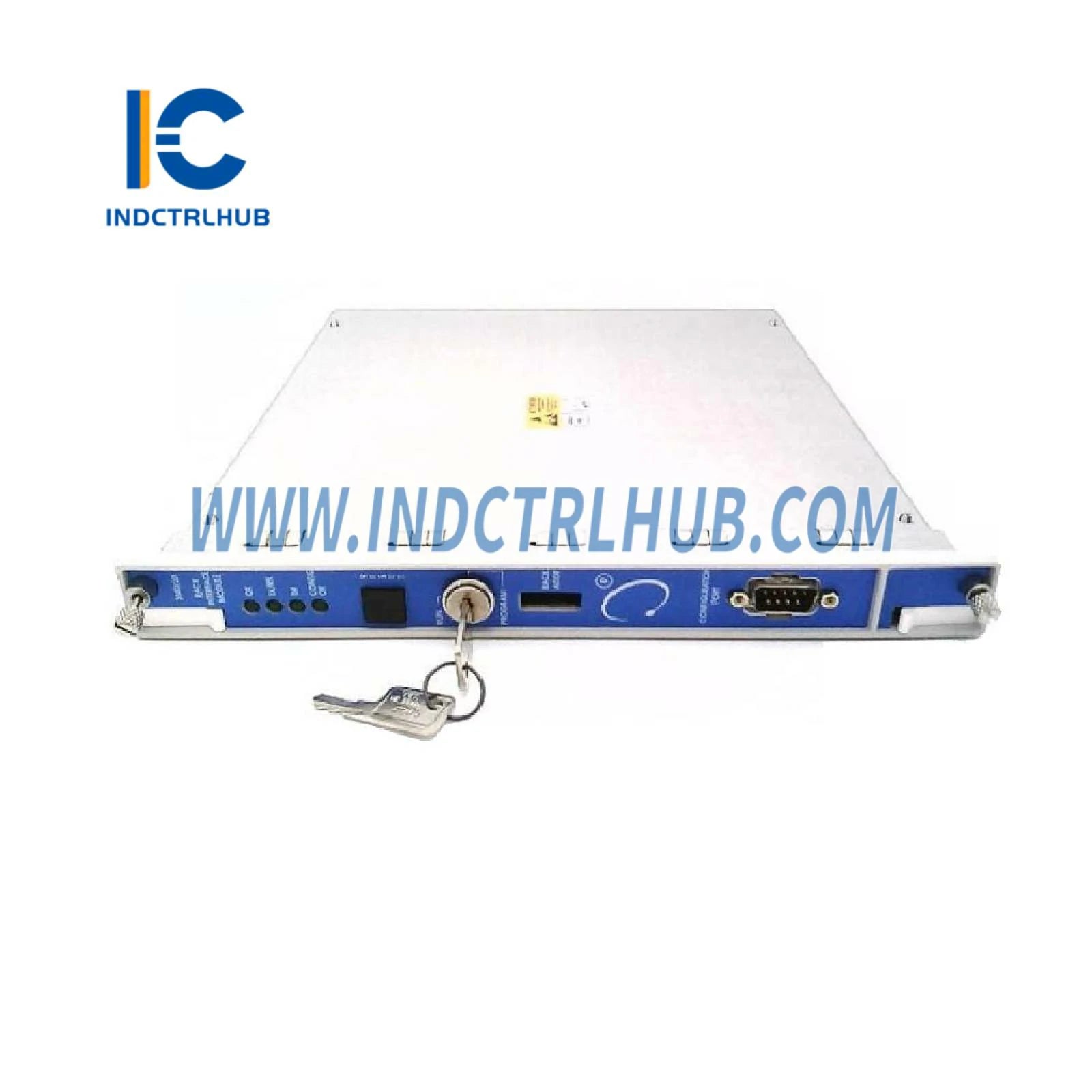

  • 125744-02: Standart Rack Interfeys Moduli

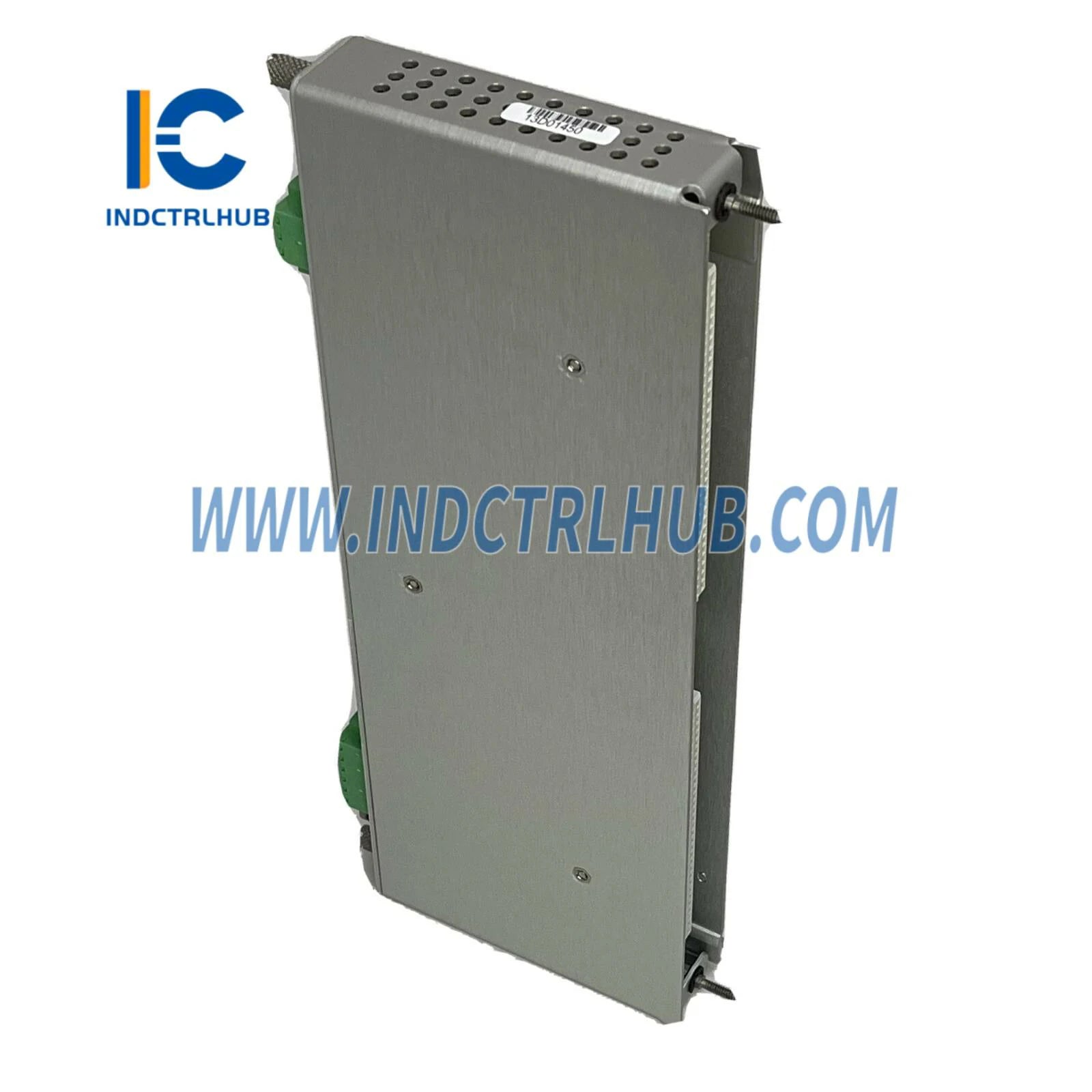

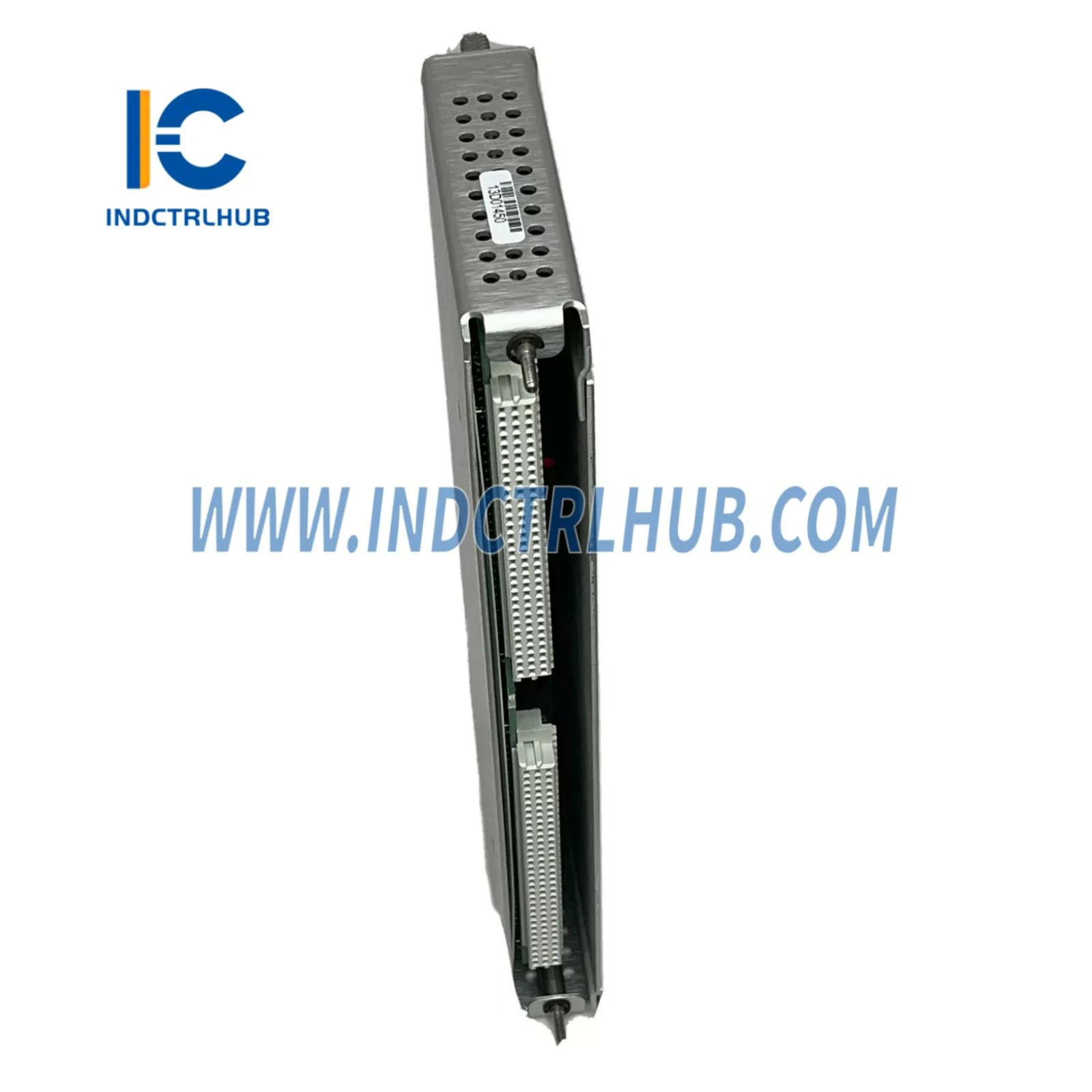

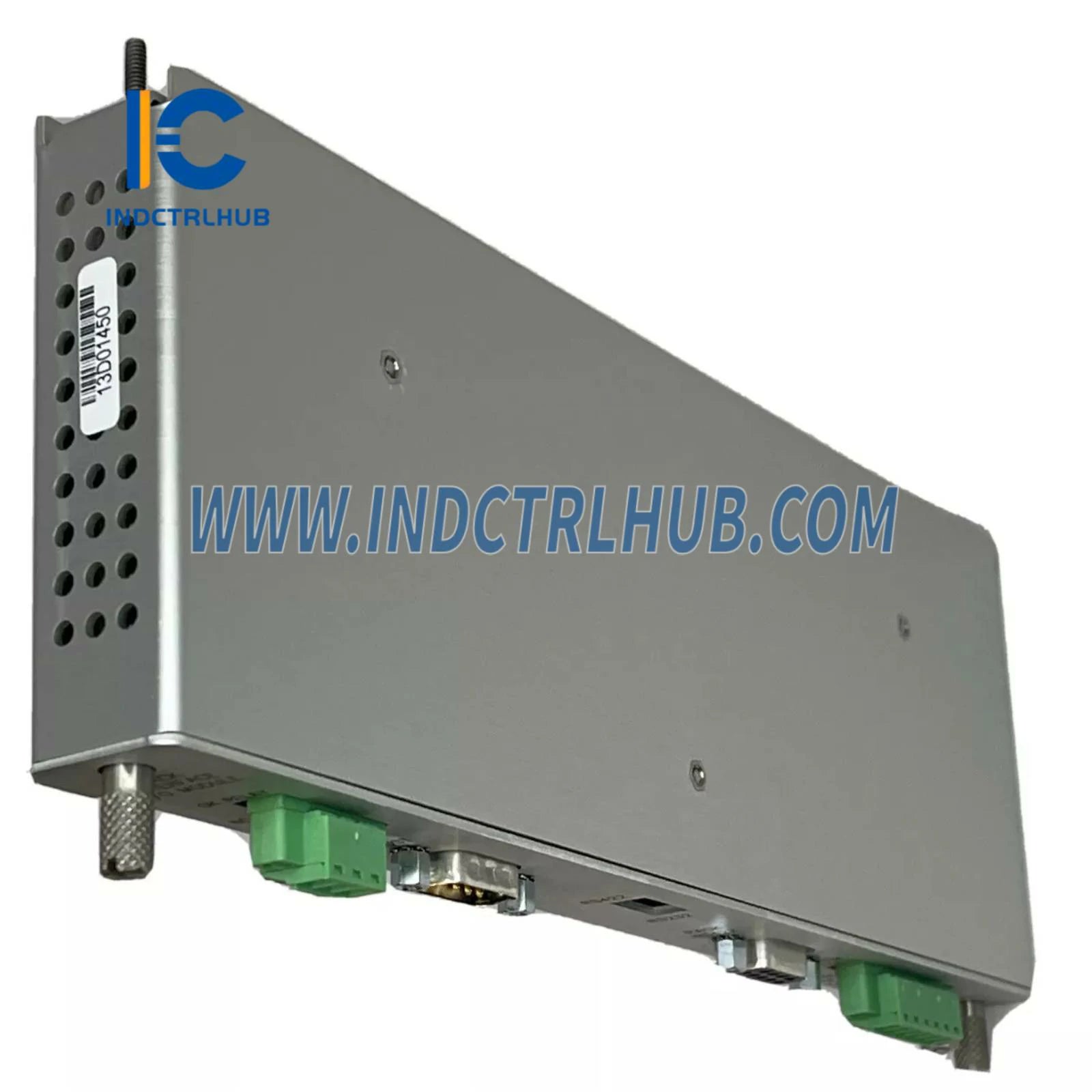

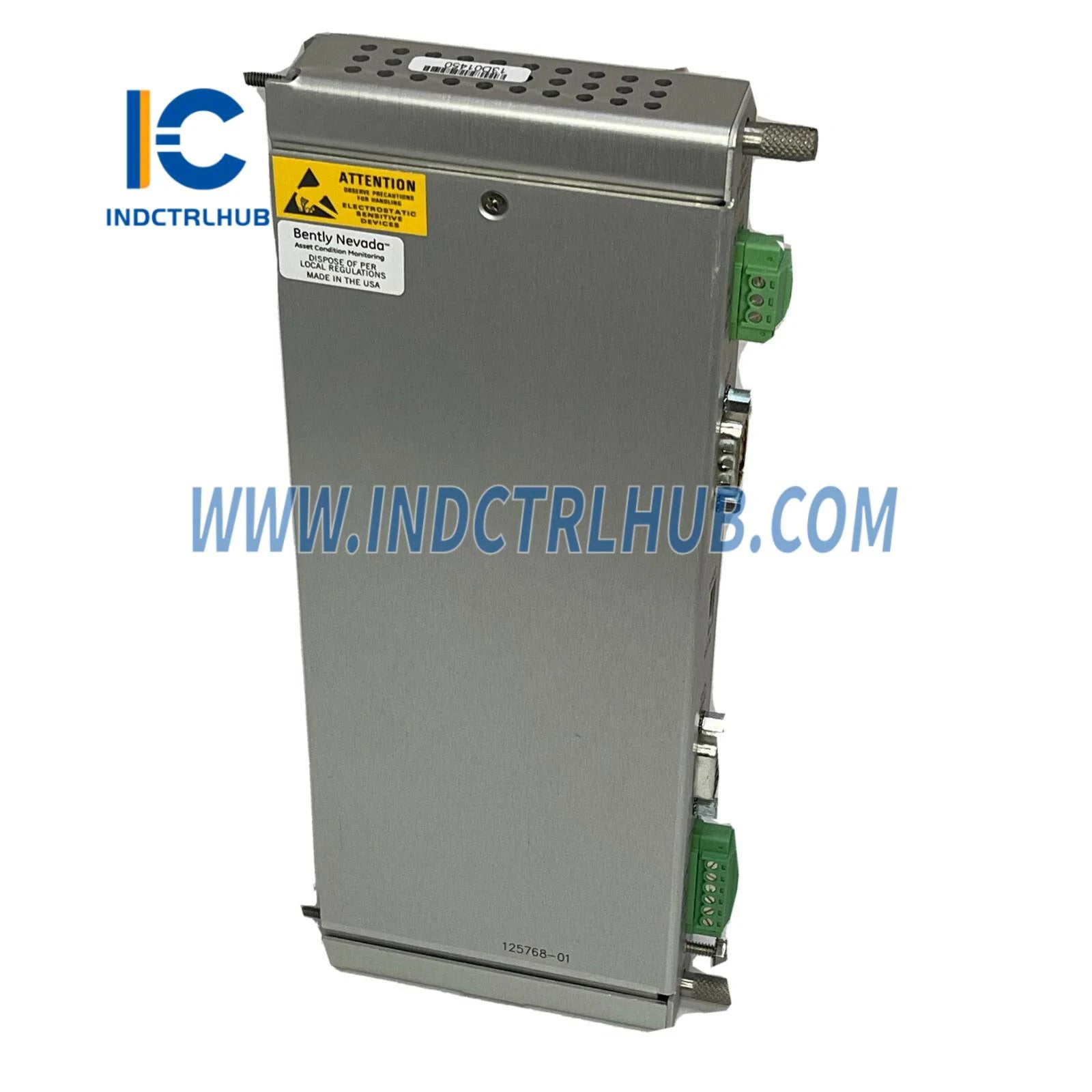

  • 125768-01: RS232/RS422 Interfeysli RIM I/O Moduli

Buyurtma Ma'lumotlari

  • Model: 3500/20 Rack Interfeys Moduli
  • Buyurtma Formati: 3500/20-AA-BB-CC
  • Opsiya tavsiflari:
    • A: Rack Interfeys Turi
      • 01: Standart RIM (Standart monitoring ilovalari uchun ishlatiladi)
      • 02: TMR RIM (Faqat Uch Modulli Redundant Konfiguratsiya talab qiladigan ilovalar uchun ishlatiladi)
    • B: I/O Modul Turi
      • 01: Ichki modemli I/O moduli
      • 02: RS232/RS422 interfeysli I/O moduli
    • C: Agentlik Tasdiqlash Varianti
      • 00: Yo'q
      • 01: CSA/NRTL/C

Maxsus Konfiguratsiya

  • Model/Qism Raqami: 3500/20-01-02-00 (125744-02 + 125768-01)
  • Konfiguratsiya Tafsilotlari:
    • A: 01 - Standart RIM
    • B: 02 - RS232/RS422 interfeysli I/O moduli
    • C: 00 - Agentlik tasdig‘i yo‘q
    • 125744-02: Standart Rack Interfeys Moduli
    • 125768-01: RS232/RS422 Interfeysli RIM I/O Moduli
