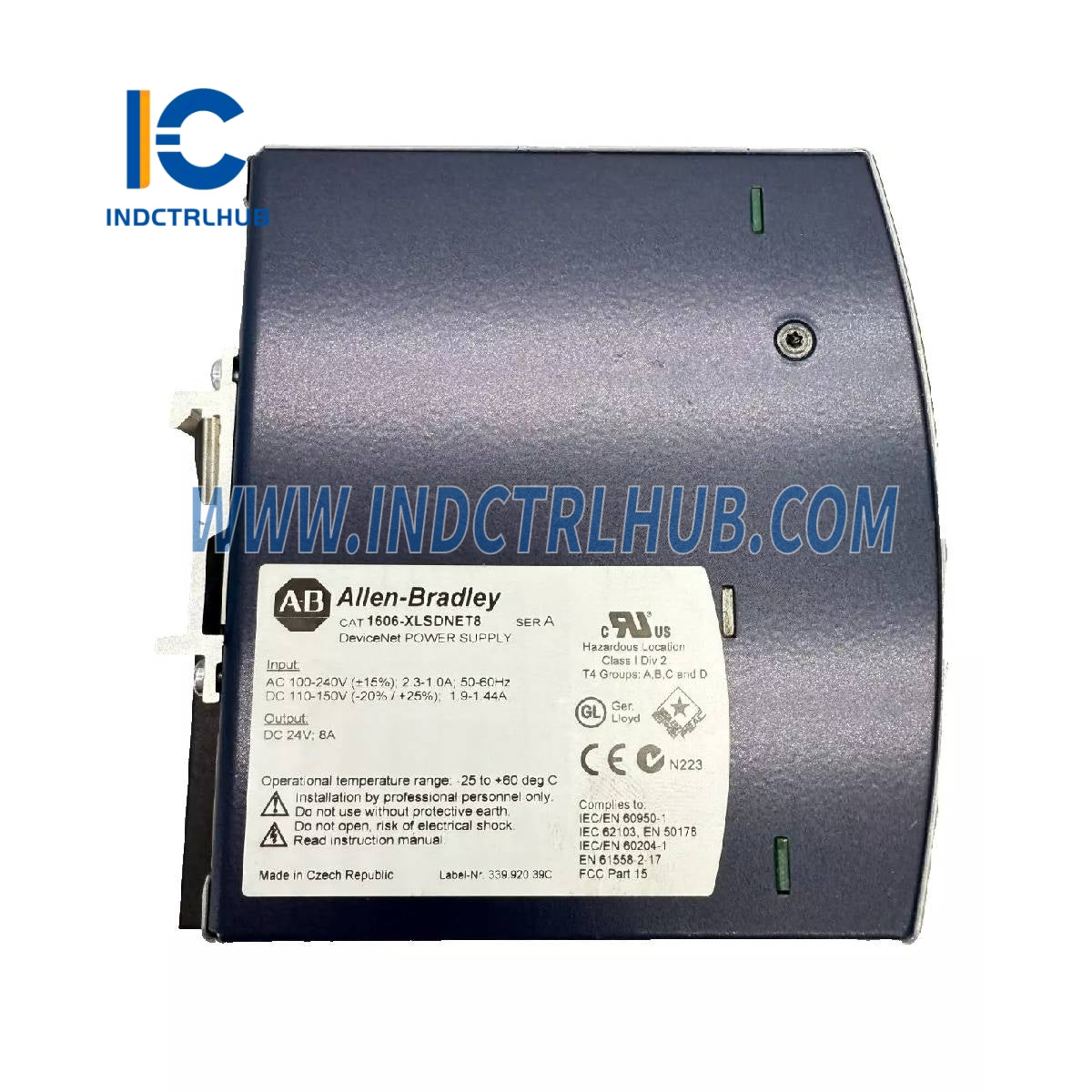

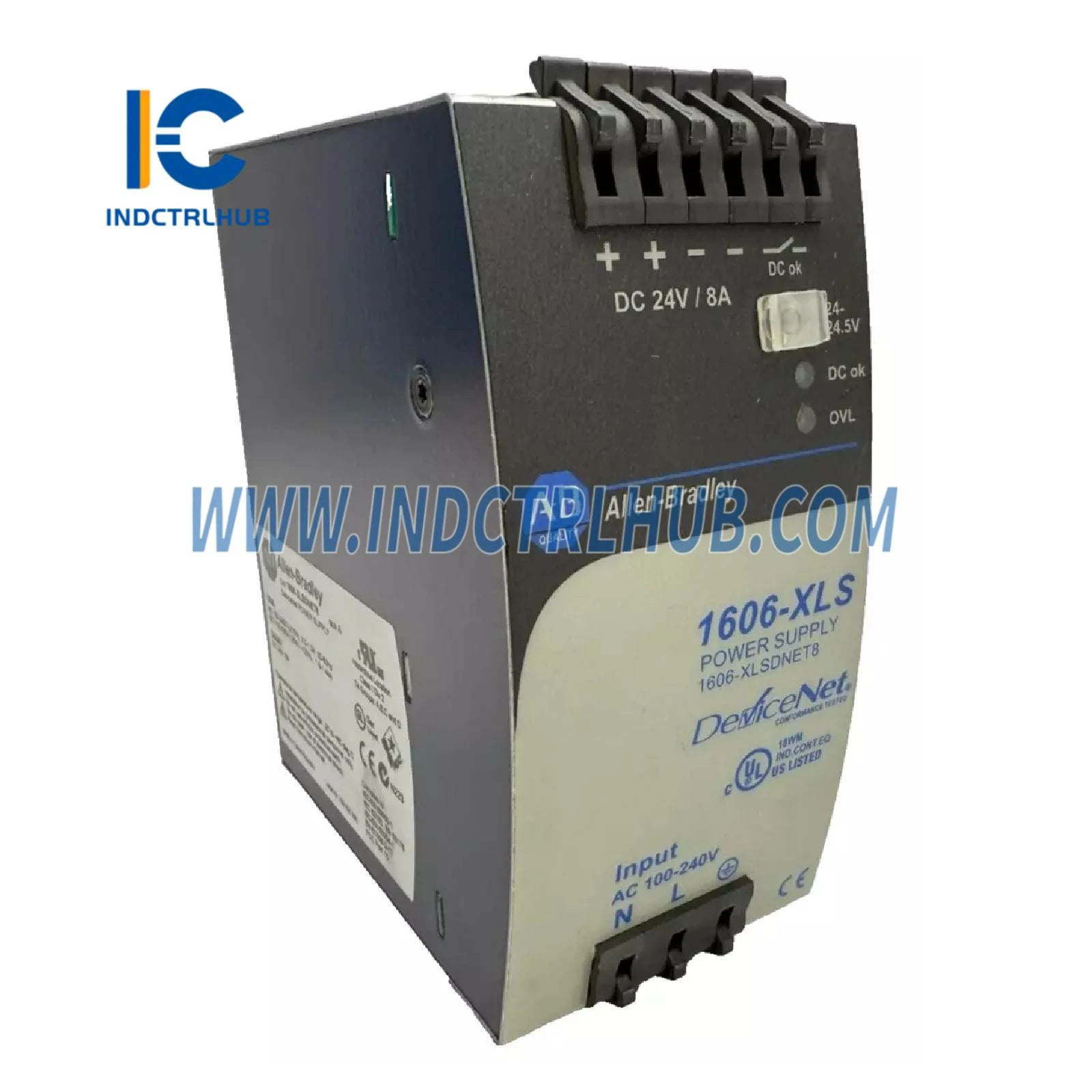

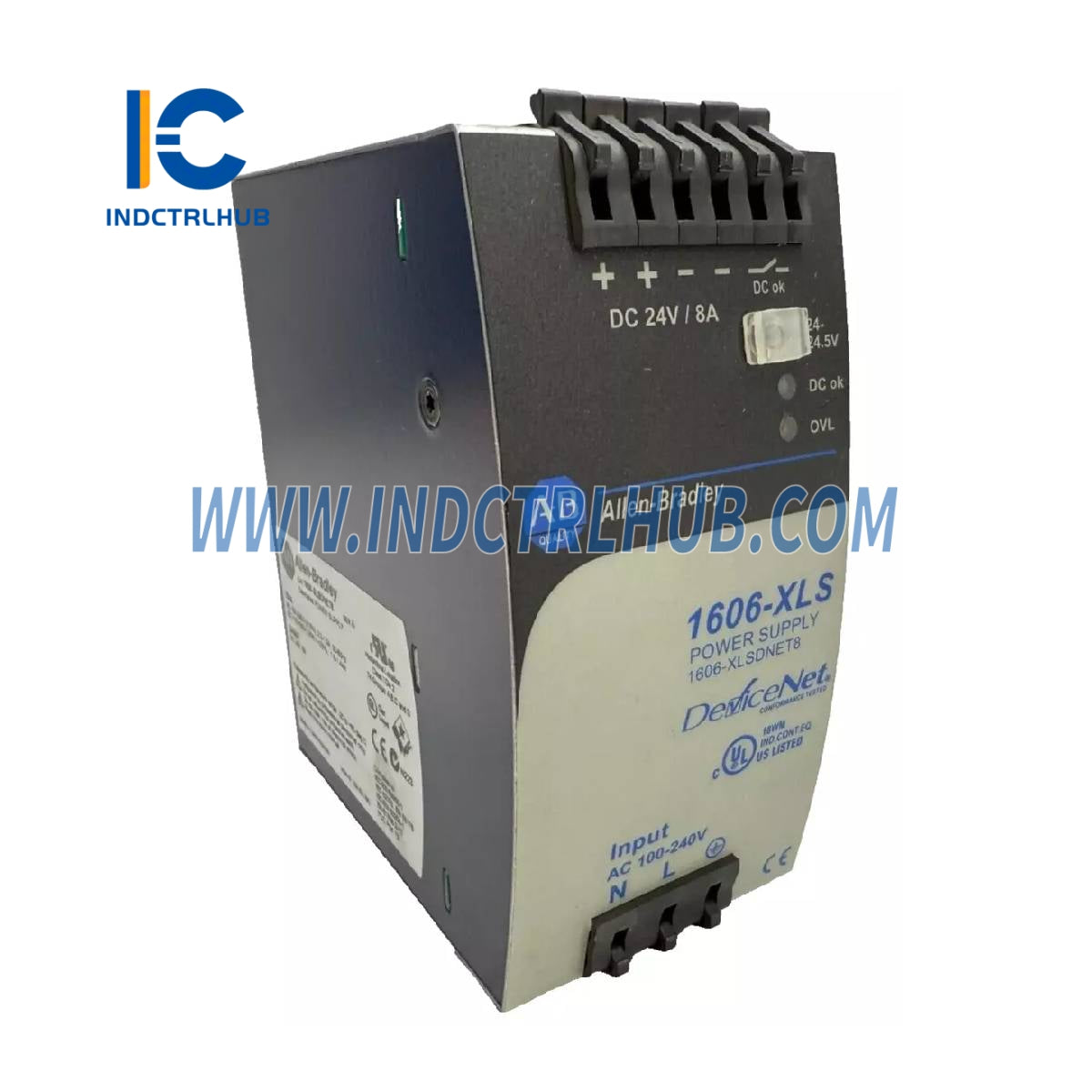

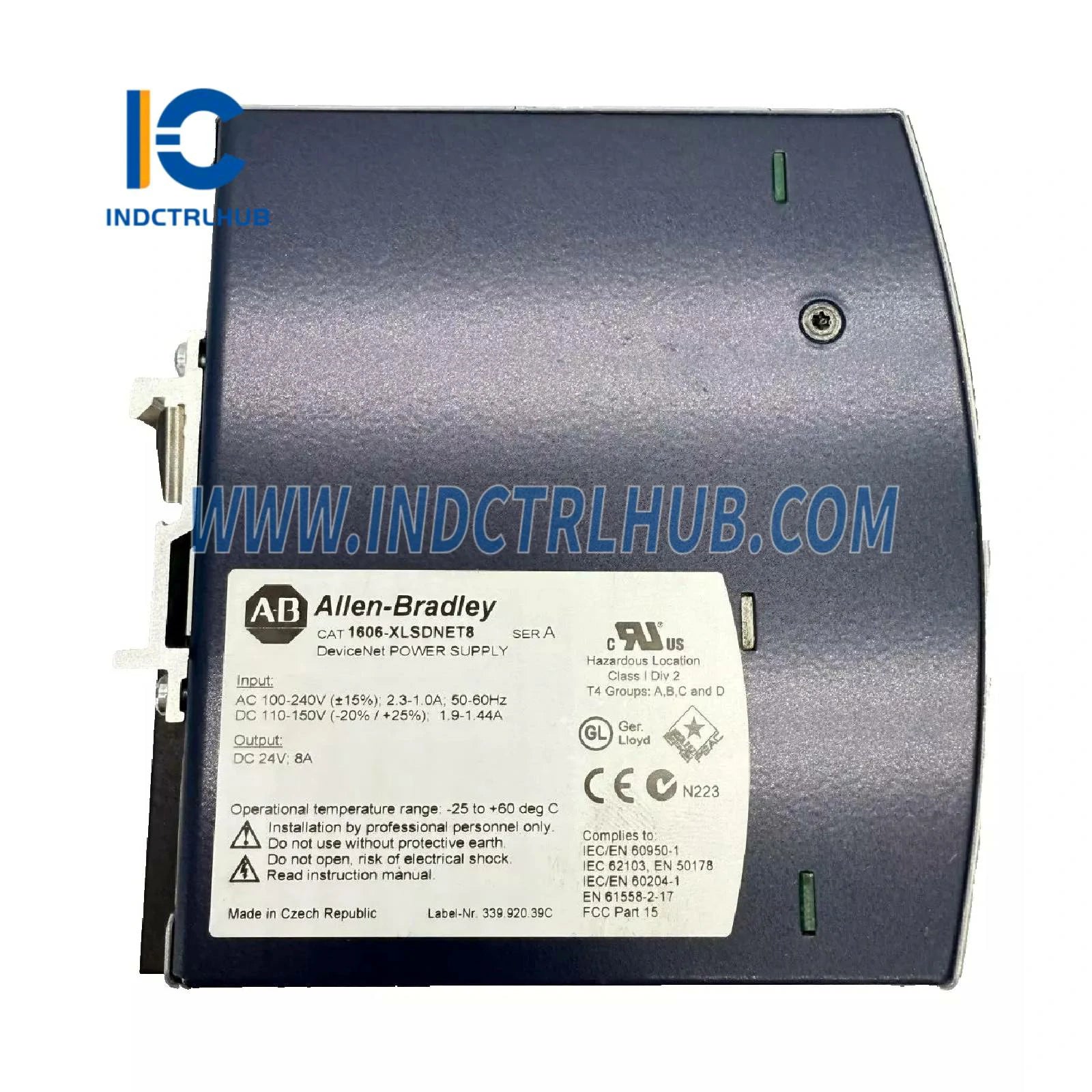

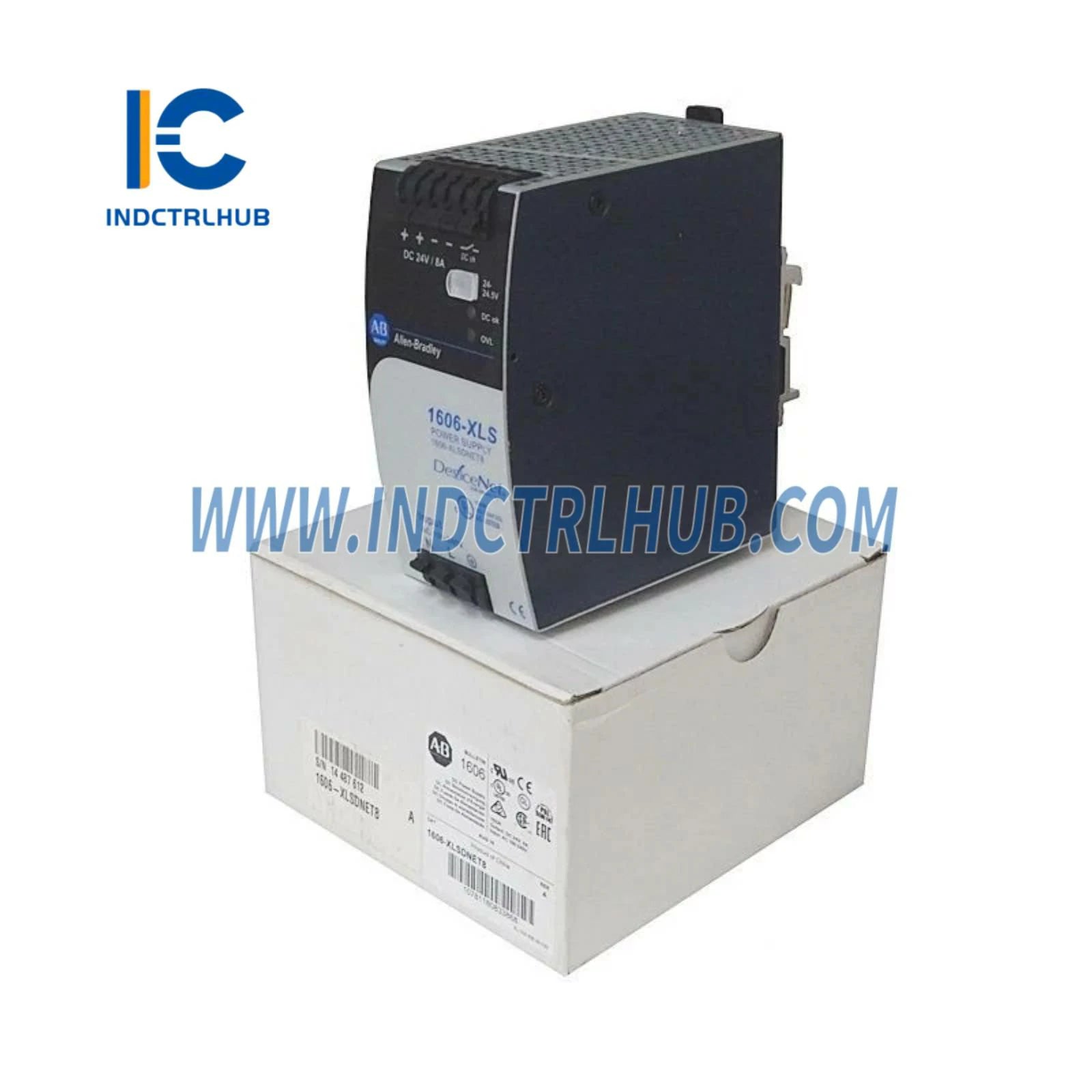

Product Description
🔹 Umumiy ma'lumot
|
Ishlab chiqaruvchi |
Allen-Bradley |
|---|---|
|
Model/Qism raqami |
1606-XLSDNET8 |
|
Tavsif |
24V DC DIN rels quvvat manbai |
🔹 Chiqish spetsifikatsiyalari
|
Parametr |
Qiymat |
|---|---|
|
Chiqish kuchlanishi |
DC 24V |
|
Sozlash diapazoni |
24 - 24.5V |
|
Chiqish oqimi |
8A |
|
Chiqish Quvvati |
192W |
|
Chiqish to'lqini |
< 50mVpp (20Hz dan 20MHz gacha) |
🔹 Kirish spetsifikatsiyalari
|
Parametr |
Qiymat |
|---|---|
|
AC kirish kuchlanishi |
AC 100-240V ±15% |
|
Chiziq chastotasi |
50-60Hz ±6% |
|
AC Kirish Jorimi |
1.77 / 1.0A (120 / 230V AC da) |
|
Quvvat omili |
0.98 / 0.92 (120 / 230V AC da) |
|
AC Kirish Jorimi |
O'rtacha 4 / 7A cho'qqi (120 / 230V AC da) |
|
DC kirish kuchlanishi |
DC 110 - 300V (-20% / +25%) |
|
DC Kirish Toki |
1.9 / 0.7A (110 / 300V DC da) |
|
Samaradorlik |
92.3% / 92.7% (120 / 230V AC da) |
|
Yo‘qotishlar |
16.0W / 15.1W (120 / 230V AC da) |
|
Ushlab turish vaqti |
O'rtacha 33 / 34ms (120 / 230V AC da) |
🔹 Atrof-muhit spetsifikatsiyalari
|
Parametr |
Qiymat |
|---|---|
|
Ishlash Harorati |
-25°C dan +70°C gacha (-13°F dan 158°F gacha) |
|
Chiqish quvvatining kamayishi |
5W/°C (60-70°C oralig'ida) |
|
Saqlash harorati |
-40°C dan +85°C gacha (-40°F dan 185°F gacha) |
|
Namlik |
5 dan 95% nisbiy namlikgacha (IEC 60068-2-30) |
|
Vibratsiya (Sinus to'lqinli) |
2-17.8Hz: ±1.6mm; 17.8-500Hz: 2g (IEC 60068-2-6) |
|
Tezlanish (Tasodifiy) |
0.5m²/s³ (2 soat/axis, IEC 60068-2-64) |
|
Shok |
30g (6ms), 20g (11ms), har bir yo'nalishda 3 ta zarba (IEC 60068-2-27) |
|
Balandlik |
0 dan 6000m gacha (0 dan 20,000ft gacha) |
|
Chiqish quvvatining kamayishi (Balandlik) |
15W/1000m yoki 5°C/1000m 2000m dan yuqorida |
|
Ortib ketish toifasi |
III (2000m gacha), II (2000m - 6000m) (EN 50178) |
|
Ifloslanish darajasi |
2 (EN 50178, o'tkazmaydigan) |
🔹 Mexanik va o'rnatish
|
Parametr |
Qiymat |
|---|---|
|
Kenglik |
60mm (2.36”) |
|
Balandlik |
124mm (4.88”) |
|
Chuqurlik |
117mm (4.61”) (shuningdek DIN-ray chuqurligi) |
|
Og'irlik |
900g (1.98 lb) |
|
DIN-Ral Mosligi |
35mm DIN-rels (EN 60715 yoki EN 50022, 7.5mm yoki 15mm balandlik) |
