Product Description
🔹 General Information
|
Manufacturer |
Yokogawa |
|---|---|
|
Model/Part Number |
SNB10D-225 / CU2T |
|
Description |

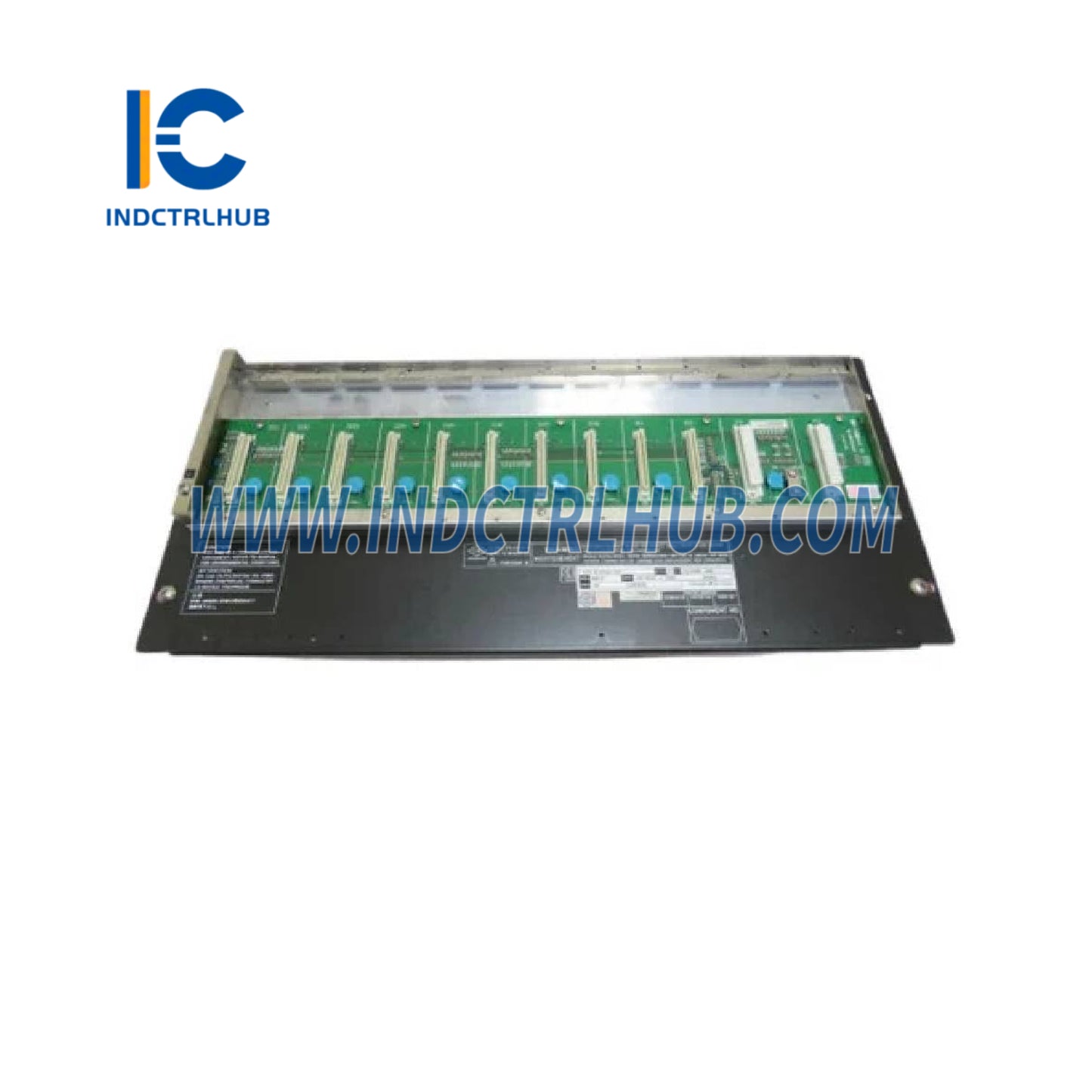

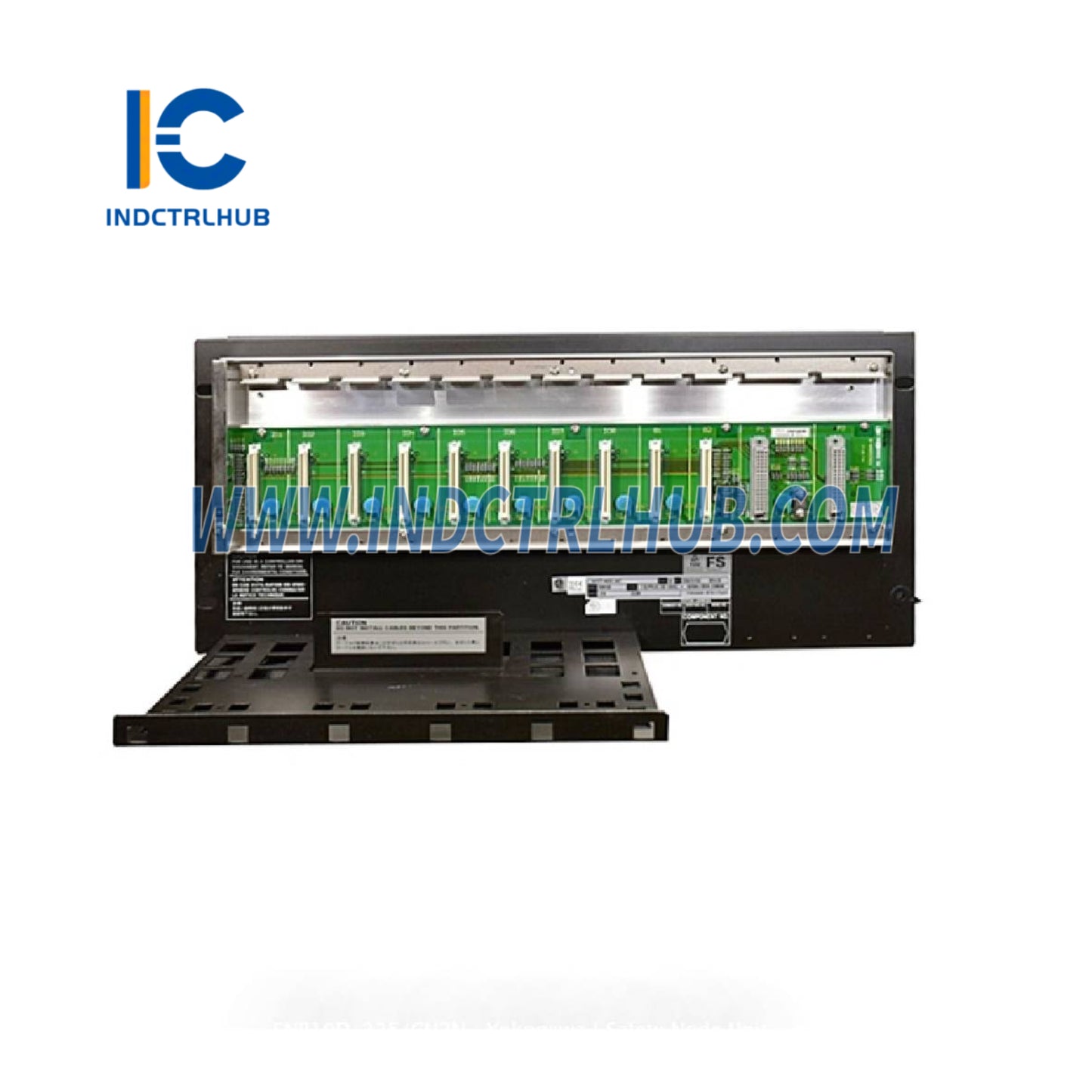

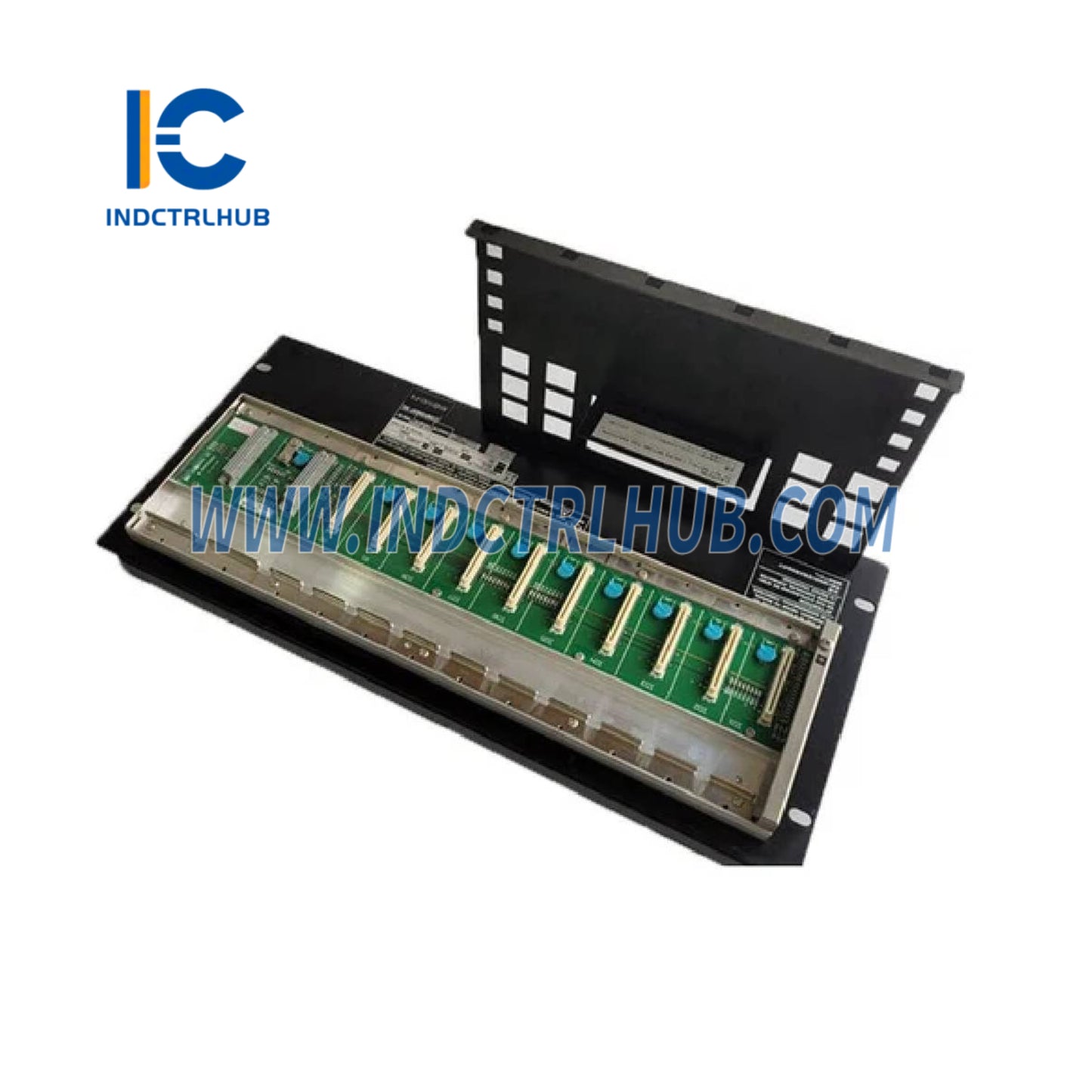

Safety Node Unit (Rack Mountable Type) with dual-redundant power and ESB Bus connector with terminator |
🔹 Technical Specifications
|
Item |
Specification |
|---|---|
|
Model |
SNB10D |
|
Mounting Type |
Rack mountable (with four M5 screws using insulation bushes) |
|
Number of Connectable Safety Node Units |
Up to 13 (with SEC402 ESB coupler), up to 9 (with SEC401 ESB coupler) |
|
Power Supply Voltage |
220 to 240 V AC, 50/60 Hz |
|
Power Consumption |
230 VA (for 220 to 240 V AC specification) |
|
Weight |
Approx. 5.9 kg |
|
Conformity Standards |
ProSafe-RS Standards Compliant Models (refer to GS 32P01B60-01EN) |
🔹 Model and Suffix Codes
|
Model |
Description |
|---|---|
|
SNB10D |
Safety Node Unit (Rack Mountable Type) |
Suffix Codes
|
Code |
Meaning |
|---|---|
|
–2 |
Dual-redundant power supply with software license for node expansion (R3) |
|
–4 |
Dual-redundant power supply (R4.01 or later) |
|
2 |
220 to 240 V AC power supply |
|
5 |
ISA Standard G3 and temperature (-20 to 70 ºC), no explosion protection |
Selected Suffix Combination:
–225
-
Dual-redundant power supply with node expansion license
-
220 to 240 V AC supply
-
ISA G3 & temperature specification, no explosion protection
🔹 Option Codes
|
Option Code |
Description |
|---|---|
|
/CU2T |
Connector Unit with Terminator for ESB Bus [Part Number: S9343FA] |
|
/CU2N |
Connector Unit for ESB Bus [Part Number: S9342FA] |
|
/ATDOC |
Explosion Protection Manual |
