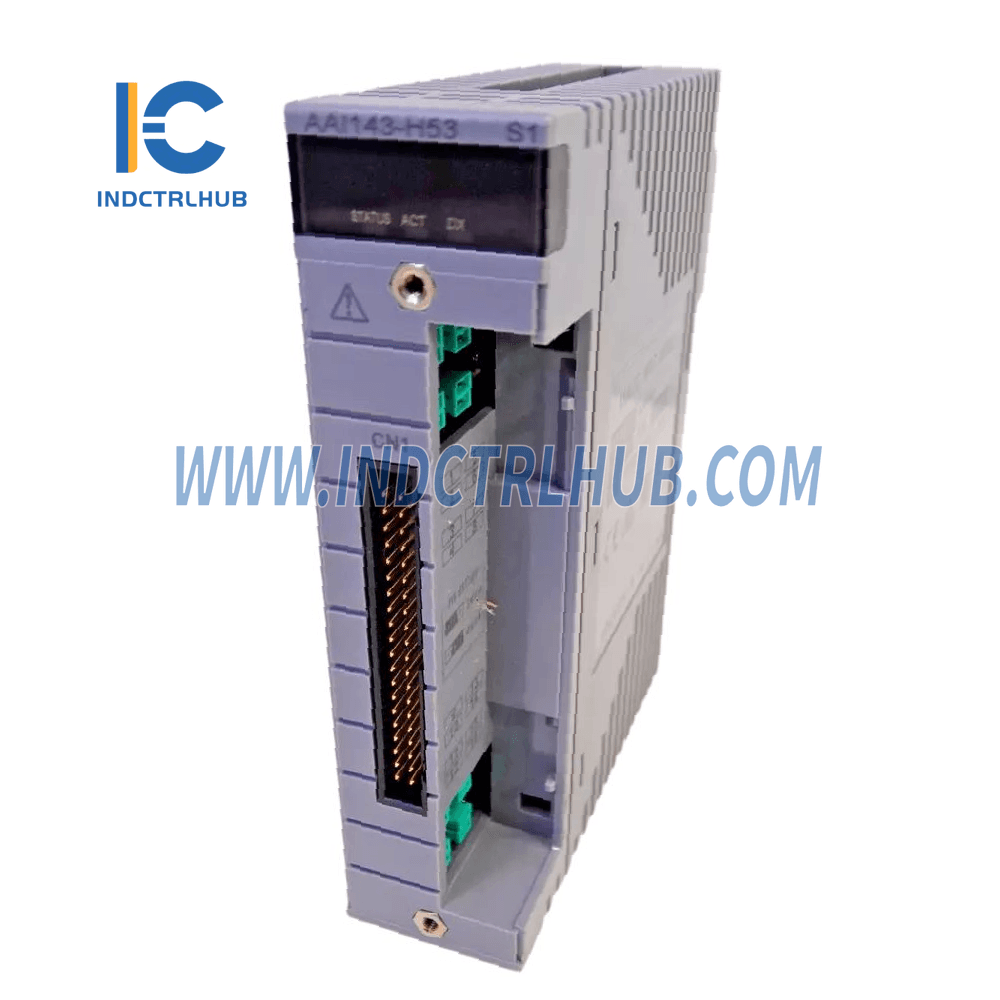

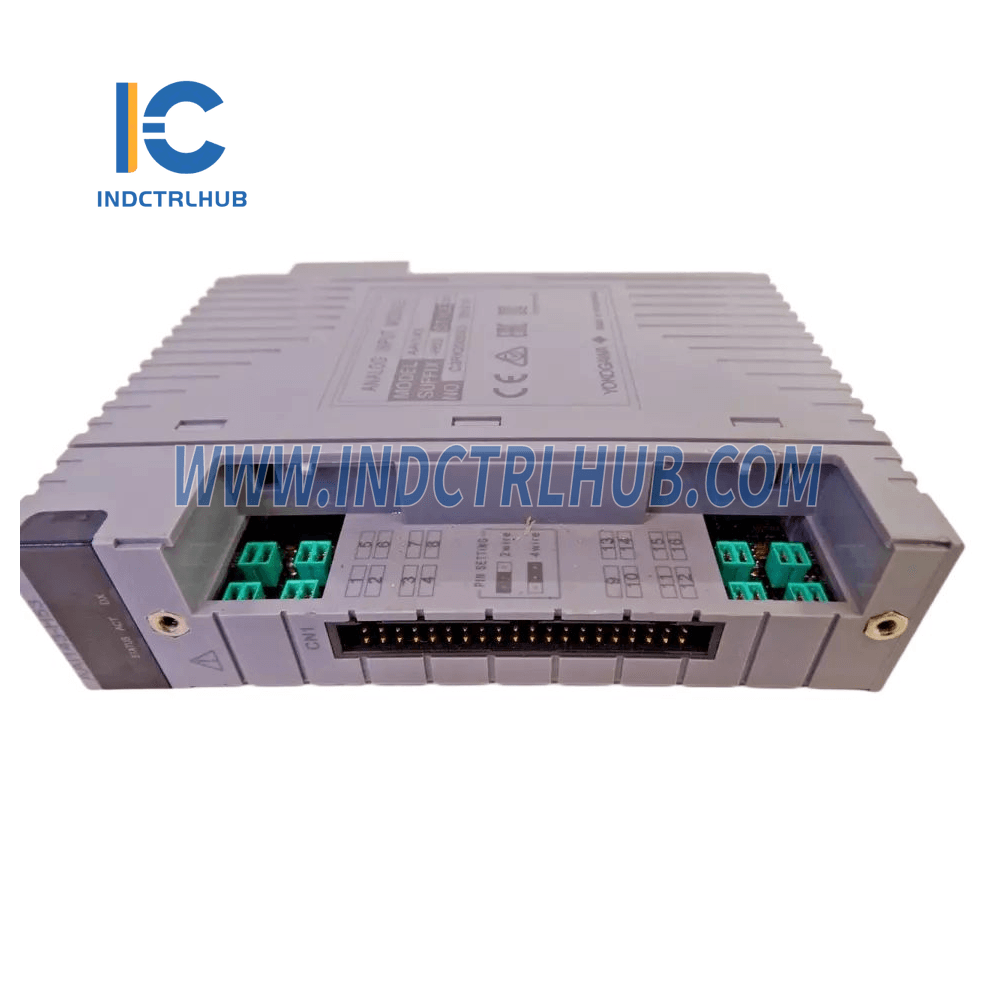

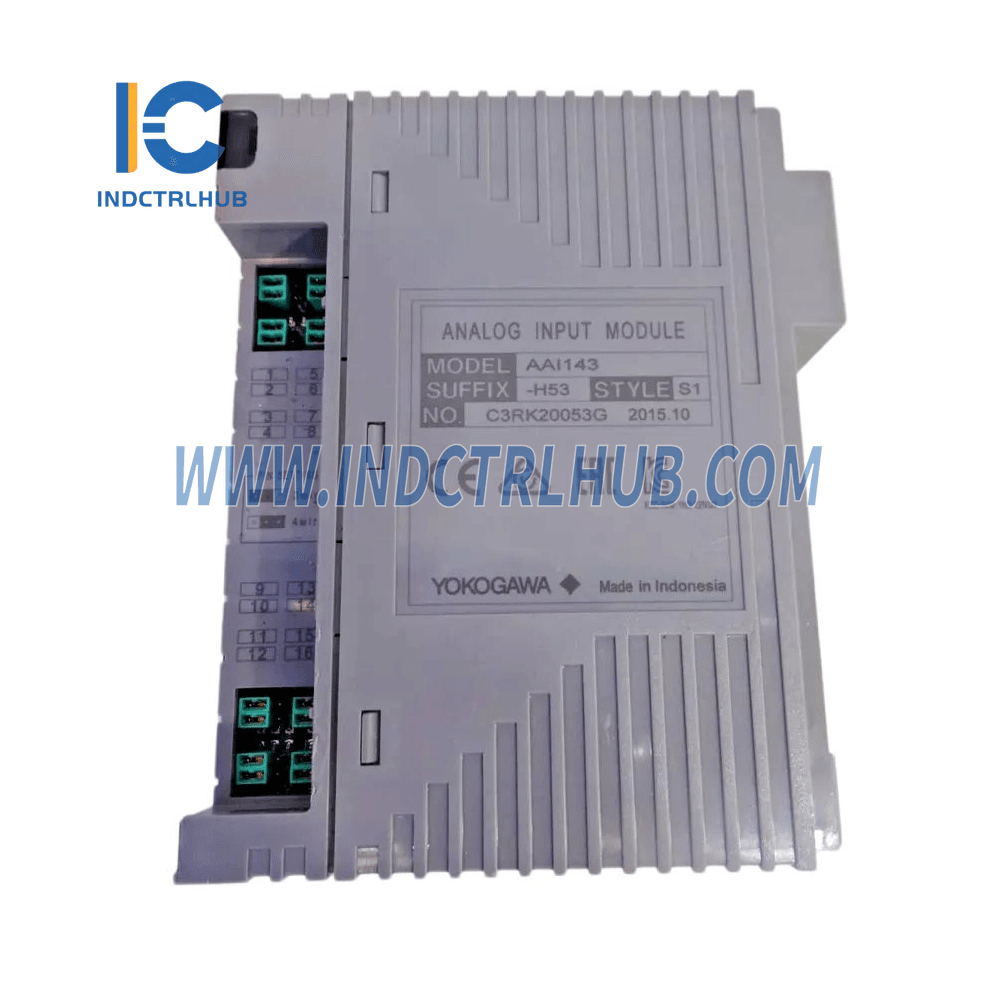

Yokogawa AAI143-H53 S1 Analog Input Module

Yokogawa AAI143-H53 S1 Analog Input Module

  • Manufacturer: Yokogawa

  • Product No.: AAI143-H53-S1

  • Condition:1000 in stock

  • Product Type: Analog Input Module

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 300g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Product Information: Yokogawa AAI143-H53 S1 Analog Input Module

Manufacturer:

  • Yokogawa Electric Corporation

Model/Part Number:

  • AAI143-H53 S1 (Analog Input Module, 16-channel, Isolated)

Model and Suffix Codes

Model Description Suffix Code Options
AAI143: Analog Input Module -S: Standard type
4 to 20 mA, 16-channel, Isolated -H: With digital communication (HART protocol)
5: Without explosion protection
E: With explosion protection
0: Basic type
3: With ISA Standard G3 option and temperature (-20 to 70 °C)

Option Codes:

Option Code Description
/K4A00 KS Cable Interface Adapter (For connecting AEA4D Terminal Board) [Model: ATK4A-00]
/A4S00 Pressure Clamp Terminal Block [Model: ATA4S-00]
/A4S10 Pressure Clamp Terminal Block (surge absorber) [Model: ATA4S-10]
/A4D00 Dual Pressure Clamp Terminal Block [Model: ATA4D-00]
/A4D10 Dual Pressure Clamp Terminal Block (surge absorber) [Model: ATA4D-10]
/CCC01 Connector Cover for MIL Cable [Model: ACCC01]

Standard Specifications

Input Channels:

  • 16 Isolated Channels (Current input only)
  • Can be used in dual-redundant configuration.

Input Signal:

  • Signal Type: 4 to 20 mA (current input only)
  • Allowable Input Current: 24 mA

Voltage Specifications:

Item Specification
Withstanding Voltage Between input and system: 1500 V AC, for 1 minute
Input Resistance Power ON: 270 Ω (at 20 mA) to 350 Ω (at 4 mA)
Power OFF: 500 kΩ or larger
Accuracy ±16 μA
Data Update Period 10 ms
Transmitter Power Supply 19.0 V or higher (at 20 mA)
25.5 V or less (at 0 mA)
Drift due to Ambient Temperature Change ±16 μA/10 °C
Maximum Current Consumption 230 mA (5 V DC), 540 mA (24 V DC)

External Connections:

Connection Type Details
Terminal Type Pressure clamp terminal
Interface Options MIL connector cable, dedicated cable (KS1)
HART Communication Available with -H suffix

Weight:

  • 0.3 kg (AAI143 module)
