Product Description

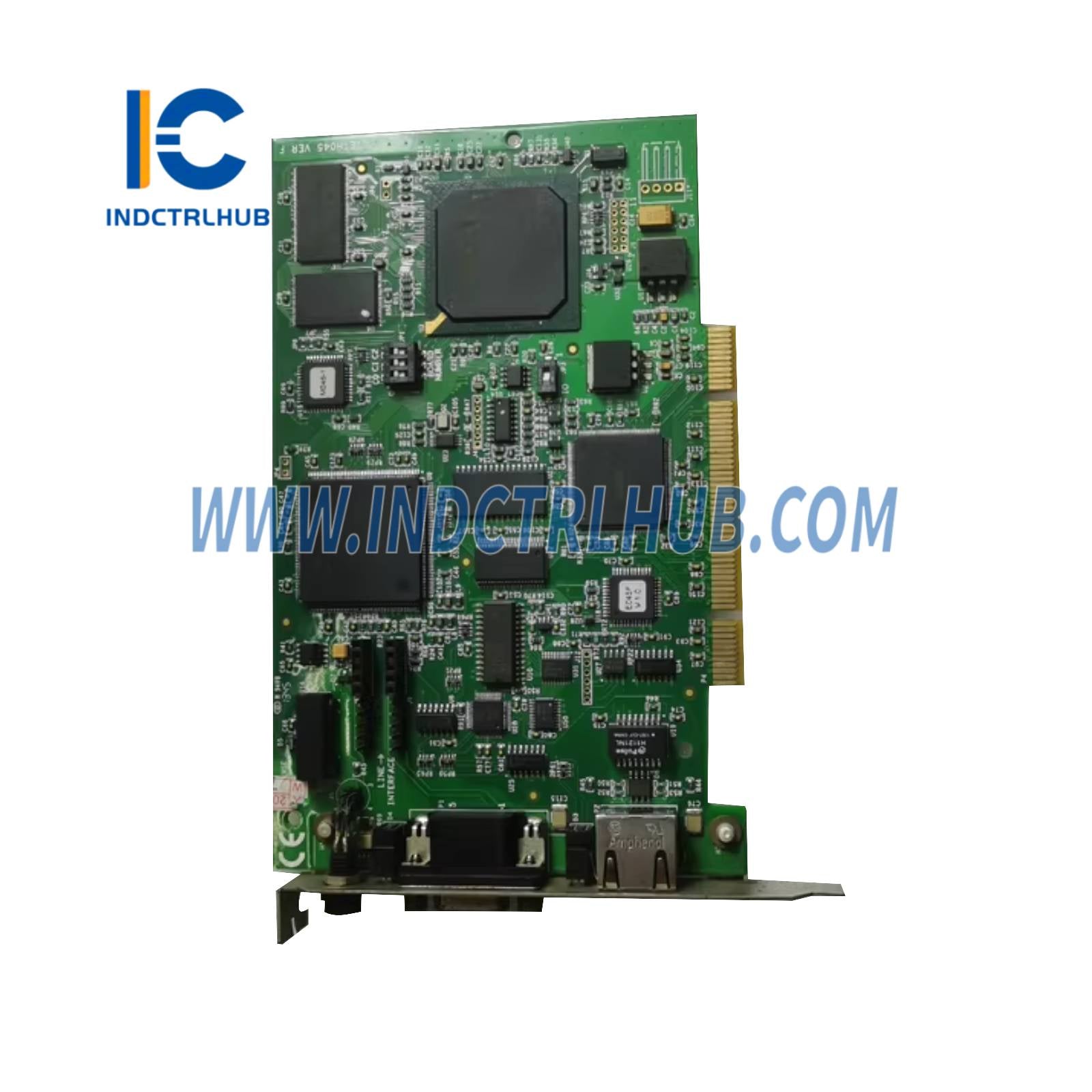

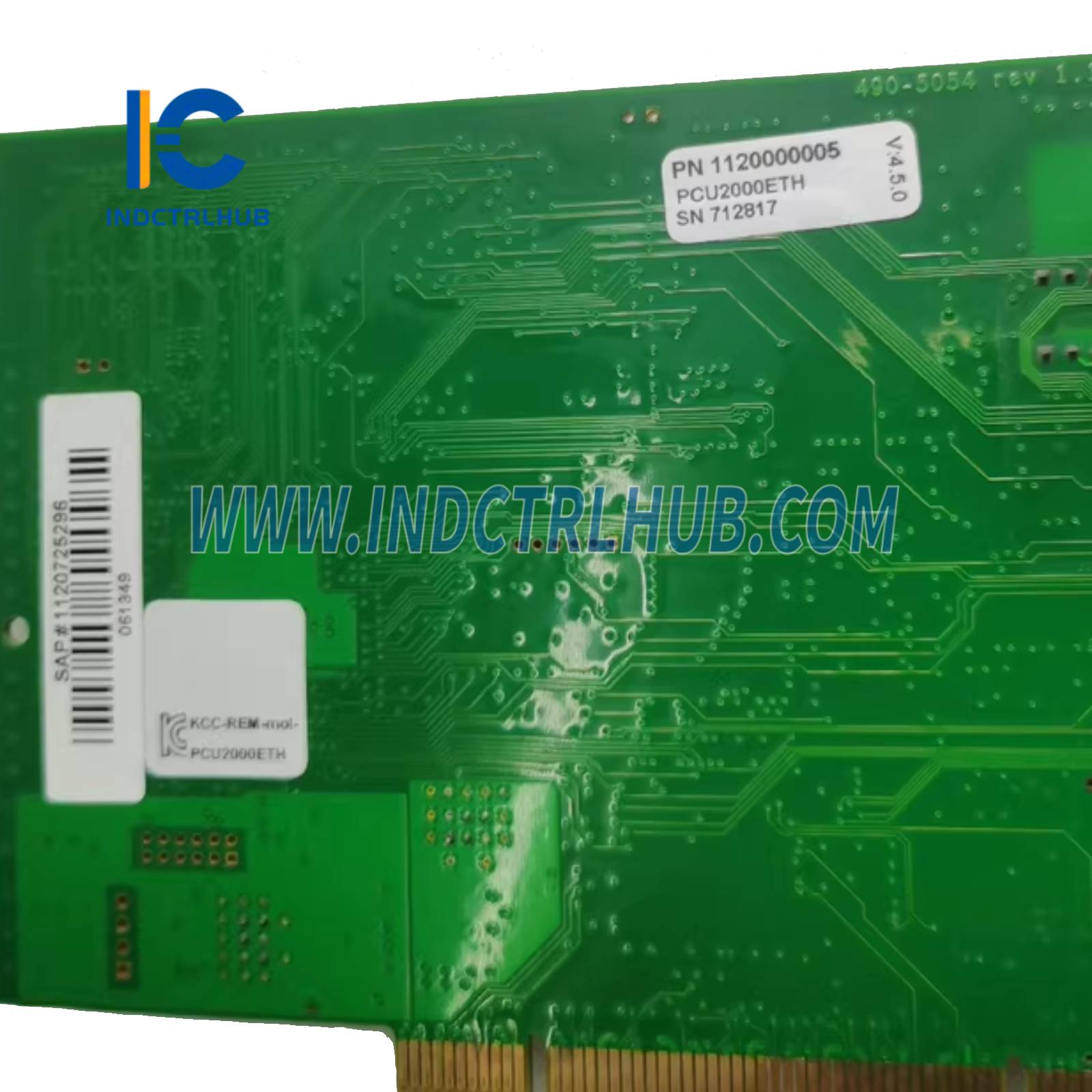

Woodward PCU2000ETH V4.5.0 Power Control Unit
Product Overview
- The Woodward PCU2000ETH V4.5.0 is a Power Control Unit designed for advanced control and monitoring of power generation systems, particularly for gas turbines, diesel engines, and generator sets in industrial applications such as power plants, marine propulsion, and critical infrastructure. This microprocessor-based control unit integrates engine control, generator management, and power distribution functions, offering precise synchronization, load sharing, and protection capabilities. The "ETH" designation indicates Ethernet communication support, and "V4.5.0" refers to the firmware version, which includes enhanced features and performance improvements over earlier versions. The PCU2000ETH is suitable for single or multi-unit configurations, providing robust communication protocols for seamless integration into SCADA and DCS systems. Compared to Woodward’s EasyGen series (e.g., EasyGen-3500-5, 8440-2087) or EGCP-2, the PCU2000ETH is tailored for more complex turbine and engine control applications with advanced networking capabilities. It is distinct from Woodward’s protection relays (e.g., MRI4A0AB), excitation systems (e.g., DECS-100-B15), electronic governors (e.g., DYN1-10784-003-0-12), and actuators (e.g., 8408-921).
Technical Specifications
- The PCU2000ETH V4.5.0 has the following specifications based on industry sources and Woodward documentation:
| Specification | Details |
|---|---|
| Model/Part Number | PCU2000ETH V4.5.0 |
| Manufacturer | Woodward |
| Description | Power Control Unit for Engine and Generator Systems |
| Series | PCU2000 |
| Function | Controls and monitors engines, generators, and power distribution |
| Processor | Microprocessor-based (specific architecture not publicly detailed) |
| Memory | Flash: 32–64 MB (for firmware and configuration) RAM: 16–32 MB (for runtime data) |
| Display | Graphical LCD, 320x240 pixels, multilingual interface (optional external HMI) |
| Inputs | 12 analog inputs (configurable for 4–20 mA, 0–10 V, RTD, or thermocouple) 16 discrete inputs (24 VDC) 2 speed inputs (magnetic pickup or proximity probes) |
| Outputs | 8 analog outputs (4–20 mA or 0–10 V) 16 relay outputs (dry contact, up to 250 VAC/2 A) 1 actuator output (compatible with Woodward actuators, 4–20 mA or 0–200 mA) |
| Communication Interfaces | 2 Ethernet ports (Modbus TCP, Woodward protocols, IEC 61850 optional) 2 serial ports (RS-232 or RS-485, Modbus RTU) 2 CANbus ports (for engine and genset communication) USB (for configuration and data logging) |
| Control Modes | Auto/manual start/stop, isochronous/droop load sharing, active/reactive power control, power factor control, automatic synchronization, islanded or grid-parallel operation |
| Redundancy | Optional redundancy (hot-swappable with additional units) |
| Diagnostics | Fault detection, event logging (up to 1000 events), real-time data trending, status LEDs, disturbance recording |
| Compatibility | Woodward actuators (e.g., UG-8, ProAct, 8408-921), speed sensors, circuit breakers, and third-party devices via Modbus or IEC 61850; integrates with SCADA/DCS systems |
| Power Supply | 12–36 VDC (24 VDC nominal) or 120–240 VAC (50/60 Hz) |
| Power Consumption | Approx. 20–35 W |
| Environmental Specifications | Operating Temperature: -20°C to +70°C (-4°F to +158°F) Storage Temperature: -30°C to +80°C (-22°F to +176°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant Shock: IEC 60068-2-27 compliant |
| Enclosure | IP54 (front panel, when properly mounted); IP20 (rear) |
| Dimensions | Approx. 250 mm (H) x 230 mm (W) x 100 mm (D) |
| Weight | Approx. 2.5–3.5 kg |
| Mounting | Panel-mounted (cutout dimensions per manual) |
| Certifications | CE, UL, CSA, marine certifications (e.g., DNV, ABS, Lloyd’s Register); ATEX/IECEx Zone 2 (configuration-dependent); IEC 61850 compliance (optional) |
