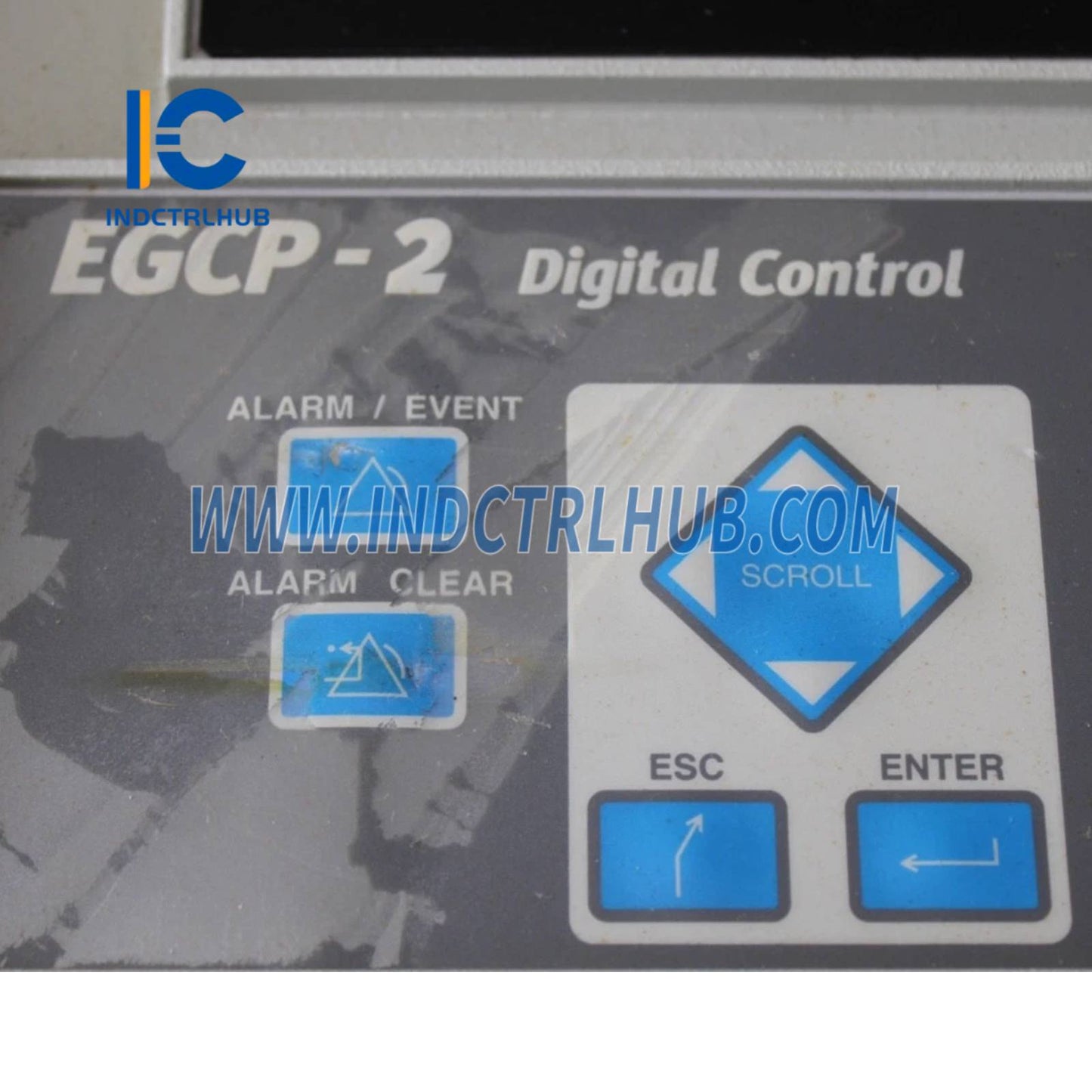

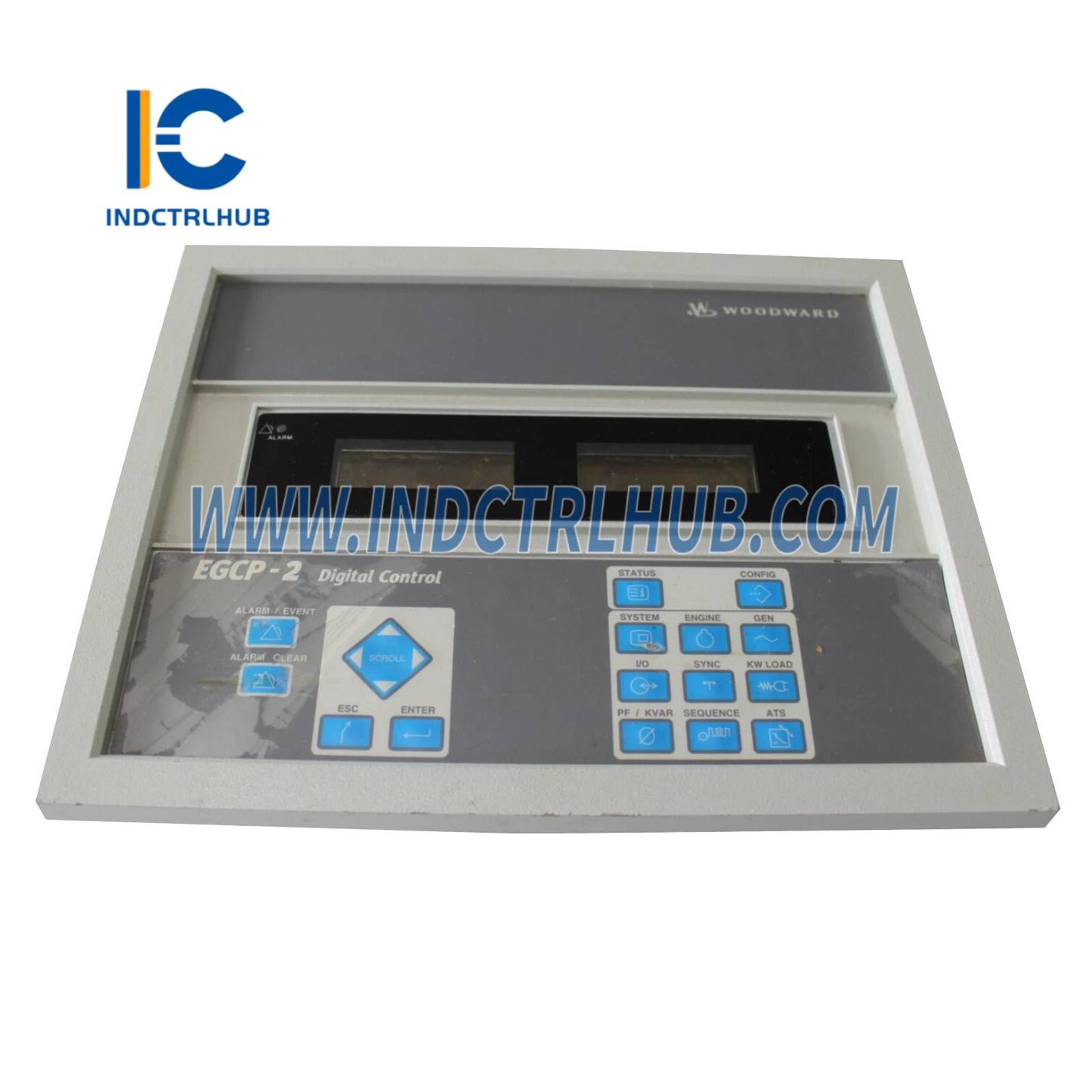

Woodward EGCP-2 Engine Generator Control Package
Product Overview
- The Woodward EGCP-2 (Engine Generator Control Package) is a microprocessor-based control system designed for comprehensive management of engine-generator sets in industrial power generation applications, including standalone and parallel operation for multiple gensets. It provides advanced control, monitoring, and protection for diesel, gas, or dual-fuel engines, with features like automatic start/stop, load sharing, synchronization, and power management. The EGCP-2 is ideal for medium to large-scale systems, such as power plants, marine vessels, and critical backup facilities. Compared to Woodward’s EasyGen series (e.g., EasyGen-1500, EasyGen-3500-5, 8440-2087), the EGCP-2 offers robust multi-unit paralleling capabilities but has a more complex interface tailored for sophisticated power systems. It is distinct from Woodward’s excitation systems (e.g., DECS-100-B15), transfer switch controllers (e.g., DTSC-200), electronic governors (e.g., DYN1-10784-003-0-12), and actuators (e.g., 8408-921), focusing on integrated genset control and power management.
Technical Specifications
- The EGCP-2 has the following specifications based on industry sources and Woodward documentation:

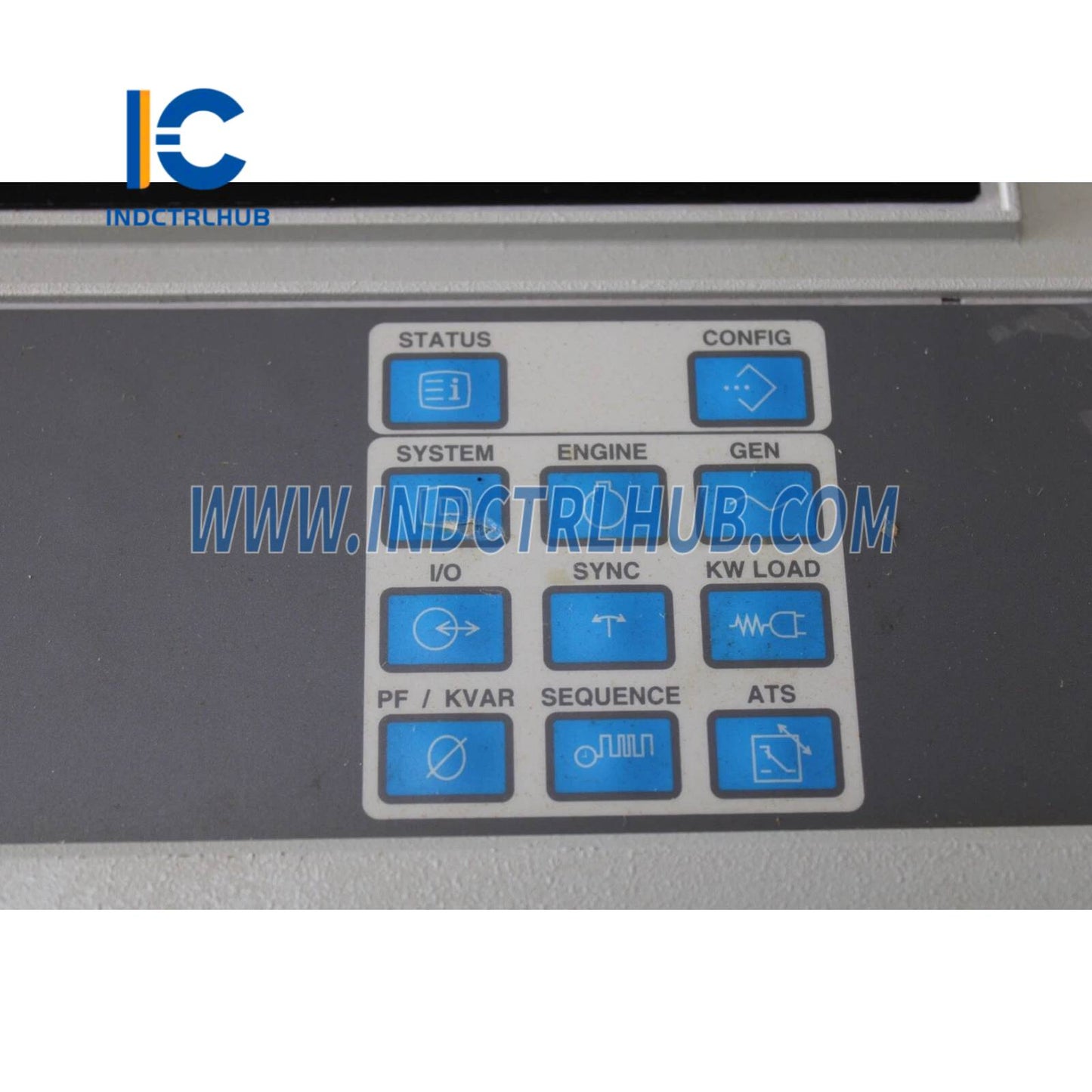

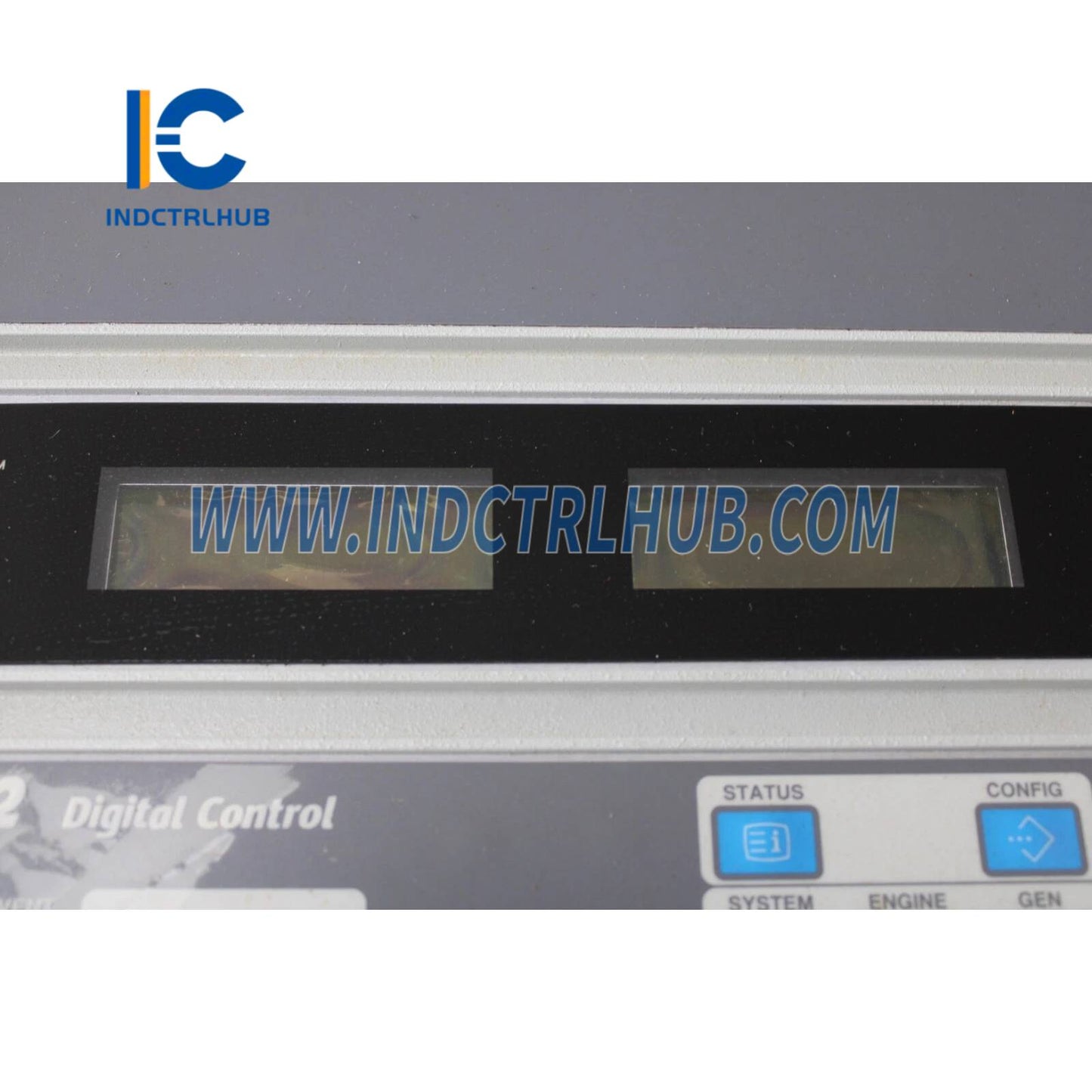

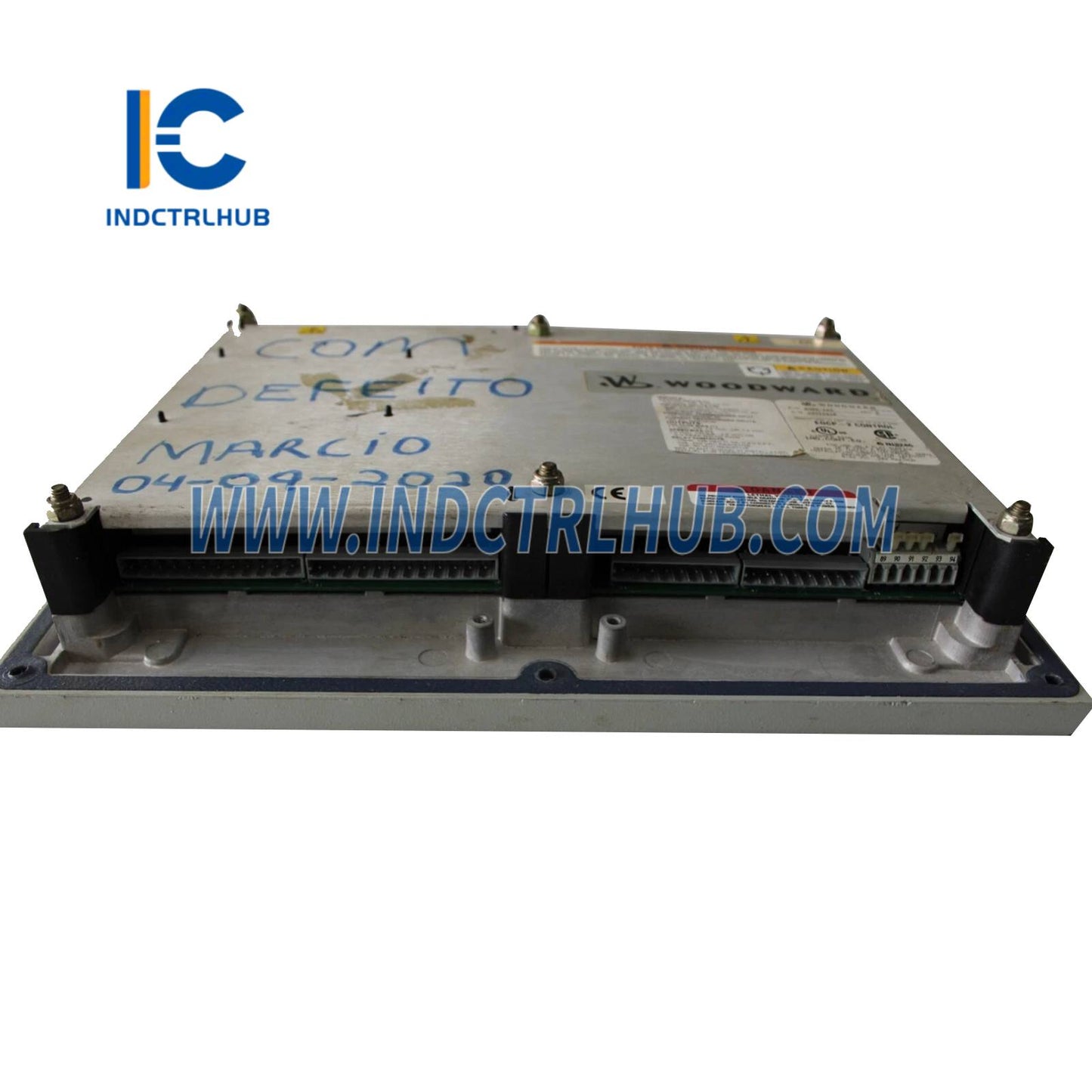

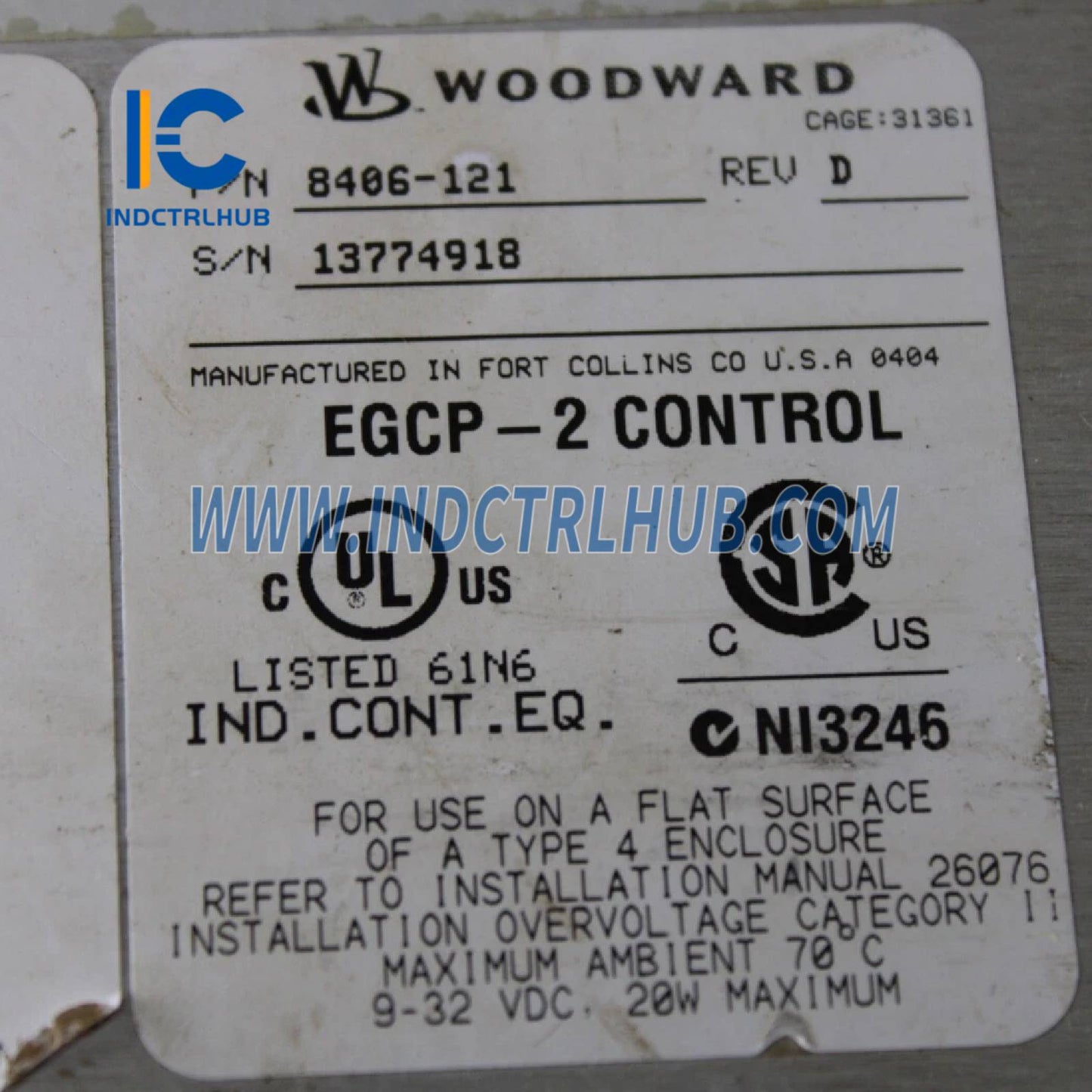

| Specification | Details |
|---|---|
| Model/Part Number | EGCP-2 |
| Manufacturer | Woodward |
| Description | Engine Generator Control Package for Generator Sets |
| Series | EGCP |
| Function | Controls and monitors generator sets; manages engine, generator, and power distribution |
| Processor | Microprocessor-based (specific architecture not publicly detailed) |
| Memory | Flash: 8–16 MB (for firmware and configuration) RAM: 4–8 MB (for runtime data) |
| Display | Graphical LCD, 128x64 pixels, multilingual interface |
| Inputs | 8 analog inputs (configurable for 4–20 mA, 0–10 V, or RTD/thermocouple) 12 discrete inputs (24 VDC) 2 speed inputs (magnetic pickup or proximity probes) |
| Outputs | 4 analog outputs (4–20 mA or 0–10 V) 12 relay outputs (dry contact, up to 250 VAC/2 A) 1 actuator output (compatible with Woodward actuators, 4–20 mA or 0–200 mA) |
| Communication Interfaces | 2 serial ports (RS-232 or RS-485, Modbus RTU) 1 CANbus port (for engine and genset communication) Ethernet (optional, Modbus TCP) Inter-unit communication bus (for multi-unit paralleling) |
| Control Modes | Auto/manual start/stop, isochronous/droop load sharing, active/reactive power control, power factor control, automatic synchronizing |
| Redundancy | Non-redundant (redundant configurations possible with additional units) |
| Diagnostics | Fault detection, event logging (up to 500 events), real-time data trending, status LEDs |
| Compatibility | Woodward actuators (e.g., UG-8, ProAct, 8408-921), speed sensors, circuit breakers, and third-party devices via Modbus; integrates with SCADA/DCS systems |
| Power Supply | 12–36 VDC (24 VDC nominal) |
| Power Consumption | Approx. 15–25 W |
| Environmental Specifications | Operating Temperature: -20°C to +70°C (-4°F to +158°F) Storage Temperature: -30°C to +80°C (-22°F to +176°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant Shock: IEC 60068-2-27 compliant |
| Enclosure | IP54 (front panel, when properly mounted); IP20 (rear) |
| Dimensions | Approx. 219 mm (H) x 171 mm (W) x 61 mm (D) |
| Weight | Approx. 1.5–2 kg |
| Mounting | Panel-mounted (cutout dimensions per manual) |
| Certifications | CE, UL, CSA, marine certifications (e.g., DNV, ABS, Lloyd’s Register); ATEX/IECEx Zone 2 (configuration-dependent) |
