Product Description

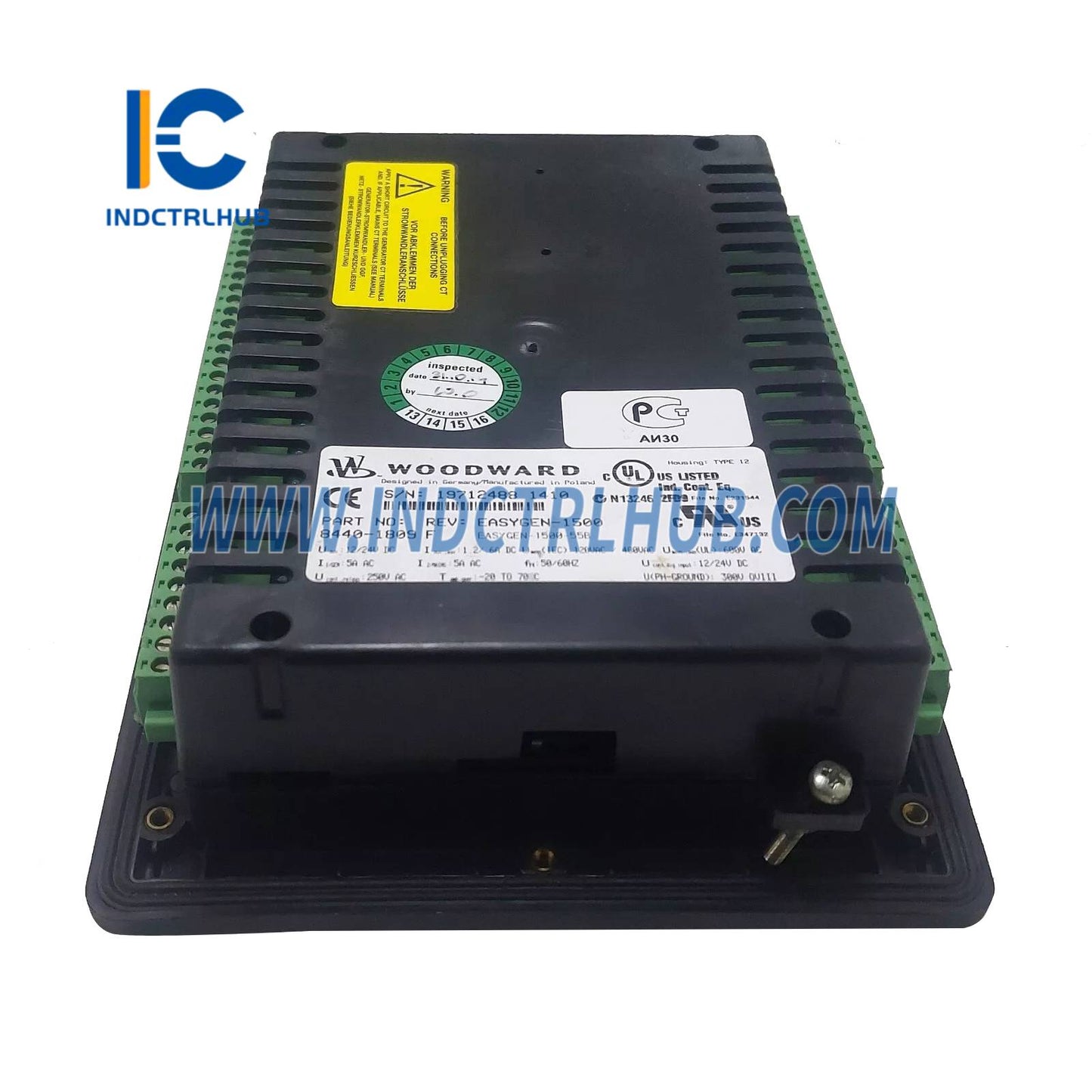

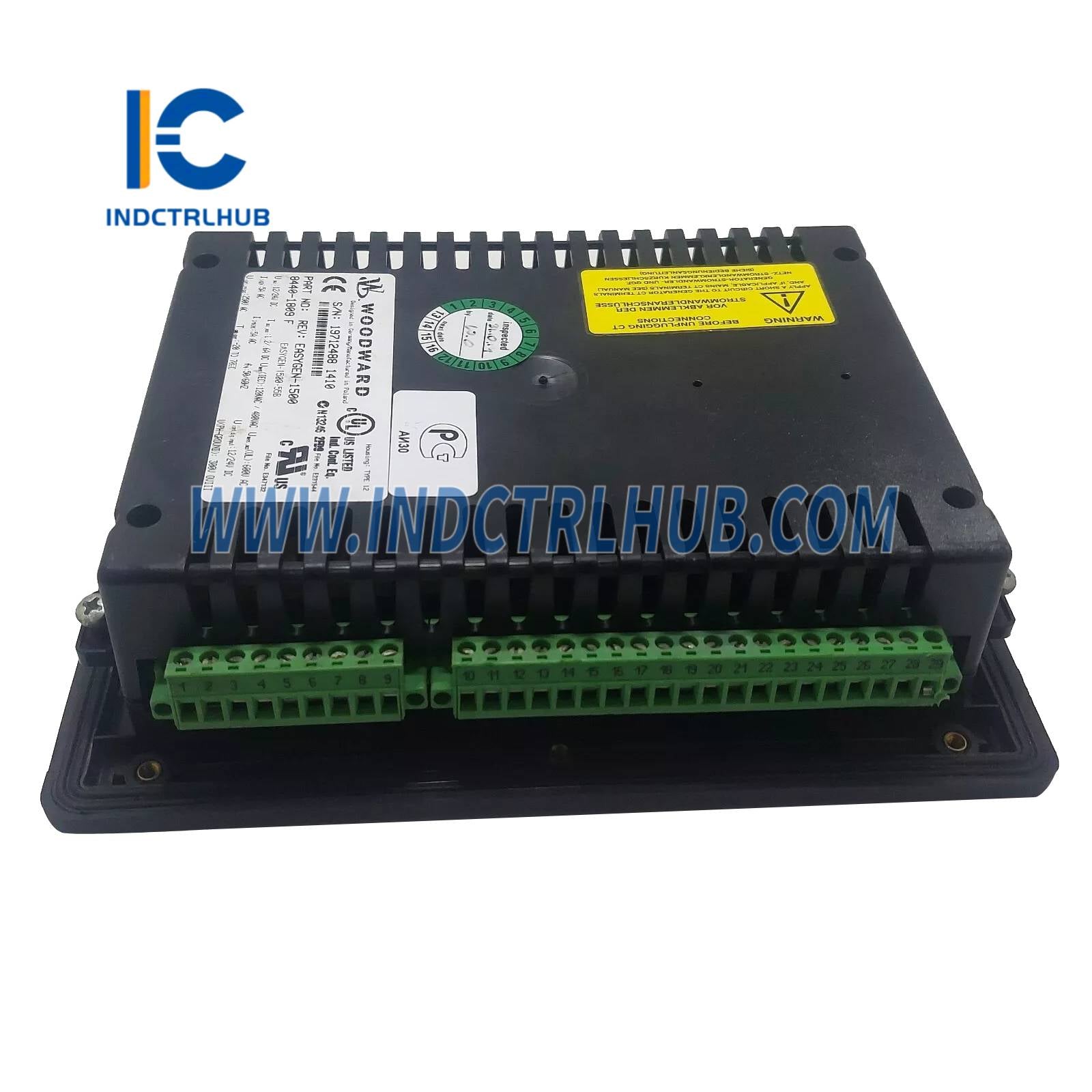

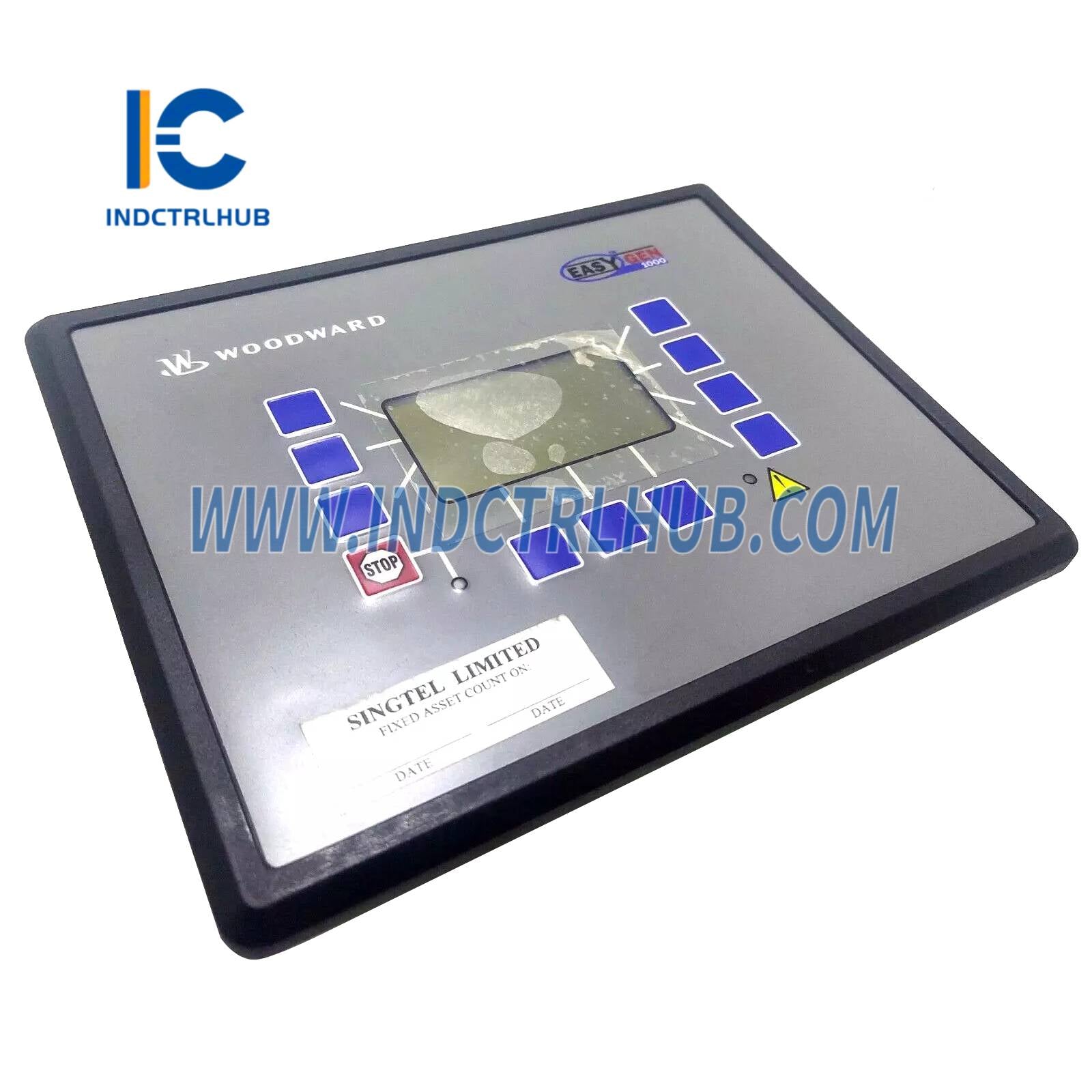

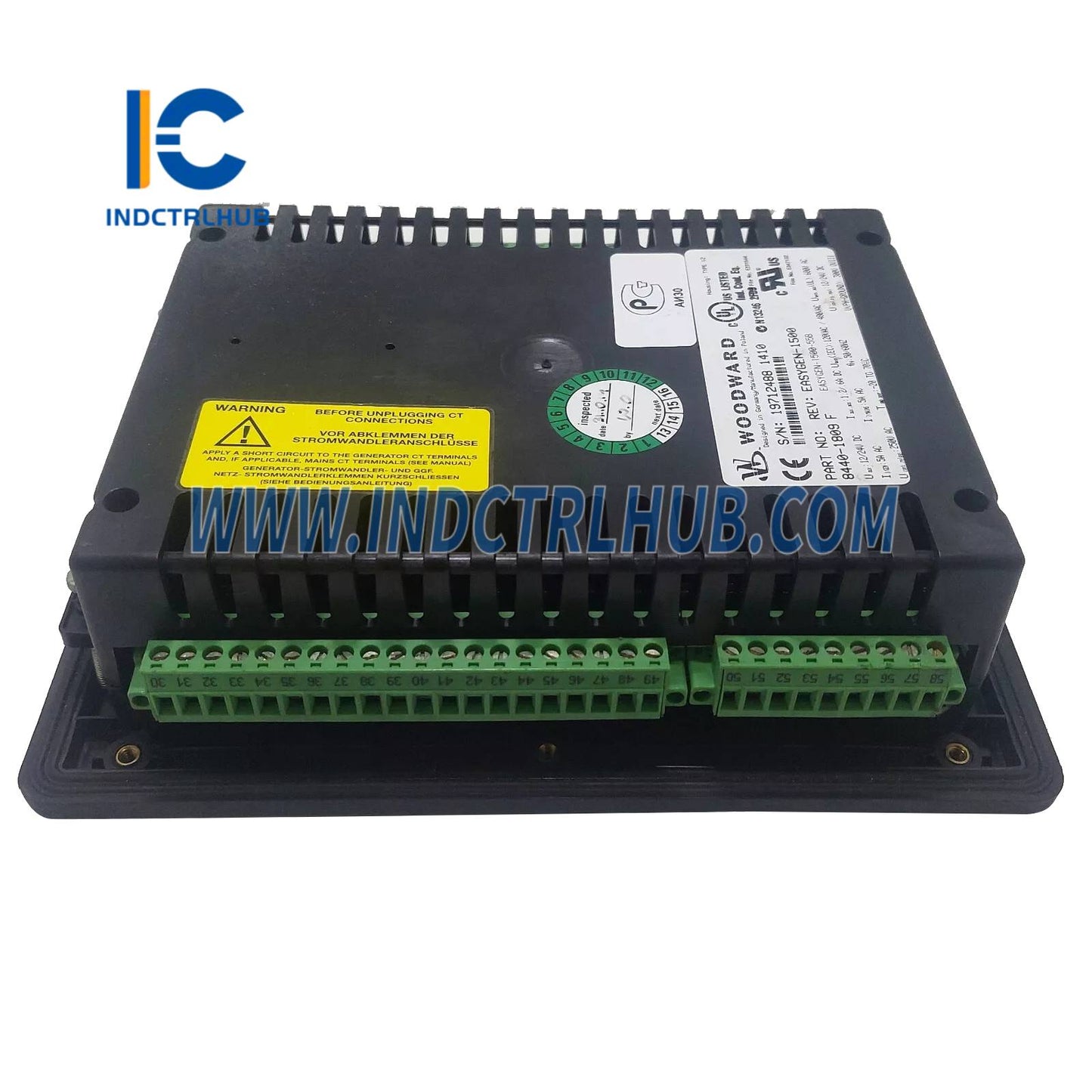

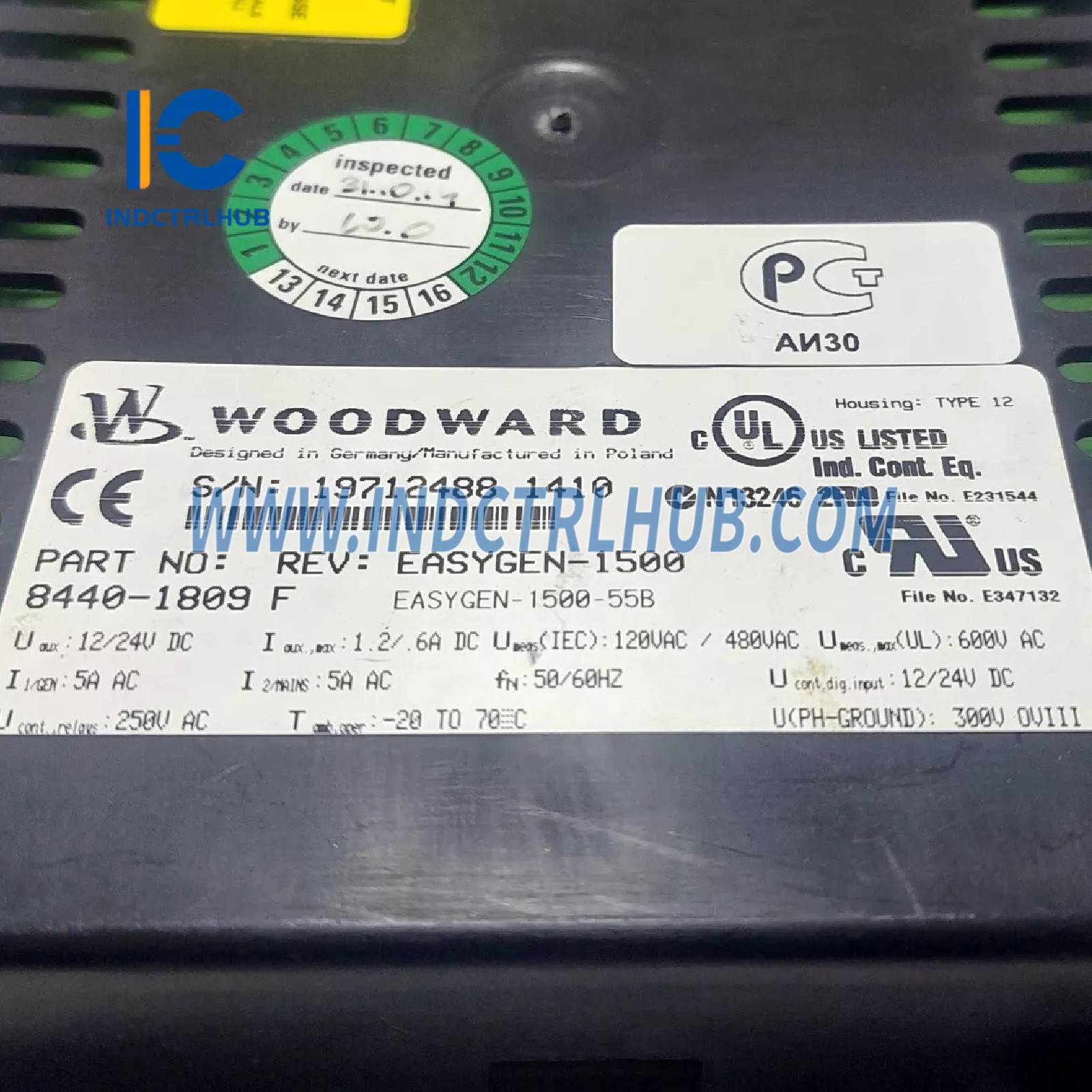

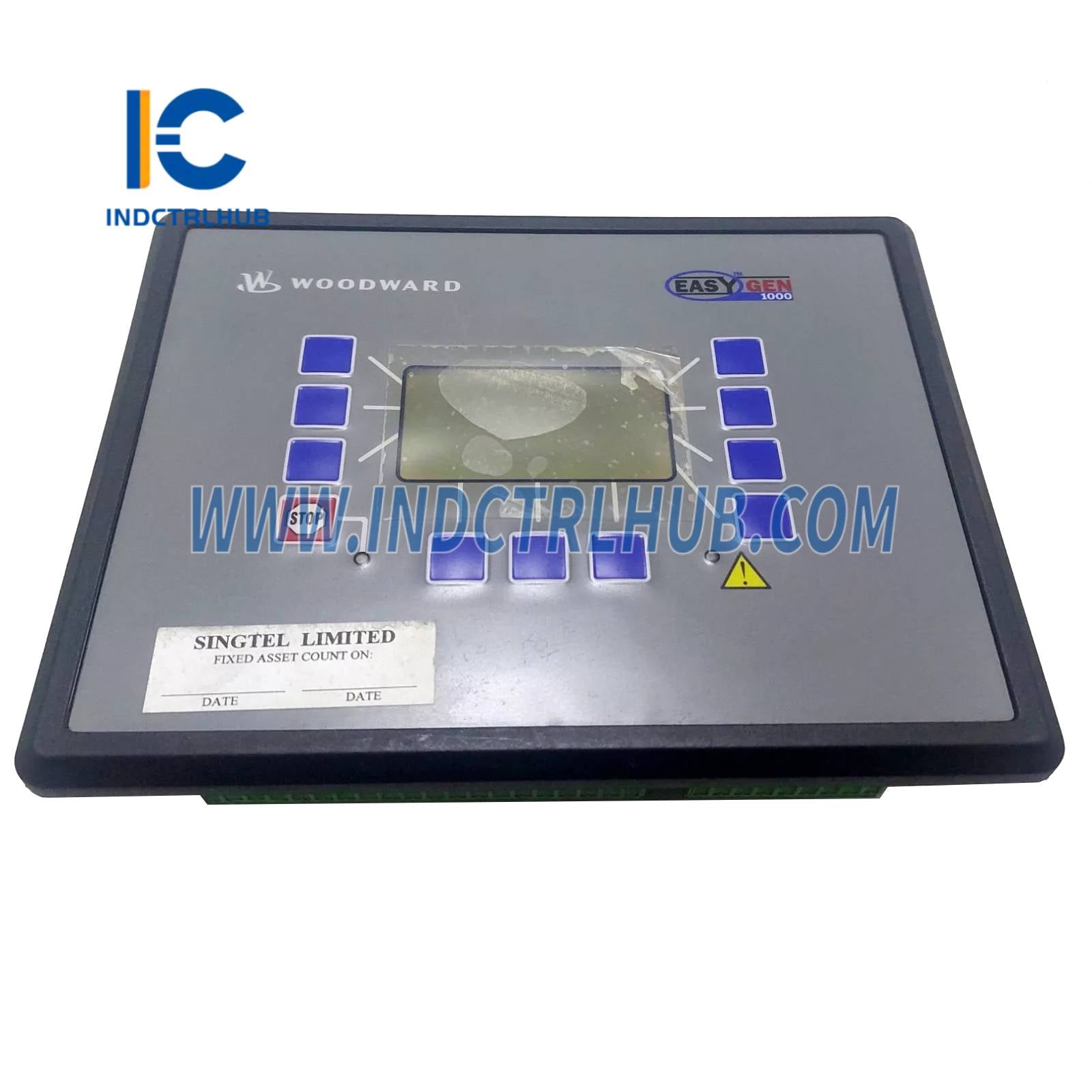

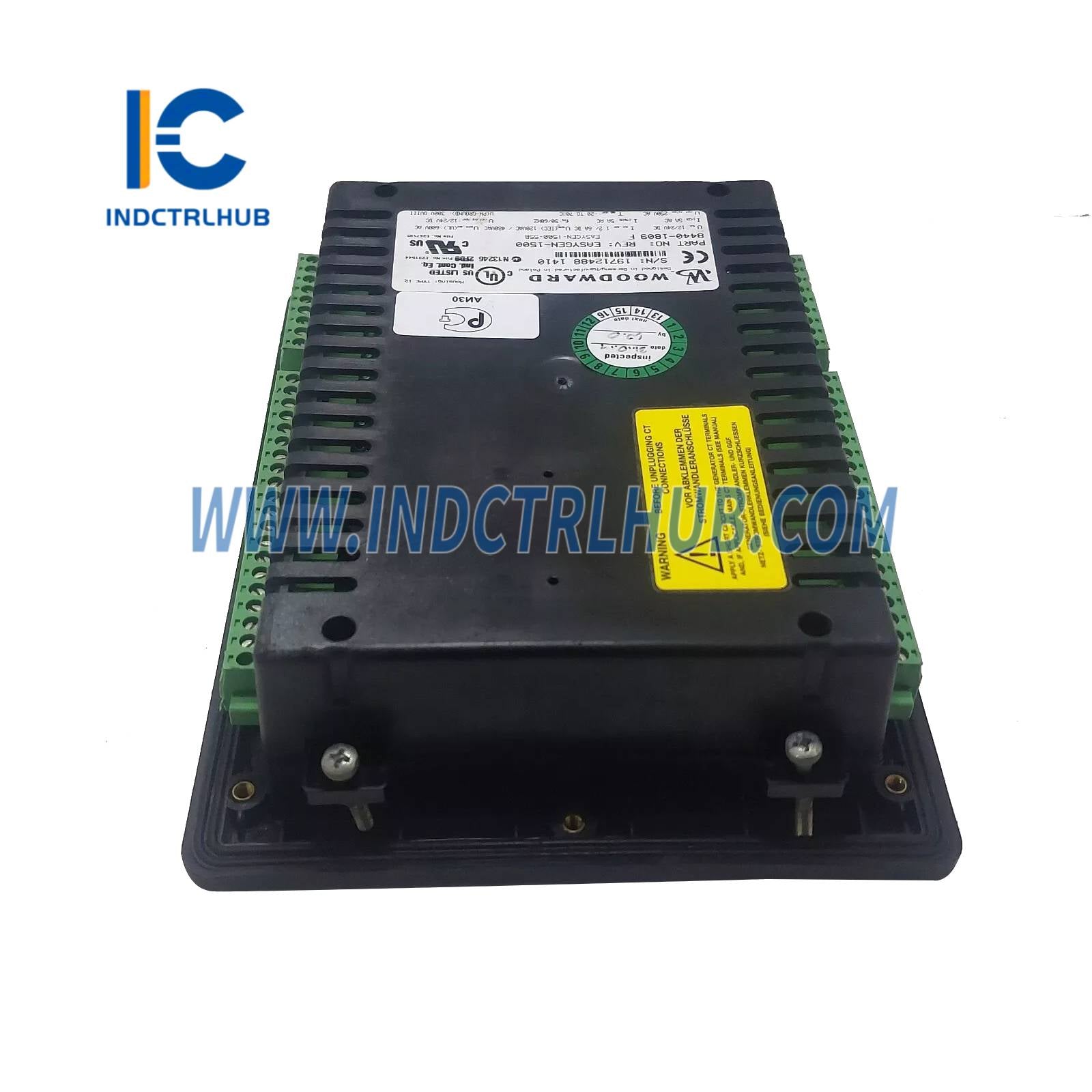

Woodward EasyGen-1500 Genset Controller
Product Overview
- The Woodward EasyGen-1500 is a compact genset controller designed for basic control and monitoring of single generator sets in industrial applications, such as standby power, small power plants, and marine systems. This microprocessor-based control unit is part of Woodward’s EasyGen-1000 series, offering reliable engine and generator management for diesel, gas, or dual-fuel engines in standalone operation. The EasyGen-1500 provides automated start/stop, basic load management, and protection functions with a user-friendly interface, making it ideal for simple, cost-sensitive applications. Compared to higher-end models like the EasyGen-2500-5 (e.g., 8440-2064) or EasyGen-3500-5 (e.g., 8440-2087), the EasyGen-1500 has fewer I/O options and limited communication capabilities but maintains robust performance for single-unit setups. It is distinct from Woodward’s excitation systems (e.g., DECS-100-B15), transfer switch controllers (e.g., DTSC-200), electronic governors (e.g., DYN1-10784-003-0-12), and actuators (e.g., 8408-921), focusing on integrated genset control.
Technical Specifications
- The EasyGen-1500 has the following specifications based on industry sources and Woodward documentation:
| Specification | Details |
|---|---|
| Model/Part Number | EasyGen-1500 |
| Manufacturer | Woodward |
| Description | Genset Controller for Single Generator Sets |
| Series | EasyGen-1000 |
| Function | Controls and monitors single generator sets; manages engine and generator functions |
| Processor | Microprocessor-based (specific architecture not publicly detailed) |
| Memory | Flash: 4–8 MB (for firmware and configuration) RAM: 2–4 MB (for runtime data) |
| Display | Graphical LCD, 132x64 pixels, multilingual interface |
| Inputs | 6 analog inputs (configurable for 4–20 mA, 0–10 V, or RTD) 8 discrete inputs (24 VDC) 1 speed input (magnetic pickup or proximity probe) |
| Outputs | 2 analog outputs (4–20 mA or 0–10 V) 8 relay outputs (dry contact, up to 250 VAC/2 A) 1 actuator output (compatible with Woodward actuators, 4–20 mA or 0–200 mA) |
| Communication Interfaces | 1 serial port (RS-485, Modbus RTU) CANopen (optional, for engine communication) USB (for configuration) |
| Control Modes | Auto/manual start/stop, isochronous speed control, basic load control |
| Redundancy | Non-redundant |
| Diagnostics | Fault detection, event logging (up to 300 events), status LEDs |
| Compatibility | Woodward actuators (e.g., UG-8, ProAct, 8408-921), speed sensors, circuit breakers, and third-party devices via Modbus; integrates with basic SCADA systems |
| Power Supply | 12–36 VDC (24 VDC nominal) |
| Power Consumption | Approx. 8–15 W |
| Environmental Specifications | Operating Temperature: -20°C to +70°C (-4°F to +158°F) Storage Temperature: -30°C to +80°C (-22°F to +176°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant Shock: IEC 60068-2-27 compliant |
| Enclosure | IP54 (front panel, when properly mounted); IP20 (rear) |
| Dimensions | Approx. 180 mm (H) x 140 mm (W) x 50 mm (D) |
| Weight | Approx. 1–1.5 kg |
| Mounting | Panel-mounted (cutout dimensions per manual) |
| Certifications | CE, UL, CSA, marine certifications (e.g., DNV, ABS, configuration-dependent) |
