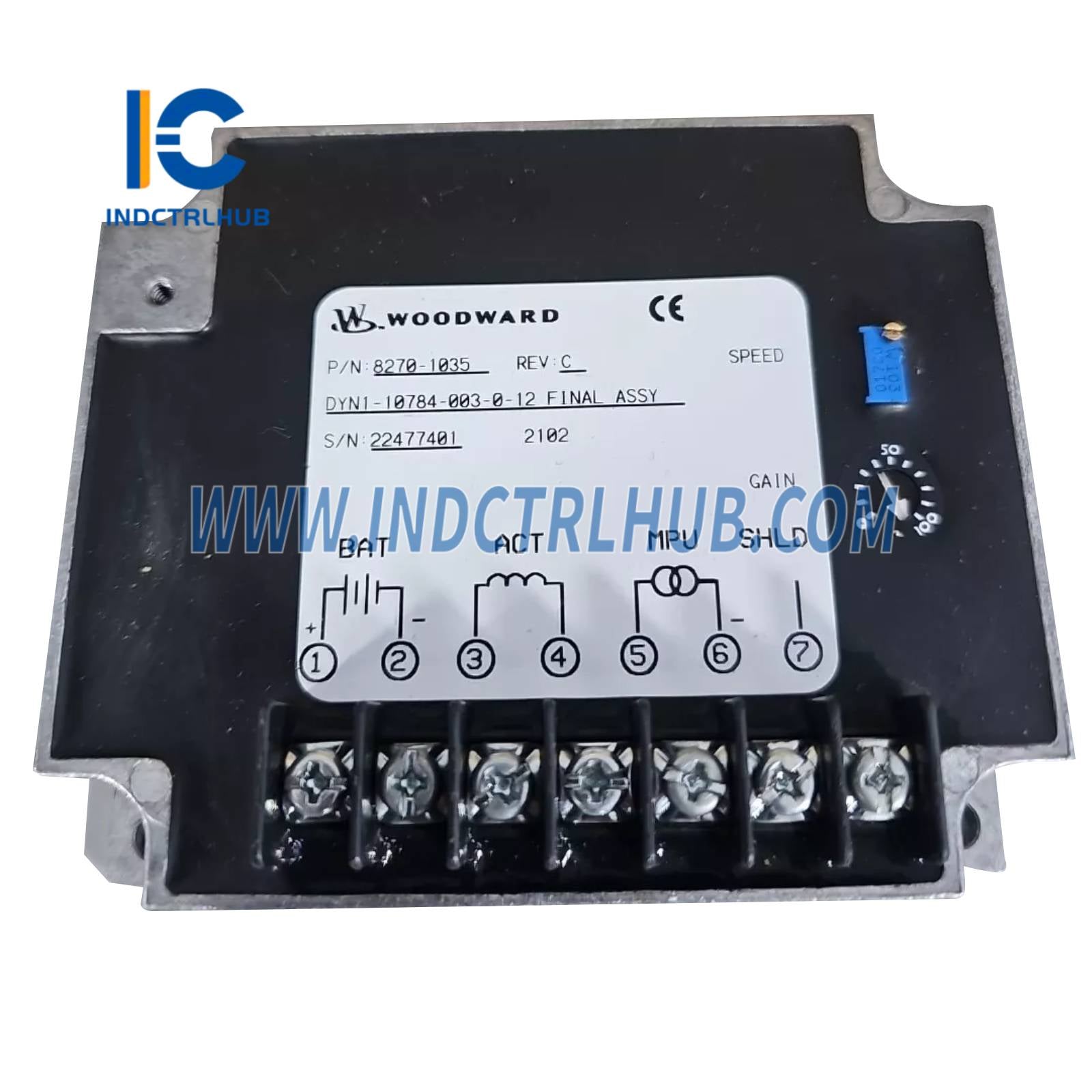

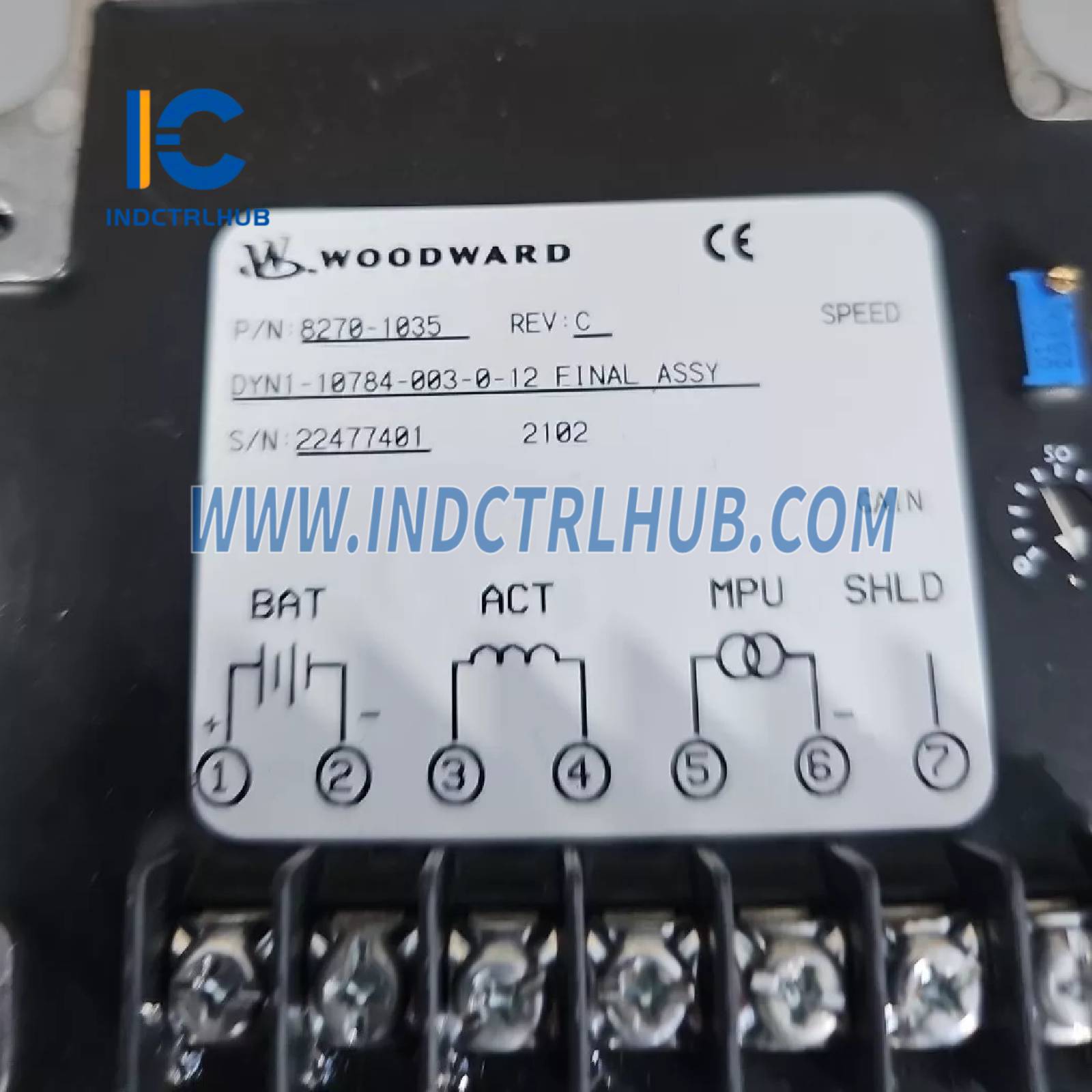

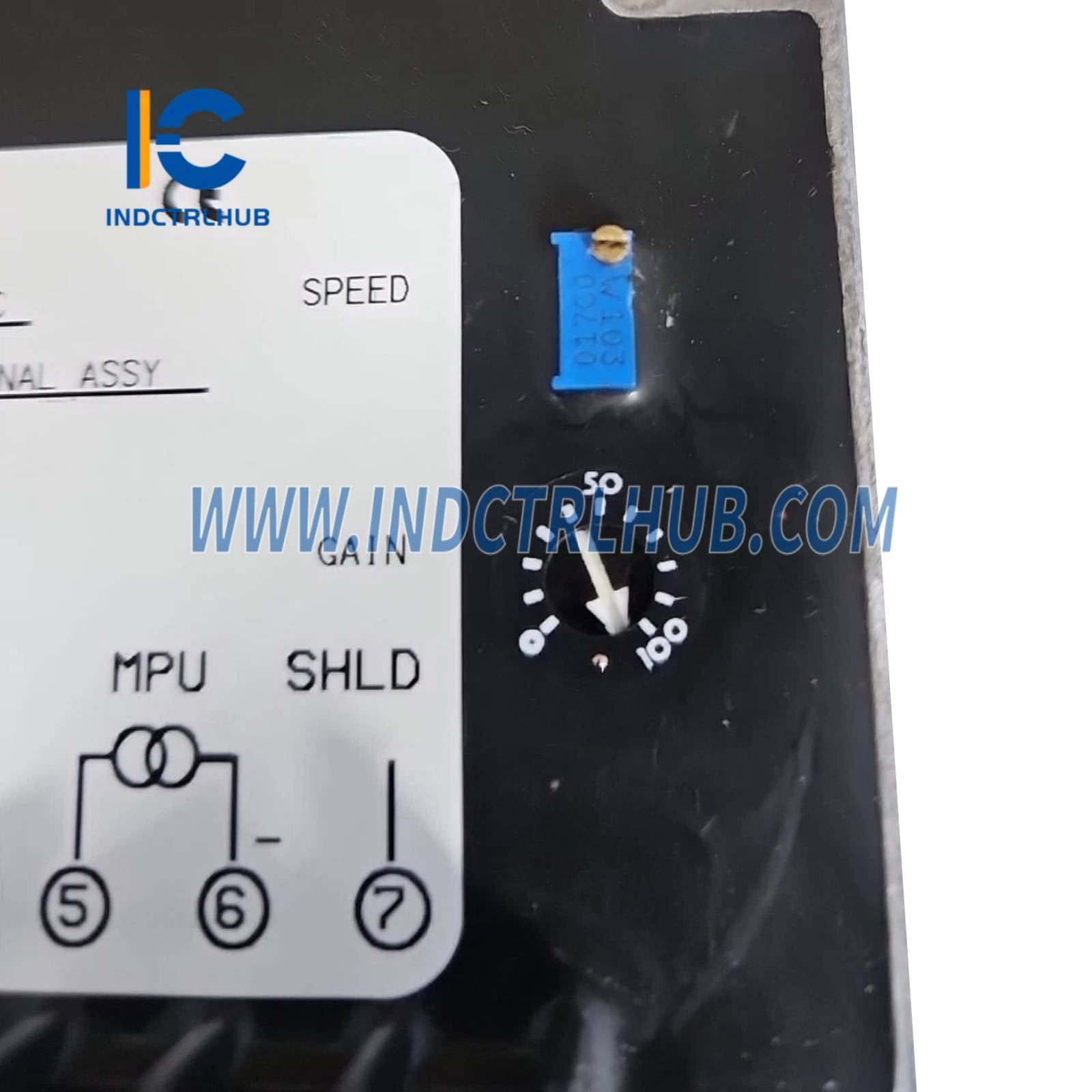

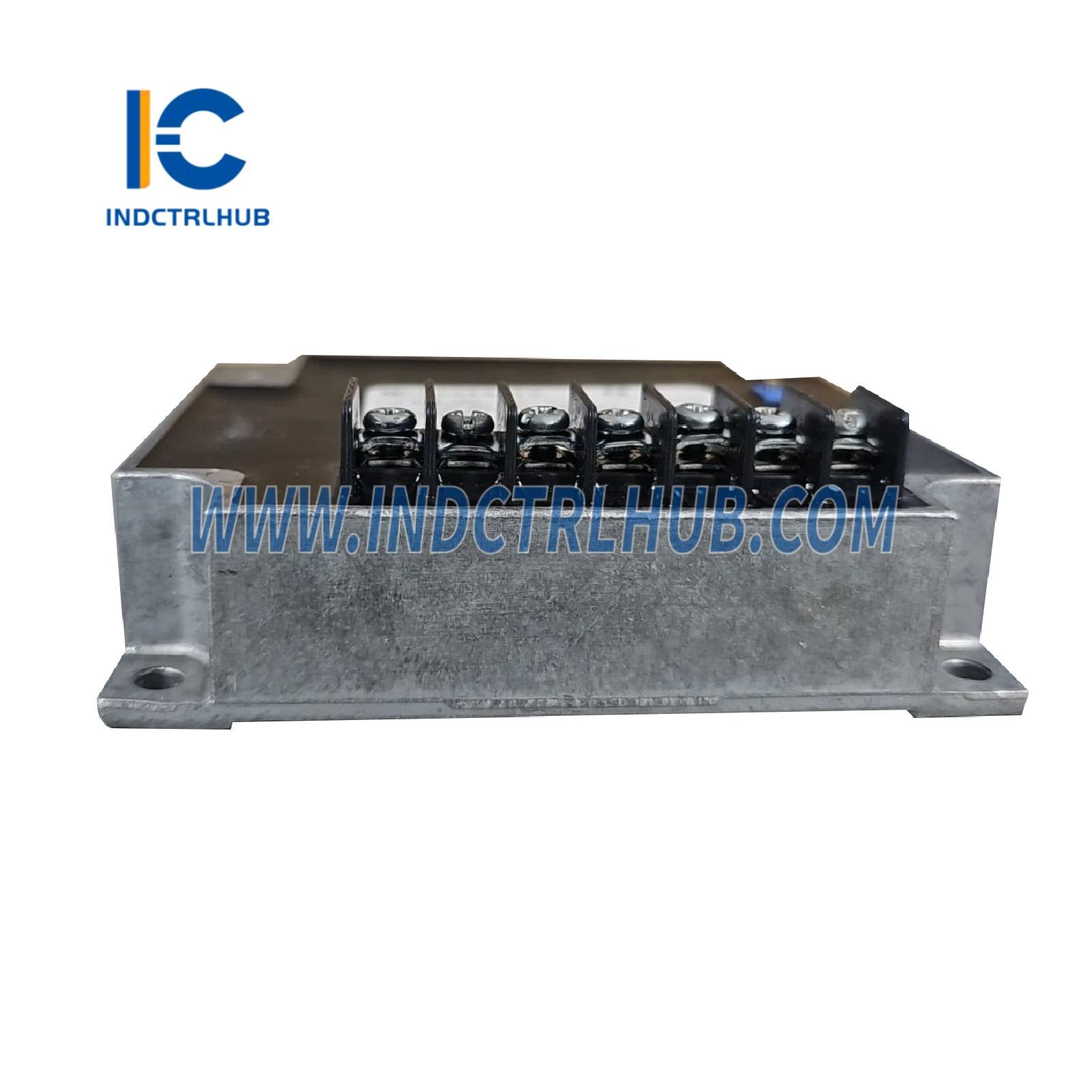

Woodward DYN1-10784-003-0-12 Electronic Governor
Product Overview
- The Woodward DYN1-10784-003-0-12 is an Electronic Governor designed for precise speed control of small to medium-sized diesel, gas, or gasoline engines in industrial applications such as generator sets, pumps, compressors, and marine propulsion systems. Part of Woodward’s DYN1 series, this analog governor provides reliable speed regulation and isochronous operation to maintain consistent engine speed under varying load conditions. The DYN1-10784-003-0-12 is configured for 12 VDC operation and includes specific calibration settings for actuator compatibility (denoted by the part number suffix). It features a compact design and robust construction for reliable performance in harsh environments. Compared to Woodward’s digital governors (e.g., 8406-121) or genset controllers (e.g., EasyGen-3500-5, 8440-2087), the DYN1-10784-003-0-12 is a simpler, analog-based solution focused solely on engine speed control, not generator or power management. It is distinct from Woodward’s excitation systems (e.g., DECS-100-B15), transfer switch controllers (e.g., DTSC-200), and actuators (e.g., 8408-921).
Technical Specifications
- The DYN1-10784-003-0-12 has the following specifications based on industry sources and Woodward documentation:
| Specification | Details |
|---|---|
| Model/Part Number | DYN1-10784-003-0-12 |
| Manufacturer | Woodward |
| Description | Electronic Governor for Engine Speed Control |
| Series | DYN1 |
| Function | Regulates engine speed via actuator control; supports isochronous operation |
| Control Type | Analog |
| Inputs | 1 speed input (magnetic pickup, 1–30 V RMS, 100–10,000 Hz) 1 analog input (optional, for remote speed adjustment, 0–5 V or 4–20 mA) |
| Outputs | 1 actuator output (compatible with Woodward DYN series actuators, up to 7 A) 1 auxiliary output (optional, for status or alarms) |
| Communication Interfaces | None (analog control, no digital communication) |
| Control Modes | Isochronous speed control; optional droop mode (via external adjustment) |
| Speed Regulation Accuracy | ±0.25% of rated speed (steady-state) |
| Protection Features | Overcurrent protection for actuator output; reverse polarity protection |
| Redundancy | Non-redundant |
| Diagnostics | Basic fault detection (via external indicators); no event logging |
| Compatibility | Compatible with Woodward DYN series actuators (e.g., DYNA 2000, DYNA 7000); works with magnetic pickup speed sensors; suitable for small to medium engines |
| Power Supply | 12 VDC (10–16 VDC range) |
| Power Consumption | Approx. 5–10 W (excluding actuator load) |
| Environmental Specifications | Operating Temperature: -40°C to +85°C (-40°F to +185°F) Storage Temperature: -40°C to +100°C (-40°F to +212°F) Relative Humidity: 5% to 95% non-condensing Vibration: MIL-STD-810 compliant Shock: MIL-STD-810 compliant |
| Enclosure | IP40 (with proper enclosure); ruggedized for industrial use |
| Dimensions | Approx. 150 mm (H) x 100 mm (W) x 50 mm (D) |
| Weight | Approx. 0.5–1 kg |
| Mounting | Panel or chassis-mounted (via mounting tabs) |
| Certifications | CE; UL/CSA (configuration-dependent); marine certifications (e.g., DNV, ABS, configuration-dependent) |
