Product Description

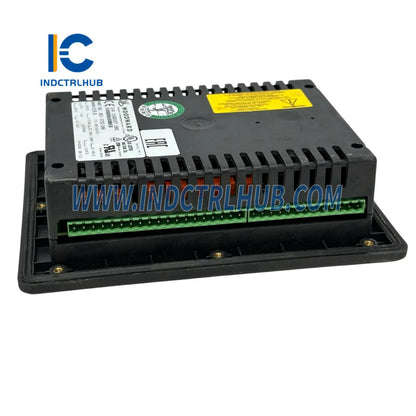

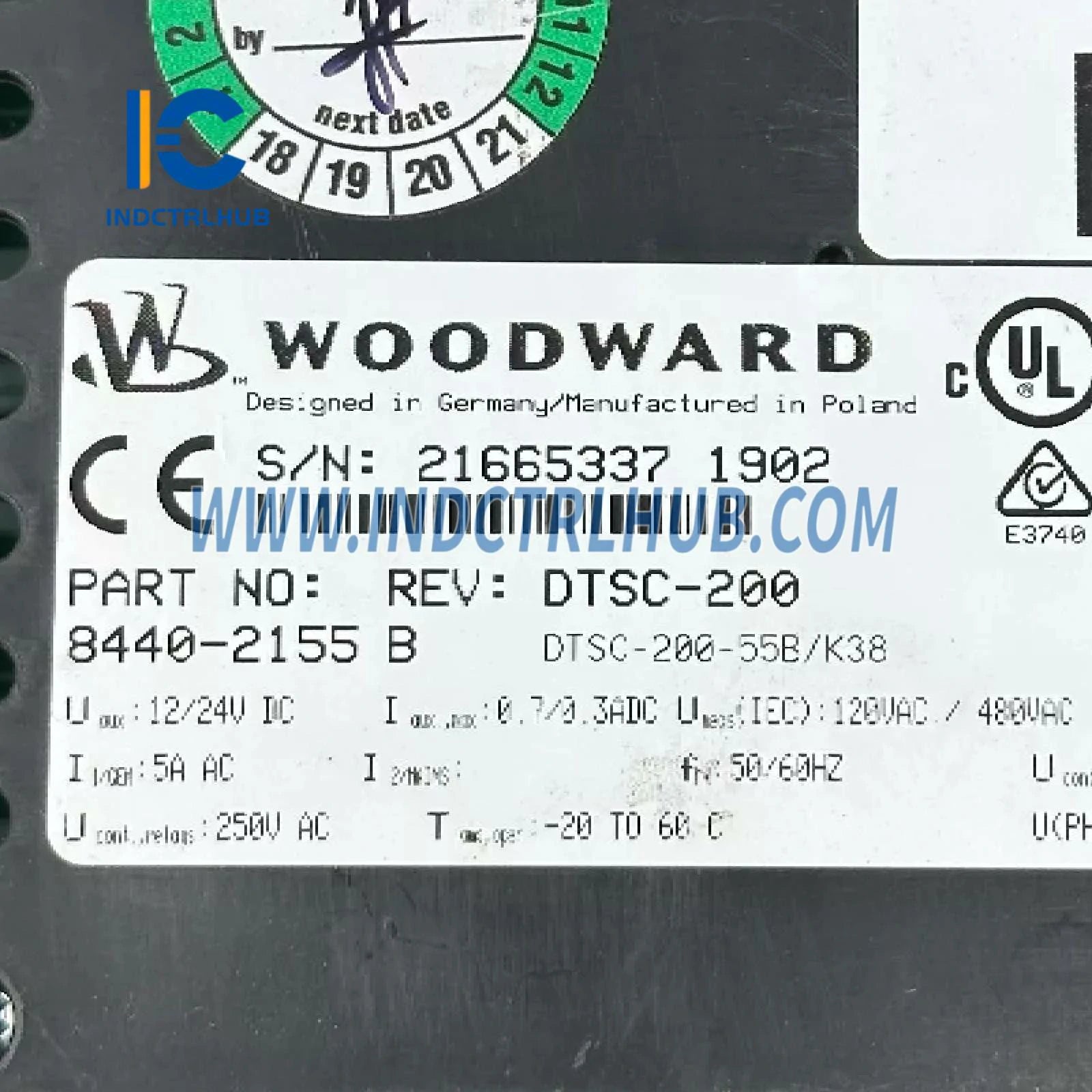

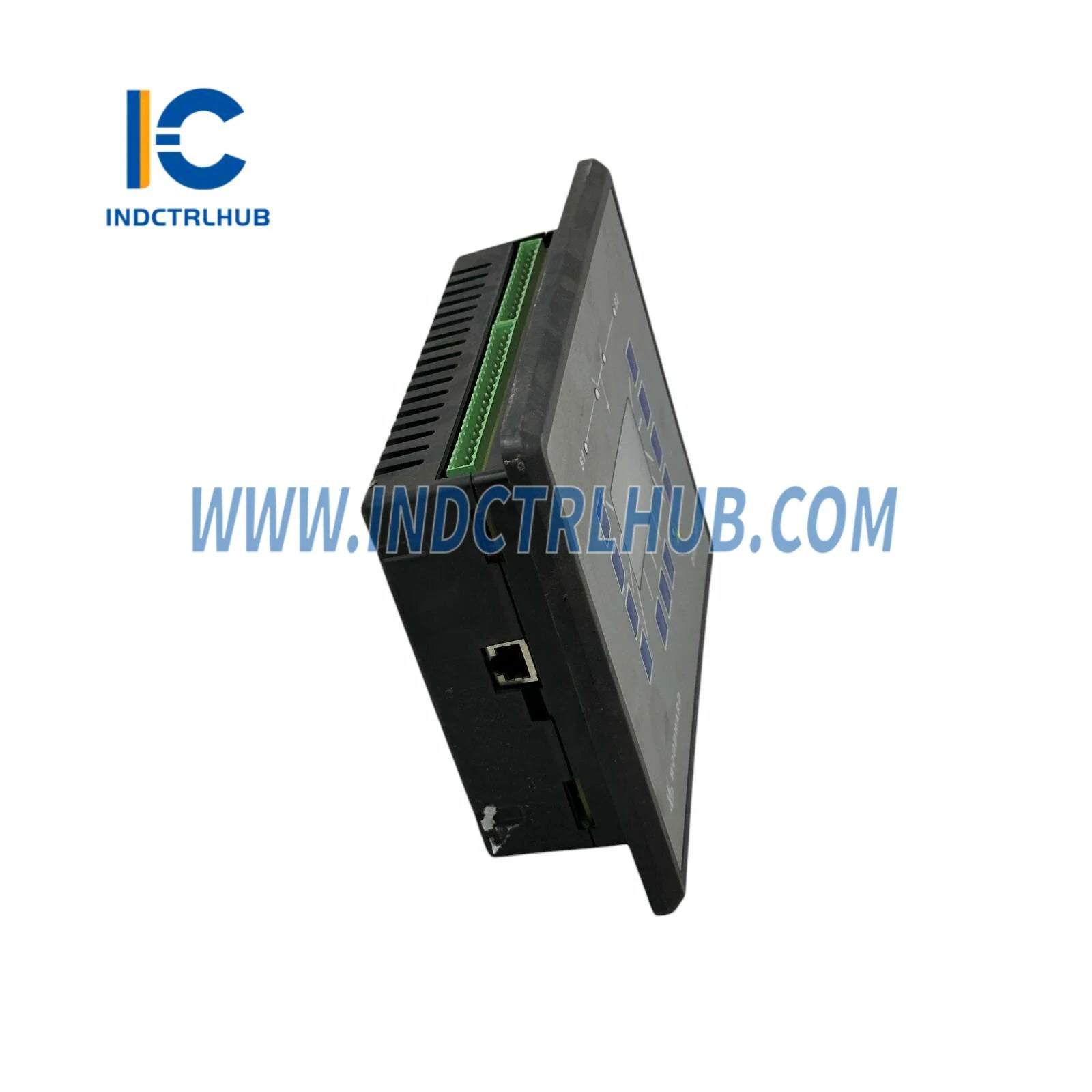

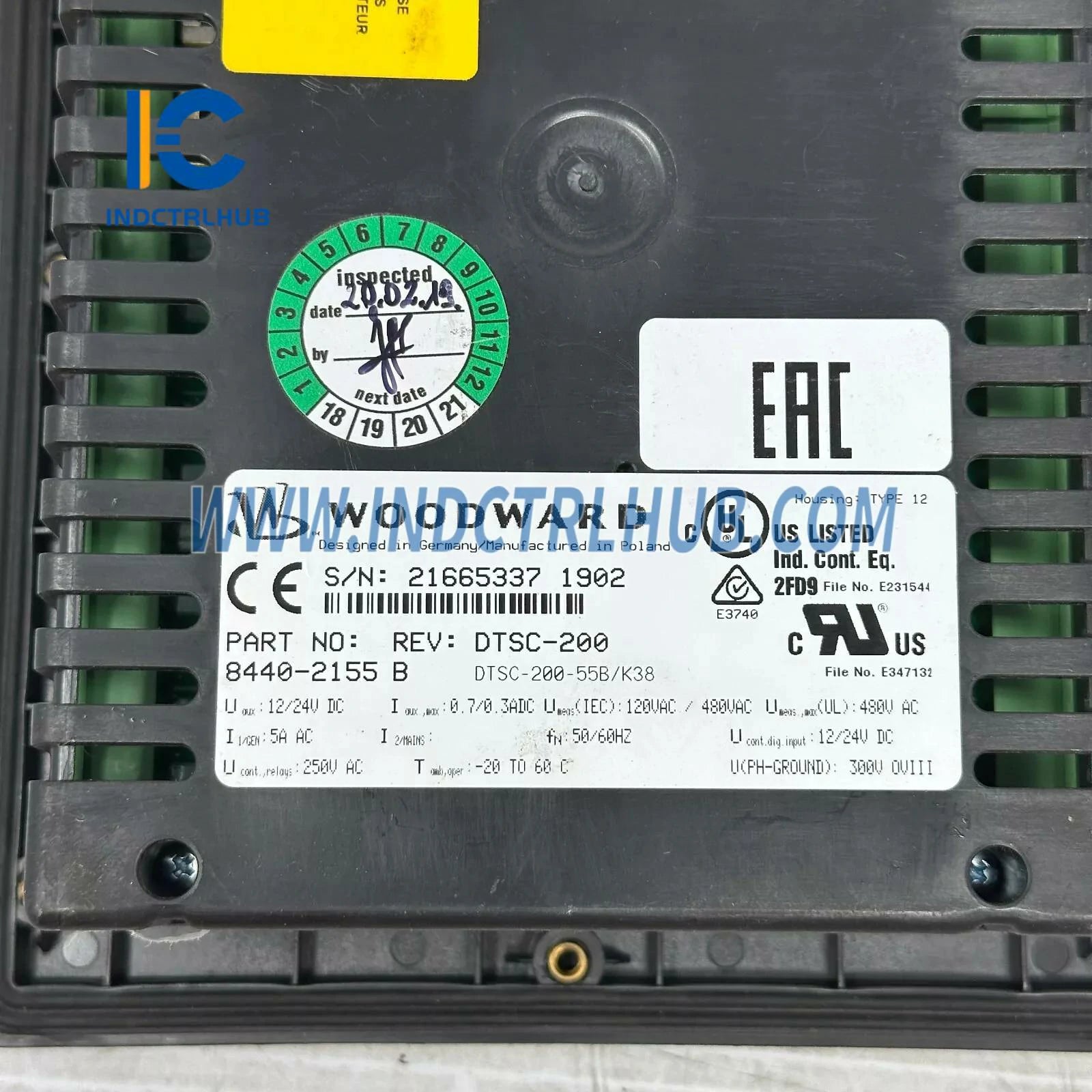

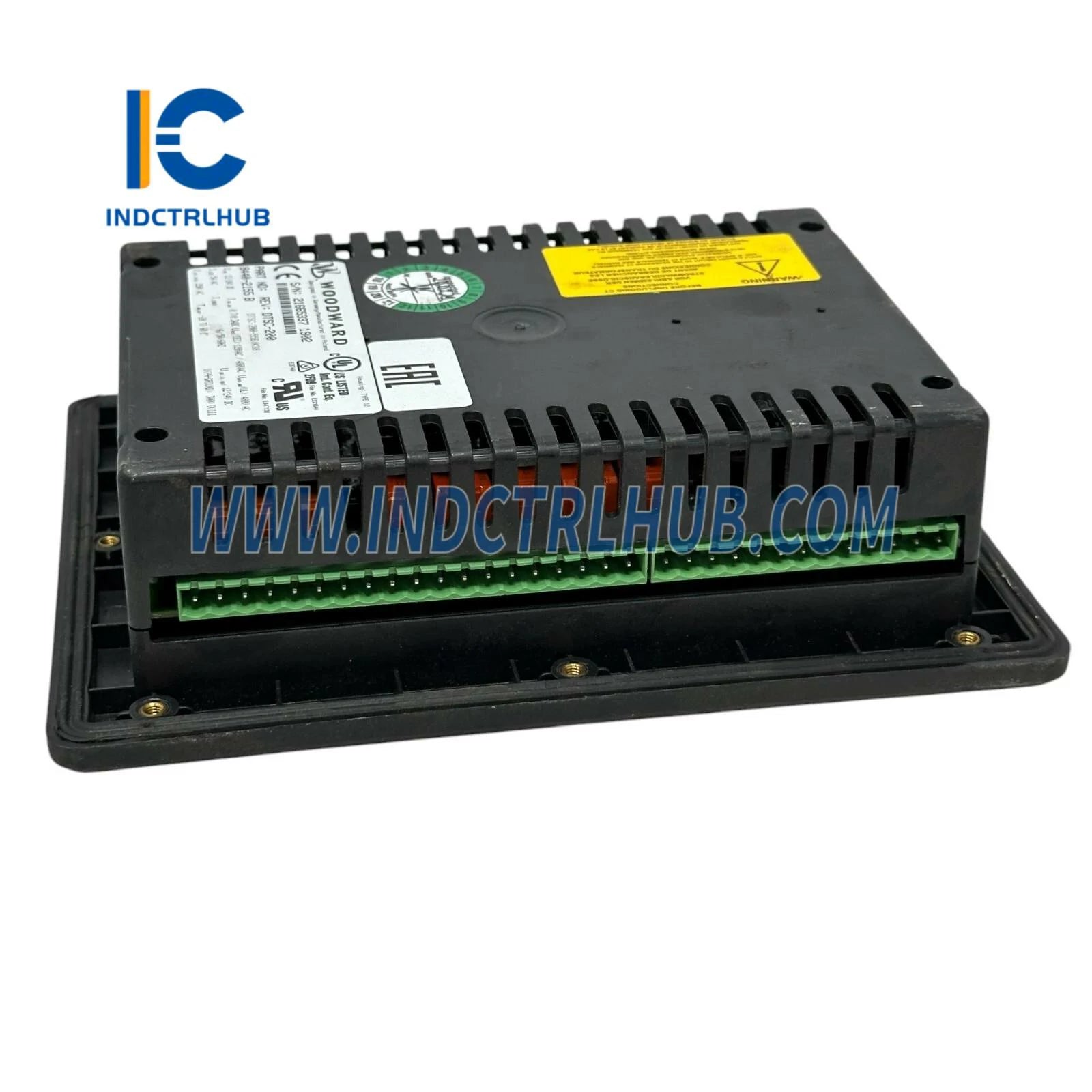

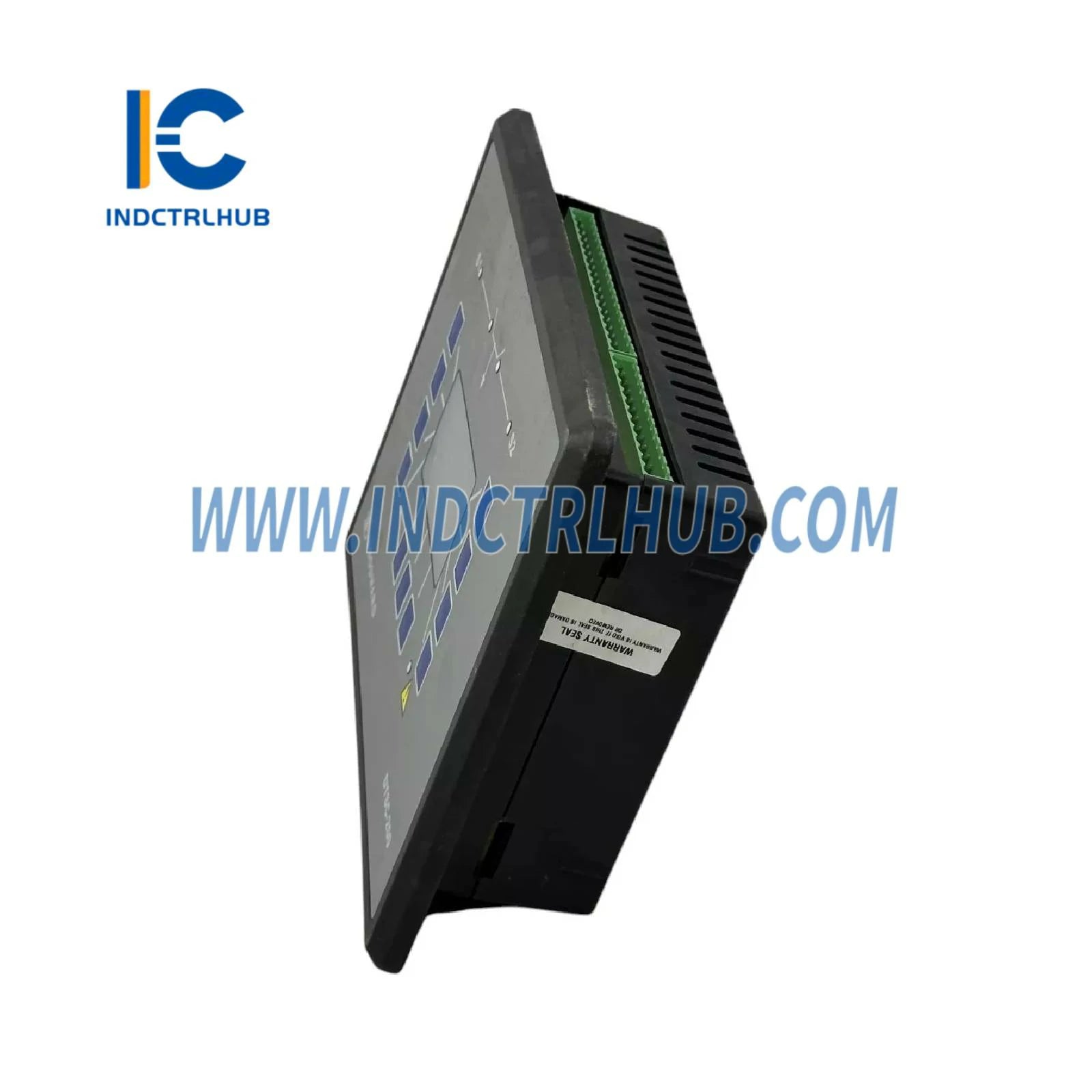

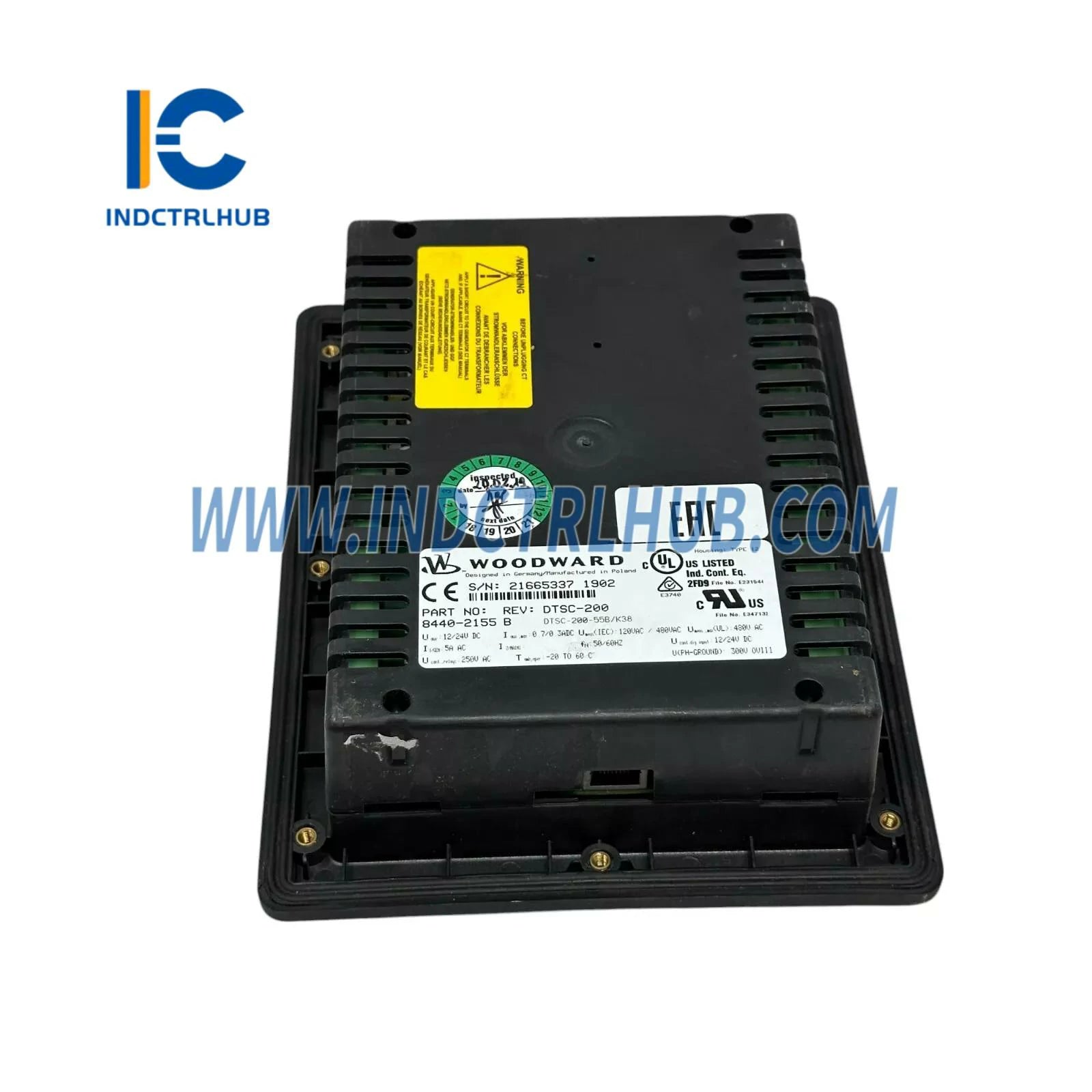

Woodward DTSC-200 Digital Transfer Switch Controller
Product Overview
- The Woodward DTSC-200 is a Digital Transfer Switch Controller designed for automatic control and monitoring of transfer switches in power management systems, such as emergency backup power, industrial power plants, and critical infrastructure applications. This microprocessor-based controller manages the seamless transition between primary (utility) and secondary (generator) power sources, ensuring reliable power supply continuity. The DTSC-200 supports open, closed, and delayed transition transfer modes, making it suitable for a variety of transfer switch configurations. It features a user-friendly interface with a graphical display and robust communication options for integration into complex power systems. Compared to Woodward’s genset controllers (e.g., EasyGen-3500-5, 8440-2087) or excitation systems (e.g., DECS-100-B15), the DTSC-200 focuses specifically on transfer switch control, not engine or generator management. It is distinct from Woodward’s electronic governors (e.g., 8406-121), actuators (e.g., 8408-921), and other modules (e.g., 5466-1510 CPU).
Technical Specifications
- The DTSC-200 has the following specifications based on industry sources and Woodward documentation:
| Specification | Details |
|---|---|
| Model/Part Number | DTSC-200 |
| Manufacturer | Woodward |
| Description | Digital Transfer Switch Controller for Automatic Transfer Switches |
| Series | DTSC (Digital Transfer Switch Control) |
| Function | Controls and monitors automatic transfer switches; manages power source transitions |
| Processor | Microprocessor-based (specific architecture not publicly detailed) |
| Memory | Flash: 8–16 MB (for firmware and configuration) RAM: 4–8 MB (for runtime data) |

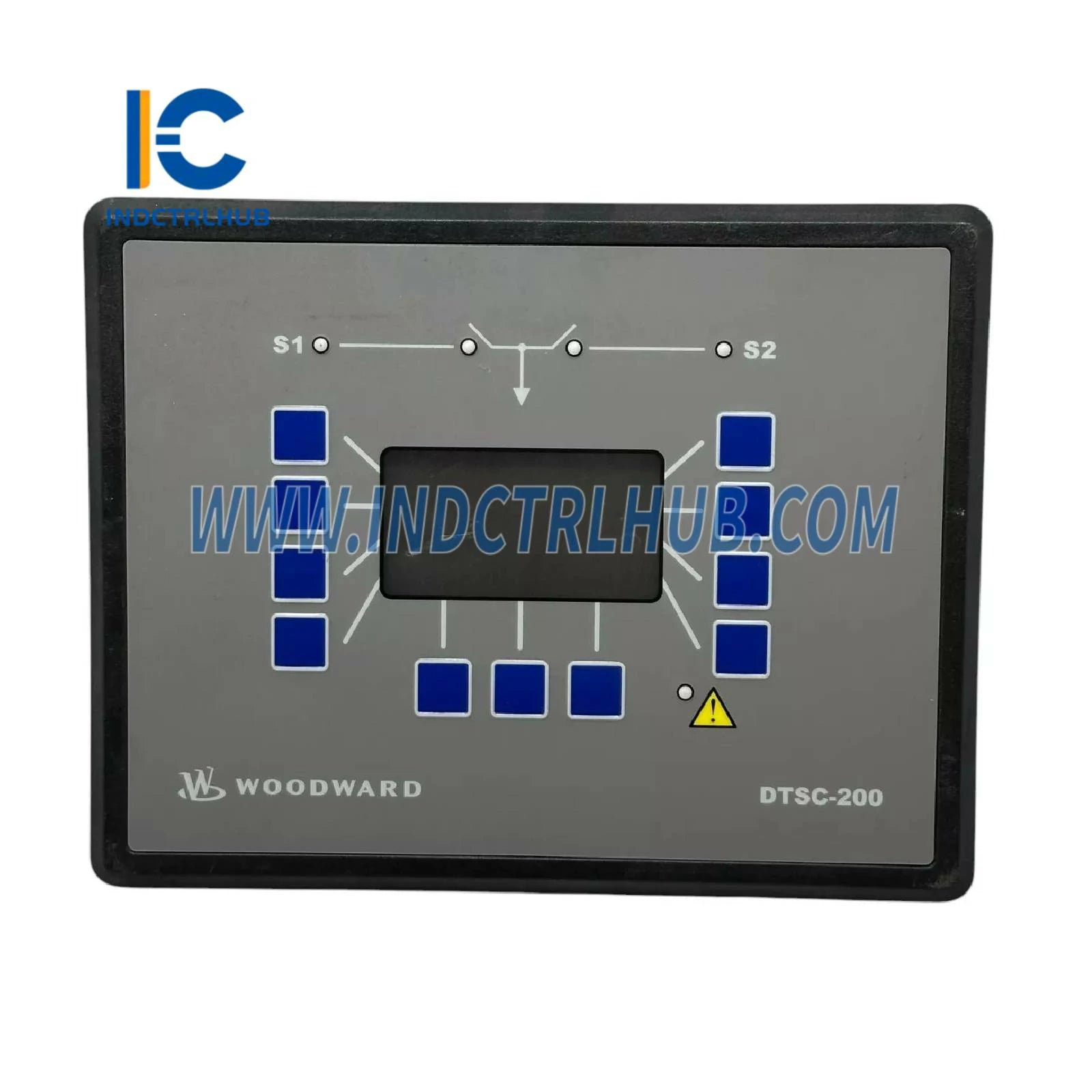

| Display | Graphical LCD, 128x64 pixels, multilingual interface |
| Inputs | 3-phase voltage sensing for two sources (utility and generator, up to 600 VAC) 3-phase current sensing (1 A or 5 A CTs, optional) 8 discrete inputs (24 VDC) |
| Outputs | 6 relay outputs (dry contact, up to 250 VAC/5 A) 2 analog outputs (4–20 mA, optional) |
| Communication Interfaces | 1 serial port (RS-485, Modbus RTU) 1 CANbus port (for integration with genset controllers) Ethernet (optional, Modbus TCP) USB (for configuration) |
| Control Modes | Open transition, closed transition, delayed transition; auto/manual transfer |
| Transfer Time | Configurable, typically 0–30 seconds (delayed transition) |
| Protection Features | Overvoltage, undervoltage, overfrequency, underfrequency, phase loss, phase rotation mismatch |
| Redundancy | Non-redundant |
| Diagnostics | Fault detection, event logging (up to 500 events), real-time data trending, status LEDs |
| Compatibility | Compatible with Woodward genset controllers (e.g., EasyGen-3200-5, 8440-2050), third-party transfer switches, and SCADA systems via Modbus or CANbus |
| Power Supply | 12–36 VDC (24 VDC nominal) or 120–240 VAC (50/60 Hz) |
| Power Consumption | Approx. 10–20 W |
| Environmental Specifications | Operating Temperature: -20°C to +70°C (-4°F to +158°F) Storage Temperature: -30°C to +80°C (-22°F to +176°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant Shock: IEC 60068-2-27 compliant |
| Enclosure | IP54 (front panel, when properly mounted); IP20 (rear) |
| Dimensions | Approx. 219 mm (H) x 171 mm (W) x 61 mm (D) |
| Weight | Approx. 1.5–2 kg |
| Mounting | Panel-mounted (cutout dimensions per manual) |
| Certifications | CE, UL, CSA, marine certifications (e.g., DNV, ABS, configuration-dependent) |
