| Specification |
Details |
| Model |
9907-345 |
| Series |
ProTech 203 |
| Type |
Overspeed protection system |
| Power Supply |
24 VDC, 1 A per module (3 modules) |
| Speed Inputs |
3 Magnetic Pickup Units (MPUs), 100 Hz–32 kHz, 1–60 Vrms |
| Speed Range |
100–25,000 rpm (programmable MPU fail timeout) |
| Trip Configuration |
De-energize-to-trip, 2-out-of-3 voting |
| Outputs |
2 voter relays per module (6 total), Form C, 5 A at 250 VAC |
| Alarm Outputs |

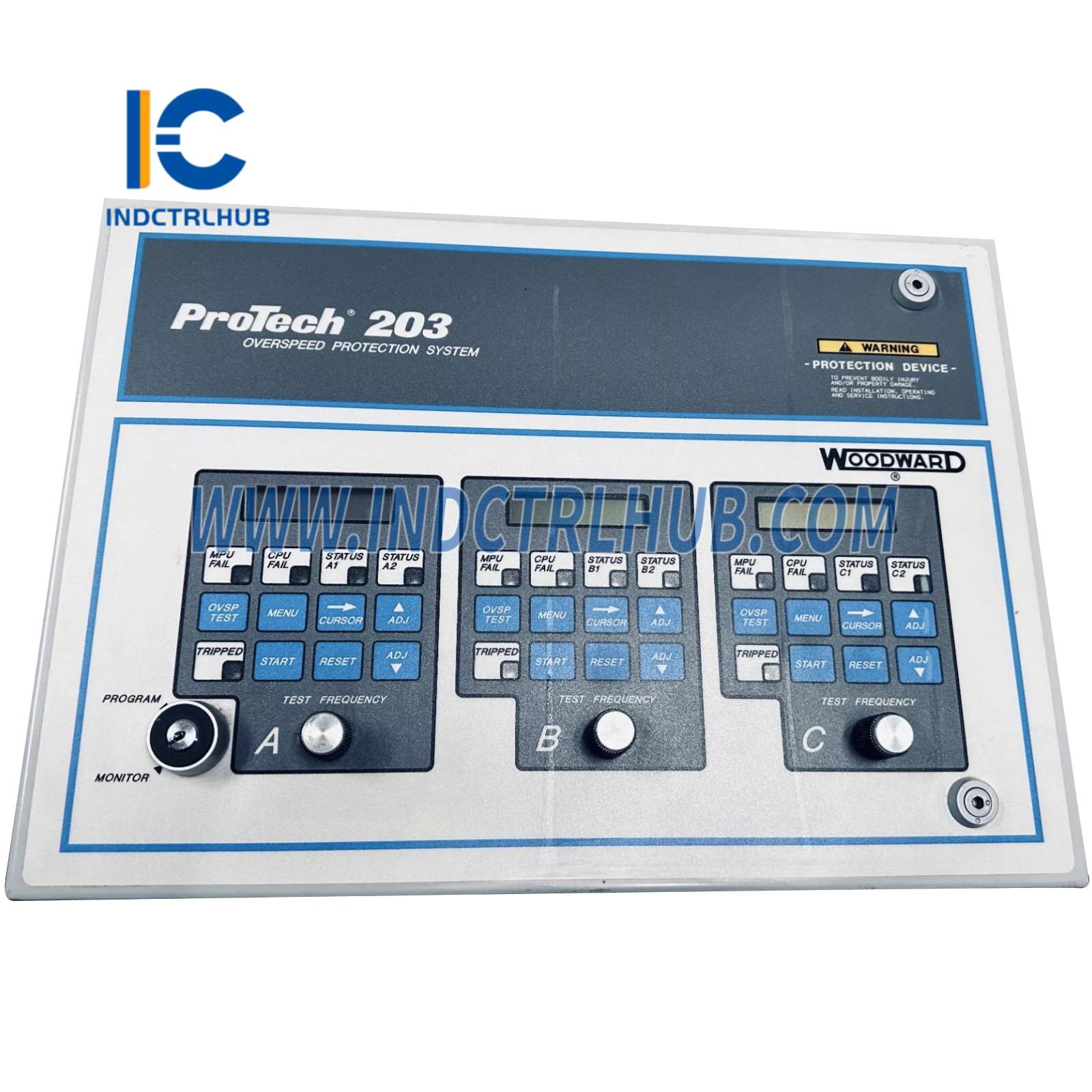

Visual (LEDs) and audible alarms, LCD display for error messages |
| Features |
Hot replacement, built-in self-test, remote reset, MPU fail timer |
| Display |
LCD per module (error codes: MPU fail, CPU failure, etc.) |
| Operating Temperature |
-25°C to +60°C (-13°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Relative Humidity |
5% to 95%, non-condensing |
| Vibration |
4 G, 10–2000 Hz |
| Shock |
30 G peak |
| Enclosure |
NEMA 4/4X (dust-tight, watertight) |
| Dimensions |
483 mm x 311 mm x 143 mm (19 in x 12.244 in x 5.62 in) |
| Weight |
< 14 lbs (6.35 kg) |
| Mounting |
Panel mount |
| Certifications |
CE, UL/cUL, Class 1 Div. 2 (Groups A, B, C, D) |
| System Compatibility |
Woodward 505/505E, MicroNet, diesel/gas engines, turbines |
