| Specification |
Details |
| Model |

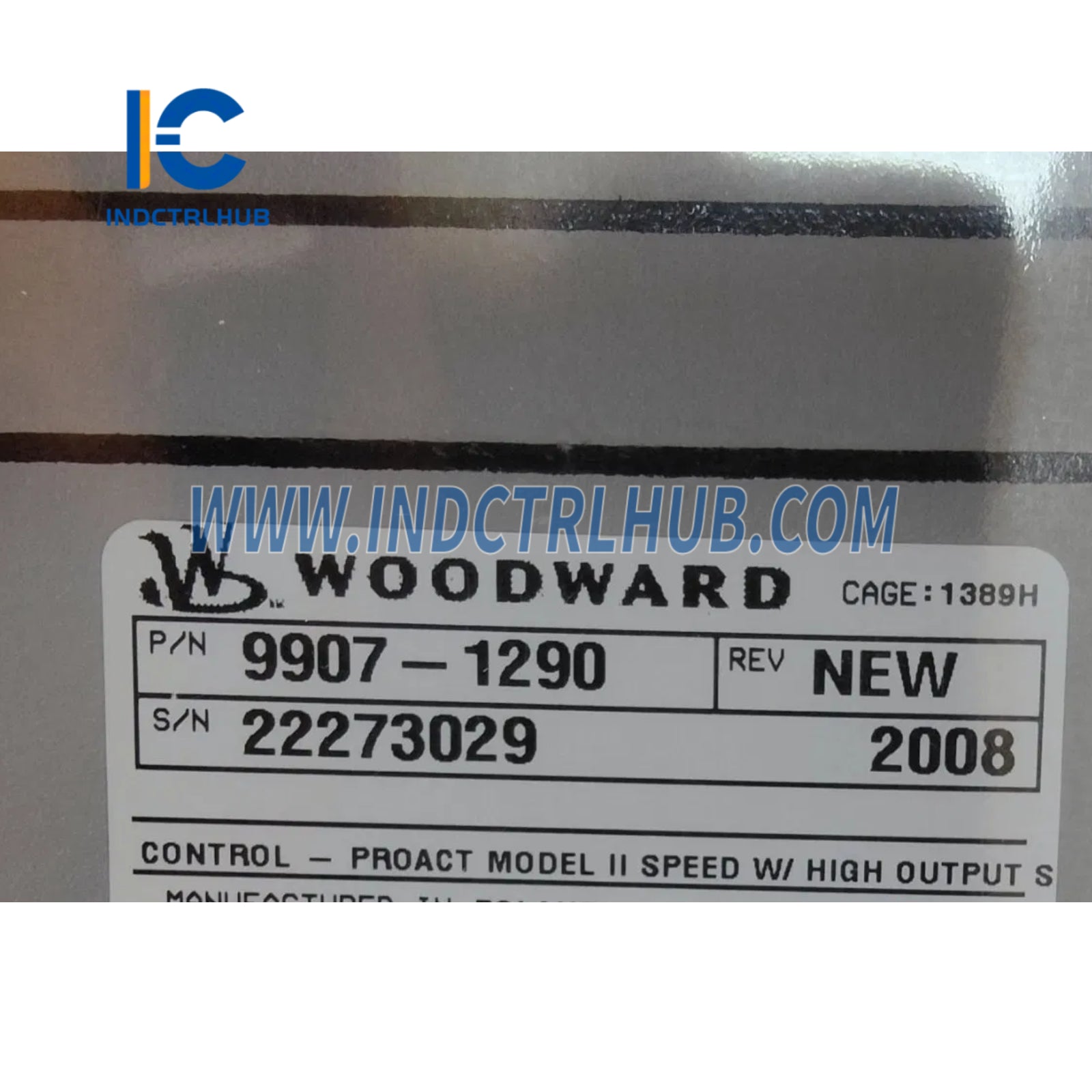

9907-1290 |
| Series |

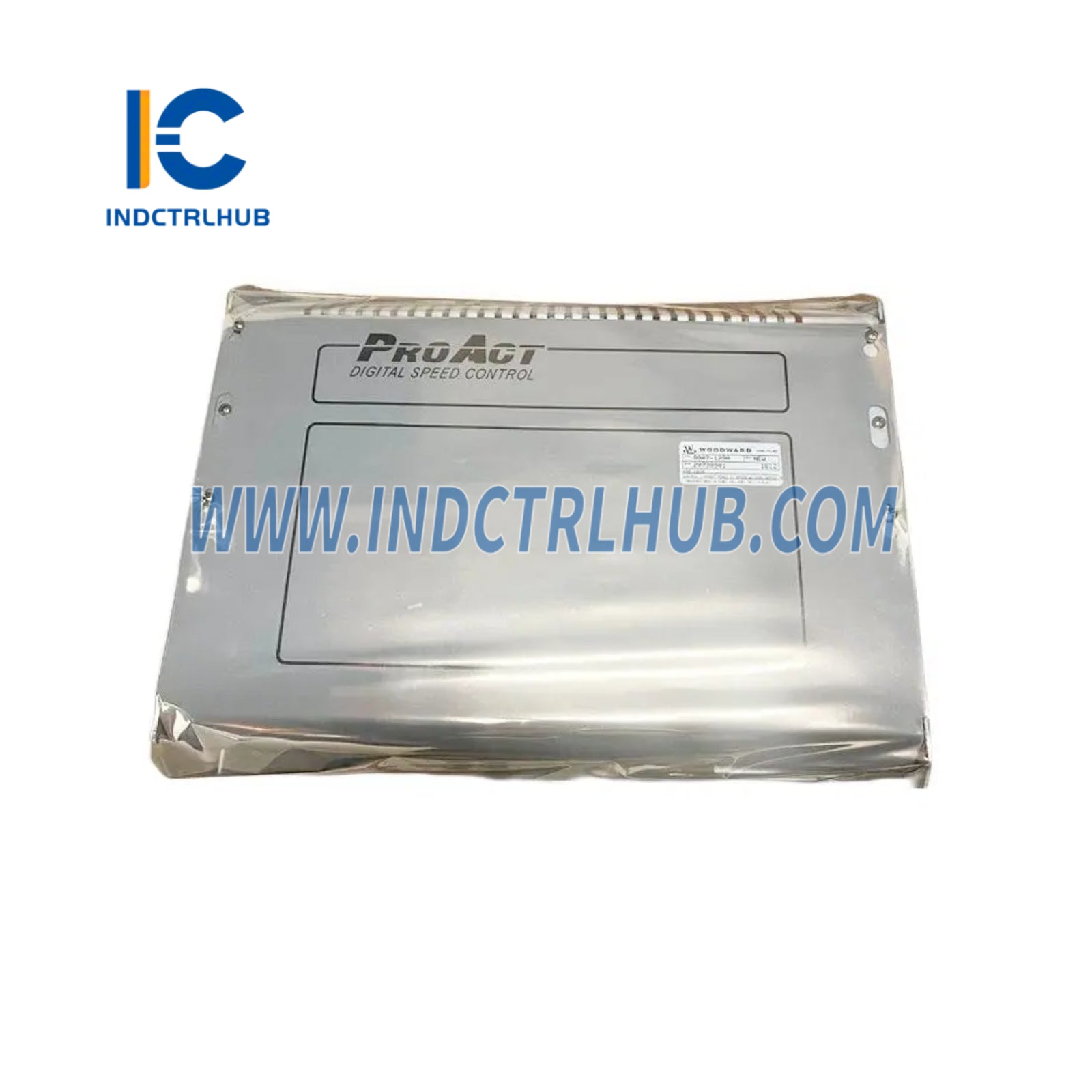

ProAct II |
| Type |
Digital speed control |
| Power Supply |
12–32 VDC, approximately 5 W |
| Speed Sensor |
Magnetic Pickup Unit (MPU), 1–60 Vrms, 200 Hz–15 kHz, high output circuit |
| Control Signal |
4–20 mA or ±2.5 VDC (configurable) |
| Actuator Output |
0–200 mA, compatible with ProAct II actuators |
| Control Modes |
Isochronous or droop |
| Discrete Inputs |
4 channels, optically isolated, 12–32 VDC |
| Analog Inputs |
2 channels, differential, 4–20 mA or ±2.5 VDC |
| Operating Temperature |
-40°C to +70°C (-40°F to +158°F) |
| Storage Temperature |
-55°C to +105°C (-67°F to +221°F) |
| Relative Humidity |
5% to 95%, non-condensing |
| Vibration |
5 G, 10–2000 Hz |
| Shock |
50 G, 11 ms half-sine |
| Protection Rating |
IP56 (when properly enclosed) |
| Dimensions |
Approximately 254 mm x 178 mm x 51 mm (10 in x 7 in x 2 in) |
| Weight |
Approximately 1.8 kg (4 lbs) |
| Mounting |
Panel or chassis mount |
| Certifications |
CE, UL/cUL, marine approvals (e.g., ABS, DNV) |
| System Compatibility |
ProAct II actuators, Woodward load sensors, SPM-A synchronizers, diesel/gas engines, turbines |
