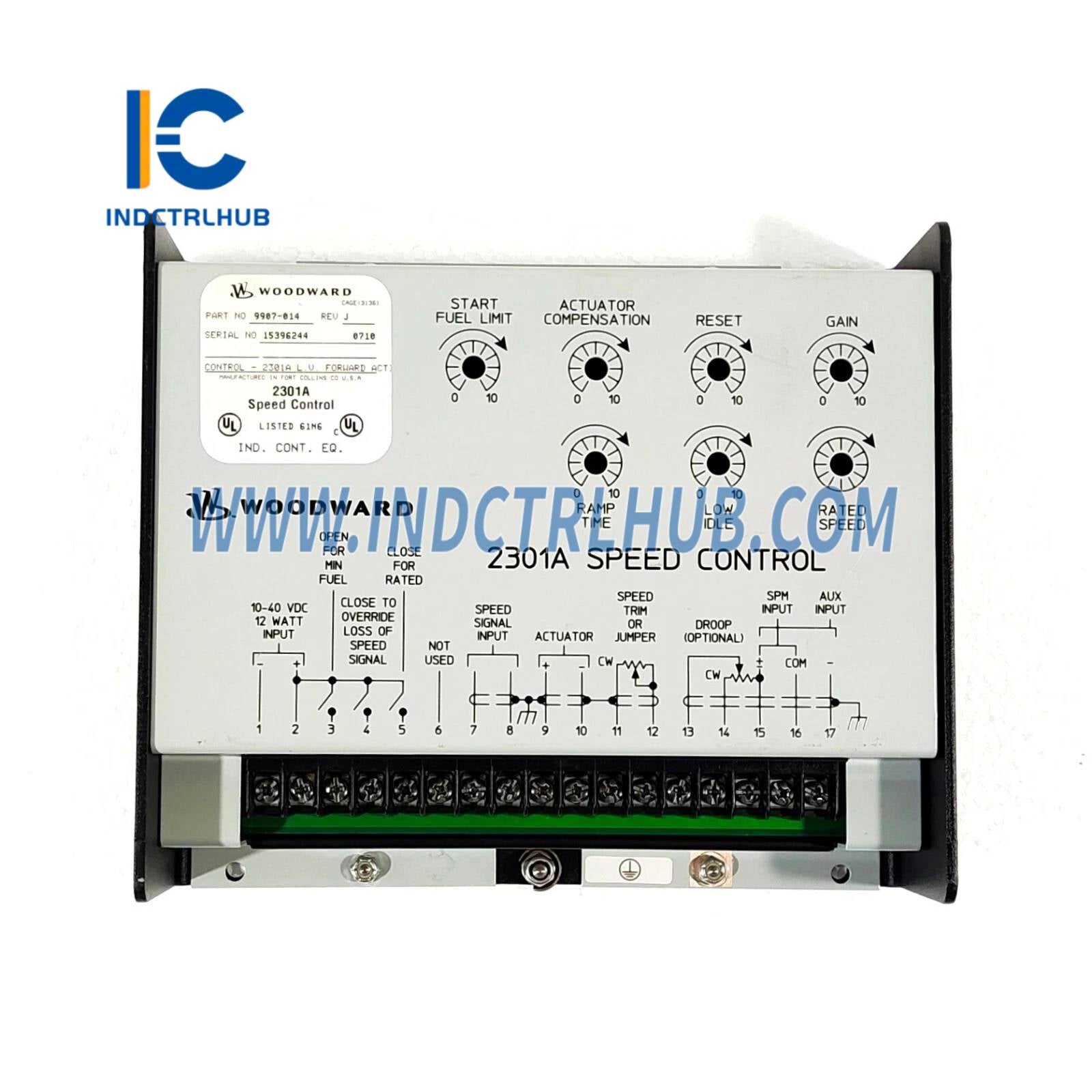

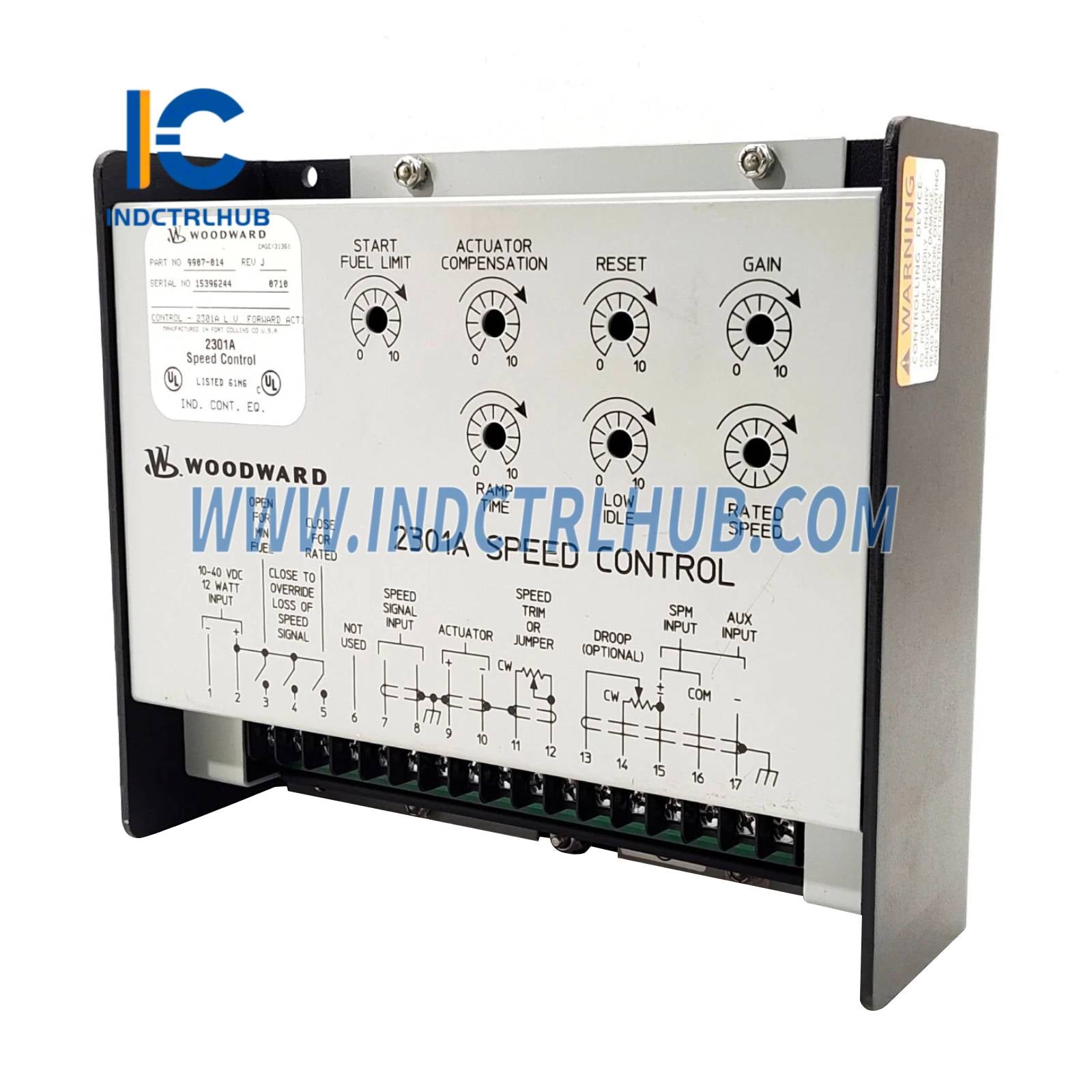

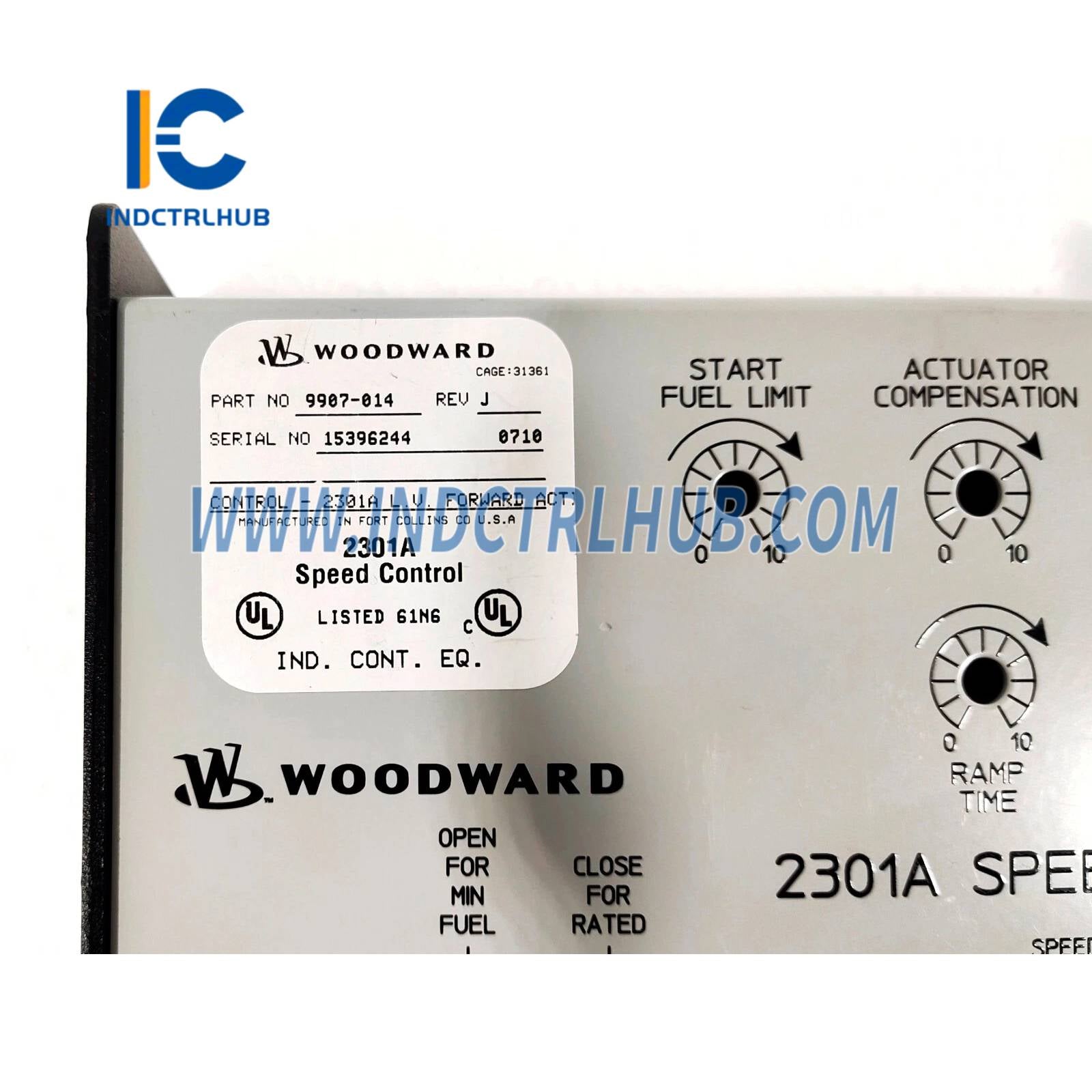

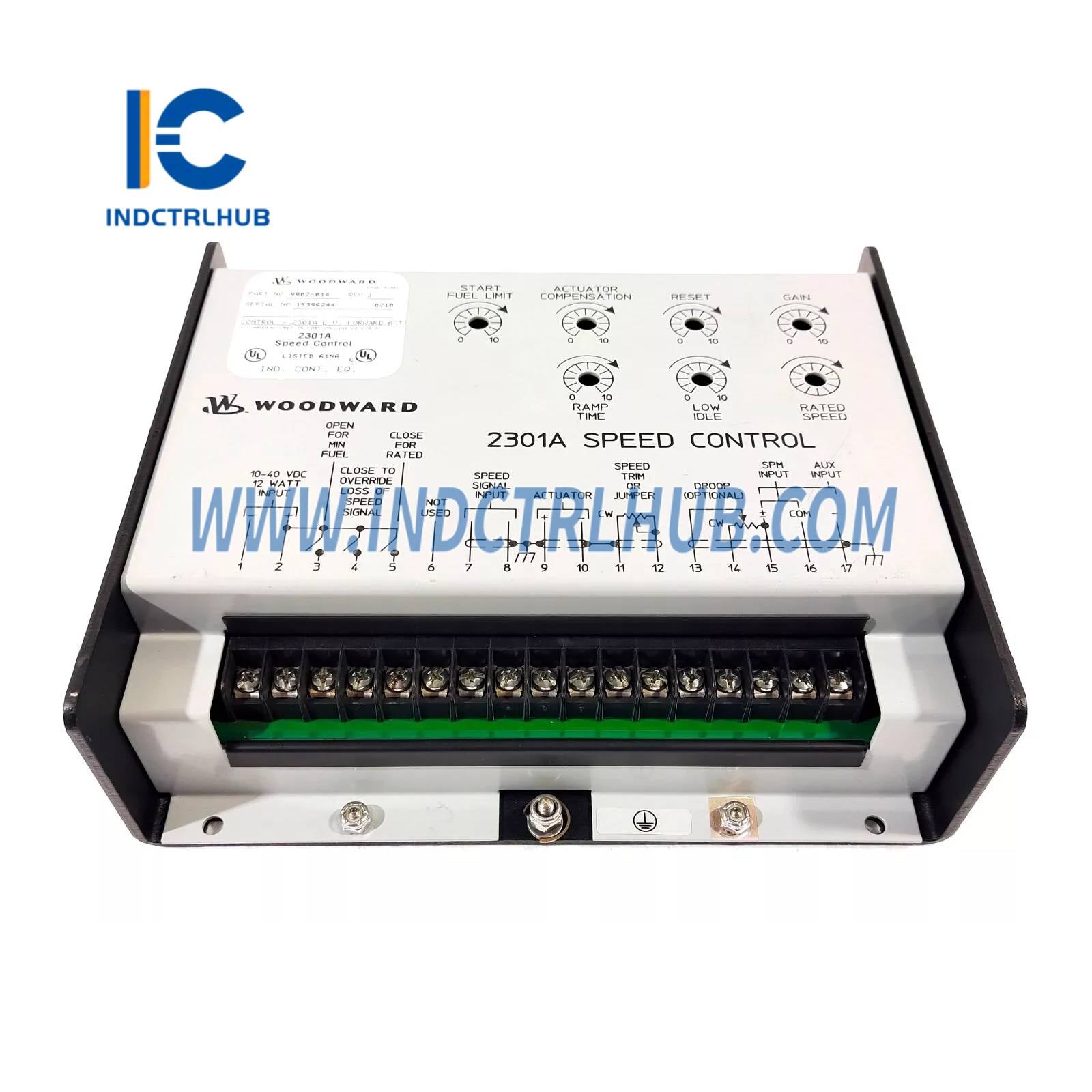

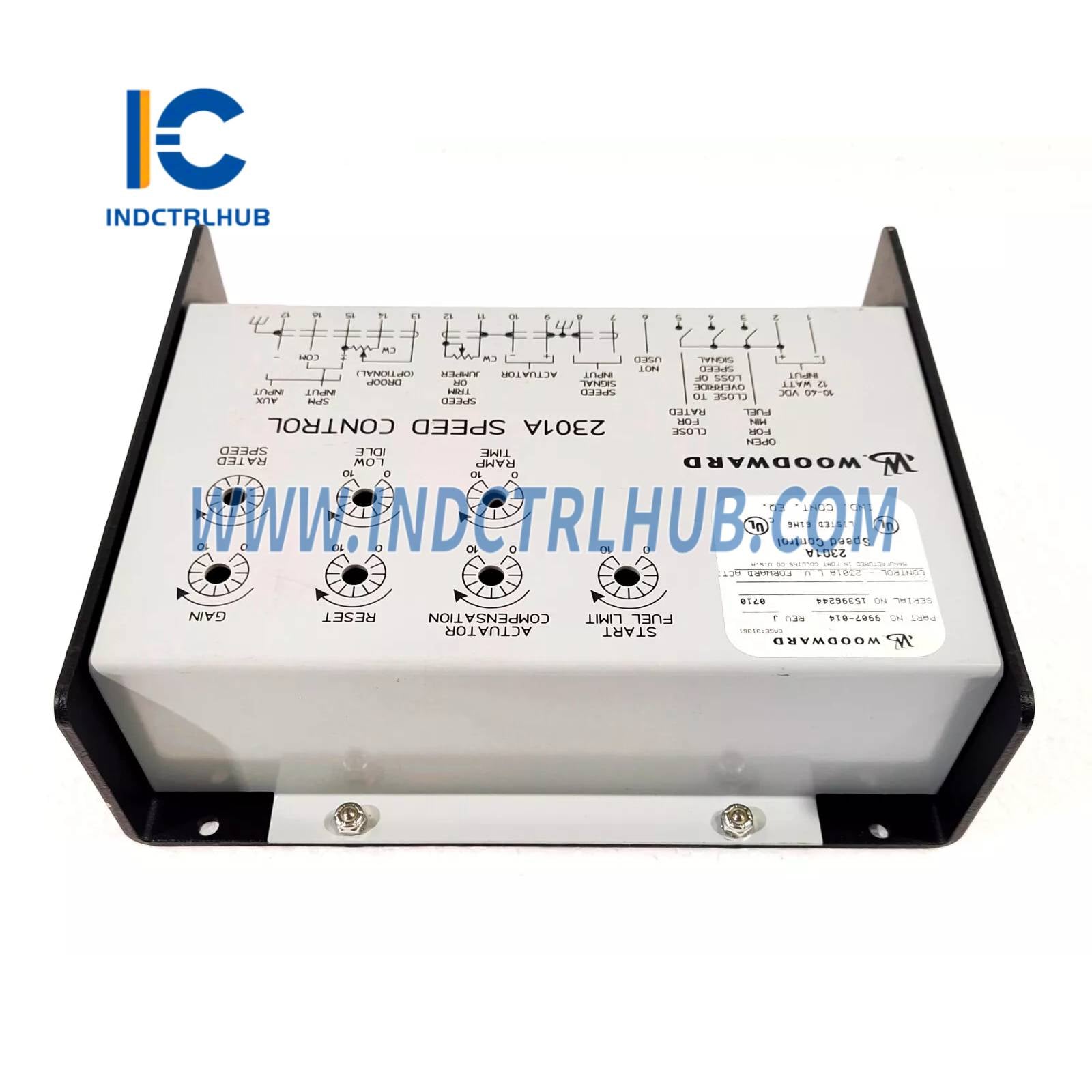

Woodward 9907-014 2301A Speed Control

Quantity

Manufacturer: Woodward
Model/Part Number: 9907-014
Description: 2301A Speed Control, Low Voltage, Forward Acting, 10–40 VDC, 0–200 mA Actuator Current, 4–20 mA or 1–5 VDC Control Signal, for Diesel/Gas Engines and Steam/Gas Turbines

The Woodward 9907-014 is a 2301A series speed control module designed for precise speed regulation of diesel or gas engines, or steam or gas turbines, in industrial, marine, and power generation applications. It operates as a standalone speed control system, focusing on maintaining engine or turbine speed without load-sharing capabilities, unlike other 2301A models.

Specification	Details
Model	9907-014
Series	2301A Speed Control
Type	Electronic speed control
Power Supply	10–40 VDC, < 12 W nominal
Control Signal	4–20 mA or 1–5 VDC
Actuator Current	0–200 mA
Action	Forward acting
Speed Sensor	Magnetic Pickup Unit (MPU), 100–300 Ω impedance, 1.0 V at cranking speed, 1–30 Vrms at rated speed
Speed Range	Configurable via internal settings, typically 500–12,000 Hz
Control Mode	Isochronous (constant speed)
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-55°C to +105°C (-67°F to +221°F)
Relative Humidity	5% to 95%, non-condensing
Vibration	4 G, 5–500 Hz
Shock	20 G peak
Protection Rating	Not specified (designed for control cabinet use)
Dimensions	219 mm x 184 mm x 64 mm (8.625 in x 7.25 in x 2.5 in)
Weight	Approximately 1.22 kg (2.69 lbs)
Mounting	Panel mount, sheet-metal chassis
Terminals	Screw clamp terminals
Certifications	CSA certified, CE marked (for ordinary locations)
System Compatibility	Diesel/gas engines, steam/gas turbines, Woodward EG, EGB, PB, TM, 2301 actuators, SPM-A synchronizers

Product Description

Manufacturer: Woodward
Model/Part Number: 9907-014
Description: 2301A Speed Control, Low Voltage, Forward Acting, 10–40 VDC, 0–200 mA Actuator Current, 4–20 mA or 1–5 VDC Control Signal, for Diesel/Gas Engines and Steam/Gas Turbines

The Woodward 9907-014 is a 2301A series speed control module designed for precise speed regulation of diesel or gas engines, or steam or gas turbines, in industrial, marine, and power generation applications. It operates as a standalone speed control system, focusing on maintaining engine or turbine speed without load-sharing capabilities, unlike other 2301A models.

Specification	Details
Model	9907-014
Series	2301A Speed Control
Type	Electronic speed control
Power Supply	10–40 VDC, < 12 W nominal
Control Signal	4–20 mA or 1–5 VDC
Actuator Current	0–200 mA
Action	Forward acting
Speed Sensor	Magnetic Pickup Unit (MPU), 100–300 Ω impedance, 1.0 V at cranking speed, 1–30 Vrms at rated speed
Speed Range	Configurable via internal settings, typically 500–12,000 Hz
Control Mode	Isochronous (constant speed)
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Storage Temperature	-55°C to +105°C (-67°F to +221°F)
Relative Humidity	5% to 95%, non-condensing
Vibration	4 G, 5–500 Hz
Shock	20 G peak
Protection Rating	Not specified (designed for control cabinet use)
Dimensions	219 mm x 184 mm x 64 mm (8.625 in x 7.25 in x 2.5 in)
Weight	Approximately 1.22 kg (2.69 lbs)
Mounting	Panel mount, sheet-metal chassis
Terminals	Screw clamp terminals
Certifications	CSA certified, CE marked (for ordinary locations)
System Compatibility	Diesel/gas engines, steam/gas turbines, Woodward EG, EGB, PB, TM, 2301 actuators, SPM-A synchronizers
