| Specification |
Details |

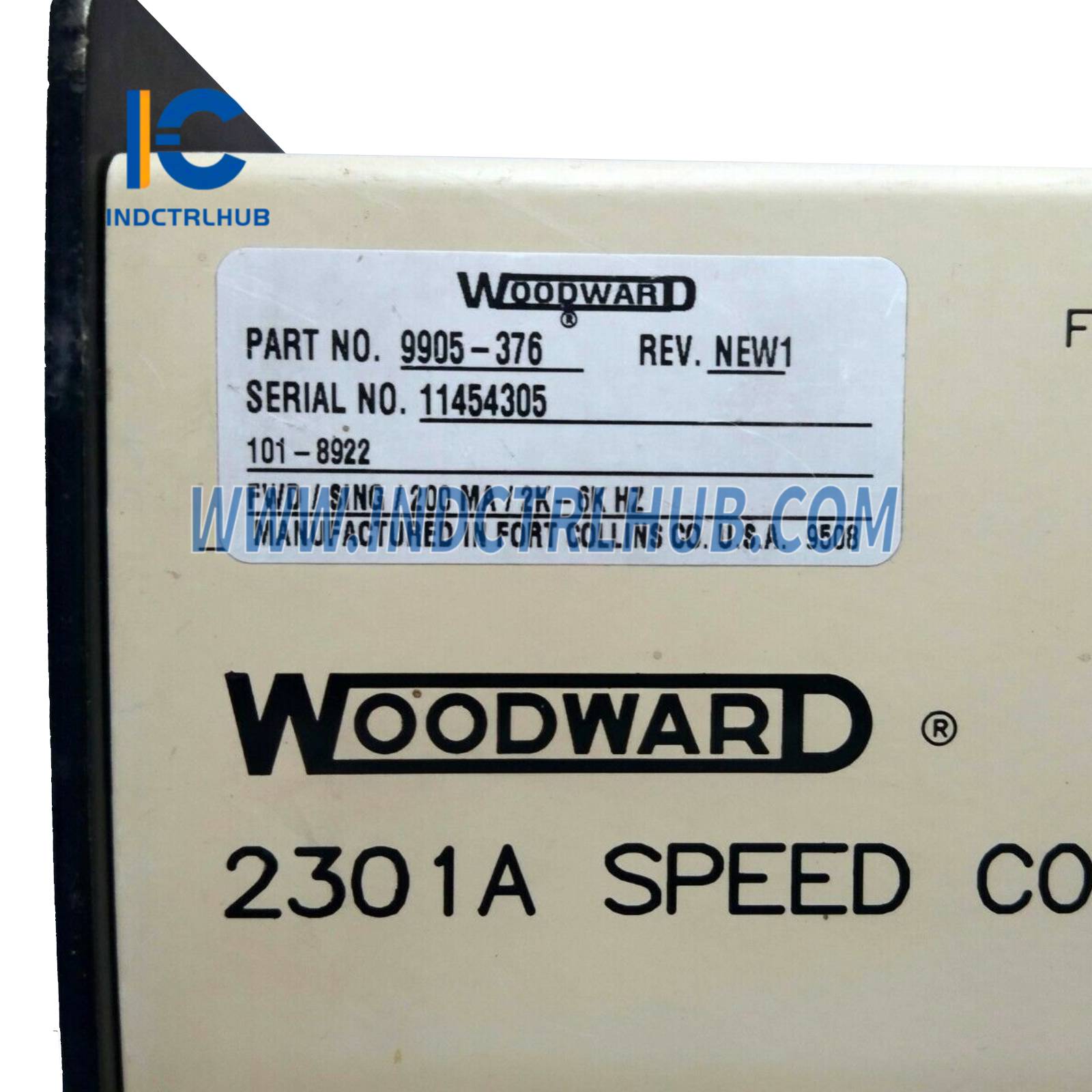

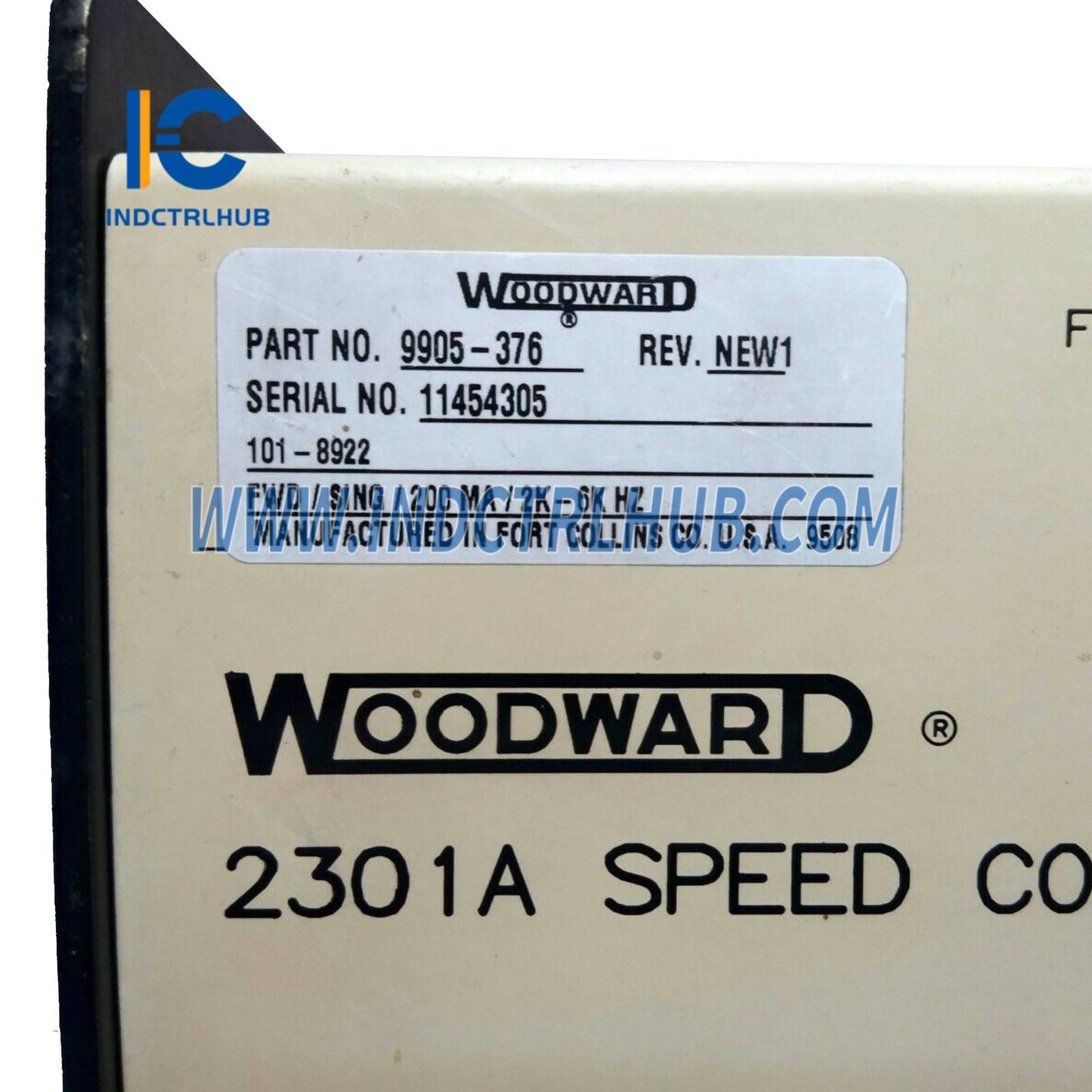

| Model |
9905-376 |
| Series |

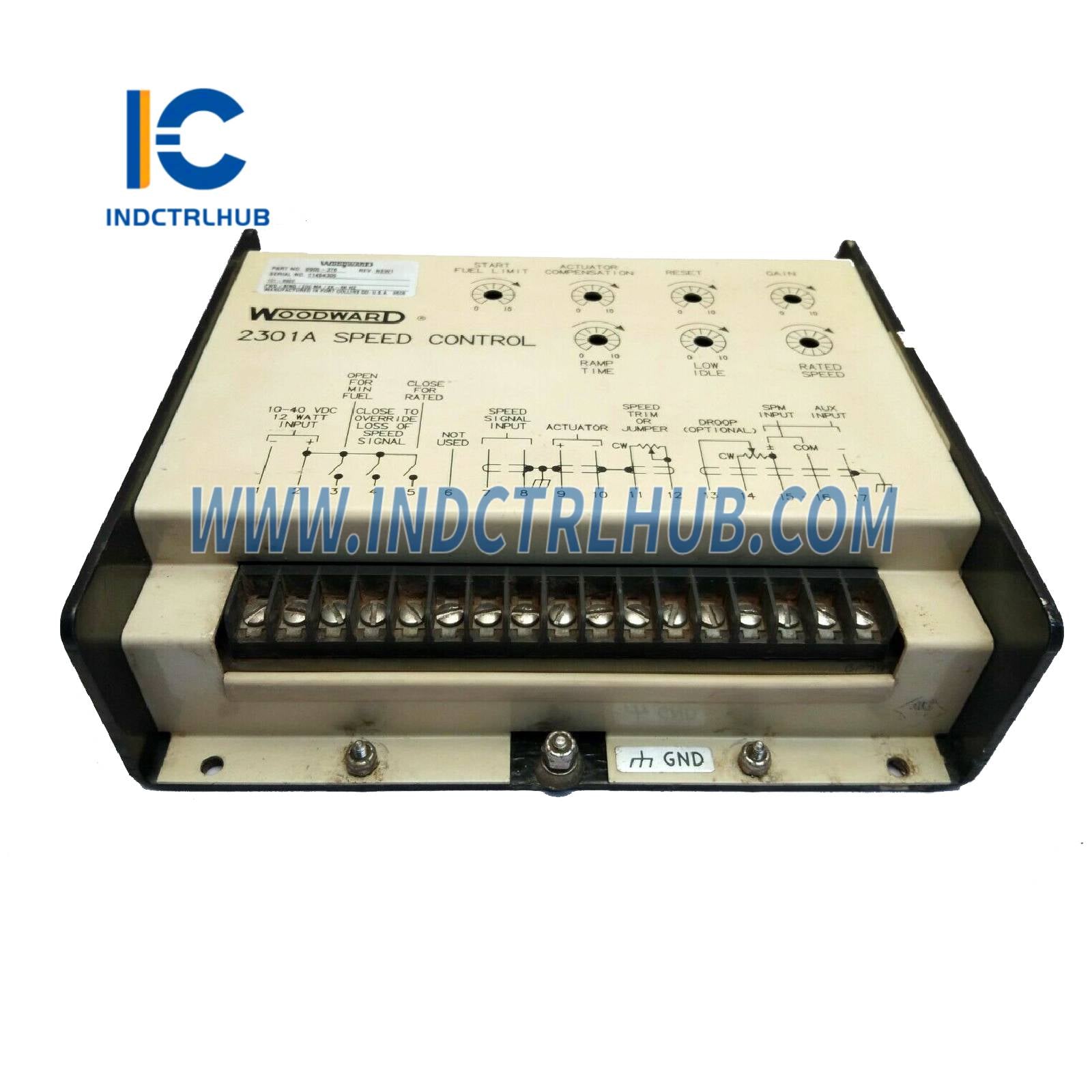

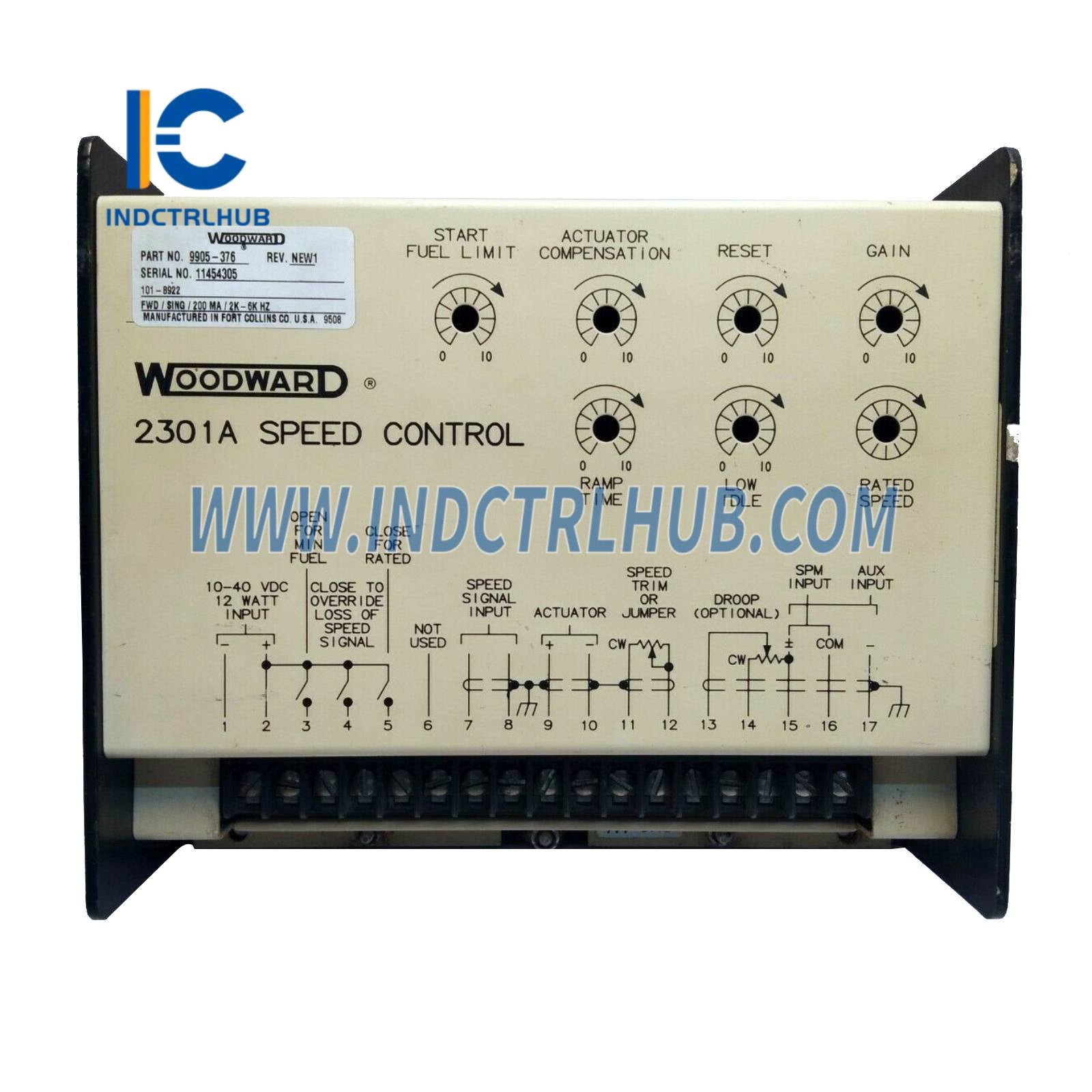

2301A Load Sharing and Speed Control |
| Type |
Electronic speed and load sharing control |
| Power Supply |
20–40 VDC, < 15 W nominal |
| Actuator Current |
0–200 mA |
| Action |
Forward acting |
| Speed Sensor |
Magnetic Pickup Unit (MPU), 100–300 Ω impedance |
| Speed Range |
Switch-selectable: 500–1500 Hz, 1000–3000 Hz, 2000–6000 Hz, 4000–12,000 Hz |
| Control Modes |
Isochronous (constant speed) or droop (via external potentiometer) |
| Load Sharing Signal |
0–6 VDC |
| Current Transformer (CT) Input |
5 A, 2.5–7 VA burden |
| Operating Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Storage Temperature |
-55°C to +105°C (-67°F to +221°F) |
| Relative Humidity |
5% to 95%, non-condensing |
| Vibration |
4 G, 5–500 Hz |
| Shock |
20 G peak |
| Protection Rating |
Not specified (designed for control cabinet use) |
| Dimensions |
387 mm x 181 mm x 64 mm (15.25 in x 7.125 in x 2.5 in) |
| Weight |
Approximately 1.8 kg (4 lbs) |
| Mounting |
Rack or panel mount, sheet-metal chassis |
| Terminals |
Screw clamp terminals |
| Certifications |
CE, suitable for ordinary locations |
| System Compatibility |
Diesel/gas engines, steam/gas turbines, Woodward EG, EGB, PB, TM, 2301 actuators, SPM-A synchronizers, AGLC, APTL controls |
