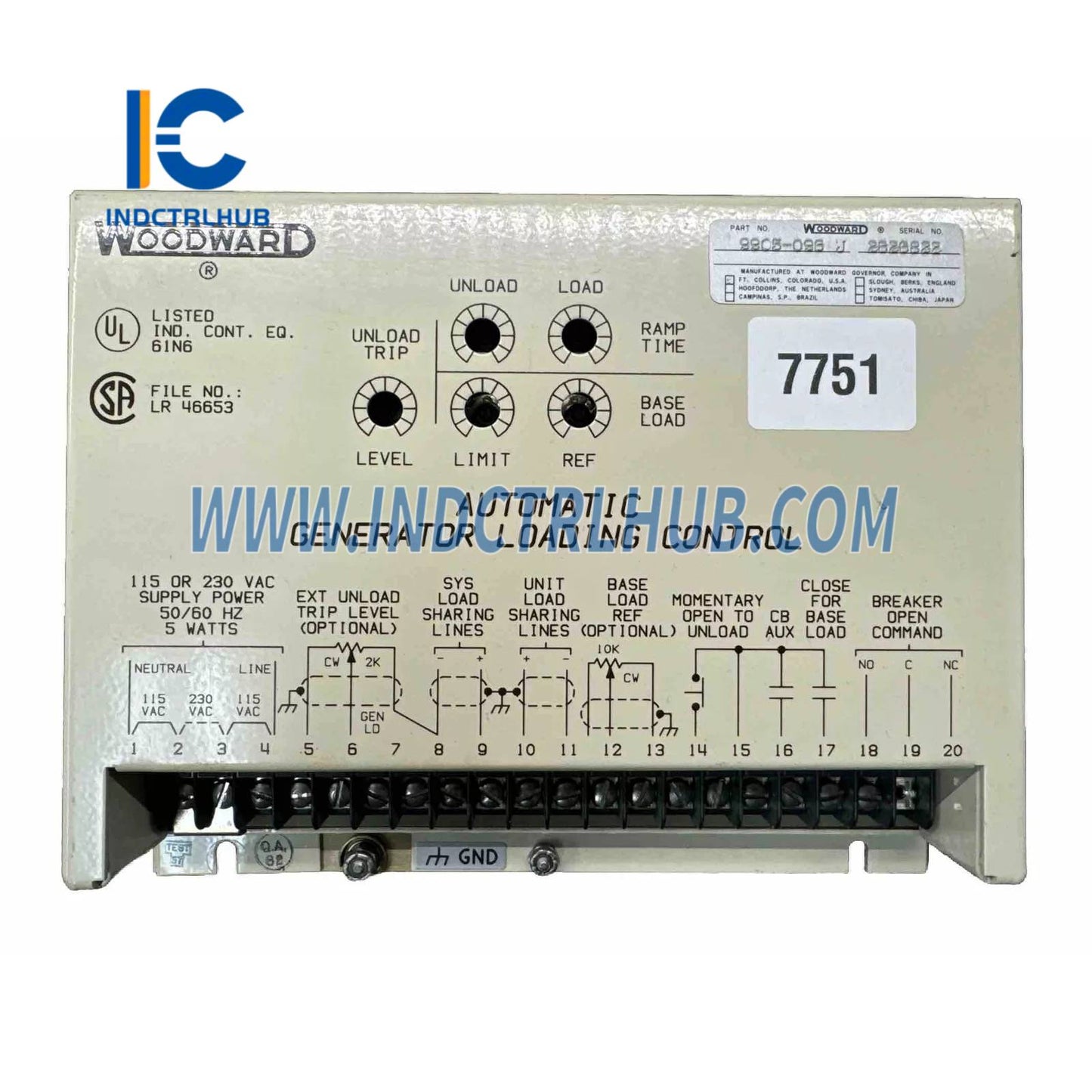

Woodward 9905-096 AGLC Automatic Generator Loading Control

Woodward 9905-096 AGLC Automatic Generator Loading Control

  • Manufacturer: Woodward

  • Product No.: 9905-096

  • Condition:1000 in stock

  • Product Type: AGLC Automatic Generator Loading Control

  • Product Origin: USA

  • Payment: T/T, Western Union

  • Weight: 1020g

  • Shipping port: Xiamen

  • Warranty: 12 months

  • 24/7 Support
  • 30-Day Returns
  • Fast Shipping

Woodward 9905-096 AGLC Automatic Generator Loading Control

  • Manufacturer: Woodward
  • Model/Part Number: 9905-096
  • Description: AGLC Automatic Generator Loading Control, 170–264 VAC, 50/60 Hz, for Baseload Control of 1–15 Generator Sets

Overview

  • The Woodward 9905-096 is an Automatic Generator Loading Control (AGLC) designed to automate soft loading and unloading of generator sets in load-sharing systems. It ensures bumpless power transitions, reducing equipment stress and maintaining stability during load changes. It is suitable for power generation plants, industrial facilities, backup power systems, and marine applications managing up to 15 generators.

Technical Specifications

Specification Details
Model 9905-096
Series AGLC
Type Automatic generator loading control
Input Voltage 170–264 VAC, 50/60 Hz
Power Consumption 5 VA
Generator Capacity Controls up to 15 generator sets
Control Signals Analog and digital
Features Breaker open contact, adjustable baseload, maximum load limit, adjustable electronic ramps, load sequencing, load shedding
Cooling Passive air cooling
Chassis Metal
Operating Temperature -40°C to +85°C (-40°F to +185°F)
Storage Temperature -55°C to +105°C (-67°F to +221°F)
Vibration 4 G, 5–500 Hz
Shock 60 G
Dimensions 216 mm x 191 mm x 51 mm (8.5 in x 7.5 in x 2 in)
Weight 1.02 kg (2.25 lbs)
Mounting Panel mount
Certifications UL, CSA, CE
System Compatibility Woodward load-sharing systems (e.g., 2301A, SPM-A), generator sets with auxiliary circuit breakers



View full details

Product Description

Woodward 9905-096 AGLC Automatic Generator Loading Control

  • Manufacturer: Woodward
  • Model/Part Number: 9905-096
  • Description: AGLC Automatic Generator Loading Control, 170–264 VAC, 50/60 Hz, for Baseload Control of 1–15 Generator Sets

Overview

  • The Woodward 9905-096 is an Automatic Generator Loading Control (AGLC) designed to automate soft loading and unloading of generator sets in load-sharing systems. It ensures bumpless power transitions, reducing equipment stress and maintaining stability during load changes. It is suitable for power generation plants, industrial facilities, backup power systems, and marine applications managing up to 15 generators.

Technical Specifications

Specification Details
Model 9905-096
Series AGLC
Type Automatic generator loading control
Input Voltage 170–264 VAC, 50/60 Hz
Power Consumption 5 VA
Generator Capacity Controls up to 15 generator sets
Control Signals Analog and digital
Features Breaker open contact, adjustable baseload, maximum load limit, adjustable electronic ramps, load sequencing, load shedding
Cooling Passive air cooling
Chassis Metal
Operating Temperature -40°C to +85°C (-40°F to +185°F)
Storage Temperature -55°C to +105°C (-67°F to +221°F)
Vibration 4 G, 5–500 Hz
Shock 60 G
Dimensions 216 mm x 191 mm x 51 mm (8.5 in x 7.5 in x 2 in)
Weight 1.02 kg (2.25 lbs)
Mounting Panel mount
Certifications UL, CSA, CE
System Compatibility Woodward load-sharing systems (e.g., 2301A, SPM-A), generator sets with auxiliary circuit breakers
