Product Description

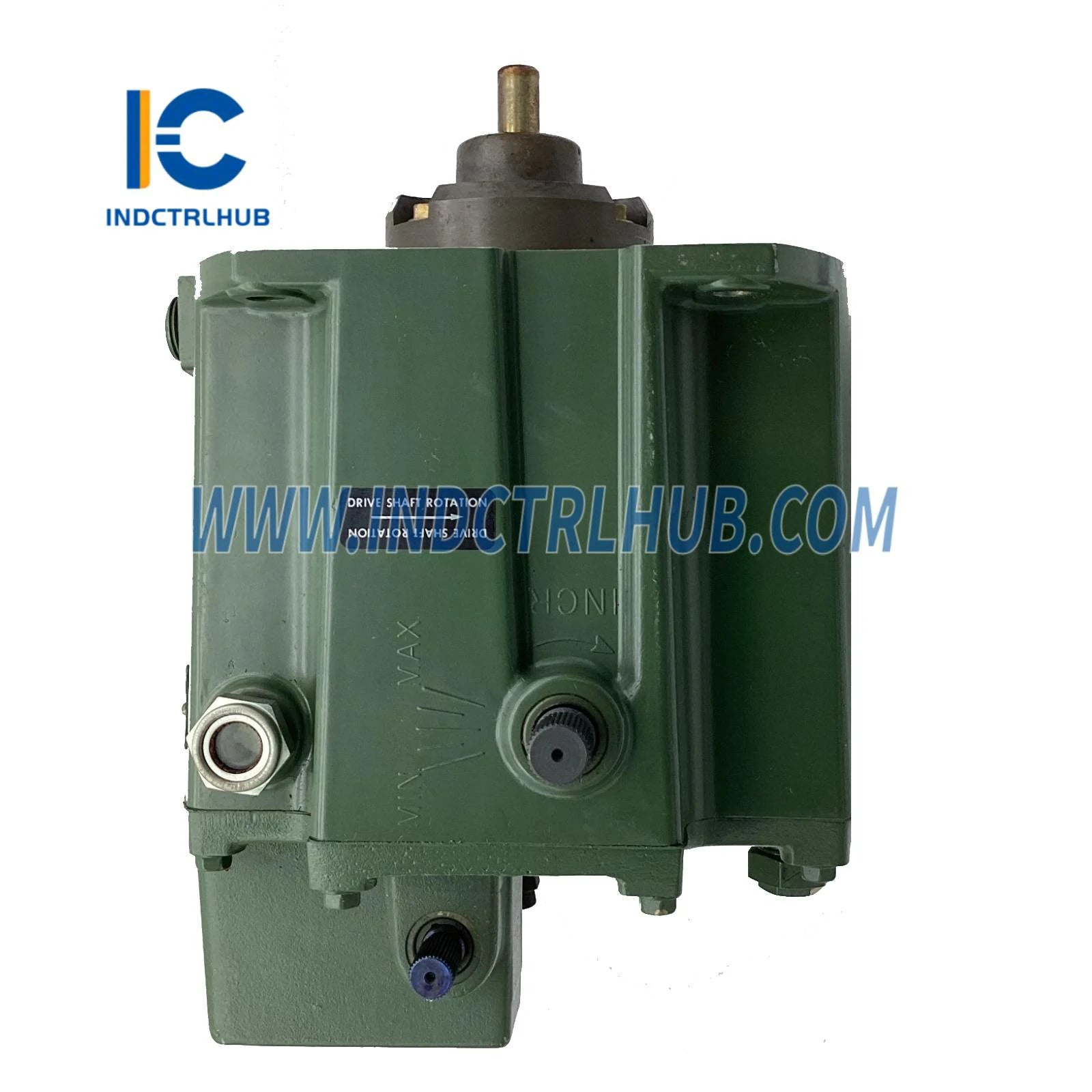

Woodward 8516-050 TG-13 Turbine Governor
Product Overview
- The Woodward 8516-050 is a TG-13 Turbine Governor, designed for precise speed control of small mechanical-drive steam turbines or turboexpanders in industrial applications such as power generation, oil and gas, and process industries. This mechanical-hydraulic governor is part of Woodward’s TG (Turbine Governor) series, providing reliable and responsive speed regulation for turbines driving pumps, compressors, or generators. The TG-13 model is a self-contained, lever-operated unit that uses hydraulic amplification to control turbine speed by adjusting the steam valve position, ensuring stable operation under varying load conditions. The 8516-050 is a specific variant of the TG-13, potentially featuring specific configurations, such as a particular speed range, output torque, or mounting options, compared to other TG-13 models. It is designed for rugged environments and offers simple, maintenance-friendly operation without requiring external power sources. The 8516-050 is distinct from Woodward’s electronic control systems, such as the EasyGen series (e.g., 8440-2179 EasyGen-3500XT, 8440-2050 EasyGen-3200-5), EGCP-3 series (e.g., 8444-1082), SPM-D2 series (e.g., 8446-1048), 2301D/E series (e.g., 8273-1011), 505D series (e.g., 8200-1300), Peak150 series (e.g., 8200-176), ProAct series (e.g., 8237-2595), 723PLUS series (e.g., 8270-1013), EPG systems (e.g., 8290-195), electronic governors (e.g., 8406-121), and actuators (e.g., 8408-921), focusing on mechanical-hydraulic speed control for small steam turbines.
Technical Specifications
- The 8516-050 has the following specifications based on industry sources and Woodward documentation:
| Specification | Details |
|---|---|
| Model/Part Number | 8516-050 |
| Manufacturer | Woodward |
| Description | TG-13 Turbine Governor for Steam Turbines |
| Series | TG |
| Function | Controls speed of small steam turbines or turboexpanders by adjusting steam valve position |
| Type | Mechanical-hydraulic, lever-operated |
| Speed Range | Configurable, typically 2,000–6,000 RPM (specific range for 8516-050 may vary) |
| Output Torque | Up to 13 ft-lb (17.6 Nm) at governor output shaft |
| Control Mechanism | Hydraulic amplification with flyweight governor; lever output for steam valve control |
| Inputs | Mechanical speed input via drive shaft (1/2-inch keyed or splined shaft) |
| Outputs | Mechanical lever output (connected to steam valve linkage) |
| Communication Interfaces | None (mechanical-hydraulic system) |
| Control Modes | Droop speed control; optional isochronous control with additional accessories |
| Redundancy | Non-redundant |
| Diagnostics | Visual inspection of mechanical components; no electronic diagnostics |
| Compatibility | Compatible with small steam turbines or turboexpanders (e.g., Elliott, Dresser-Rand, Siemens); interfaces with standard steam valve linkages; can be paired with Woodward actuators for enhanced control |
| Power Supply | Self-contained; uses turbine-driven oil pump (no external power required) |
| Oil Supply | Integral oil reservoir; requires clean, non-corrosive oil (SAE 10–30, 0.2–0.4 liters) |
| Environmental Specifications | Operating Temperature: -40°C to +93°C (-40°F to +200°F) Storage Temperature: -40°C to +105°C (-40°F to +221°F) Relative Humidity: 0% to 95% non-condensing Vibration: MIL-STD-810 compliant Shock: MIL-STD-810 compliant |
| Enclosure | IP56 (dust and water-resistant, when properly installed) |
| Dimensions | Approx. 200 mm (H) x 150 mm (W) x 130 mm (D) |
| Weight | Approx. 5–7 kg (11–15 lb) |
| Mounting | Flange-mounted to turbine casing or baseplate |
| Certifications | CE, marine certifications (e.g., DNV, ABS, Lloyd’s Register, configuration-dependent); ATEX/IECEx Zone 1 or 2 (optional with specific configurations) |
