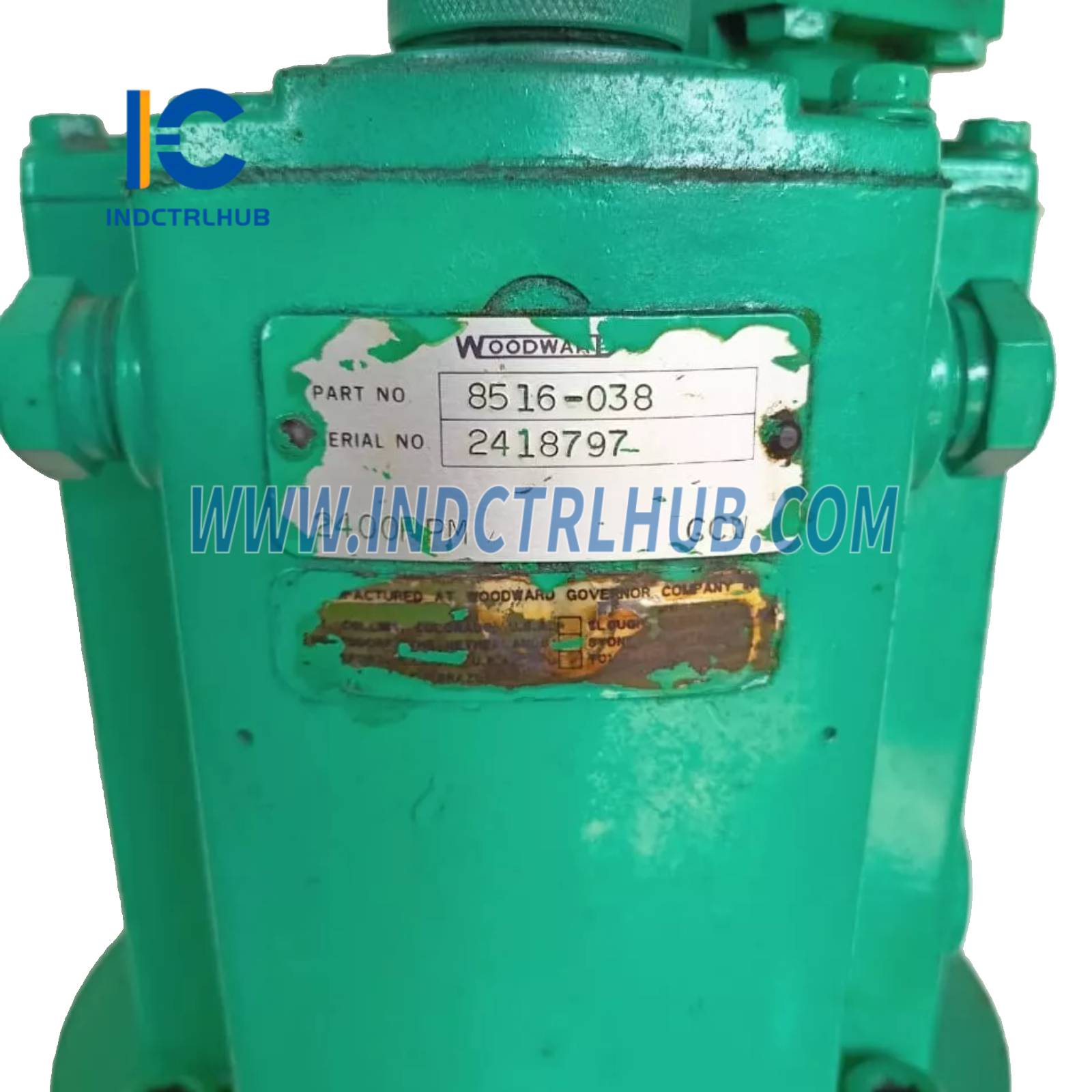

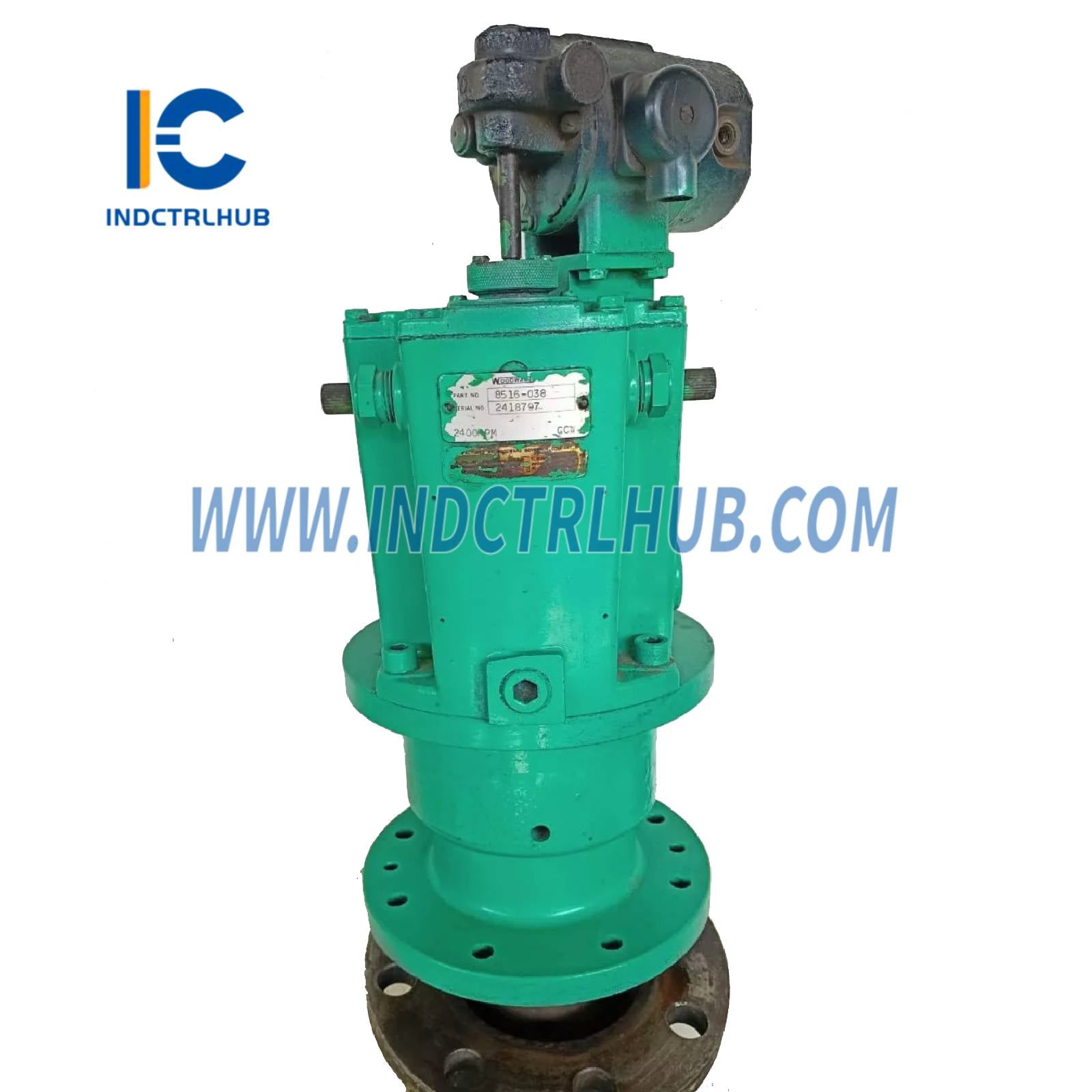

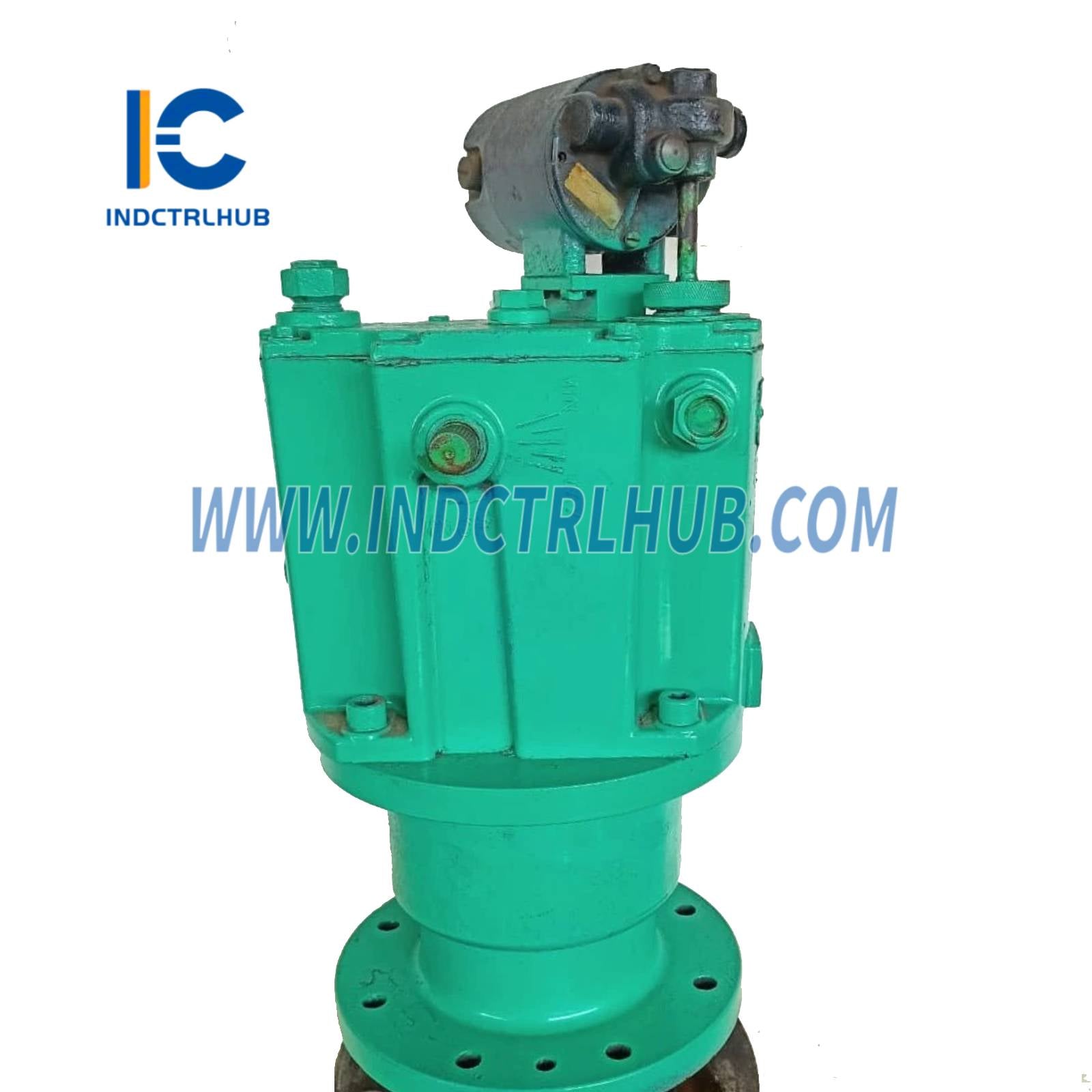

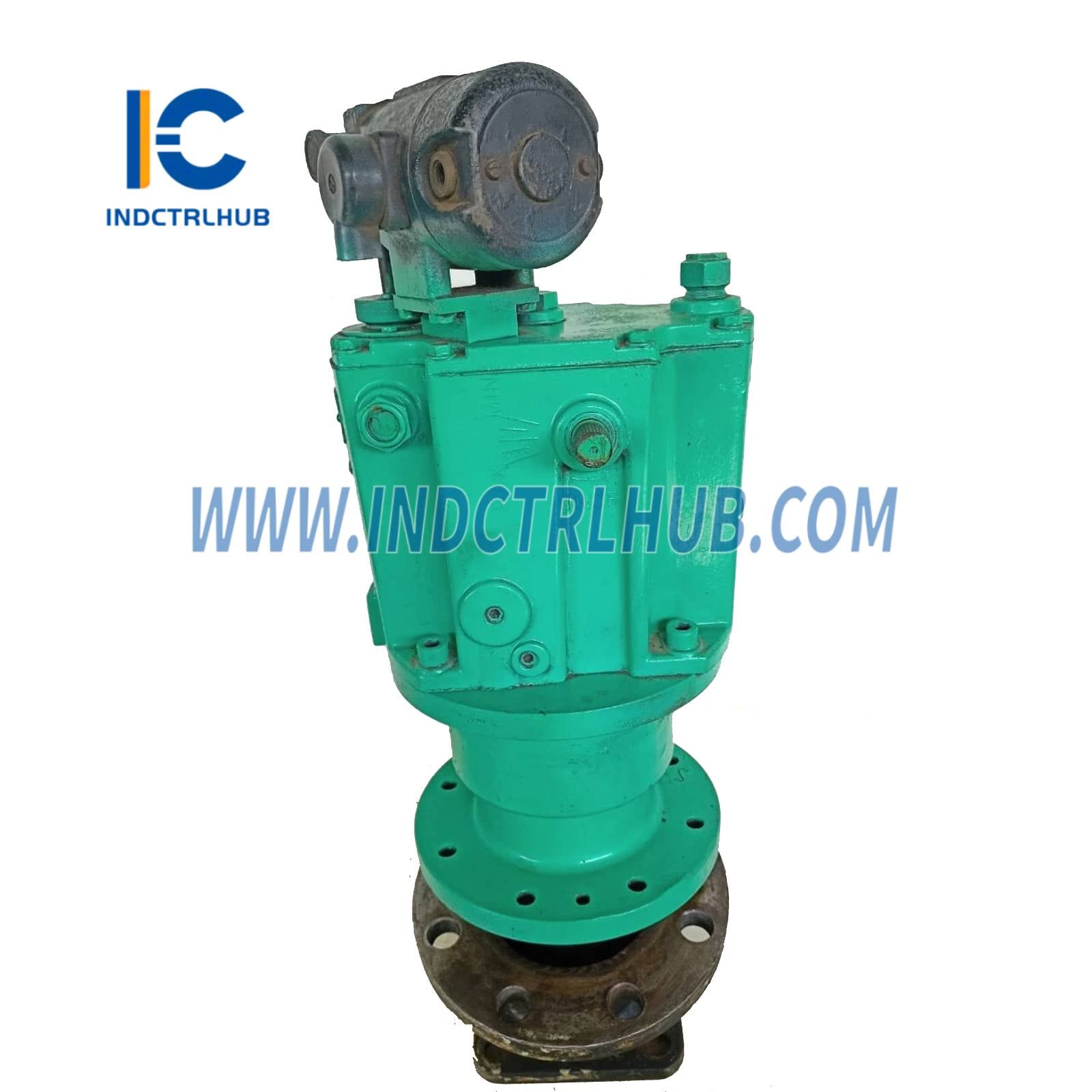

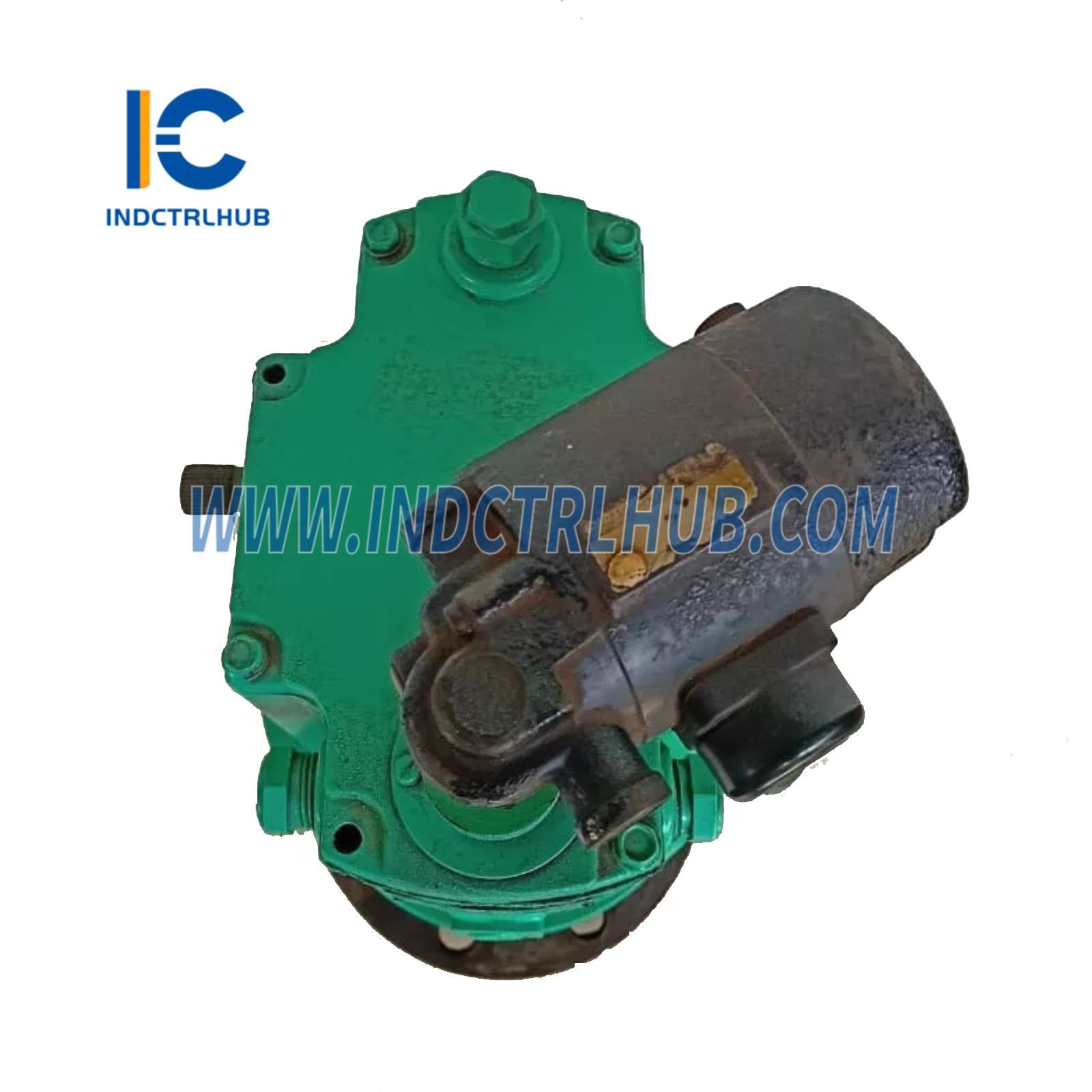

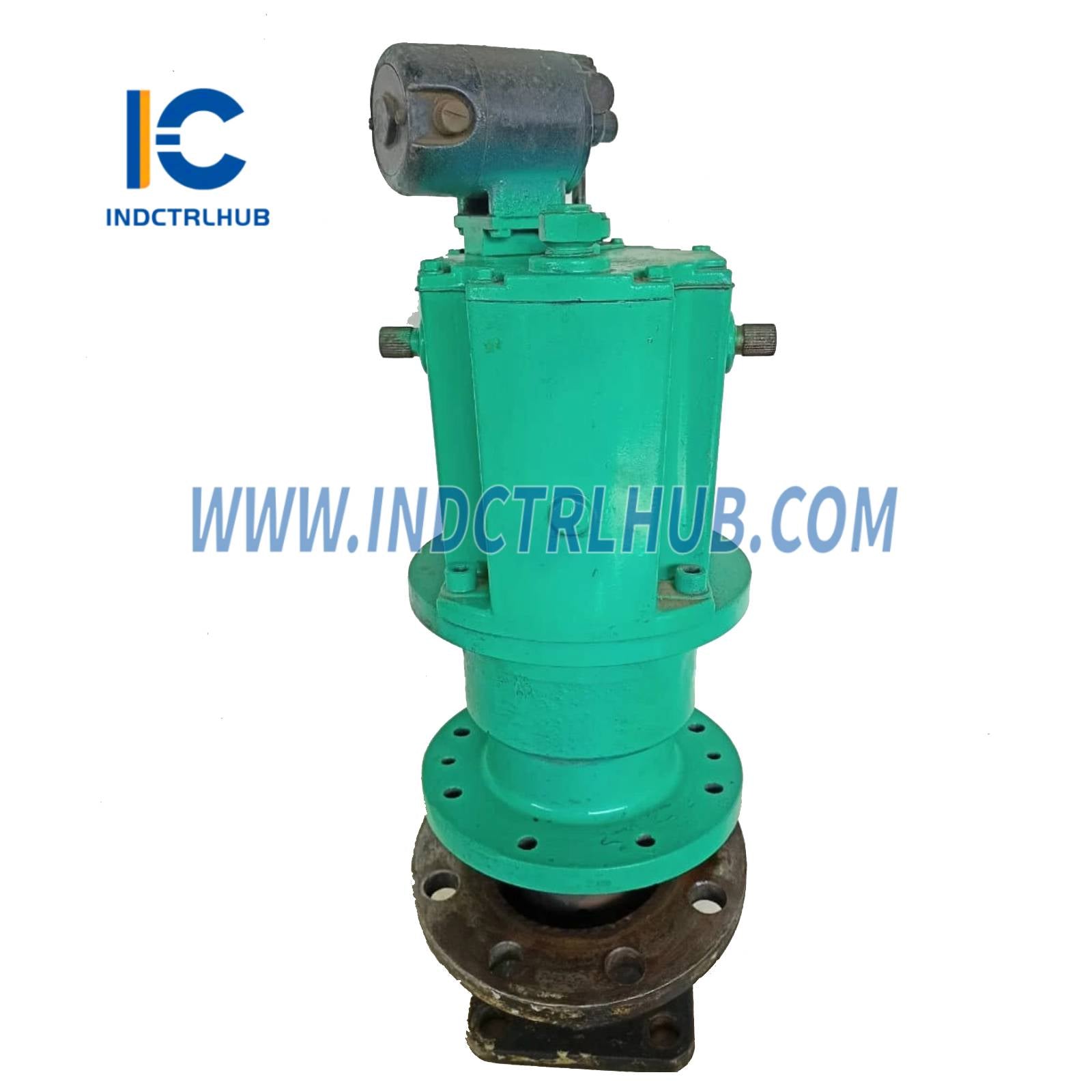

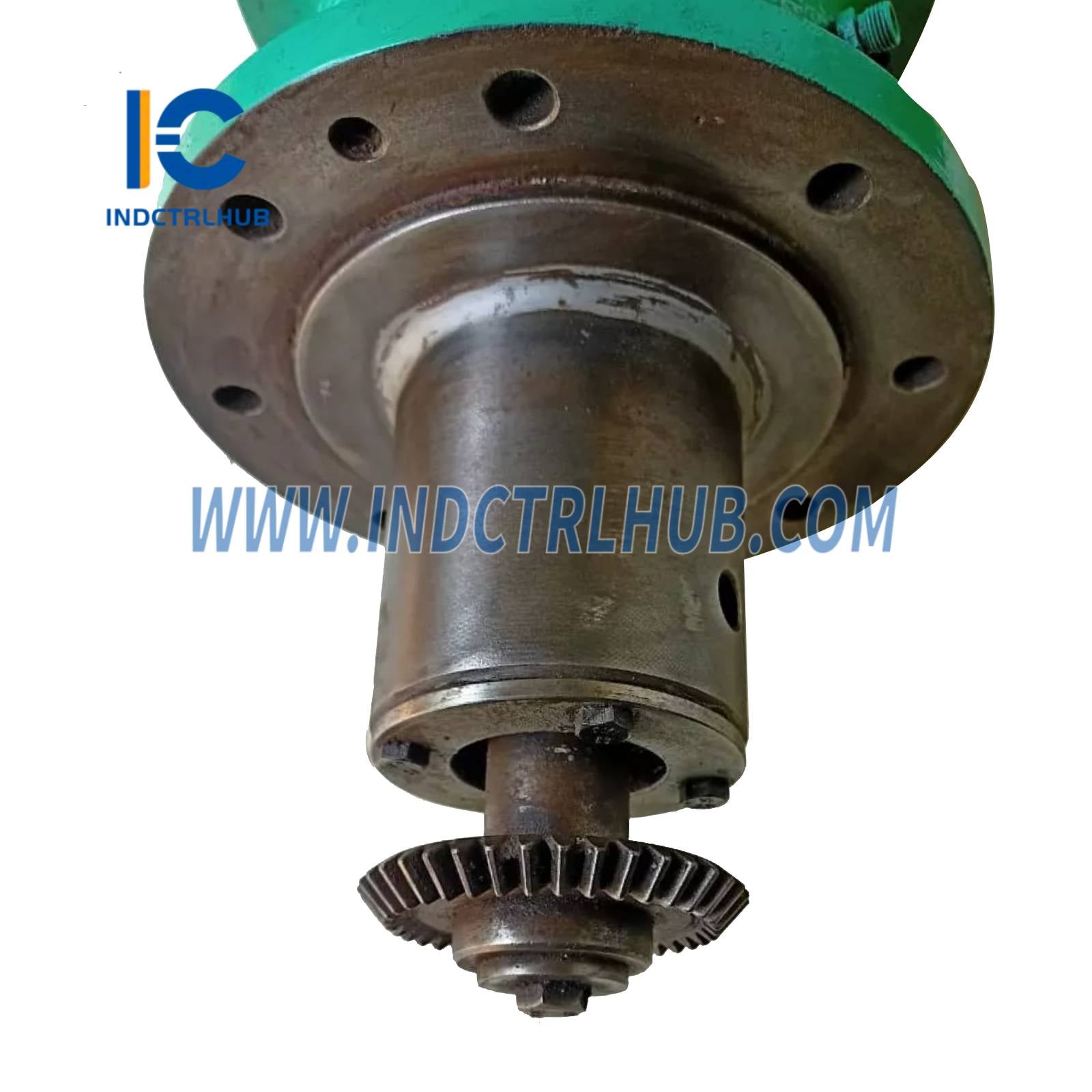

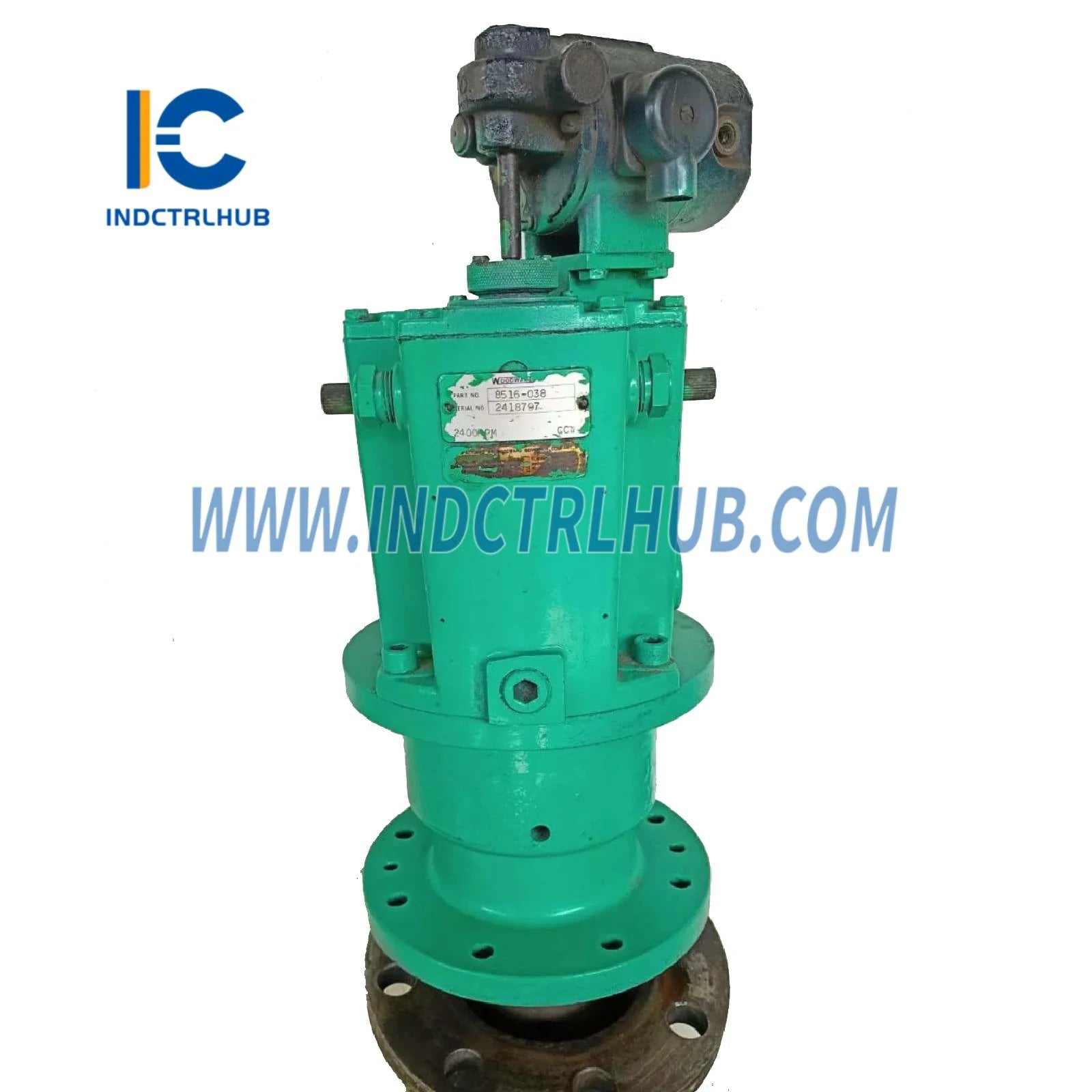

Woodward 8516-038 TG-13 Turbine Governor
Woodward 8516-038 TG-13 Turbine Governor
Manufacturer: Woodward
Product No.: 8516-038
Condition:1000 in stock
Product Type: TG-13 Turbine Governor
Product Origin: USA
Payment: T/T, Western Union
Weight: 12700g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Woodward 8516-038 TG-13 Turbine Governor
- Manufacturer: Woodward
- Model/Part Number: 8516-038
- Description: TG-13 Mechanical-Hydraulic Speed Droop Governor, 1200_2400 RPM, 2010 RPM Rated Speed Droop at 2°, Counterclockwise Drive Shaft, 16 N·m (12 ft-lb) Output, for API611 Steam Turbines
Overview
- The Woodward 8516-038 is a TG-13 mechanical-hydraulic speed droop governor designed for API611 steam turbines driving pumps, compressors, or generators where isochronous (constant-speed) operation is not required. It controls turbine speed by sensing rotor speed and adjusting inlet steam flow, offering a cost-effective, robust solution for industrial applications in power generation and mechanical drives.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 8516-038 (TG-13) |
| Type | Mechanical-Hydraulic Speed Droop Governor |
| Speed Range | 1200_2400 RPM |
| Rated Speed Droop | 2010 RPM at 2° |
| Drive Shaft Rotation | Counterclockwise |
| Output Torque | 16 N·m (12 ft-lb) |
| Construction | Die-cast aluminum, weatherproof |
| Oil Supply | Self-contained sump, NEMA A |
| Operating Temperature | -40°C to +93°C (-40°F to +200°F) (estimated, based on Woodward standards) |
| Storage Temperature | -55°C to +105°C (-67°F to +221°F) (estimated) |
| Relative Humidity | 5% to 95%, non-condensing |
| Vibration | 4 G, 5_500 Hz |
| Shock | 20 G peak |
| Protection Rating | IP56 (weatherproof, estimated) |
| Weight | 12.7 kg (28 lb) |
| Mounting | Direct turbine mounting |
| Certifications | ATEX, HAZLOC |
| System Compatibility | API611 steam turbines, Woodward governor valves |
| Replaced By | 8516-175 (with Overspeed Test Device, OTSD), 9904-814 (without OTSD) |
_
